KP30-D (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )

Click highlighted areas on diagram

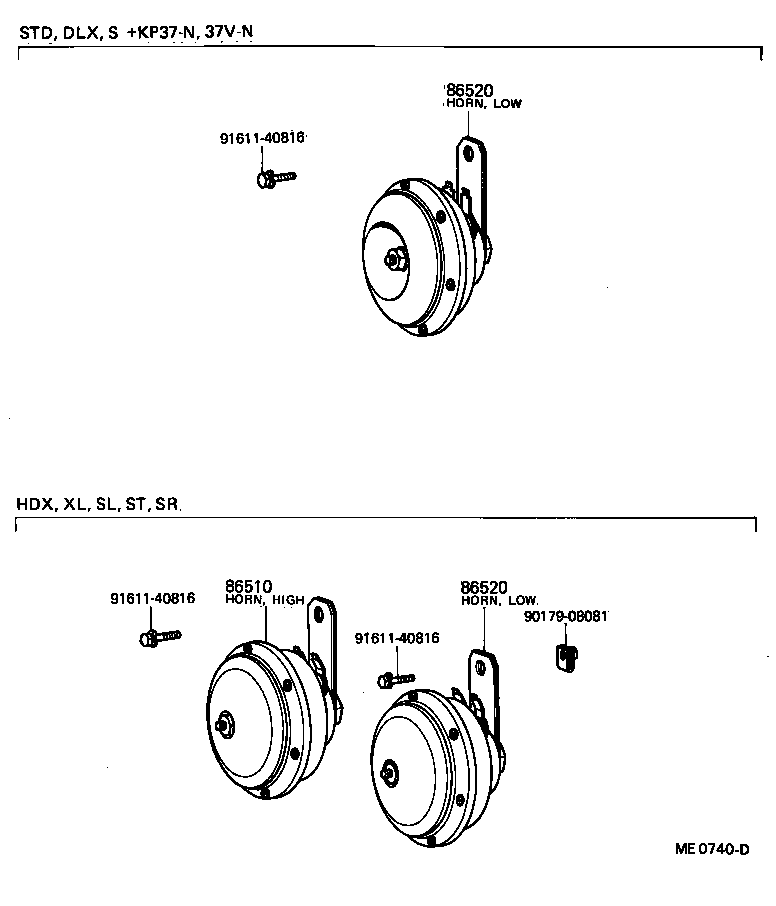

diagram 86510 86520 86520 9017908081 9161140816 9161140816 9161140816
Part # Description Qty Price
86520 - HORN ASSY, LOW PITCHED
86520-10030

KP3#,UP3#..DLX,STD

 1
86520-20090

KP37;KP30,31,36..DLX,S,STD

 1
86520 - HORN ASSY, LOW PITCHED
86520-10030

KP3#,UP3#..DLX,STD

 1
86520-20090

KP37;KP30,31,36..DLX,S,STD

 1
Common parts
90179-08081
91611-40816
