KP30-D (1969)
Toyota Publica
ILLUST NO. 1 OF 4(6904- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-22010 |
KB,2K,3K,3KB#,2UC..KP3#,UP3# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-12010 |
KP3#,50 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12020 |
KP3#,UP3# |
1 | ||
| 83530-10020 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 83530-10020 |
KP3#,UP3# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12011 |
KP3#..4F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12011 |
KP3#..4F |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90461-06063 | ||||
| 90463-15617 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8202 | ||||

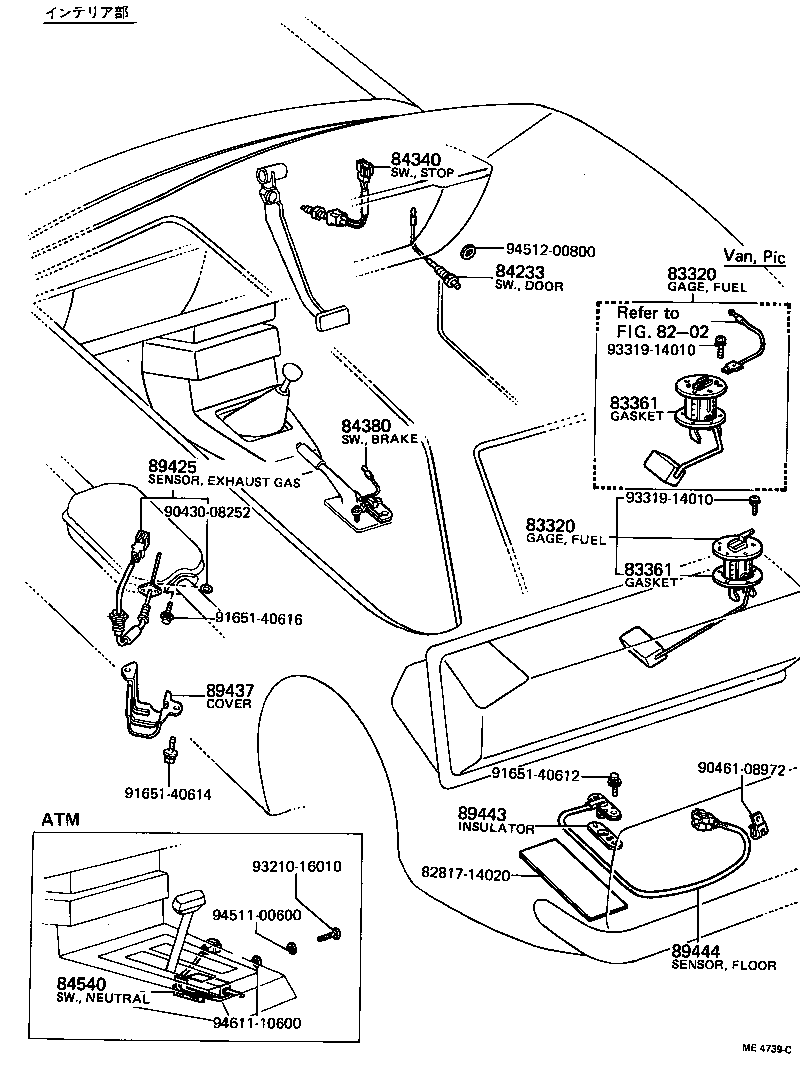

ILLUST NO. 4 OF 4(6904- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19095 |
KP30,31,UP30 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19095 |
KP30,31,UP30 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
KP3#,50,UP3# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
KP3#,50,UP3# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-20020 |
KP3#,UP3#..DLX,HDX,ST,XL |
2 | ||
| 84230-12010 |
KP3#,UP3#..DLX,SL |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-10012 |
KP3# |
1 | ||
| 84340-10012 |
KP30,31,36,UP3#..DLX,HDX,S,SL,SR,STD |
1 | ||
| 84340-10013 |
KP3# |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-12010 |
KP30,31..HDX,S,SR |
1 | ||
| Common parts | ||||
| 82817-14020 | ||||
| 90430-08252 | ||||
| 90461-08972 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 93210-16010 | ||||
| 93319-14010 | ||||
| 94511-00600 | ||||
| 94512-00800 | ||||
| 94611-10600 | ||||
| Linked diagrams | ||||
| 8202 | ||||

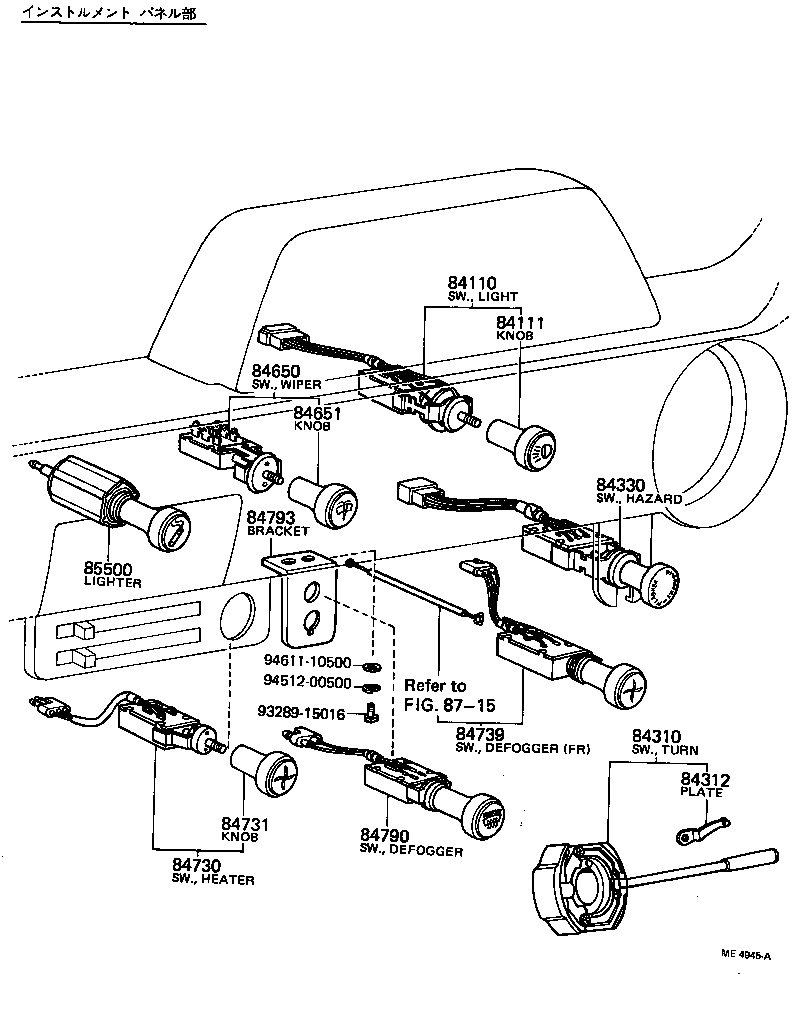

ILLUST NO. 2 OF 4(6904-7010)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84110-10030 |
KP3#,UP3# |
1 | ||
| 84110-10032 |
KP3#,UP3# |
1 | ||
| 84112-10020 |
KP3# |
1 | ||
| 84110-10033 |
KP3# |
1 | ||
| 84110-10031 |
KP3#,UP3# |
1 | ||
| 84111 - KNOB, LIGHT CONTROL SWITCH | ||||
| 84111-10030 |
KP3#,UP3# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-10170 |
KP3#,UP3#..SED,V |
1 | ||
| 84310-10171 |
KP3#,UP3#..SED,V |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-10021 |
KP3#,UP3# |
1 | ||
| 84312-10020 |
KP3#,UP3# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84330-10011 |
KP3#,UP3# |
1 | ||
| 84330-10010 |
KP3#,UP3# |
1 | ||
| 84330-10012 |
KP3# |
1 | ||
| 84332-10020 |
KP3# |
1 | ||
| 84332-10021 |
KP3# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84650-10040 |
KP3#,UP3#..DLX,SL |
1 | ||
| 84650-10041 |
KP3#..DLX,HDX,XL |
1 | ||
| 84652-10020 |
KP3#..DLX,HDX,XL |
1 | ||
| 84650-10041 |
KP3#,UP3#..DLX,HDX,SR |
1 | ||
| 84651 - KNOB, WINDSHIELD WIPER SWITCH | ||||
| 84651-10031 |
KP3#,UP3#..DLX,HDX,SR,ST,XL |
1 | ||
| 84651-10030 |
KP3#,UP3#..DLX,SL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-10031 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 84730-10030 |
KP3# |
1 | ||
| 84730-10031 |
KP3# |
1 | ||
| 84732-10020 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-10011 |
KP3# |
1 | ||
| 84731-10010 |
KP3# |
1 | ||
| 84731-10011 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-10030 |
KP3#,UP3# |
1 | ||
| Common parts | ||||
| 93289-15016 | ||||
| 94512-00500 | ||||
| 94611-10500 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 2 OF 4(7010-7303)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84110-10030 |
KP3#,UP3# |
1 | ||
| 84110-10032 |
KP3#,UP3# |
1 | ||
| 84112-10020 |
KP3# |
1 | ||
| 84110-10033 |
KP3# |
1 | ||
| 84110-10031 |
KP3#,UP3# |
1 | ||
| 84111 - KNOB, LIGHT CONTROL SWITCH | ||||
| 84111-10030 |
KP3#,UP3# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-10170 |
KP3#,UP3#..SED,V |
1 | ||
| 84310-10171 |
KP3#,UP3#..SED,V |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-10170 |
KP3#,UP3#..SED,V |
1 | ||
| 84310-10171 |
KP3#,UP3#..SED,V |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-10021 |
KP3#,UP3# |
1 | ||
| 84312-10020 |
KP3#,UP3# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84330-10011 |
KP3#,UP3# |
1 | ||
| 84330-10010 |
KP3#,UP3# |
1 | ||
| 84330-10012 |
KP3# |
1 | ||
| 84332-10020 |
KP3# |
1 | ||
| 84332-10021 |
KP3# |
1 | ||
| 84331 - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-10010 |
KP3#,UP3# |
1 | ||
| 84331-10011 |
KP3# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-10050 |
KP3# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84650-10040 |
KP3#,UP3#..DLX,SL |
1 | ||
| 84650-10041 |
KP3#..DLX,HDX,XL |
1 | ||
| 84652-10020 |
KP3#..DLX,HDX,XL |
1 | ||
| 84650-10041 |
KP3#,UP3#..DLX,HDX,SR |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84650-10040 |
KP3#,UP3#..DLX,SL |
1 | ||
| 84650-10041 |
KP3#..DLX,HDX,XL |
1 | ||
| 84652-10020 |
KP3#..DLX,HDX,XL |
1 | ||
| 84650-10041 |
KP3#,UP3#..DLX,HDX,SR |
1 | ||
| 84651 - KNOB, WINDSHIELD WIPER SWITCH | ||||
| 84651-10031 |
KP3#,UP3#..DLX,HDX,SR,ST,XL |
1 | ||
| 84651-10030 |
KP3#,UP3#..DLX,SL |
1 | ||
| 84651 - KNOB, WINDSHIELD WIPER SWITCH | ||||
| 84651-10031 |
KP3#,UP3#..DLX,HDX,SR,ST,XL |
1 | ||
| 84651-10030 |
KP3#,UP3#..DLX,SL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-10031 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 84730-10030 |
KP3# |
1 | ||
| 84730-10031 |
KP3# |
1 | ||
| 84732-10020 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-10031 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 84730-10030 |
KP3# |
1 | ||
| 84730-10031 |
KP3# |
1 | ||
| 84732-10020 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-10011 |
KP3# |
1 | ||
| 84731-10010 |
KP3# |
1 | ||
| 84731-10011 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-10011 |
KP3# |
1 | ||
| 84731-10010 |
KP3# |
1 | ||
| 84731-10011 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-10030 |
KP3#,UP3# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-10030 |
KP3#,UP3# |
1 | ||
| Common parts | ||||
| 90160-40018 | ||||
| 93219-13010 | ||||
| 93319-15012 | ||||
| 93381-16016 | ||||
| 94511-00300 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 2 OF 4(7303- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84110-10030 |
KP3#,UP3# |
1 | ||
| 84110-10032 |
KP3#,UP3# |
1 | ||
| 84112-10020 |
KP3# |
1 | ||
| 84110-10033 |
KP3# |
1 | ||
| 84110-10031 |
KP3#,UP3# |
1 | ||
| 84111 - KNOB, LIGHT CONTROL SWITCH | ||||
| 84111-10030 |
KP3#,UP3# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-10170 |
KP3#,UP3#..SED,V |
1 | ||
| 84310-10171 |
KP3#,UP3#..SED,V |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84330-10011 |
KP3#,UP3# |
1 | ||
| 84330-10010 |
KP3#,UP3# |
1 | ||
| 84330-10012 |
KP3# |
1 | ||
| 84332-10020 |
KP3# |
1 | ||
| 84332-10021 |
KP3# |
1 | ||
| 84331 - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-10010 |
KP3#,UP3# |
1 | ||
| 84331-10011 |
KP3# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-10050 |
KP3# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84650-10040 |
KP3#,UP3#..DLX,SL |
1 | ||
| 84650-10041 |
KP3#..DLX,HDX,XL |
1 | ||
| 84652-10020 |
KP3#..DLX,HDX,XL |
1 | ||
| 84650-10041 |
KP3#,UP3#..DLX,HDX,SR |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84650-10040 |
KP3#,UP3#..DLX,SL |
1 | ||
| 84650-10041 |
KP3#..DLX,HDX,XL |
1 | ||
| 84652-10020 |
KP3#..DLX,HDX,XL |
1 | ||
| 84650-10041 |
KP3#,UP3#..DLX,HDX,SR |
1 | ||
| 84651 - KNOB, WINDSHIELD WIPER SWITCH | ||||
| 84651-10031 |
KP3#,UP3#..DLX,HDX,SR,ST,XL |
1 | ||
| 84651-10030 |
KP3#,UP3#..DLX,SL |
1 | ||
| 84651 - KNOB, WINDSHIELD WIPER SWITCH | ||||
| 84651-10031 |
KP3#,UP3#..DLX,HDX,SR,ST,XL |
1 | ||
| 84651-10030 |
KP3#,UP3#..DLX,SL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-10031 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 84730-10030 |
KP3# |
1 | ||
| 84730-10031 |
KP3# |
1 | ||
| 84732-10020 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-10031 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 84730-10030 |
KP3# |
1 | ||
| 84730-10031 |
KP3# |
1 | ||
| 84732-10020 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90179-10155 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-10011 |
KP3# |
1 | ||
| 84731-10010 |
KP3# |
1 | ||
| 84731-10011 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-10011 |
KP3# |
1 | ||
| 84731-10010 |
KP3# |
1 | ||
| 84731-10011 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-10030 |
KP3#,UP3# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-10030 |
KP3#,UP3# |
1 | ||
| Common parts | ||||
| 90160-40018 | ||||
| 93219-13010 | ||||
| 93315-14010 | ||||
| 93319-15012 | ||||
| 94511-00300 | ||||
| 94611-11000 | ||||

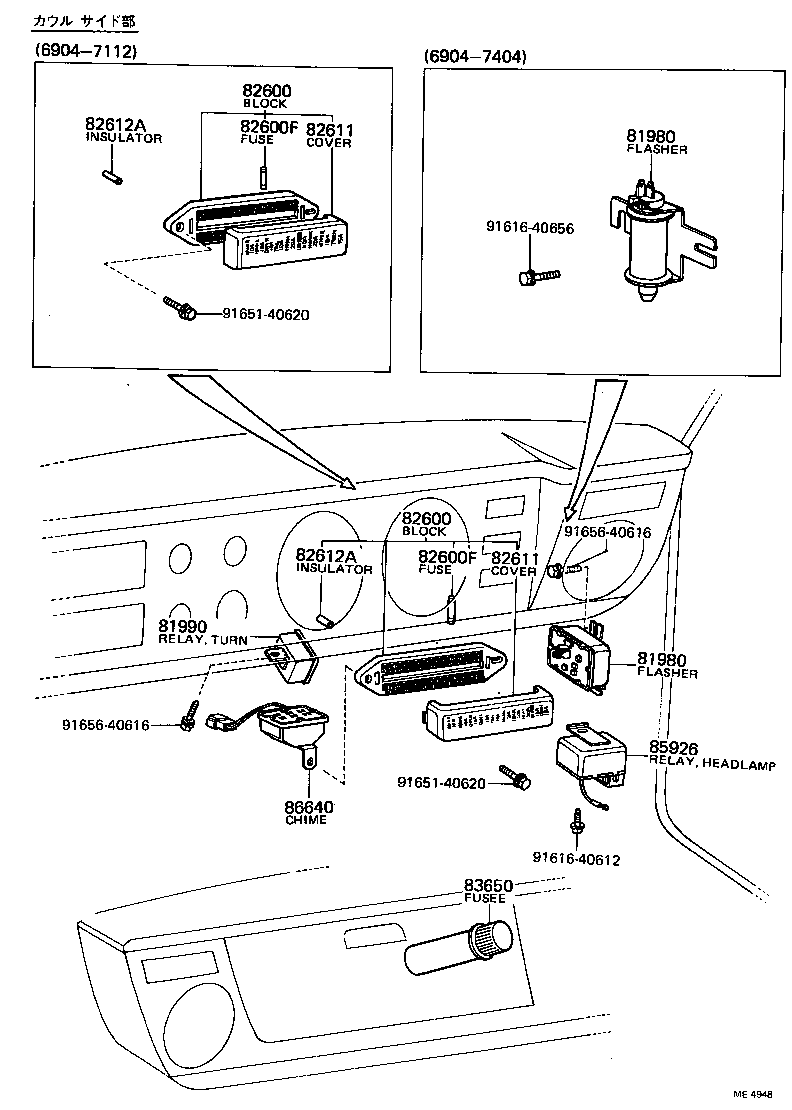

ILLUST NO. 3 OF 4(6904-7511)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-10050 |
KP3#,UP3# |
1 | ||
| 81980-11010 |
KP3# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-10050 |
KP3#,UP3# |
1 | ||
| 81980-11010 |
KP3# |
1 | ||
| 81990 - RELAY ASSY, TURN SIGNAL | ||||
| 81991-30020 |
KP3# |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-10020 |
KP3#,UP3# |
1 | ||
| 82600-20020 |
KP3#,UP3# |
1 | ||
| 82600-12902 |
KP3# |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-10020 |
KP3#,UP3# |
1 | ||
| 82600-20020 |
KP3#,UP3# |
1 | ||
| 82600-12902 |
KP3# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62910 |
KP3#,UP3# 10A |
6 | ||
| 99118-62920 |
KP3#,50,UP3# 20A,20A |
6 | ||
| 99118-62905 |
KP3#,UP3# 5A,5A |
1 | ||
| 99118-62915 |
KP3#,50,UP3# 15A,15A |
5 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62910 |
KP3#,UP3# 10A |
6 | ||
| 99118-62920 |
KP3#,50,UP3# 20A,20A |
6 | ||
| 99118-62905 |
KP3#,UP3# 5A,5A |
1 | ||
| 99118-62915 |
KP3#,50,UP3# 15A,15A |
5 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-10020 |
KP3#,UP3# |
1 | ||
| 82611-20020 |
KP3#,UP3# |
1 | ||
| 82611-20030 |
KP3# |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-10020 |
KP3#,UP3# |
1 | ||
| 82611-20020 |
KP3#,UP3# |
1 | ||
| 82611-20030 |
KP3# |
1 | ||
| 82612A - INSULATOR, FUSE BLOCK TERMINAL, B | ||||
| 82612-22020 |
KP3#,UP3# |
2 | ||
| 82612A - INSULATOR, FUSE BLOCK TERMINAL, B | ||||
| 82612-22020 |
KP3#,UP3# |
2 | ||
| 83650 - FUSEE | ||||
| 90986-01002 |
KP3#,UP3# |
1 | ||
| 90986-01001 |
KP3#,UP3# |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 81960-10021 |
KP3#,UP3# |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-10010 |
KP3# |
1 | ||
| 86640-10011 |
KP3# |
1 | ||
| Common parts | ||||
| 91616-40612 | ||||
| 91616-40656 | ||||
| 91651-40620 | ||||
| 91656-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
