KP30-D (1969)
Toyota Publica

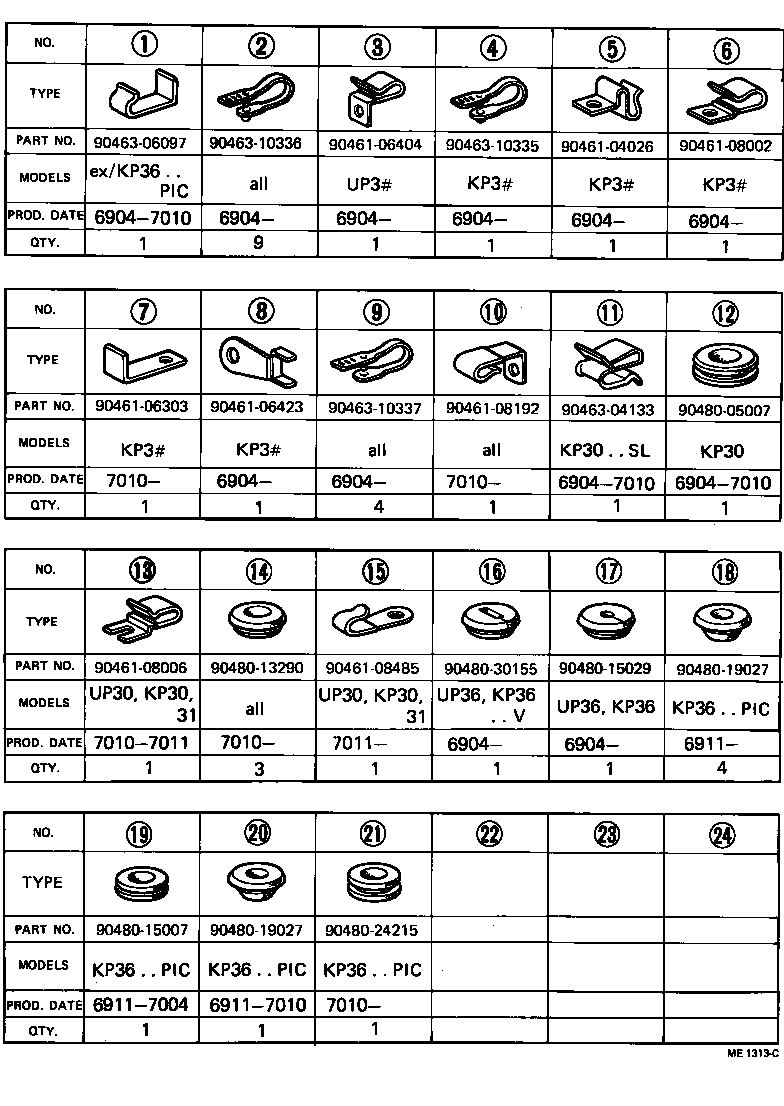

ILLUST NO. 2 OF 2(6904-7112)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-04026 | ||||
| 90461-06303 | ||||
| 90461-06404 | ||||
| 90461-06423 | ||||
| 90461-08002 | ||||
| 90461-08006 | ||||
| 90461-08192 | ||||
| 90461-08485 | ||||
| 90463-04133 | ||||
| 90463-06097 | ||||
| 90463-10335 | ||||
| 90463-10336 | ||||
| 90463-10337 | ||||
| 90480-05007 | ||||
| 90480-13290 | ||||
| 90480-15007 | ||||
| 90480-15029 | ||||
| 90480-19027 | ||||
| 90480-24215 | ||||
| 90480-30155 | ||||
ILLUST NO. 2 OF 2(7201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-04026 | ||||
| 90461-06303 | ||||
| 90461-06423 | ||||
| 90461-06645 | ||||
| 90461-08002 | ||||
| 90461-08008 | ||||
| 90461-08270 | ||||
| 90461-08746 | ||||
| 90461-08829 | ||||
| 90462-06008 | ||||
| 90463-04124 | ||||
| 90463-04388 | ||||
| 90463-06386 | ||||
| 90463-06387 | ||||
| 90463-08403 | ||||
| 90463-10336 | ||||
| 90463-10337 | ||||
| 90463-15067 | ||||
| 90463-15402 | ||||
| 90464-00052 | ||||
| 90480-13290 | ||||
| 90480-15029 | ||||
| 90480-15083 | ||||
| 90480-19027 | ||||
| 90480-30155 | ||||

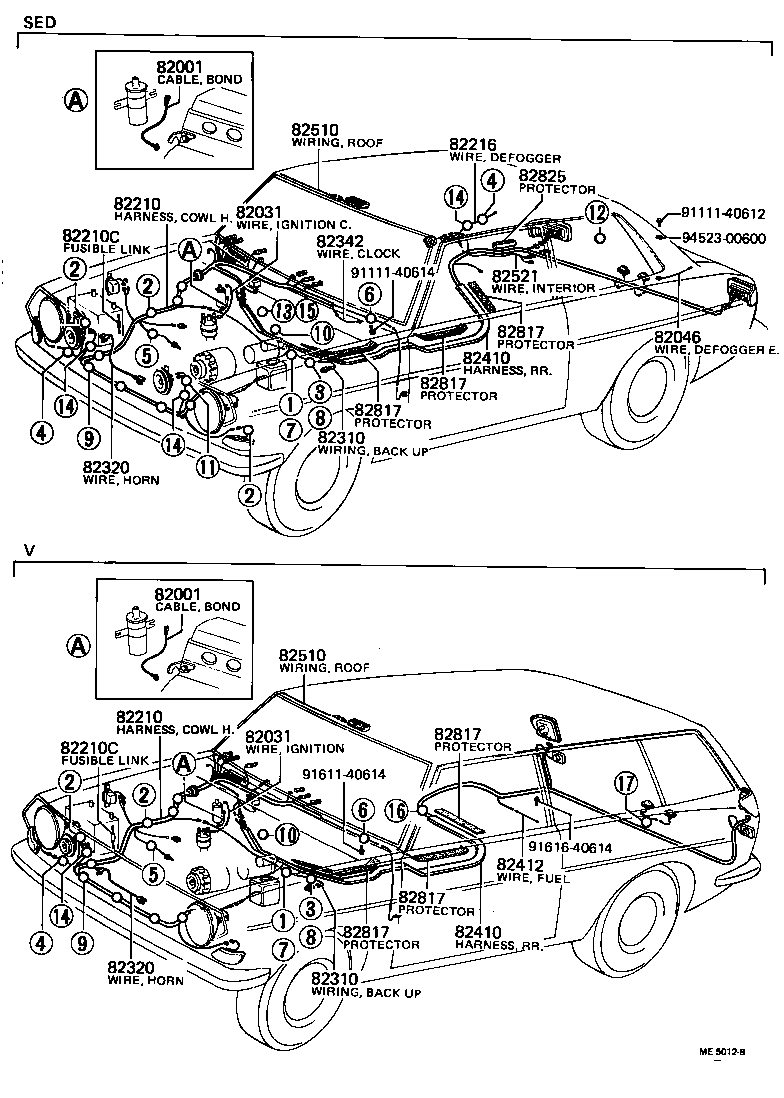

ILLUST NO. 1 OF 2(6904-7112)SED,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07015 |
KP3#,50 L=165 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07015 |
KP3#,50 L=165 |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-10010 |
KP3# |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-10010 |
KP3# |
1 | ||
| 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 | ||||
| 82210-10281 |
KP30,36..(SED,V)..4F..DLX |
1 | ||
| 82210-10280 |
KP3#..(SED,V)..4F..DLX |
1 | ||
| 82210-10451 |
KP36,37;KP30..4F..(DLX,STD) |
1 | ||
| 82210-10450 |
KP30..4F..DLX;KP36,37..DLX,HDX |
1 | ||
| 82210-10452 |
KP36,37;KP30..4F..(DLX,STD) |
1 | ||
| 82210-10453 |
KP36,37;KP30..4F..(DLX,STD) |
1 | ||
| 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 | ||||
| 82210-10281 |
KP30,36..(SED,V)..4F..DLX |
1 | ||
| 82210-10280 |
KP3#..(SED,V)..4F..DLX |
1 | ||
| 82210-10451 |
KP36,37;KP30..4F..(DLX,STD) |
1 | ||
| 82210-10450 |
KP30..4F..DLX;KP36,37..DLX,HDX |
1 | ||
| 82210-10452 |
KP36,37;KP30..4F..(DLX,STD) |
1 | ||
| 82210-10453 |
KP36,37;KP30..4F..(DLX,STD) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08012 |
KP3#,UP3# |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08012 |
KP3#,UP3# |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82310-10040 |
KP3#..4F |
1 | ||
| 82310-10041 |
KP3#..4F |
1 | ||
| 82310-10042 |
KP3#..4F |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82310-10040 |
KP3#..4F |
1 | ||
| 82310-10041 |
KP3#..4F |
1 | ||
| 82310-10042 |
KP3#..4F |
1 | ||
| 82320 - WIRE ASSY, TO HORN | ||||
| 88649-10010 |
KP3# |
1 | ||
| 88649-10020 |
KP3# |
1 | ||
| 88649-87101 |
KP3# |
1 | ||
| 88649-87101 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 82320 - WIRE ASSY, TO HORN | ||||
| 88649-10010 |
KP3# |
1 | ||
| 88649-10020 |
KP3# |
1 | ||
| 88649-87101 |
KP3# |
1 | ||
| 88649-87101 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 82342 - WIRE, CLOCK | ||||
| 82342-10040 |
KP30..4F..(DLX,HDX) |
1 | ||
| 82410 - HARNESS ASSY, WIRING TO REAR LAMP | ||||
| 82410-10121 |
KP30,31 |
1 | ||
| 82410-10080 |
KP30,UP30..DLX,STD |
1 | ||
| 82410-10081 |
KP30..DLX,STD |
1 | ||
| 82410 - HARNESS ASSY, WIRING TO REAR LAMP | ||||
| 82410-10121 |
KP30,31 |
1 | ||
| 82410-10080 |
KP30,UP30..DLX,STD |
1 | ||
| 82410-10081 |
KP30..DLX,STD |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82520-10030 |
KP30,31,36,UP3#..S,SR,STD |
1 | ||
| 82520-10040 |
KP3#,UP3#..DLX,HDX,SL,ST,XL |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82520-10030 |
KP30,31,36,UP3#..S,SR,STD |
1 | ||
| 82520-10040 |
KP3#,UP3#..DLX,HDX,SL,ST,XL |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10020 |
KP3#,50,UP3# L=750 |
1 | ||
| 82817-10030 |
KP3#,UP3# L=450 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10020 |
KP3#,50,UP3# L=750 |
1 | ||
| 82817-10030 |
KP3#,UP3# L=450 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10020 |
KP3#,50,UP3# L=750 |
1 | ||
| 82817-10030 |
KP3#,UP3# L=450 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10020 |
KP3#,50,UP3# L=750 |
1 | ||
| 82817-10030 |
KP3#,UP3# L=450 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10020 |
KP3#,50,UP3# L=750 |
1 | ||
| 82817-10030 |
KP3#,UP3# L=450 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10020 |
KP3#,50,UP3# L=750 |
1 | ||
| 82817-10030 |
KP3#,UP3# L=450 |
2 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82817-10040 |
KP30,31,UP30 L=150 |
1 | ||
| Common parts | ||||
| 91111-40612 | ||||
| 91111-40614 | ||||
| 91611-40614 | ||||
| 91616-40614 | ||||
| 94523-00600 | ||||
ILLUST NO. 1 OF 2(7201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07015 |
KP3#,50 L=165 |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-10010 |
KP3# |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-10010 |
KP3# |
1 | ||
| 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 | ||||
| 82210-10281 |
KP30,36..(SED,V)..4F..DLX |
1 | ||
| 82210-10280 |
KP3#..(SED,V)..4F..DLX |
1 | ||
| 82210-10451 |
KP36,37;KP30..4F..(DLX,STD) |
1 | ||
| 82210-10450 |
KP30..4F..DLX;KP36,37..DLX,HDX |
1 | ||
| 82210-10452 |
KP36,37;KP30..4F..(DLX,STD) |
1 | ||
| 82210-10453 |
KP36,37;KP30..4F..(DLX,STD) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08012 |
KP3#,UP3# |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82310-10040 |
KP3#..4F |
1 | ||
| 82310-10041 |
KP3#..4F |
1 | ||
| 82310-10042 |
KP3#..4F |
1 | ||
| 82320 - WIRE ASSY, TO HORN | ||||
| 88649-10010 |
KP3# |
1 | ||
| 88649-10020 |
KP3# |
1 | ||
| 88649-87101 |
KP3# |
1 | ||
| 88649-87101 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 82342 - WIRE, CLOCK | ||||
| 82342-10040 |
KP30..4F..(DLX,HDX) |
1 | ||
| 82410 - HARNESS ASSY, WIRING TO REAR LAMP | ||||
| 82410-10121 |
KP30,31 |
1 | ||
| 82410-10080 |
KP30,UP30..DLX,STD |
1 | ||
| 82410-10081 |
KP30..DLX,STD |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82520-10030 |
KP30,31,36,UP3#..S,SR,STD |
1 | ||
| 82520-10040 |
KP3#,UP3#..DLX,HDX,SL,ST,XL |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10020 |
KP3#,50,UP3# L=750 |
1 | ||
| 82817-10030 |
KP3#,UP3# L=450 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10020 |
KP3#,50,UP3# L=750 |
1 | ||
| 82817-10030 |
KP3#,UP3# L=450 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10020 |
KP3#,50,UP3# L=750 |
1 | ||
| 82817-10030 |
KP3#,UP3# L=450 |
2 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82817-10040 |
KP30,31,UP30 L=150 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 91611-40614 | ||||
ILLUST NO. 1 OF 2(7201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82410 - HARNESS ASSY, WIRING TO REAR LAMP | ||||
| 82410-10121 |
KP30,31 |
1 | ||
| 82410-10080 |
KP30,UP30..DLX,STD |
1 | ||
| 82410-10081 |
KP30..DLX,STD |
1 | ||
| 82410 - HARNESS ASSY, WIRING TO REAR LAMP | ||||
| 82410-10121 |
KP30,31 |
1 | ||
| 82410-10080 |
KP30,UP30..DLX,STD |
1 | ||
| 82410-10081 |
KP30..DLX,STD |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82520-10030 |
KP30,31,36,UP3#..S,SR,STD |
1 | ||
| 82520-10040 |
KP3#,UP3#..DLX,HDX,SL,ST,XL |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82520-10030 |
KP30,31,36,UP3#..S,SR,STD |
1 | ||
| 82520-10040 |
KP3#,UP3#..DLX,HDX,SL,ST,XL |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10020 |
KP3#,50,UP3# L=750 |
1 | ||
| 82817-10030 |
KP3#,UP3# L=450 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10020 |
KP3#,50,UP3# L=750 |
1 | ||
| 82817-10030 |
KP3#,UP3# L=450 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10020 |
KP3#,50,UP3# L=750 |
1 | ||
| 82817-10030 |
KP3#,UP3# L=450 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10020 |
KP3#,50,UP3# L=750 |
1 | ||
| 82817-10030 |
KP3#,UP3# L=450 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-10020 |
KP3#,50,UP3# L=750 |
1 | ||
| 82817-10030 |
KP3#,UP3# L=450 |
2 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 91616-40612 | ||||
ILLUST NO. 2 OF 2(7201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-06083 | ||||
| 90463-10335 | ||||
