KP30-D (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7112)KP30,31,UP30

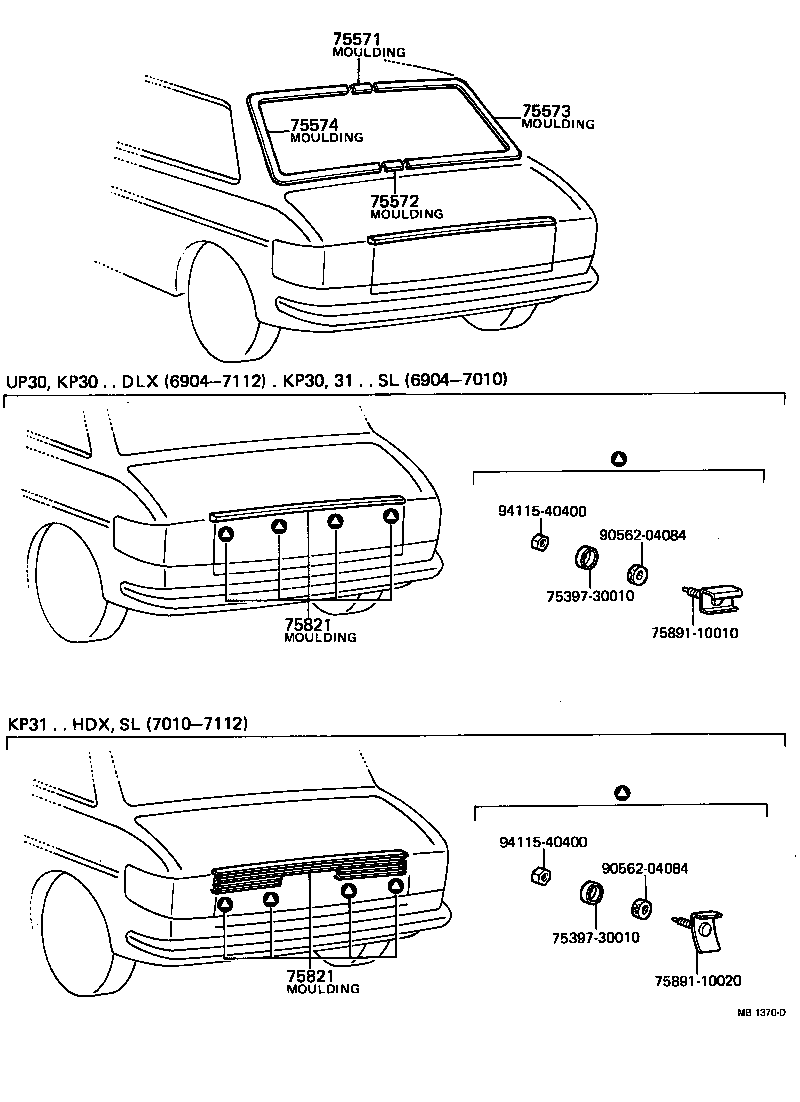

Click highlighted areas on diagram

diagram 7539730010 7539730010 75571 75572 75573 75574 75821 75821 7589110010 7589110020 9056204084 9056204084 9411540400 9411540400
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75536-10010

KP3#,UP3#..(SED,V)..(DLX,HDX,SL)

 1
75536-10010

KP3#..(SED,V)..(DLX,HDX,S,SR,ST,XL)

 1
75572 - MOULDING, BACK WINDOW, LOWER
75536-10010

KP3#,UP3#..(SED,V)..(DLX,HDX,SL)

 1
75575-10010

KP30,31..DLX,HDX,S,SR,ST,XL

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75571-10020

KP30,31..DLX,HDX,S,SR,ST,XL

 1
75572-10020

KP30,31,UP30..DLX,HDX,SL

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75573-10020

KP30,31,UP30..DLX,HDX,SL

 1
75572-10030

KP30,31..DLX,HDX,S,SR,ST,XL

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75801-19015

KP30,UP30..DLX

 1
75801-19015

KP30,UP30..DLX,SL

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75801-19015

KP30,UP30..DLX

 1
75801-19015

KP30,UP30..DLX,SL

 1
Common parts
75397-30010
75891-10010
75891-10020
90562-04084
94115-40400
