KP30-D (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

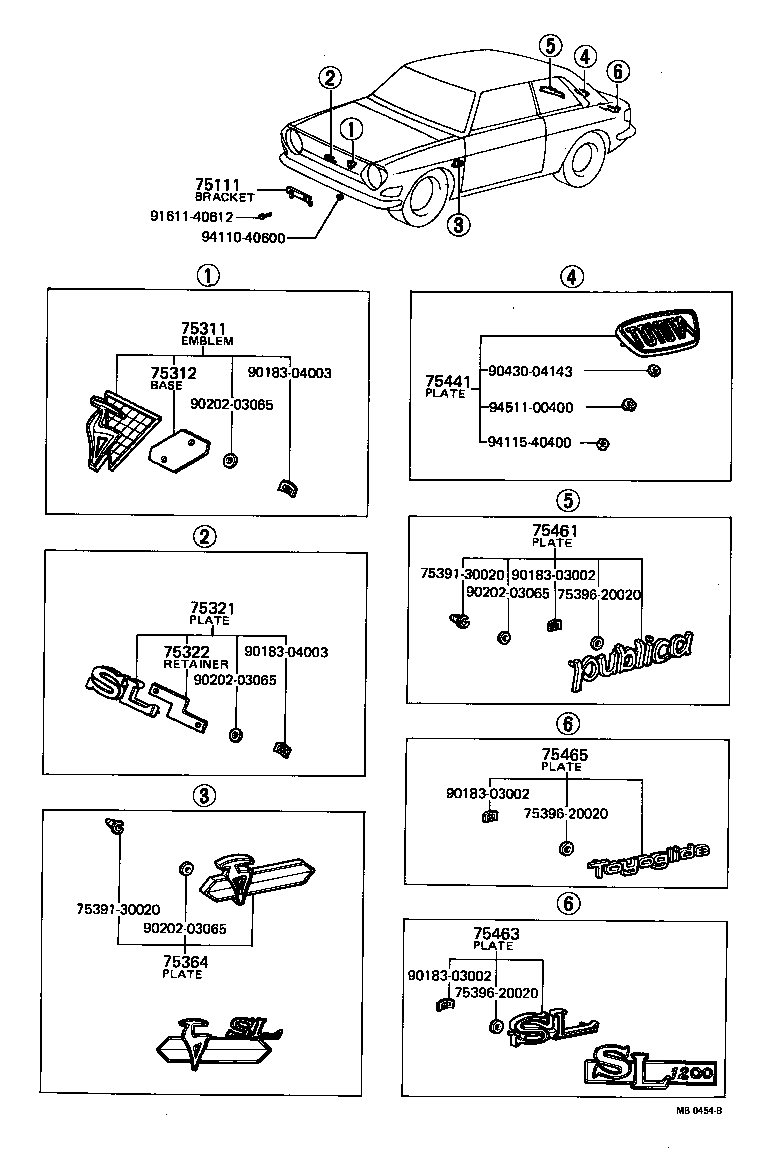

(6904-7010)KP30,UP30

Click highlighted areas on diagram

diagram 75111 75311 75312 75321 75322 75364 7539130020 7539130020 7539620020 7539620020 7539620020 75441 75461 75463 75465 9018303002 9018303002 9018303002 9018304003 9018304003 9020203065 9020203065 9020203065 9020203065 9043004143 9161140612 9411040600 9411540400 9451100400
Part # Description Qty Price
75111 - BRACKET, FRONT LICENSE PLATE
75111-20010

KP3#,50,UP3#

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-19045

KP3#,UP3#

 1
75311-19046

KP3#..DLX,HDX,STD,XL

 1
75312 - BASE, RADIATOR GRILLE EMBLEM
75312-10010

KP3#,UP3#

 1
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75350-10010

KP30,36,UP3#..DLX

 2
75353-10901

KP3#,UP3#..DLX

 2
75351-10020

KP30,36..DLX

 2
75351-10070

KP37;KP30,36..DLX

 2
75441 - PLATE, REAR NAME, NO.1
75441-19055

KP30

 1
75441-19056

KP30,31,UP30

 1
75441-12905

KP30,31

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75440-10010

KP30,31,UP30

 1
75442-19095

KP3#,UP3#

 1
Common parts
75391-30020
75396-20020
90183-03002
90183-04003
90202-03065
90430-04143
91611-40612
94110-40600
94115-40400
94511-00400

(7010-7112)KP30,31,UP30

Click highlighted areas on diagram

diagram 75111 75301 75305 75306 75321 75322 75341 75363 75364 7539130020 7539130020 7539130020 7539130020 7539620020 7539620020 7539620020 75441 75461 75463 75465 9018303002 9018303033 9018303033 9018304003 9020203065 9043004211 9056204066 9161140612 9411040600 9411540400 9411540400 9451100400 9451100400 9461210400
Part # Description Qty Price
75111 - BRACKET, FRONT LICENSE PLATE
75111-20010

KP3#,50,UP3#

 1
75301 - ORNAMENT, RADIATOR GRILLE (OR FRONT PANEL)
75316-19025

KP3#,UP3#..DLX,HDX,STD

LH

 1
75315-19025

KP3#,UP3#..DLX,HDX,STD

RH

 1
75305 - EMBLEM, HOOD
75330-10030

KP3#,UP3#

 1
75341 - PLATE, INSTRUMENT PANEL NAME, NO.1
55435-10050

KP30,36,UP3#..DLX

 1
55435-10030

KP30,31,36,UP3#..S,SR,STD

 1
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75350-10010

KP30,36,UP3#..DLX

 2
75353-10901

KP3#,UP3#..DLX

 2
75351-10020

KP30,36..DLX

 2
75351-10070

KP37;KP30,36..DLX

 2
75441 - PLATE, REAR NAME, NO.1
75441-19055

KP30

 1
75441-19056

KP30,31,UP30

 1
75441-12905

KP30,31

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75440-10010

KP30,31,UP30

 1
75442-19095

KP3#,UP3#

 1
Common parts
75391-30020
75396-20020
90183-03002
90183-03033
90183-04003
90202-03065
90430-04211
90562-04066
91611-40612
94110-40600
94115-40400
94511-00400
94612-10400

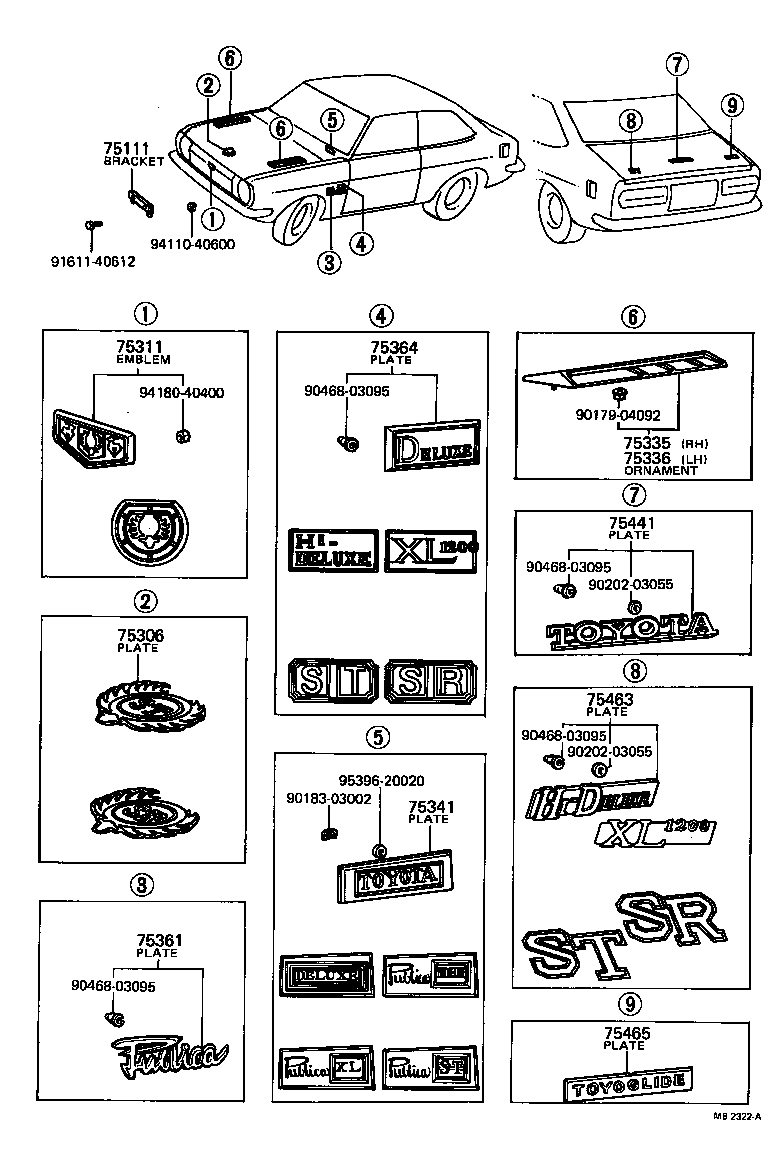

(7201-7410)KP30,31

Click highlighted areas on diagram

diagram 75111 75306 75311 75335 75336 75341 75361 75364 75441 75463 75465 9017904092 9018303002 9020203055 9020203055 9046803095 9046803095 9046803095 9046803095 9161140612 9411040600 9418040400 9539620020
Part # Description Qty Price
75111 - BRACKET, FRONT LICENSE PLATE
75111-20010

KP3#,50,UP3#

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-19045

KP3#,UP3#

 1
75311-19046

KP3#..DLX,HDX,STD,XL

 1
75341 - PLATE, INSTRUMENT PANEL NAME, NO.1
55435-10050

KP30,36,UP3#..DLX

 1
55435-10030

KP30,31,36,UP3#..S,SR,STD

 1
75361 - PLATE, FRONT FENDER NAME, NO.1 (MODEL MARK)
75361-10030

KP3#

 2
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75350-10010

KP30,36,UP3#..DLX

 2
75353-10901

KP3#,UP3#..DLX

 2
75351-10020

KP30,36..DLX

 2
75351-10070

KP37;KP30,36..DLX

 2
75441 - PLATE, REAR NAME, NO.1
75441-19055

KP30

 1
75441-19056

KP30,31,UP30

 1
75441-12905

KP30,31

 1
Common parts
90179-04092
90183-03002
90202-03055
90468-03095
91611-40612
94110-40600
94180-40400
95396-20020

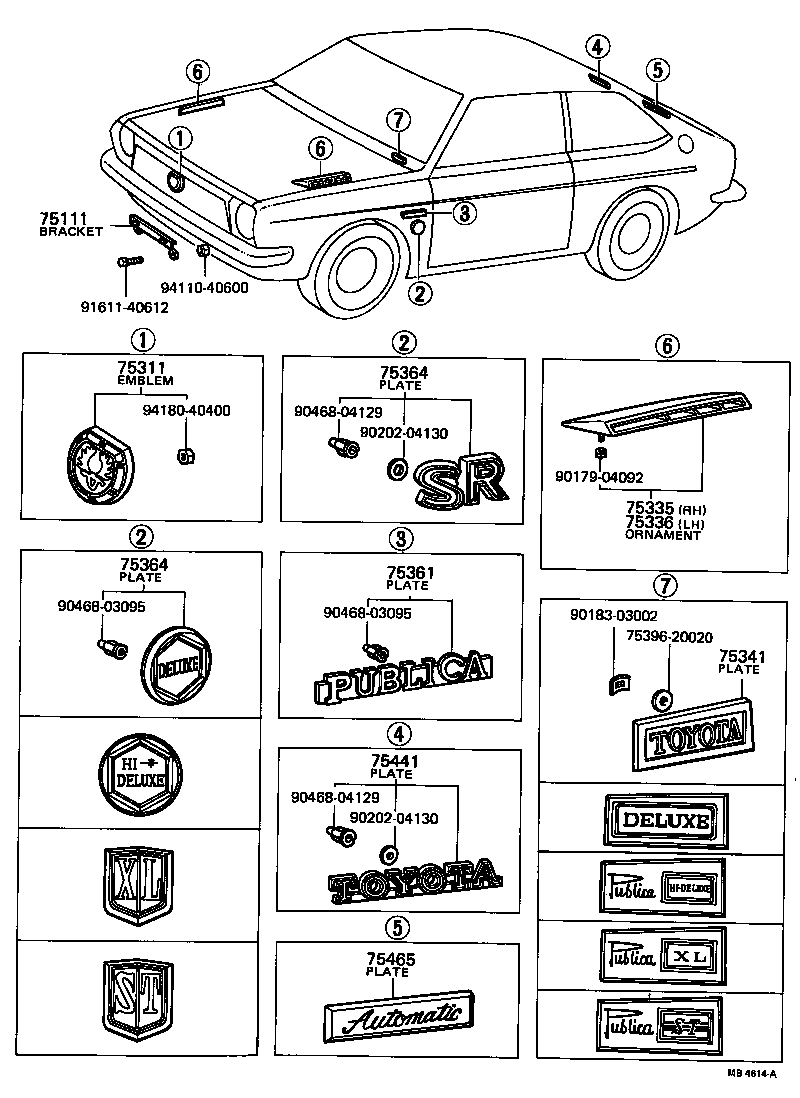

(7410-7511)KP30,31

Click highlighted areas on diagram

diagram 75111 75311 75335 75336 75341 75361 75364 75364 7539620020 75441 75465 9017904092 9018303002 9020204130 9020204130 9046803095 9046803095 9046804129 9046804129 9161140612 9411040600 9418040400
Part # Description Qty Price
75111 - BRACKET, FRONT LICENSE PLATE
75111-20010

KP3#,50,UP3#

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-19045

KP3#,UP3#

 1
75311-19046

KP3#..DLX,HDX,STD,XL

 1
75341 - PLATE, INSTRUMENT PANEL NAME, NO.1
55435-10050

KP30,36,UP3#..DLX

 1
55435-10030

KP30,31,36,UP3#..S,SR,STD

 1
75361 - PLATE, FRONT FENDER NAME, NO.1 (MODEL MARK)
75361-10030

KP3#

 2
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75350-10010

KP30,36,UP3#..DLX

 2
75353-10901

KP3#,UP3#..DLX

 2
75351-10020

KP30,36..DLX

 2
75351-10070

KP37;KP30,36..DLX

 2
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75350-10010

KP30,36,UP3#..DLX

 2
75353-10901

KP3#,UP3#..DLX

 2
75351-10020

KP30,36..DLX

 2
75351-10070

KP37;KP30,36..DLX

 2
75441 - PLATE, REAR NAME, NO.1
75441-19055

KP30

 1
75441-19056

KP30,31,UP30

 1
75441-12905

KP30,31

 1
Common parts
75396-20020
90179-04092
90183-03002
90202-04130
90468-03095
90468-04129
91611-40612
94110-40600
94180-40400
