KP30-D (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )

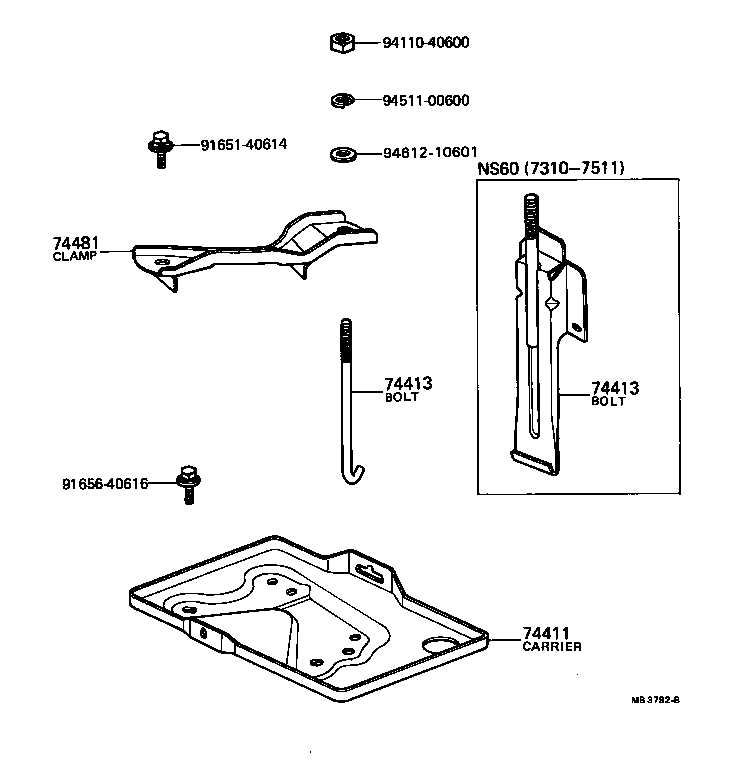

Click highlighted areas on diagram

diagram 74411 74413 74413 74481 9165140614 9165640616 9411040600 9451100600 9461210601
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-10020

KP3#,50,UP3#

NS40,NS40Z

 1
74411-10040

KP3#,50

NS60

 1
74413 - BOLT, BATTERY CLAMP
74451-30040

KP3#

NS60

 1
74451-30040

KP3#

NS40

 1
74407-10020

KP3#

NS60

 1
74451-30040

KP3#,UP3#

NS40,NS40Z

 2
74413-20030

KP3#,UP3#

NS40,NS40Z

 2
74413 - BOLT, BATTERY CLAMP
74451-30040

KP3#

NS60

 1
74451-30040

KP3#

NS40

 1
74407-10020

KP3#

NS60

 1
74451-30040

KP3#,UP3#

NS40,NS40Z

 2
74413-20030

KP3#,UP3#

NS40,NS40Z

 2
74481 - CLAMP, BATTERY HOLD DOWN
74404-10010

KP3#,UP3#

NS40,NS40Z

 1
74404-10030

KP3#,50

NS60

 1
Common parts
91651-40614
91656-40616
94110-40600
94511-00600
94612-10601
