KP30-D (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )

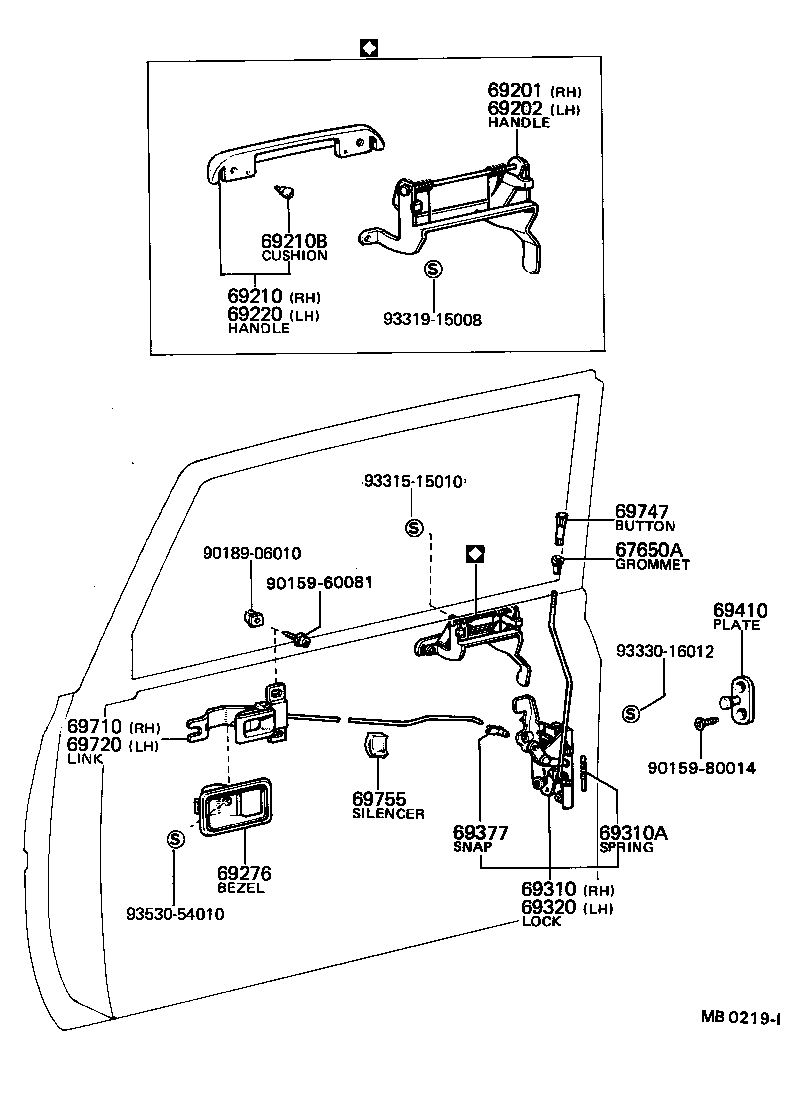

Click highlighted areas on diagram

diagram 67650A 69201 69202 69210 69210B 69220 69276 69310 69310A 69320 69377 69410 69710 69720 69747 69755 9015960081 9015980014 9018906010 9331515010 9331915008 9333016012 9353054010
Part # Description Qty Price
67650A - GROMMET(FOR DOOR PANEL LOCK BUTTON)
90480-10102

KP3#,50,UP3#

 2
69201 - HANDLE SUB-ASSY, DOOR OUTSIDE, RH
69201-10010

KP3#,50,UP3#

 1
69202 - HANDLE SUB-ASSY, DOOR OUTSIDE, LH
69202-10010

KP3#,50,UP3#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69211-10901

KP3#,50,UP3#

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03045

KP3#,50,UP3#

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69211-10901

KP3#,50,UP3#

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69276-10011

KP3#,UP3#

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-10031

KP3#,UP3#

 1
69310A - SPRING(FOR FRONT DOOR LOCK)
90506-10193

KP3#,50,UP3#

 2
69320 - LOCK ASSY, FRONT DOOR, LH
69320-10031

KP3#,UP3#

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69377-30020

KP3#,50,UP3#

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-12010

KP3#,50,UP3#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69710-10020

KP3#,UP3#

 1
69710-10021

KP3#,UP3#

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69720-10021

KP3#,UP3#

 1
69720-10020

KP3#,UP3#

 1
69747 - BUTTON, DOOR LOCKING
69747-20020

KP3#,UP3#

 2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-10011

KP3#,UP3#

 2
69759-10012

KP3#,UP3#

 2
Common parts
90159-60081
90159-80014
90189-06010
93315-15010
93319-15008
93330-16012
93530-54010
