KP30-D (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )

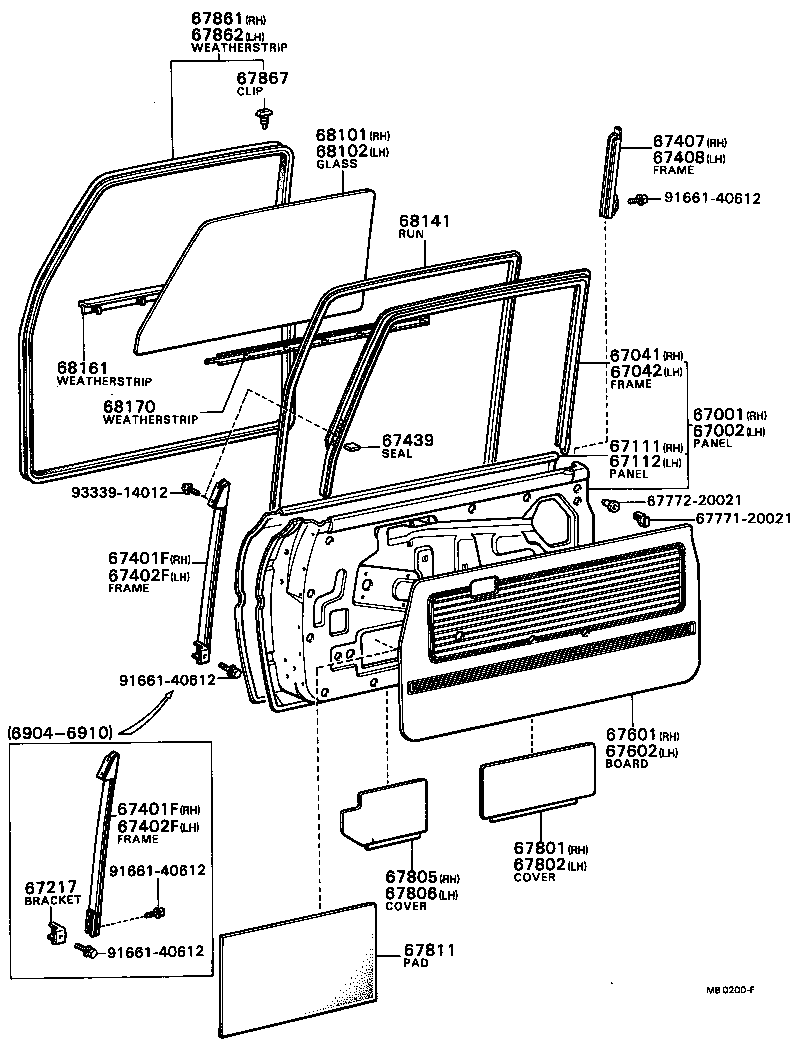

Click highlighted areas on diagram

diagram 67001 67002 67041 67042 67111 67112 67217 67401F 67401F 67402F 67402F 67407 67408 67439 67601 67602 6777120021 6777220021 67801 67802 67805 67806 67811 67861 67862 67867 68101 68102 68141 68161 68170 9166140612 9166140612 9166140612 9166140612 9333914012
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-10070

KP3#,UP3#

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-10070

KP3#,UP3#

 1
67041 - FRAME SUB-ASSY, FRONT DOOR WINDOW, RH
67041-10010

KP3#,50,UP3#

 1
67042 - FRAME SUB-ASSY, FRONT DOOR WINDOW, LH
67042-10010

KP3#,50,UP3#

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-10071

KP3#,50,UP3#

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-10071

KP3#,50,UP3#

 1
67217 - BRACKET, FRONT DOOR LOWER FRAME SUPPORT
67217-10010

KP3#,UP3#

 2
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-10061

KP3#,UP3#

 1
67401-10060

KP3#,UP3#

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-10061

KP3#,UP3#

 1
67401-10060

KP3#,UP3#

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-10061

KP3#,UP3#

 1
67402-10060

KP3#,UP3#

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-10061

KP3#,UP3#

 1
67402-10060

KP3#,UP3#

 1
67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67407-10010

KP3#,50,UP3#

 1
67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67408-10010

KP3#,50,UP3#

 1
67439 - SEAL, FRONT JOINT PIECE
67439-10010

KP3#,50,UP3#

 2
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1007002

KP30,UP30..DLX

RED,RED/MAROON

 1
67610-1007001

KP3#,UP3#..DLX,SL

BLACK,BLACK

 1
67610-1006101

KP3#,UP3#..DLX,SR,STD

BLACK,BLACK

 1
67610-1006109

KP30,UP30

YELLOW,YELLOW

 1
67610-1006105

KP30,UP30..DLX

BEIGE,BEIGE

 1
67610-1006206

KP30,31,36..DLX,S,SR,STD

OLIVE BROWN,BROWN,TRIM4#

 1
67610-1006201

KP30,31,36..DLX,S,SR,STD

BLACK,BLACK,TRIM2#

 1
67610-1006306

KP30,31,36..DLX,SR,STD

OLIVE BROWN,BROWN,TRIM4#

 1
67610-1006301

KP30,31,36..DLX,SR,STD

BLACK,BLACK,TRIM2#

 1
67610-1006316

KP30,31,36..DLX,SR,STD

BROWN,BROWN,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1007001

KP3#,UP3#..DLX,SL

BLACK,BLACK

 1
67620-1006105

KP30,UP30..DLX

BEIGE,BEIGE

 1
67620-1006101

KP3#,UP3#..DLX,SR,STD

BLACK,BLACK

 1
67620-1007002

KP30,UP30..DLX

RED,RED/MAROON

 1
67620-1006109

KP30,UP30

YELLOW,YELLOW

 1
67620-1006206

KP30,31,36..DLX,S,SR,STD

OLIVE BROWN,BROWN,TRIM4#

 1
67620-1006201

KP30,31,36..DLX,S,SR,STD

BLACK,BLACK,TRIM2#

 1
67620-1006306

KP30,31,36..DLX,SR,STD

OLIVE BROWN,BROWN,TRIM4#

 1
67620-1006301

KP30,31,36..DLX,SR,STD

BLACK,BLACK,TRIM2#

 1
67620-1006316

KP30,31,36..DLX,SR,STD

BROWN,BROWN,TRIM4#

 1
67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
67801-10020

KP3#,UP3#

 1
67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
67802-10020

KP3#,UP3#

 1
67805 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.2 RH
67805-10010

KP3#,UP3#

 1
67806 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.2 LH
67806-10010

KP3#,UP3#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-10020

KP3#,50,UP3#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-10020

KP3#,50,UP3#

 1
67867 - CLIP, DOOR WEATHERSTRIP
67867-12010

KP3#,50,UP3#

 50
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-10050

KP30,31,36..S,SR,STD

*TEM,厚さ=4.5,*TEM,T=4.0

 1
68111-10060

KP3#,UP3#..DLX,HDX

*TT,厚さ=4.0,*TT,T=4.0

 1
68101-10020

KP3#,UP3#..DLX,SL

*TT,T=4.0

 1
68111-10060

KP3#..DLX,HDX,ST,XL

*TT,厚さ=4.0,*TT,T=4.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-10010

KP30,31,36..S,SR,STD

*TEM,厚さ=4.0,*TEM,T=4.0

 1
68112-10020

KP3#,UP3#..DLX,HDX

*TT,厚さ=4.0,*TT,T=4.0

 1
68102-10020

KP3#,UP3#..DLX,SL

*TT,T=4.0

 1
68112-10020

KP3#..DLX,HDX,ST,XL

*TT,厚さ=4.0,*TT,T=4.0

 1
68141 - RUN, FRONT DOOR GLASS
68141-10010

KP3#,50,UP3#

 2
68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68160-10020

KP3#,50,UP3#

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-10010

KP3#,50,UP3#

RH

 1
68180-10020

KP3#,50,UP3#

LH

 1
Common parts
67771-20021
67772-20021
91661-40612
93339-14012
