KP30-D (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7802)KP30,31,50,UP30

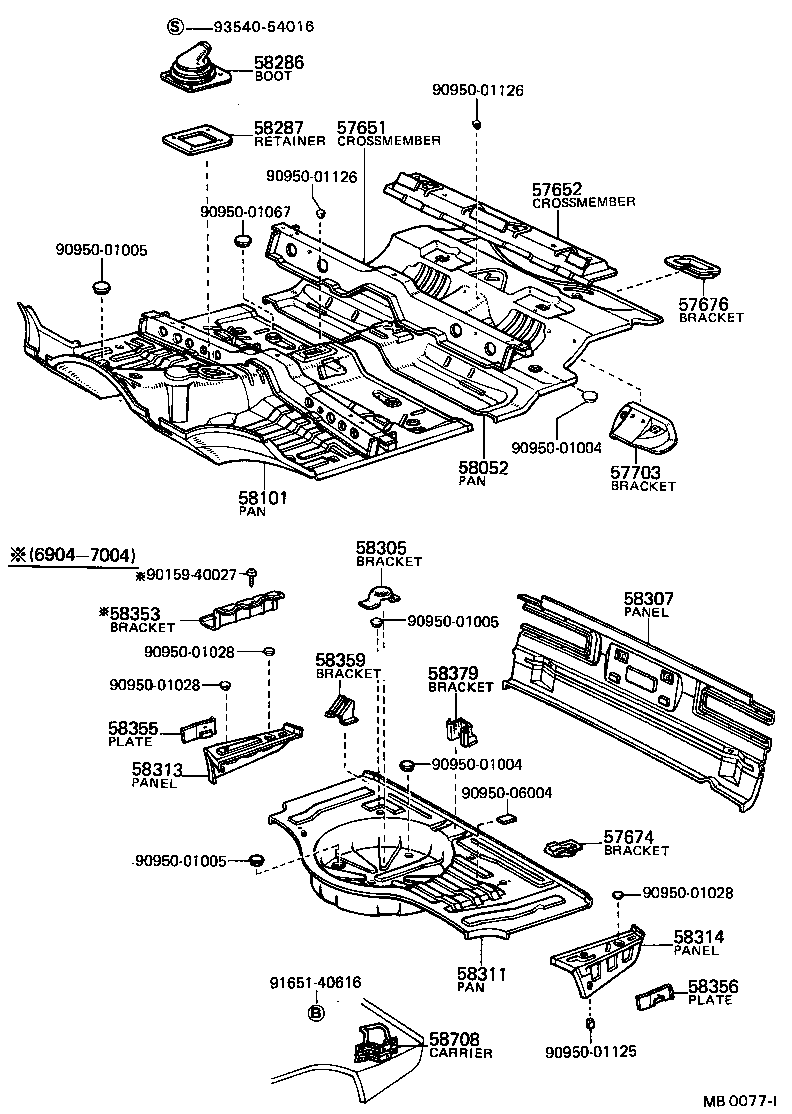

Click highlighted areas on diagram

diagram 57651 57652 57674 57676 57703 58052 58101 58286 58287 58305 58307 58311 58313 58314 58353 58355 58356 58359 58379 58708 9015940027 9095001004 9095001004 9095001005 9095001005 9095001005 9095001028 9095001028 9095001028 9095001067 9095001125 9095001126 9095001126 9095006004 9165140616 9354054016
Part # Description Qty Price
57651 - CROSSMEMBER, REAR FLOOR, FRONT
57651-10020

KP30,31

 1
58052 - PAN SUB-ASSY, CENTER FLOOR
58211-10091

KP30,31

 1
58101 - PAN SUB-ASSY, FRONT FLOOR
58101-10023

KP3#..(SED,V)..4F

 1
58101-10022

KP3#..(SED,V)..4F

 1
58101-10024

KP3#..(SED,V)..4F

 1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58286-10010

KP3#..4F

 1
58286-12011

KP3#..4F

 1
58287 - RETAINER, SHIFT LEVER BOOT
58287-10010

KP3#..4F

 1
58287-12010

KP3#..4F

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011

KP30,31,50,UP30

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-10070

KP30,31,UP30

 1
58311 - PAN, REAR FLOOR
58311-10050

KP30,31,UP30

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-10010

KP30,31,50,UP30

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-10010

KP30,31,UP30

 1
58353 - BRACKET, REAR FLOOR TOOL
58353-10030

KP30,UP30

 1
58355 - PLATE, LUGGAGE COMPARTMENT SIDE, RH
58318-10010

KP30,UP30

 1
58318-10011

KP30,31,UP30

 1
58356 - PLATE, LUGGAGE COMPARTMENT SIDE, LH
58319-10010

KP30,UP30

 1
58319-10011

KP30,31,UP30

 1
58379 - BRACKET, LUGGAGE DOOR LOCK STRIKER, SUB
58376-10010

KP30,31,UP30

 1
58708 - CARRIER SUB-ASSY, JACK
58790-10010

KP30,31,UP30

 1
Common parts
90159-40027
90950-01004
90950-01005
90950-01028
90950-01067
90950-01125
90950-01126
90950-06004
91651-40616
93540-54016
