KP30-D (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7802)KP30,31,50,UP30

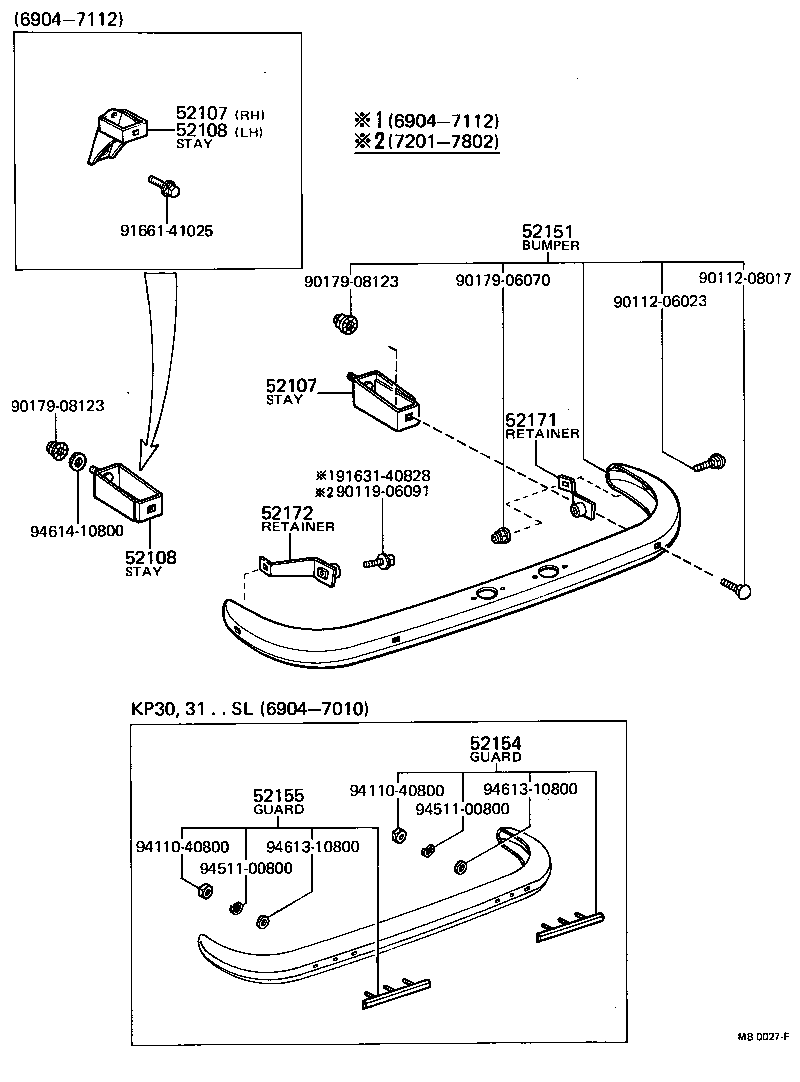

Click highlighted areas on diagram

diagram 52107 52107 52108 52108 52151 52154 52155 52171 52172 9011206023 9011208017 9011906091 9017906070 9017908123 9017908123 9163140828 9166141025 9411040800 9411040800 9451100800 9451100800 9461310800 9461310800 9461410800
Part # Description Qty Price
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52013-10010

KP30,31,UP30

 1
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52013-10010

KP30,31,UP30

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52014-10010

KP30,31,UP30

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52014-10010

KP30,31,UP30

 1
52151 - BUMPER ASSY, REAR
52151-19085

KP30,UP30..DLX,STD

 1
52171 - RETAINER, REAR BUMPER SIDE, RH
52017-10010

KP30,31,UP30

 1
52172 - RETAINER, REAR BUMPER SIDE, LH
52018-10010

KP30,31,UP30

 1
Common parts
90112-06023
90112-08017
90119-06091
90179-06070
90179-08123
91631-40828
91661-41025
94110-40800
94511-00800
94613-10800
94614-10800
