KP30-D (1969)
Toyota Publica

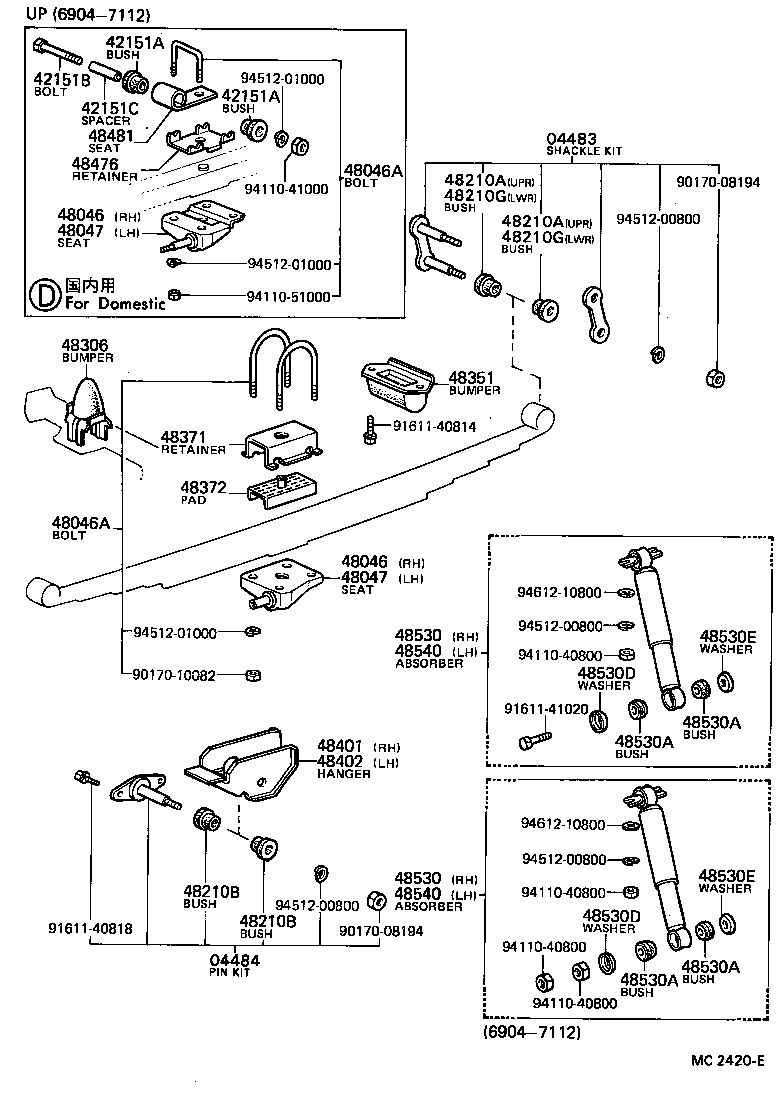

ILLUST NO. 1 OF 2(6904-7511)KP30,31,UP30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-10020 |
KP3#..SED,V |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-10020 |
KP3#,50..SED,V |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-10020 |
KP30,31..DLX,HDX,SL,STD |
1 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-10020 |
KP30,31..DLX,HDX,SL,STD |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-10051 |
KP3#,50..SED,V |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-10051 |
KP3#,50..SED,V |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-10020 |
KP30,31..DLX,HDX,SL,STD |
1 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-10020 |
KP30,31..DLX,HDX,SL,STD |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-10015 |
KP3#,50 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-10015 |
KP3#,50 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-10055 |
KP3#,50..SED,V |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-10055 |
KP3#,50..SED,V |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-10015 |
KP3#,50 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-10015 |
KP3#,50 |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48341-10040 |
KP30,31,50 |
2 | ||
| 48351 - BUMPER, DIFFERENTIAL CARRIER | ||||
| 48351-10010 |
KP30,31,50 |
1 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-10010 |
KP30,31 |
2 | ||
| 48371-10010 |
KP30,31..DLX,HDX,STD,XL |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-10010 |
KP30,31,50 |
4 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 57711-10010 |
KP3#,50..SED,V |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 57712-10010 |
KP3#,50..SED,V |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-19075 |
KP30,UP30 |
1 | ||
| 48531-19076 |
KP30,31,UP30..DLX,HDX,STD |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-19075 |
KP30,UP30 |
1 | ||
| 48531-19076 |
KP30,31,UP30..DLX,HDX,STD |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-12008 |
KP3#,UP3#..DLX,HDX,SL,STD |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-12008 |
KP3#,UP3#..DLX,HDX,SL,STD |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-12008 |
KP3#,UP3#..DLX,HDX,SL,STD |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-12008 |
KP3#,UP3#..DLX,HDX,SL,STD |
4 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03001 |
KP3#,UP3#..DLX,HDX,SL,STD |
2 | ||
| 90948-03007 |
KP30,31 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03001 |
KP3#,UP3#..DLX,HDX,SL,STD |
2 | ||
| 90948-03007 |
KP30,31 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03013 |
KP3#,UP3#..DLX,HDX,SL,STD |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03013 |
KP3#,UP3#..DLX,HDX,SL,STD |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-19075 |
KP30,UP30 |
1 | ||
| 48531-19076 |
KP30,31,UP30..DLX,HDX,STD |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-19075 |
KP30,UP30 |
1 | ||
| 48531-19076 |
KP30,31,UP30..DLX,HDX,STD |
1 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 90170-10082 | ||||
| 91611-40814 | ||||
| 91611-40818 | ||||
| 91611-41020 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94110-51000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-10800 | ||||

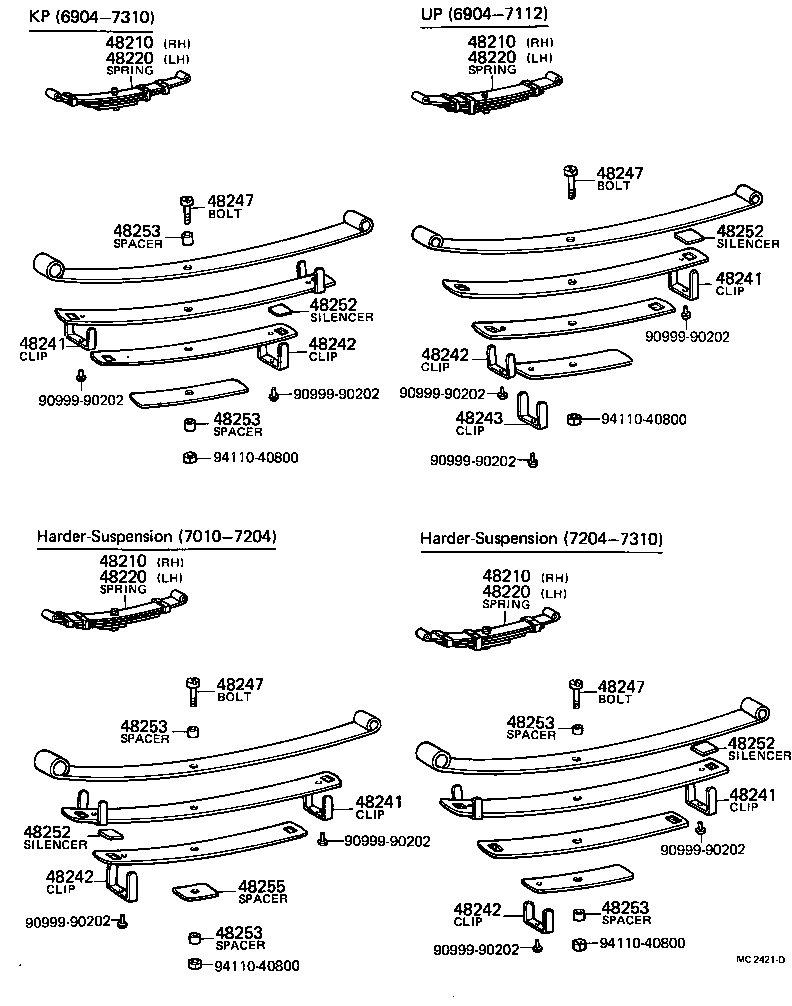

ILLUST NO. 2 OF 2(6904-7310)KP30,31,UP30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-10050 |
KP30,31..DLX,HDX,SL,STD |
1 | ||
| 48210-10052 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210-10053 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210-10051 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-10050 |
KP30,31..DLX,HDX,SL,STD |
1 | ||
| 48210-10052 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210-10053 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210-10051 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-10050 |
KP30,31..DLX,HDX,SL,STD |
1 | ||
| 48210-10052 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210-10053 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210-10051 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-10050 |
KP30,31..DLX,HDX,SL,STD |
1 | ||
| 48210-10052 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210-10053 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210-10051 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-10050 |
KP30,31..DLX,HDX,SL,STD |
1 | ||
| 48210-10051 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210-10053 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210-10052 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-10050 |
KP30,31..DLX,HDX,SL,STD |
1 | ||
| 48210-10051 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210-10053 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210-10052 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-10050 |
KP30,31..DLX,HDX,SL,STD |
1 | ||
| 48210-10051 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210-10053 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210-10052 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-10050 |
KP30,31..DLX,HDX,SL,STD |
1 | ||
| 48210-10051 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210-10053 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48210-10052 |
KP30,31..DLX,HDX,STD,XL |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-10060 |
KP30,31,UP30..DLX,HDX,SL,STD |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-10060 |
KP30,31,UP30..DLX,HDX,SL,STD |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-10060 |
KP30,31,UP30..DLX,HDX,SL,STD |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-10060 |
KP30,31,UP30..DLX,HDX,SL,STD |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-10070 |
KP30,31 |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-10070 |
KP30,31 |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-10070 |
KP30,31 |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-10070 |
KP30,31 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-10050 |
KP30,31..DLX,HDX,SL,STD |
2 | ||
| 48247-10051 |
KP30,31..DLX,HDX,STD,XL |
2 | ||
| 48247-10080 |
KP30,31 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-10050 |
KP30,31..DLX,HDX,SL,STD |
2 | ||
| 48247-10051 |
KP30,31..DLX,HDX,STD,XL |
2 | ||
| 48247-10080 |
KP30,31 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-10050 |
KP30,31..DLX,HDX,SL,STD |
2 | ||
| 48247-10051 |
KP30,31..DLX,HDX,STD,XL |
2 | ||
| 48247-10080 |
KP30,31 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-10050 |
KP30,31..DLX,HDX,SL,STD |
2 | ||
| 48247-10051 |
KP30,31..DLX,HDX,STD,XL |
2 | ||
| 48247-10080 |
KP30,31 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-30010 |
KP30,36,UP36..SED,V |
8 | ||
| 48252-10012 |
KP30,31..DLX,HDX,STD,XL |
8 | ||
| 48252-10012 |
KP3#,UP3# |
8 | ||
| 48252-10070 |
KP30,31 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-30010 |
KP30,36,UP36..SED,V |
8 | ||
| 48252-10012 |
KP30,31..DLX,HDX,STD,XL |
8 | ||
| 48252-10012 |
KP3#,UP3# |
8 | ||
| 48252-10070 |
KP30,31 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-30010 |
KP30,36,UP36..SED,V |
8 | ||
| 48252-10012 |
KP30,31..DLX,HDX,STD,XL |
8 | ||
| 48252-10012 |
KP3#,UP3# |
8 | ||
| 48252-10070 |
KP30,31 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-30010 |
KP30,36,UP36..SED,V |
8 | ||
| 48252-10012 |
KP30,31..DLX,HDX,STD,XL |
8 | ||
| 48252-10012 |
KP3#,UP3# |
8 | ||
| 48252-10070 |
KP30,31 |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-10050 |
KP30,31 |
2 | ||
| 48254-10050 |
KP30,31,50 |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-10050 |
KP30,31 |
2 | ||
| 48254-10050 |
KP30,31,50 |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-10050 |
KP30,31 |
2 | ||
| 48254-10050 |
KP30,31,50 |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-10050 |
KP30,31 |
2 | ||
| 48254-10050 |
KP30,31,50 |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-10050 |
KP30,31 |
2 | ||
| 48254-10050 |
KP30,31,50 |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-10050 |
KP30,31 |
2 | ||
| 48254-10050 |
KP30,31,50 |
2 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48255-10050 |
KP30,31..DLX,HDX,STD,XL |
2 | ||
| Common parts | ||||
| 90999-90202 | ||||
| 94110-40800 | ||||
