KP30-D (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )

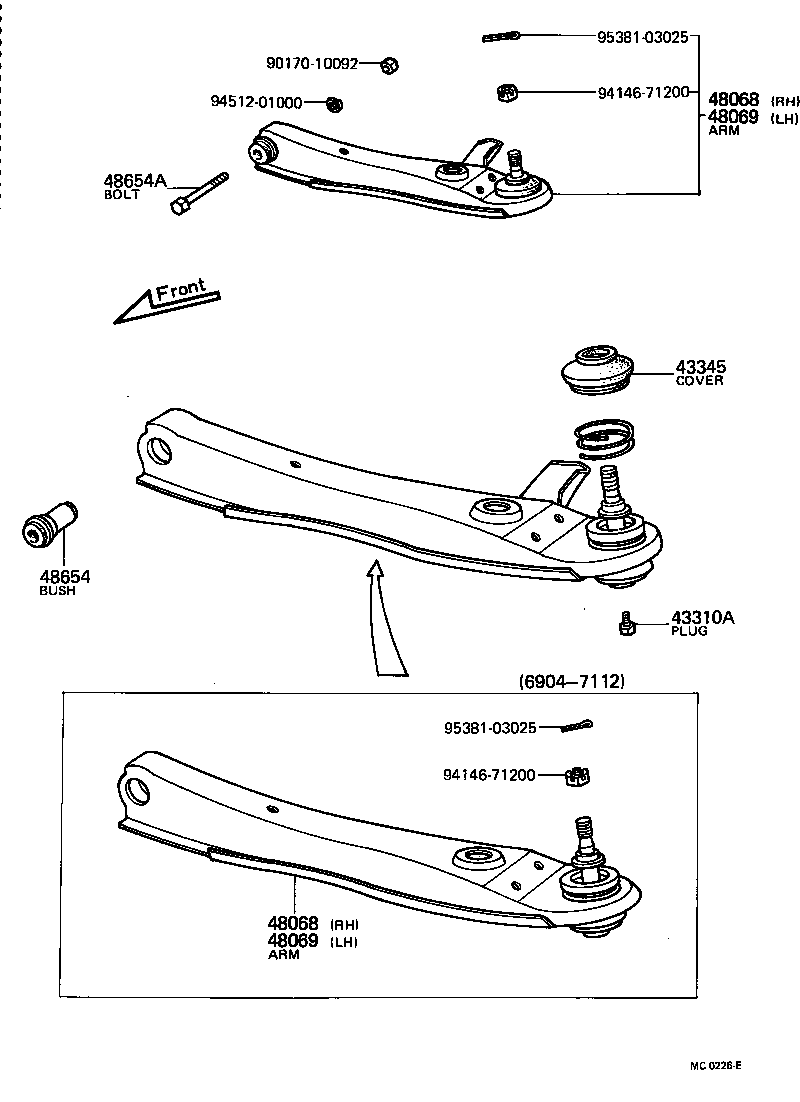

Click highlighted areas on diagram

diagram 43310A 43345 48068 48068 48069 48069 48654 48654A 9017010092 9414671200 9414671200 9451201000 9538103025 9538103025
Part # Description Qty Price
43345 - COVER, LOWER BALL JOINT DUST
43345-12011

KP3#,UP3#

 2
43345-12012

KP3#,UP3#

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-10020

KP3#,UP3#

 1
48068-19025

KP3#

 1
48068-10010

KP3#,UP3#

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-10020

KP3#,UP3#

 1
48068-19025

KP3#

 1
48068-10010

KP3#,UP3#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-19025

KP3#

 1
48069-10010

KP3#,UP3#

 1
48069-10020

KP3#,UP3#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-19025

KP3#

 1
48069-10010

KP3#,UP3#

 1
48069-10020

KP3#,UP3#

 1
48654 - BUSH, LOWER ARM
48654-10010

KP3#,50

 2
48654A - BOLT, HEXAGON(FOR LOWER ARM)
90101-10273

KP3#,50

 2
Common parts
90170-10092
94146-71200
94512-01000
95381-03025
