KP30-D (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7004) ; (7004-7310)SED,V

Click highlighted areas on diagram

diagram 47311D 47311D 47311D 47311D 47312 47312 47313 47313 47313A 47313A 47313A 47313A 47313D 47313D 47313D 47313D 47313D 47313D 47313D 47313D 47313J 47313J 47316A 47316E 47316E 47323 47324 47325 47341B 47342 47343A 47344 9699010060 9699010060 9699010060 9699010060 9699010060 9699010060 9699010060 9699010060
Part # Description Qty Price
47311D - GROMMET(FOR FRONT BRAKE TUBE)
90480-15146

KP3#,UP3#

OD=15

 2
47311D - GROMMET(FOR FRONT BRAKE TUBE)
90480-15146

KP3#,UP3#

OD=15

 2
47311D - GROMMET(FOR FRONT BRAKE TUBE)
90480-15146

KP3#,UP3#

OD=15

 2
47311D - GROMMET(FOR FRONT BRAKE TUBE)
90480-15146

KP3#,UP3#

OD=15

 2
47312 - TUBE, FRONT BRAKE, NO.2
47313-10050

KP3#,UP3#

 1
47313-10051

KP3#..DLX,HDX,S,SR,STD

 1
47313-10051

KP3#,UP3#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47313-10050

KP3#,UP3#

 1
47313-10051

KP3#..DLX,HDX,S,SR,STD

 1
47313-10051

KP3#,UP3#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47314-10051

KP3#

 1
47314-10051

KP3#..DLX,HDX,S,SR,STD

 1
47314-10081

KP3#

 1
47314-10050

KP3#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47314-10051

KP3#

 1
47314-10051

KP3#..DLX,HDX,S,SR,STD

 1
47314-10081

KP3#

 1
47314-10050

KP3#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02257

KP30,31

DISC BRAKE

 2
90947-02187

KP30,31

DISC BRAKE

 2
90947-02186

KP37;KP30,36..DLX,STD

DRUM BRAKE

 2
90947-02096

KP30,36,UP3#

DRUM BRAKE

 2
90947-02100

KP3#..SED,V

DISC BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02257

KP30,31

DISC BRAKE

 2
90947-02187

KP30,31

DISC BRAKE

 2
90947-02186

KP37;KP30,36..DLX,STD

DRUM BRAKE

 2
90947-02096

KP30,36,UP3#

DRUM BRAKE

 2
90947-02100

KP3#..SED,V

DISC BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02257

KP30,31

DISC BRAKE

 2
90947-02187

KP30,31

DISC BRAKE

 2
90947-02186

KP37;KP30,36..DLX,STD

DRUM BRAKE

 2
90947-02096

KP30,36,UP3#

DRUM BRAKE

 2
90947-02100

KP3#..SED,V

DISC BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02257

KP30,31

DISC BRAKE

 2
90947-02187

KP30,31

DISC BRAKE

 2
90947-02186

KP37;KP30,36..DLX,STD

DRUM BRAKE

 2
90947-02096

KP30,36,UP3#

DRUM BRAKE

 2
90947-02100

KP3#..SED,V

DISC BRAKE

 2
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KP3#,50

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KP3#,50

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KP3#,50

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KP3#,50

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KP3#,50

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KP3#,50

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KP3#,50

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KP3#,50

 4
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02188

KP30,31

DISC BRAKE

 2
90947-02083

KP3#..SED,V

DISC BRAKE

 2
90947-02256

KP30,31

DISC BRAKE

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02188

KP30,31

DISC BRAKE

 2
90947-02083

KP3#..SED,V

DISC BRAKE

 2
90947-02256

KP30,31

DISC BRAKE

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02098

KP3#

 1
90947-02098

KP3#..SED,V

 1
90947-02226

KP3#..SED,V

 1
90947-02171

KP3#..SED,V

 1
47316E - RING, E(FOR REAR FLEXIBLE HOSE)
96160-01200

KP3#,50

 2
47316E - RING, E(FOR REAR FLEXIBLE HOSE)
96160-01200

KP3#,50

 2
47323 - TUBE, REAR BRAKE, NO.3
47316-10061

KP30,36,UP3#..SED,V

 1
47316-10062

KP3#..(SED,V)..4F..(DLX,HDX,S,SR,STD)

 1
47316-10060

KP3#,UP3#..SED,V

 1
47316-10140

KP30..4F..(DLX,STD)

 1
47316-10103

KP30,31..4F

 1
47316-10063

KP3#..(SED,V)..4F..(DLX,HDX,S,SR,STD)

 1
47324 - TUBE, REAR BRAKE, NO.4
47318-10030

KP3#..SED,V

 1
47325 - TUBE, REAR BRAKE, NO.5
47319-10031

KP3#..SED,V

 1
47319-10030

KP3#,UP3#..SED,V

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47332-10010

KP30,36,UP3#

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47331-12010

KP30,36,UP3#

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47333-10010

KP30,36,UP3#

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47331-12010

KP30,36,UP3#

 1
Common parts
96990-10060

(7310- )KP37 ; (7310- )KP30,36,38,39..DLX,STD

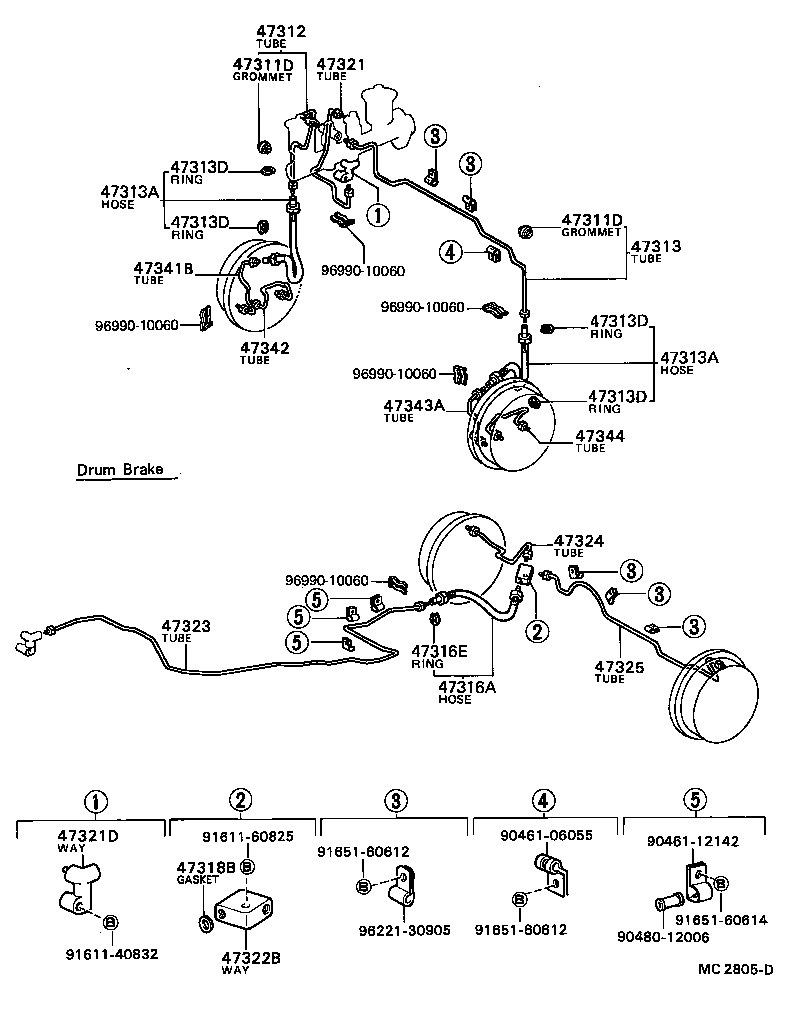

Click highlighted areas on diagram

diagram 47311D 47311D 47312 47313 47313A 47313A 47313D 47313D 47313D 47313D 47316A 47316E 47318B 47321 47321D 47322B 47323 47324 47325 47341B 47342 47343A 47344 9046106055 9046112142 9048012006 9161140832 9161160825 9165160612 9165160612 9165160614 9622130905 9699010060 9699010060 9699010060 9699010060 9699010060
Part # Description Qty Price
47311D - GROMMET(FOR FRONT BRAKE TUBE)
90480-15146

KP3#,UP3#

OD=15

 2
47311D - GROMMET(FOR FRONT BRAKE TUBE)
90480-15146

KP3#,UP3#

OD=15

 2
47312 - TUBE, FRONT BRAKE, NO.2
47313-10050

KP3#,UP3#

 1
47313-10051

KP3#..DLX,HDX,S,SR,STD

 1
47313-10051

KP3#,UP3#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47314-10051

KP3#

 1
47314-10051

KP3#..DLX,HDX,S,SR,STD

 1
47314-10081

KP3#

 1
47314-10050

KP3#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02257

KP30,31

DISC BRAKE

 2
90947-02187

KP30,31

DISC BRAKE

 2
90947-02186

KP37;KP30,36..DLX,STD

DRUM BRAKE

 2
90947-02096

KP30,36,UP3#

DRUM BRAKE

 2
90947-02100

KP3#..SED,V

DISC BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02257

KP30,31

DISC BRAKE

 2
90947-02187

KP30,31

DISC BRAKE

 2
90947-02186

KP37;KP30,36..DLX,STD

DRUM BRAKE

 2
90947-02096

KP30,36,UP3#

DRUM BRAKE

 2
90947-02100

KP3#..SED,V

DISC BRAKE

 2
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KP3#,50

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KP3#,50

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KP3#,50

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KP3#,50

 4
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02098

KP3#

 1
90947-02098

KP3#..SED,V

 1
90947-02226

KP3#..SED,V

 1
90947-02171

KP3#..SED,V

 1
47316E - RING, E(FOR REAR FLEXIBLE HOSE)
96160-01200

KP3#,50

 2
47321 - TUBE, REAR BRAKE, NO.1
47315-10020

KP30,31

 1
47323 - TUBE, REAR BRAKE, NO.3
47316-10061

KP30,36,UP3#..SED,V

 1
47316-10062

KP3#..(SED,V)..4F..(DLX,HDX,S,SR,STD)

 1
47316-10060

KP3#,UP3#..SED,V

 1
47316-10140

KP30..4F..(DLX,STD)

 1
47316-10103

KP30,31..4F

 1
47316-10063

KP3#..(SED,V)..4F..(DLX,HDX,S,SR,STD)

 1
47324 - TUBE, REAR BRAKE, NO.4
47318-10030

KP3#..SED,V

 1
47325 - TUBE, REAR BRAKE, NO.5
47319-10031

KP3#..SED,V

 1
47319-10030

KP3#,UP3#..SED,V

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47332-10010

KP30,36,UP3#

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47331-12010

KP30,36,UP3#

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47333-10010

KP30,36,UP3#

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47331-12010

KP30,36,UP3#

 1
Common parts
90461-06055
90461-12142
90480-12006
91611-40832
91611-60825
91651-60612
91651-60614
96221-30905
96990-10060

(7310-7511)KP30,31 ; (7511-7907)

Click highlighted areas on diagram

diagram 47150 47311D 47311D 47312 47313 47313A 47313A 47313D 47313D 47313D 47313D 47313J 47313J 47316A 47316E 47318B 47321 47322B 47323 47324 47325 9161140840 9161160825 9699010060 9699010060 9699010060 9699010060 9699010060
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-10020

KP30,31

 1
47311D - GROMMET(FOR FRONT BRAKE TUBE)
90480-15146

KP3#,UP3#

OD=15

 2
47311D - GROMMET(FOR FRONT BRAKE TUBE)
90480-15146

KP3#,UP3#

OD=15

 2
47312 - TUBE, FRONT BRAKE, NO.2
47313-10050

KP3#,UP3#

 1
47313-10051

KP3#..DLX,HDX,S,SR,STD

 1
47313-10051

KP3#,UP3#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47314-10051

KP3#

 1
47314-10051

KP3#..DLX,HDX,S,SR,STD

 1
47314-10081

KP3#

 1
47314-10050

KP3#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02257

KP30,31

DISC BRAKE

 2
90947-02187

KP30,31

DISC BRAKE

 2
90947-02186

KP37;KP30,36..DLX,STD

DRUM BRAKE

 2
90947-02096

KP30,36,UP3#

DRUM BRAKE

 2
90947-02100

KP3#..SED,V

DISC BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02257

KP30,31

DISC BRAKE

 2
90947-02187

KP30,31

DISC BRAKE

 2
90947-02186

KP37;KP30,36..DLX,STD

DRUM BRAKE

 2
90947-02096

KP30,36,UP3#

DRUM BRAKE

 2
90947-02100

KP3#..SED,V

DISC BRAKE

 2
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KP3#,50

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KP3#,50

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KP3#,50

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KP3#,50

 4
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02188

KP30,31

DISC BRAKE

 2
90947-02083

KP3#..SED,V

DISC BRAKE

 2
90947-02256

KP30,31

DISC BRAKE

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02188

KP30,31

DISC BRAKE

 2
90947-02083

KP3#..SED,V

DISC BRAKE

 2
90947-02256

KP30,31

DISC BRAKE

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02098

KP3#

 1
90947-02098

KP3#..SED,V

 1
90947-02226

KP3#..SED,V

 1
90947-02171

KP3#..SED,V

 1
47316E - RING, E(FOR REAR FLEXIBLE HOSE)
96160-01200

KP3#,50

 2
47321 - TUBE, REAR BRAKE, NO.1
47315-10020

KP30,31

 1
47323 - TUBE, REAR BRAKE, NO.3
47316-10061

KP30,36,UP3#..SED,V

 1
47316-10062

KP3#..(SED,V)..4F..(DLX,HDX,S,SR,STD)

 1
47316-10060

KP3#,UP3#..SED,V

 1
47316-10140

KP30..4F..(DLX,STD)

 1
47316-10103

KP30,31..4F

 1
47316-10063

KP3#..(SED,V)..4F..(DLX,HDX,S,SR,STD)

 1
47324 - TUBE, REAR BRAKE, NO.4
47318-10030

KP3#..SED,V

 1
47325 - TUBE, REAR BRAKE, NO.5
47319-10031

KP3#..SED,V

 1
47319-10030

KP3#,UP3#..SED,V

 1
Common parts
91611-40840
91611-60825
96990-10060
