KP30-D (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )

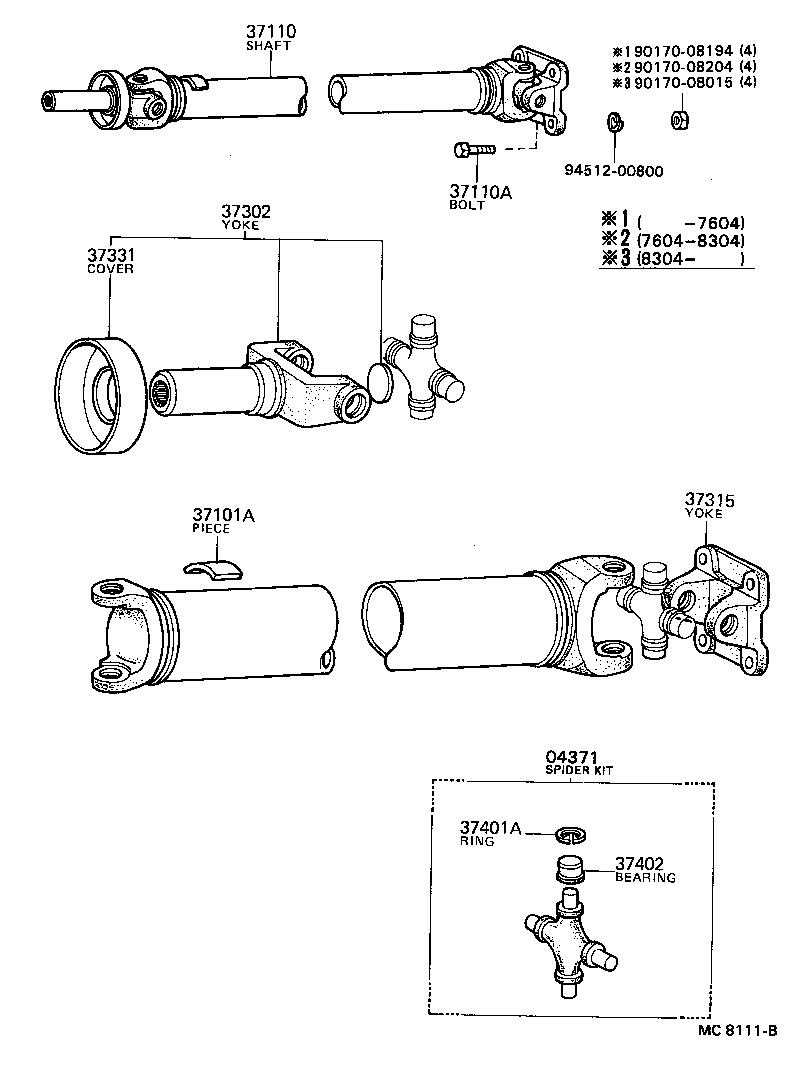

Click highlighted areas on diagram

diagram 04371 37101A 37110 37110A 37302 37315 37331 37401A 37402 9017008015 9017008194 9017008204 9451200800
Part # Description Qty Price
04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
04371-10011

KP3#,50

 2
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01003

KP3#

8G,厚さ=1.2,10G

 1
90937-01005

KP3#

30G,厚さ=1.2,30G

 1
90937-01048

KP3#

2.5G

 1
90937-01049

KP3#

7.5G

 1
90937-01052

KP3#

22.5G

 1
90937-01050

KP3#

12.5G

 1
90937-01031

KP3#

25G

 1
90937-01051

KP3#

17.5G

 1
90937-01030

KP3#

15G

 1
90937-01004

KP3#

20G,厚さ=1.2,20G

 1
90937-01053

KP3#

27.5G

 1
90937-01029

KP3#

5G

 1
37110 - SHAFT ASSY, PROPELLER
37110-10030

KP3#..SED,V

L=1185.5,OD=65

 1
37110-10031

KP3#..SED,V

L=1185.5,OD=65

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08318

KP3#,50

*8-1.25PX22-10

 4
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-12010

KP3#

 1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-10010

KP3#

 1
37331 - COVER, SLIDING SHAFT DUST
37331-12010

KP3#,50

 1
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-22011

KP3#,50

厚さ=1.2,T=1.20

 8
90521-22012

KP3#,50

厚さ=1.25,T=1.25

 8
90521-22013

KP3#,50

厚さ=1.30,T=1.30

 8
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-10020

KP3#,50

 8
Common parts
90170-08015
90170-08194
90170-08204
94512-00800
