KP30-D (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7004)KP3#..4F

Click highlighted areas on diagram

diagram 33504F 33506F 33530F 33555 33555A 33584F 9011608008 9093003001 9411040800 9451200800
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-22020

KP3#,UP3#..4F..(DLX,HDX,SR,STD)

 1
33504-22020

KP3#..4F..(DLX,HDX,S,SR,ST,STD)

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-12010

KP3#..4F

 1
33506-12020

KP3#..4F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-10020

KP3#..4F

 1
33530-12021

KP3#..4F

 1
33530-10021

KP3#..4F

 1
33555 - BOOT, SHIFT LEVER
33555-12010

KP3#..4F

 1
33555A - CLIP (FOR LEVER BOOT)
90467-44037

KP3#..4F

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-12010

KP3#..4F

T=0.5

 1
33584-12020

KP3#..4F

T=0.3

 1
Common parts
90116-08008
90930-03001
94110-40800
94512-00800

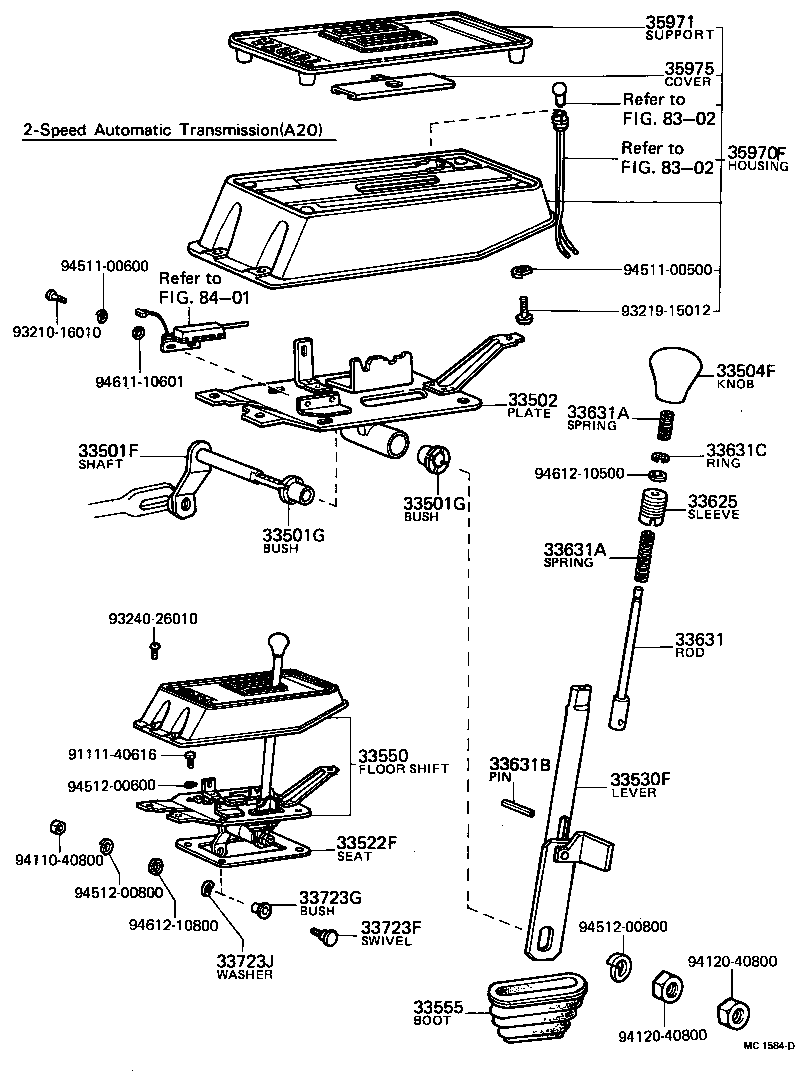

ILLUST NO. 1 OF 2(6910-7511)2FC ; (7610-7802)

Click highlighted areas on diagram

diagram 33501F 33501G 33501G 33502 33504F 33522F 33530F 33550 33555 33625 33631 33631A 33631A 33631B 33631C 33723F 33723G 33723J 35970F 35971 35975 8302 8302 8401 9111140616 9321016010 9321915012 9324026010 9411040800 9412040800 9412040800 9451100500 9451100600 9451200600 9451200800 9451200800 9461110601 9461210500 9461210800
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-22020

KP3#,UP3#..4F..(DLX,HDX,SR,STD)

 1
33504-22020

KP3#..4F..(DLX,HDX,S,SR,ST,STD)

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-10020

KP3#..4F

 1
33530-12021

KP3#..4F

 1
33530-10021

KP3#..4F

 1
33555 - BOOT, SHIFT LEVER
33555-12010

KP3#..4F

 1
Common parts
91111-40616
93210-16010
93219-15012
93240-26010
94110-40800
94120-40800
94511-00500
94511-00600
94512-00600
94512-00800
94611-10601
94612-10500
94612-10800
Linked diagrams
8302
8401

ILLUST NO. 2 OF 2(6910-7511)2FC ; (7610-7802)

Click highlighted areas on diagram

diagram 3513 35508 35508A 35508A 35508C 35568F 35568G 35569F 35577 9020608016 9020608016 9020608016 9451201000 9461210800 9461210800 9461210800 9461210800 9461210800 9461210800 9461211000 9461211000 9538102020 9538102020 9538102020 9538102020
Part # Description Qty Price
Common parts
90206-08016
94512-01000
94612-10800
94612-11000
95381-02020
Linked diagrams
3513

(7004-7404)KP3#..4F

Click highlighted areas on diagram

diagram 33278 33278A 33279 33504F 33506F 33530F 33553A 33555 33584F 9161140820 9161140820
Part # Description Qty Price
33278 - SUPPORT, SHIFT & SELECT LEVER SHAFT
33278-12010

KP3#..4F

 1
33278-12011

KP3#..4F

 1
33278A - PIN, SHIFT AND SELECT LEVER SHAFT SUPPORT STRAIGHT
90250-06068

KP3#..4F

 1
33279 - GASKET, SHIFT & SELECT LEVER SHAFT SUPPORT
33279-12010

KP3#..4F

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-22020

KP3#,UP3#..4F..(DLX,HDX,SR,STD)

 1
33504-22020

KP3#..4F..(DLX,HDX,S,SR,ST,STD)

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-12010

KP3#..4F

 1
33506-12020

KP3#..4F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-10020

KP3#..4F

 1
33530-12021

KP3#..4F

 1
33530-10021

KP3#..4F

 1
33555 - BOOT, SHIFT LEVER
33555-12010

KP3#..4F

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-12010

KP3#..4F

T=0.5

 1
33584-12020

KP3#..4F

T=0.3

 1
Common parts
91611-40820
