KP30-D (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )KP3#,50..MTM

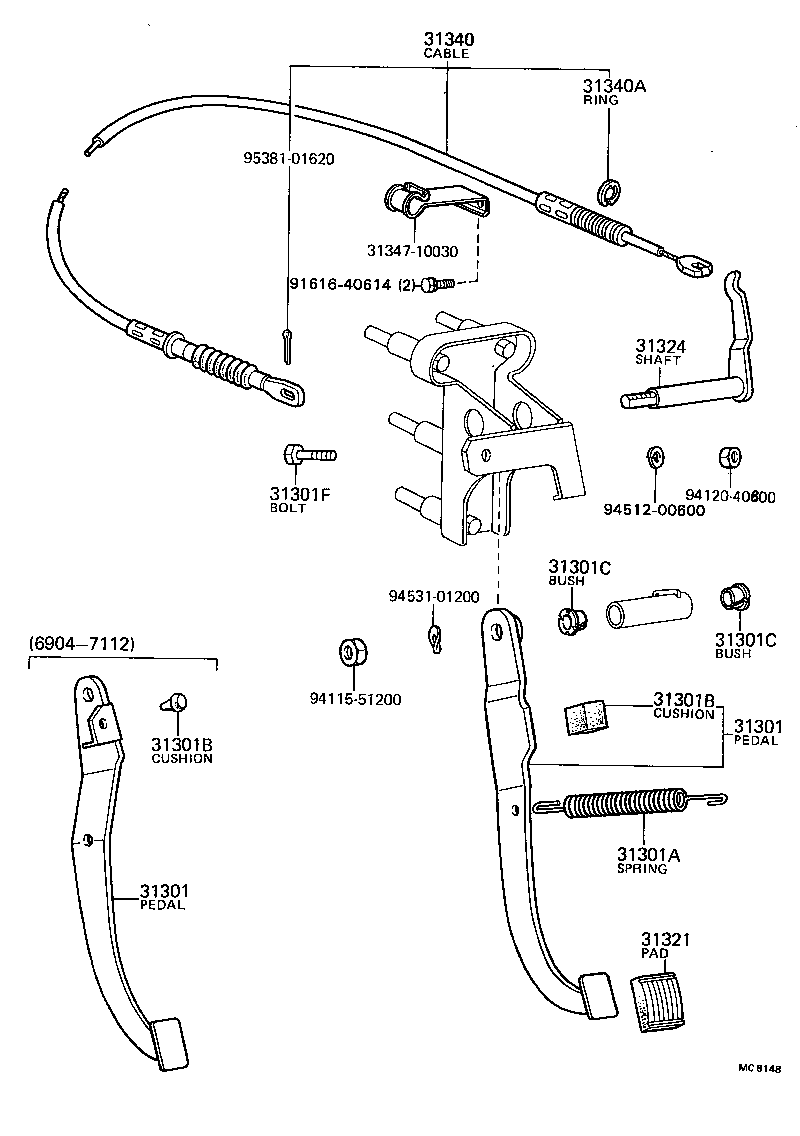

Click highlighted areas on diagram

diagram 31301 31301 31301A 31301B 31301B 31301C 31301C 31301F 31321 31324 31340 31340A 3134710030 9161640614 9411551200 9412040600 9451200600 9453101200 9538101620
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-10030

KP3#,UP3#..4F

 1
31301 - PEDAL SUB-ASSY, CLUTCH
31301-10030

KP3#,UP3#..4F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-12217

KP3#,UP3#..4F

 1
90506-14393

KP3#,UP3#..4F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

KP3#,UP3#..4F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

KP3#,UP3#..4F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

KP3#,50..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

KP3#,50..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-06319

KP3#,UP3#..4F

 1
31321 - PAD, CLUTCH PEDAL
31321-10020

KP3#,50..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
31302-10010

KP3#,UP3#..4F

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-19065

KP3#..4F

 1
31340-19066

KP3#..4F

 1
31340A - RING, E(FOR CLUTCH RELEASE CABLE)
96160-01200

KP3#,50..MTM

 1
Common parts
31347-10030
91616-40614
94115-51200
94120-40600
94512-00600
94531-01200
95381-01620
