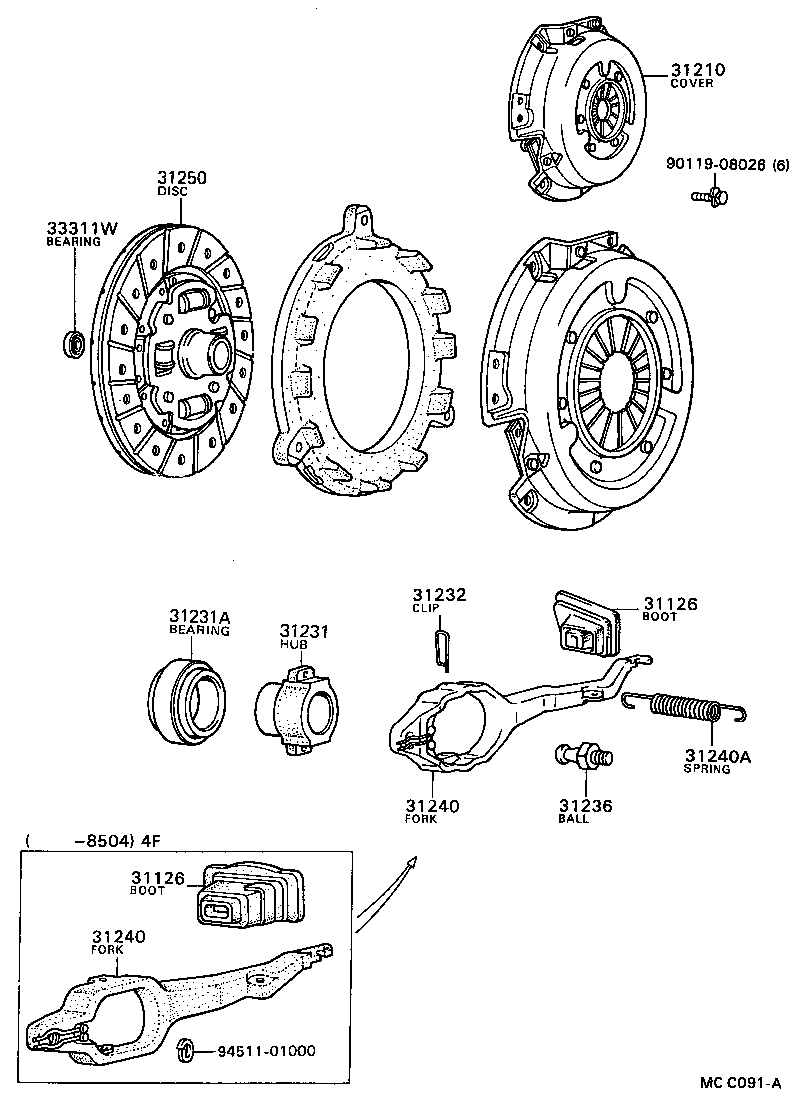

KP30-D (1969)
Toyota Publica
(6904-7404)KP3#..4F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-12010 |
KP3#..4F |
1 | ||
| 31126-12011 |
KP3#..4F |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-12010 |
KP30,36..4F..(DLX,STD) |
1 | ||
| 31201-12010 |
KP30,36..4F |
1 | ||
| 31205 - SUPPORT SUB-ASSY, RELEASE FORK | ||||
| 31205-30010 |
KP3#..4F |
1 | ||
| 31205A - PIN, W/SERRATION(FOR RELEASE FORK SUPPORT) | ||||
| 90245-10001 |
KP3#..4F |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-12011 |
KP3#..4F..(DLX,STD) |
1 | ||
| 31210-12012 |
KP30,36..4F |
1 | ||
| 31210-12013 |
KP30,36..4F |
1 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-12010 |
KP3#..4F |
4 | ||
| 31216-30010 |
KP3#..4F |
4 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31221-12010 |
KP30,36..4F..(DLX,STD) |
1 | ||
| 31221-12010 |
KP30,36..4F |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-12011 |
KP3#..4F |
1 | ||
| 31231-12012 |
KP3#..4F |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-33030 |
KP3#..4F |
1 | ||
| 90363-33077 |
KP3#..4F |
1 | ||
| 90363-33057 |
KP3#..4F |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-30010 |
KP3#..4F |
2 | ||
| 31232-12010 |
KP3#..4F |
2 | ||
| 31232-30010 |
KP30,36..4F |
2 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-30010 |
KP3#..4F |
2 | ||
| 31232-12010 |
KP3#..4F |
2 | ||
| 31232-30010 |
KP30,36..4F |
2 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31240-12021 |
KP3#..4F |
1 | ||
| 31240-12010 |
KP3#..4F |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-14139 |
KP3#,50..MTM |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-12012 |
KP3# |
1 | ||
| 31250-12031 |
KP30,36..4F |
1 | ||
| 31250-12030 |
KP3#..4F |
1 | ||
| 31250-19021 |
KP3#..4F |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 97123-06001 |
KP3#,50..MTM 6001 ZZ C3 |
1 | ||
| Common parts | ||||
| 91611-41035 | ||||
| 91611-60816 | ||||
| 93210-16010 | ||||
| 94511-00600 | ||||
| 95381-03020 | ||||
(7404- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-12010 |
KP3#..4F |
1 | ||
| 31126-12011 |
KP3#..4F |
1 | ||
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-12010 |
KP3#..4F |
1 | ||
| 31126-12011 |
KP3#..4F |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-12011 |
KP3#..4F..(DLX,STD) |
1 | ||
| 31210-12012 |
KP30,36..4F |
1 | ||
| 31210-12013 |
KP30,36..4F |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-12011 |
KP3#..4F |
1 | ||
| 31231-12012 |
KP3#..4F |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-33030 |
KP3#..4F |
1 | ||
| 90363-33077 |
KP3#..4F |
1 | ||
| 90363-33057 |
KP3#..4F |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-30010 |
KP3#..4F |
2 | ||
| 31232-12010 |
KP3#..4F |
2 | ||
| 31232-30010 |
KP30,36..4F |
2 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31240-12021 |
KP3#..4F |
1 | ||
| 31240-12010 |
KP3#..4F |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31240-12021 |
KP3#..4F |
1 | ||
| 31240-12010 |
KP3#..4F |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-14139 |
KP3#,50..MTM |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-12012 |
KP3# |
1 | ||
| 31250-12031 |
KP30,36..4F |
1 | ||
| 31250-12030 |
KP3#..4F |
1 | ||
| 31250-19021 |
KP3#..4F |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 97123-06001 |
KP3#,50..MTM 6001 ZZ C3 |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
| 94511-01000 | ||||
