KP30-D (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7511)2K,3K

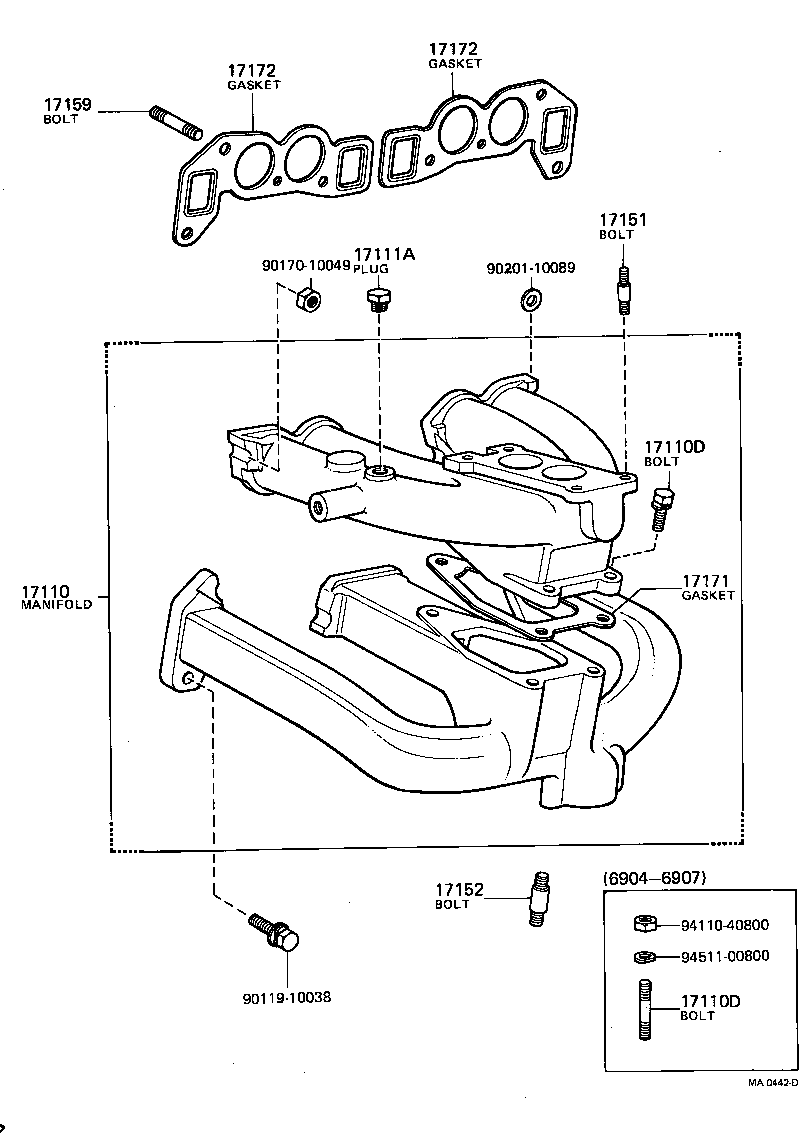

Click highlighted areas on diagram

diagram 17110 17110D 17110D 17111A 17151 17152 17159 17171 17172 17172 9011910038 9017010049 9020110089 9411040800 9451100800
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-24020

2K,3K..KP3#

 1
17110-24022

2K..KP30,36

 1
17110-24021

2K,3K..KP3#

 1
17110-22011

2K..KP3#

 1
17110D - BOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
91611-40820

2K..KP3#

 3
90116-08009

KB,2K..KP3#

L=33,S=10.5

 3
17110D - BOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
91611-40820

2K..KP3#

 3
90116-08009

KB,2K..KP3#

L=33,S=10.5

 3
17111A - PLUG, NO.1
90345-51025

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

L=9,S=7.5

 4
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08010

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

L=39,S=13&13

 8
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

L=37,S=20&13

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10021

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

L=42,S=11&11

 7
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-24010

2K,3K..KP3#

 1
17171-22010

2K..KP3#

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-22010

KB,2K,3K,3KB#..KP3#

KB,3KB,3KBR=1,(FR)

 2
17172-24010

2K,3K,3KB#..KP3#

3KB,3KBR=1,(FR)

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-22010

KB,2K,3K,3KB#..KP3#

KB,3KB,3KBR=1,(FR)

 2
17172-24010

2K,3K,3KB#..KP3#

3KB,3KBR=1,(FR)

 2
Common parts
90119-10038
90170-10049
90201-10089
94110-40800
94511-00800
