KP30-D (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ

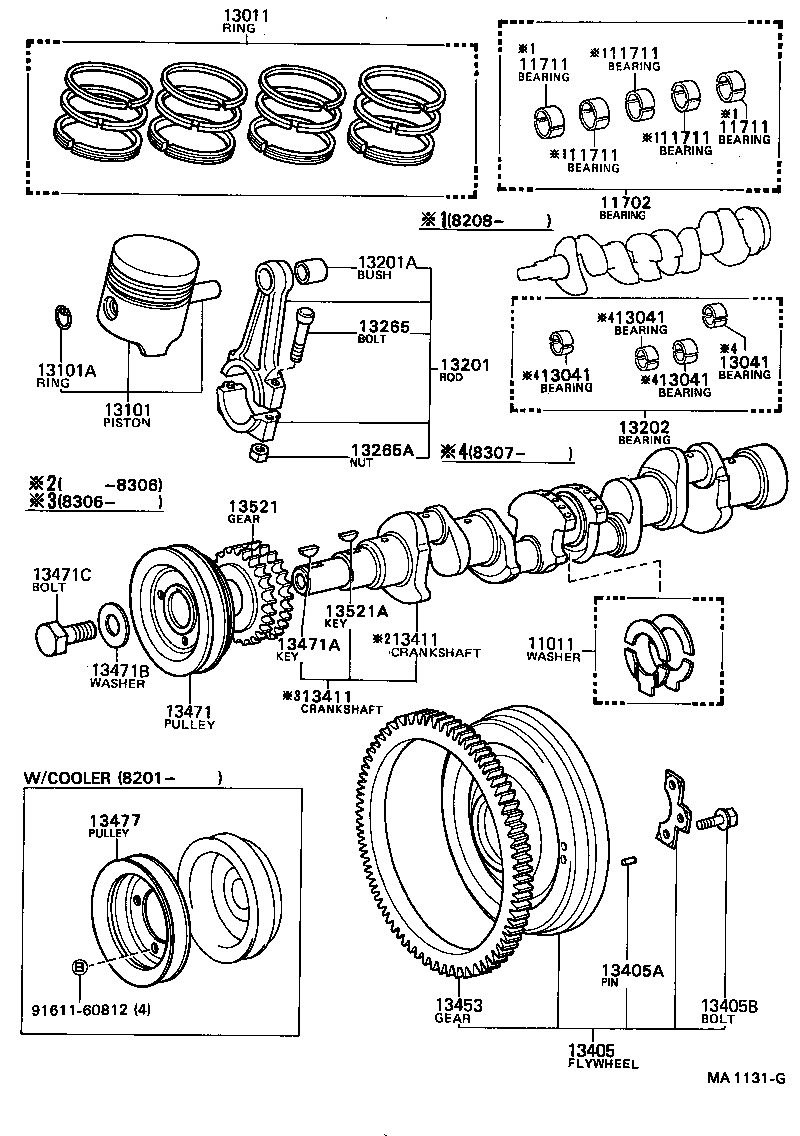

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405A 13405B 13411 13411 13453 13471 13471A 13471B 13471C 13477 13521 13521A 9161160812
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

STD

 1
11012-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

O/S 0.125

 1
11013-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

O/S 0.250

 1
11702 - BEARING SET, CRANKSHAFT
11702-22010

2K,3K..KP3#

STD

 1
11706-22020

2K,3K,3KB#..KP3#

U/S 0.75

 1
11704-22010

2K,3K..KP3#

U/S 0.25,U/S 0.25

 1
11705-22010

2K,3K..KP3#

U/S 0.50

 1
11703-22010

2K,3K..KP3#

U/S 0.05

 1
11706-22010

2K,3K..KP3#

U/S 0.75

 1
13011 - RING SET, PISTON
13011-12010

2K..KP30,36

STD

 1
13012-12010

2K..KP30,36

O/S 0.25

 1
13011-12030

2K..KP30,36

STD 3PCS

 1
13014-12010

2K..KP30,36

O/S 0.75

 1
13014-12030

2K..KP30,36

O/S 0.75 3 PCS

 1
13015-12010

2K..KP30,36

O/S 1.00

 1
13012-12030

2K..KP30,36

O/S 0.25 3 PCS

 1
13015-12030

2K..KP30,36

O/S 1.00 3 PCS

 1
13013-12030

2K..KP30,36

O/S 0.50 3 PCS

 1
13013-12010

2K..KP30,36

O/S 0.50

 1
13101 - PISTON SUB-ASSY, W/PIN
13102-12010

2K..KP30,36

O/S 0.25

 4
13103-12010

2K..KP30,36

O/S 0.50,O/S 0.50

 4
13105-12010

2K..KP30,36

O/S 1.00,O/S 1.00

 4
13104-12010

2K..KP30,36

O/S 0.75,O/S 0.75

 4
13101-12010

2K..KP30,36

STD,STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-21088

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-22011

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-70063

KB,2K,3K,3KB#..KP3#

 4
13202 - BEARING SET, CONNECTING ROD
13203-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

U/S 0.05

 1
13205-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

U/S 0.50

 1
13206-22010

KB,2K,3K,3KB#..KP3#

U/S 0.75

 1
13202-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

STD

 1
13204-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-29015

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09042

KB,2K,3K,3KB#..KP3#

 8
13405 - FLYWHEEL SUB-ASSY
13405-19015

2K..KP30,36..4F

N=106

 1
13405-19015

2K,3K,3KB#..KP3#..4F

N=106

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08120

KB,2K,3K,3KB#..KP3#..4F

長さ=18,外径=8,L=18,OD=8

 2
13405B - BOLT, FLYWHEEL SETTING
90913-01005

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50..MTM

 6
13411 - CRANKSHAFT
13411-12010

2K..KP30,36

 1
13411-22011

KB,2K..KP3#

 1
13411 - CRANKSHAFT
13411-12010

2K..KP30,36

 1
13411-22011

KB,2K..KP3#

 1
13453 - GEAR, FLYWHEEL RING
13453-10010

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50..MTM

N=106

 1
13471 - PULLEY, CRANKSHAFT
88451-12011

2K,3K..KP3#

W/COOLER

 1
13471-24020

2K,3K,3KB#..KP3#

 1
88451-12011

2K,3K,3KB#..KP3#

W/COOLER

 1
88451-12011

KB,2K,3K,3KB#..KP3#

W/COOLER

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 1
13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
90209-13059

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90109-12040

KB,2K,3K,3KB#..KP3#

ISO

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

N=18

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 1
Common parts
91611-60812
