KP30-D (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7304)KB,2K,3K,3KB#

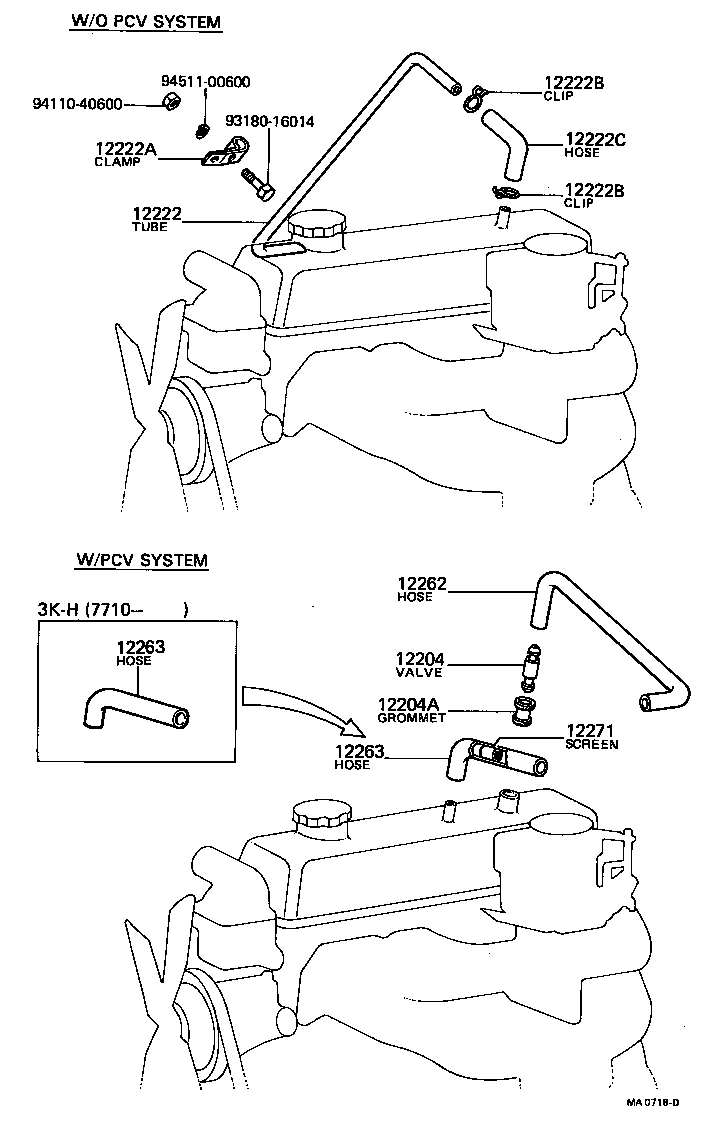

Click highlighted areas on diagram

diagram 12204 12204A 12222 12222A 12222B 12222B 12222C 12262 12263 12263 12271 9318016014 9411040600 9451100600
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-24010

2K..KP3#

 1
12222 - TUBE, VENTILATION, NO.2
12222-22010

KB,2K..KP3#

 1
12222A - CLAMP(FOR VENTILATION TUBE)
90461-16269

KB,2K..KP3#

 1
12222B - CLIP(FOR VENTILATION TUBE)
90467-24038

KB,2K..KP3#

 2
12222B - CLIP(FOR VENTILATION TUBE)
90467-24038

KB,2K..KP3#

 2
12222C - HOSE(FOR VENTILATION TUBE)
90910-05006

KB,2K..KP3#

 1
12262 - HOSE, VENTILATION, NO.2
12261-22010

2K,3K,3KB#..KP3#

 1
Common parts
93180-16014
94110-40600
94511-00600

(7304-7511)

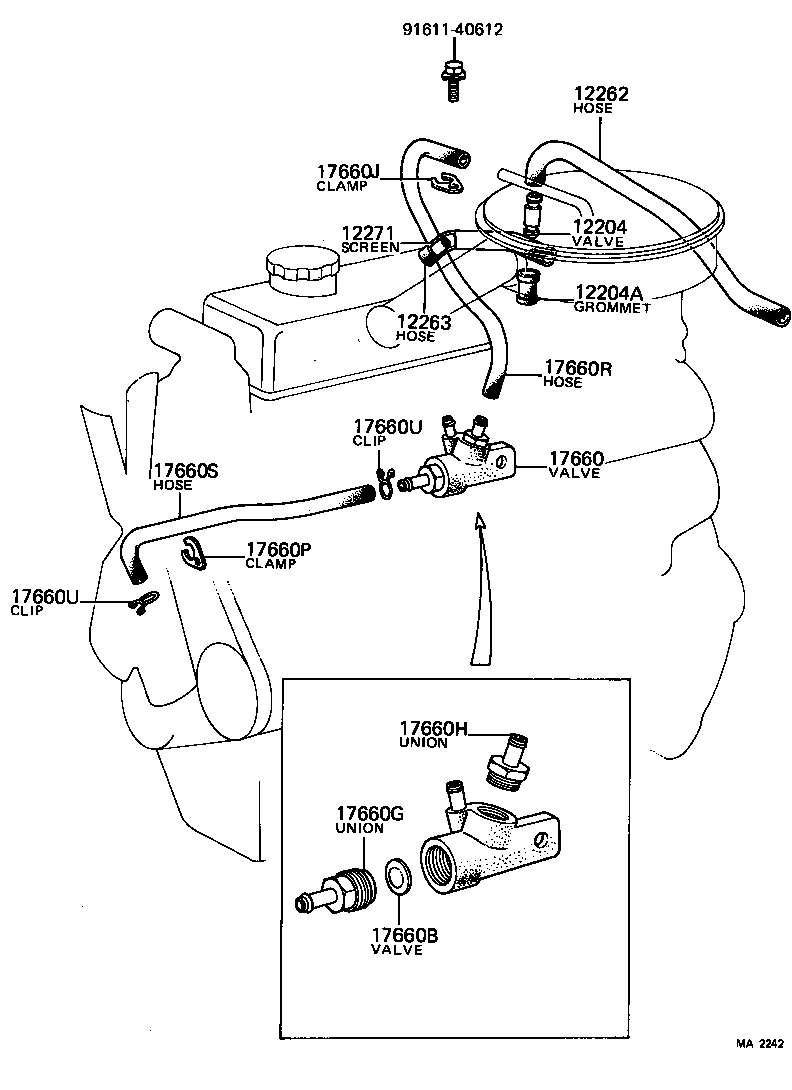

Click highlighted areas on diagram

diagram 12204 12204A 12262 12263 12271 17660 17660B 17660G 17660H 17660J 17660P 17660R 17660S 17660U 17660U 9161140612
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-24010

2K..KP3#

 1
12262 - HOSE, VENTILATION, NO.2
12261-22010

2K,3K,3KB#..KP3#

 1
17660 - VALVE ASSY, PURGE CONTROL
17660-24050

2K,3K,3KB#..KP3#

 1
17660-24051

2K,3K,3KB#..KP3#

 1
17660B - VALVE(FOR PURGE CONTROL TO TIMING GEAR COVER)
90917-10009

2K,3K,3KB#..KP3#

 1
17660G - UNION(FOR PURGE CONTROL TO TIMING GEAR COVER)
90404-22286

2K,3K,3KB#..KP3#

 1
17660H - UNION(FOR PURGE CONTROL TO AIR CLEANER)
90917-10015

2K,3K,3KB#..KP3#

 1
17660J - CLAMP(FOR VALVE HOSE TO AIR CLEANER)
90461-16925

2K,3K,3KB#..KP3#

 1
17660P - CLAMP(FOR VALVE TO TIMING GEAR COVER HOSE)
90461-16905

2K,3K,3KB#..KP3#

 1
17660R - HOSE(FOR VALVE TO AIR CLEANER)
90445-08964

2K,3K,3KB#..KP3#

 1
17660S - HOSE(FOR VALVE TO TIMING GEAR)
95332-06040

2K,3K,3KB#..KP3#

 1
17660U - CLIP(FOR VALVE HOSE TO TIMING GEAR COVER)
90467-12058

2K,3K,3KB#..KP3#

 2
17660U - CLIP(FOR VALVE HOSE TO TIMING GEAR COVER)
90467-12058

2K,3K,3KB#..KP3#

 2
Common parts
91611-40612
