KP30-D (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7404)KB,2K,3K,3KB#

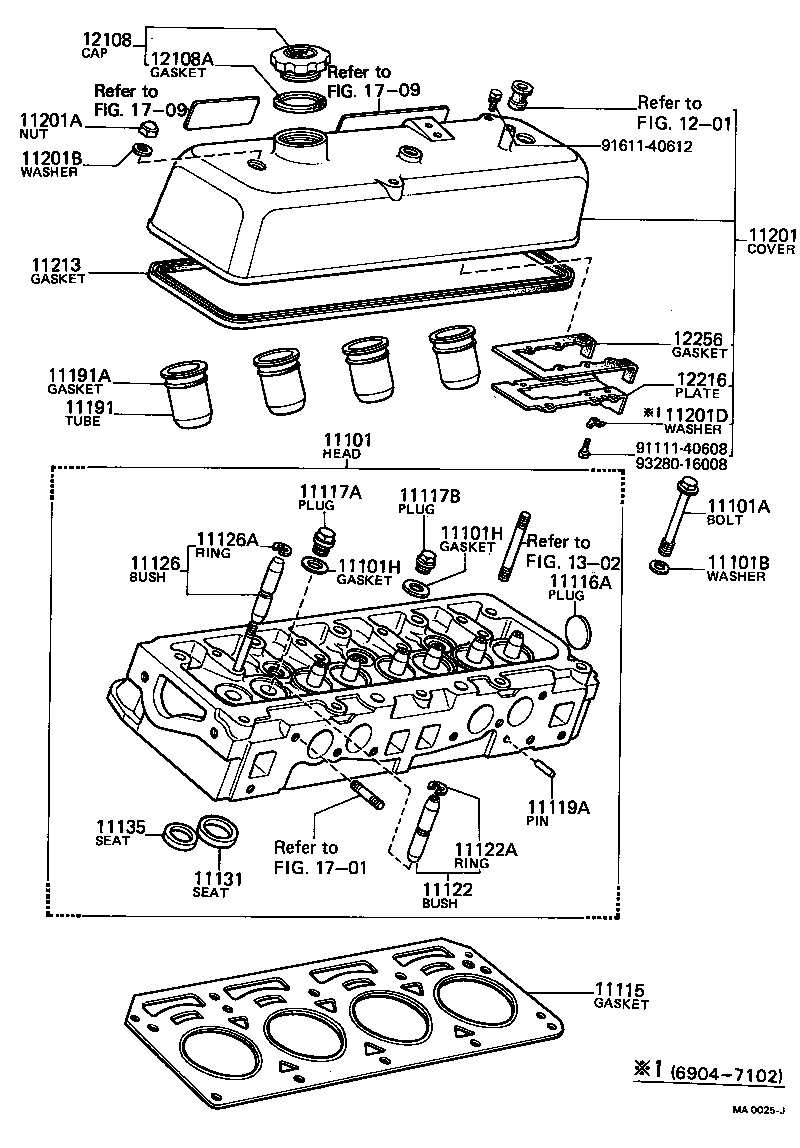

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101H 11101H 11115 11116A 11117A 11117B 11119A 11122 11122A 11126 11126A 11131 11135 11191 11191A 11201 11201A 11201B 11201D 11213 1201 12108 12108A 12216 12256 1302 1701 1709 1709 9111140608 9161140612 9328016008
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-19018

2K..KP30,36

 1
11101-19016

2K..KP30,36

 1
11101-19017

2K..KP30,36

 1
11101-19035

2K..KP30,36

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02020

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

*10-1.25PX100-20

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10246

2K..KP30,36

 10
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-18152

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

OD=25,ID=18

 3
90430-15151

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

OD=21,ID=15

 2
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-18152

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

OD=25,ID=18

 3
90430-15151

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

OD=21,ID=15

 2
11115 - GASKET, CYLINDER HEAD
11115-12010

2K..KP30,36

 1
11115-12013

2K..KP30,36

 1
11115-12011

2K..KP30,36

 1
11116A - PLUG, TIGHT, NO.1
90330-40035

KB,2K,3K,3KB#..KP3#

OD=40

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-18063

2K..KP3#

L=11,OD=18,P=1.5

 3
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-15045

2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

L=11,15-1.5P

 2
11119A - PIN, STRAIGHT, NO.1
90250-08120

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

長さ=18,外径=8,L=18,OD=8

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-22020

KB,2K,3K,3KB#..KP3#

STD,STD

 4
11123-22020

KB,2K,3K,3KB#..KP3#

O/S 0.05,O/S 0.05

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11126-22020

KB,2K,3K,3KB#..KP3#

STD,STD

 4
11127-22020

KB,2K,3K,3KB#..KP3#

O/S 0.05,O/S 0.05

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
11131 - SEAT, INTAKE VALVE
11132-22010

2K..KP30,36

O/S 0.03

 4
11131-22010

2K..KP30,36

STD

 4
11135 - SEAT, EXHAUST VALVE
11136-22010

2K..KP30,36

O/S 0.03

 4
11135-22012

2K..KP30,36

STD

 4
11191 - TUBE, SPARK PLUG
11191-22010

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
11191A - GASKET(FOR SPARK PLUG TUBE)
90430-31141

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-22010

2K,3K..KP3#

W/O PCV

 1
11201-29106

2K,3K..KP3#

W/PCV

 1
11201-29107

2K,3K..KP3#

W/PCV

 1
11201-22010

2K..KP30,36

W/O PCV

 1
11201-24010

2K,3K..KP3#

W/PCV

 1
11201-24011

2K,3K..KP3#

W/PCV

 1
11201-29105

2K,3K..KP3#

W/PCV

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
94171-10800

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 2
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08017

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 2
11201D - WASHER, LOCK(FOR CYLINDER HEAD COVER)
90215-06014

KB,2K,3K..KP3#

 6
11213 - GASKET, CYLINDER HEAD COVER
11213-22010

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-12902

KB,2K..KP3#

 1
12181-12903

2K,3K,3KB#..KP3#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

KB,2K,3K,3KB#..KP3#

 1
12216 - PLATE, VENTILATION BAFFLE
12216-22010

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 1
12256 - GASKET, VENTILATION BAFFLE
12256-22010

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 1
Common parts
91111-40608
91611-40612
93280-16008
Linked diagrams
1201
1302
1701
1709
