KP30-CN (1972)
Toyota Publica
Production
Jan 1972
-
Nov 1975
Engine
2K
Transmission
2FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7201-7310)

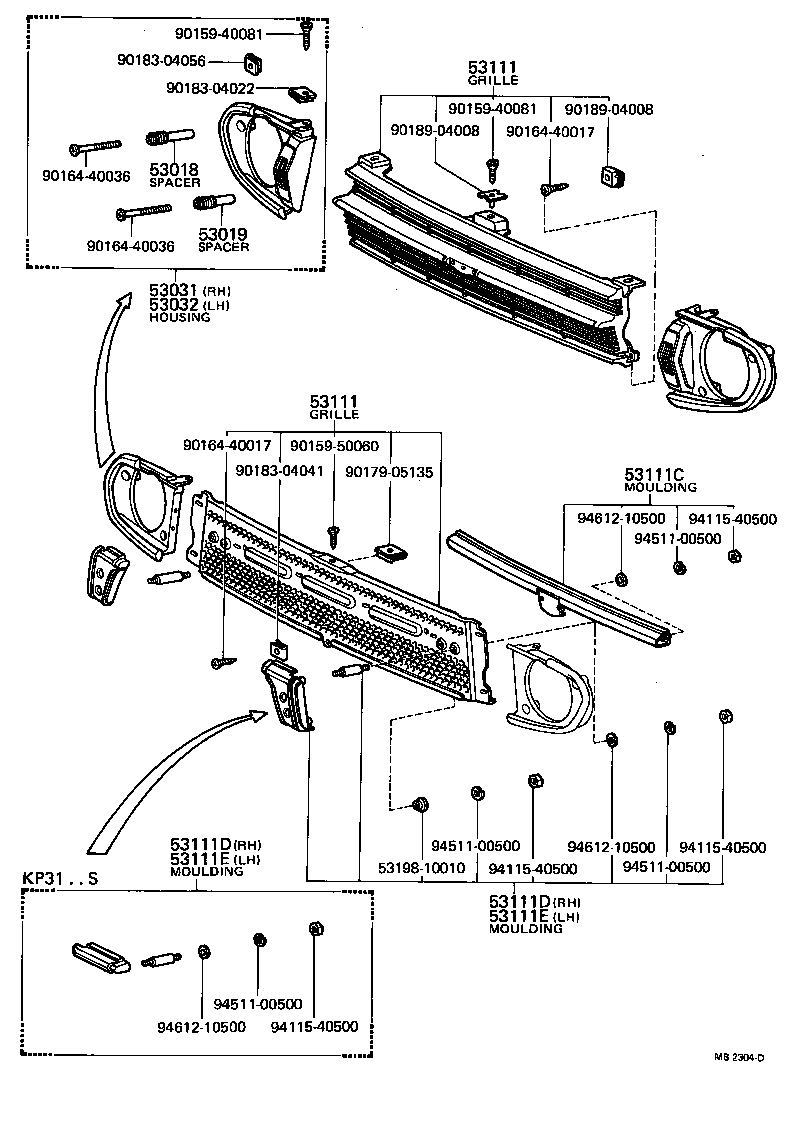

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53031-19015 |
KP3#,UP3# |
1 | ||
| 53131-19195 |
KP30,31..HDX,XL |
1 | ||
| 53031-19045 |
KP30,31..HDX,XL |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53031-19015 |
KP3#,UP3# |
1 | ||
| 53132-19195 |
KP30,31..HDX,XL |
1 | ||
| 53032-19035 |
KP30,31..HDX,XL |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19087 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 53101-19088 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19087 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 53101-19088 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 53111D - MOULDING, RADIATOR GRILLE, RH | ||||
| 53138-10050 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 53111D - MOULDING, RADIATOR GRILLE, RH | ||||
| 53138-10050 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 53111E - MOULDING, RADIATOR GRILLE, LH | ||||
| 53139-10060 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 53111E - MOULDING, RADIATOR GRILLE, LH | ||||
| 53139-10060 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| Common parts | ||||
| 53198-10010 | ||||
| 90159-40081 | ||||
| 90159-50060 | ||||
| 90164-40017 | ||||
| 90164-40036 | ||||
| 90179-05135 | ||||
| 90183-04022 | ||||
| 90183-04041 | ||||
| 90183-04056 | ||||
| 90189-04008 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
| 94612-10500 | ||||
(7310-7511)

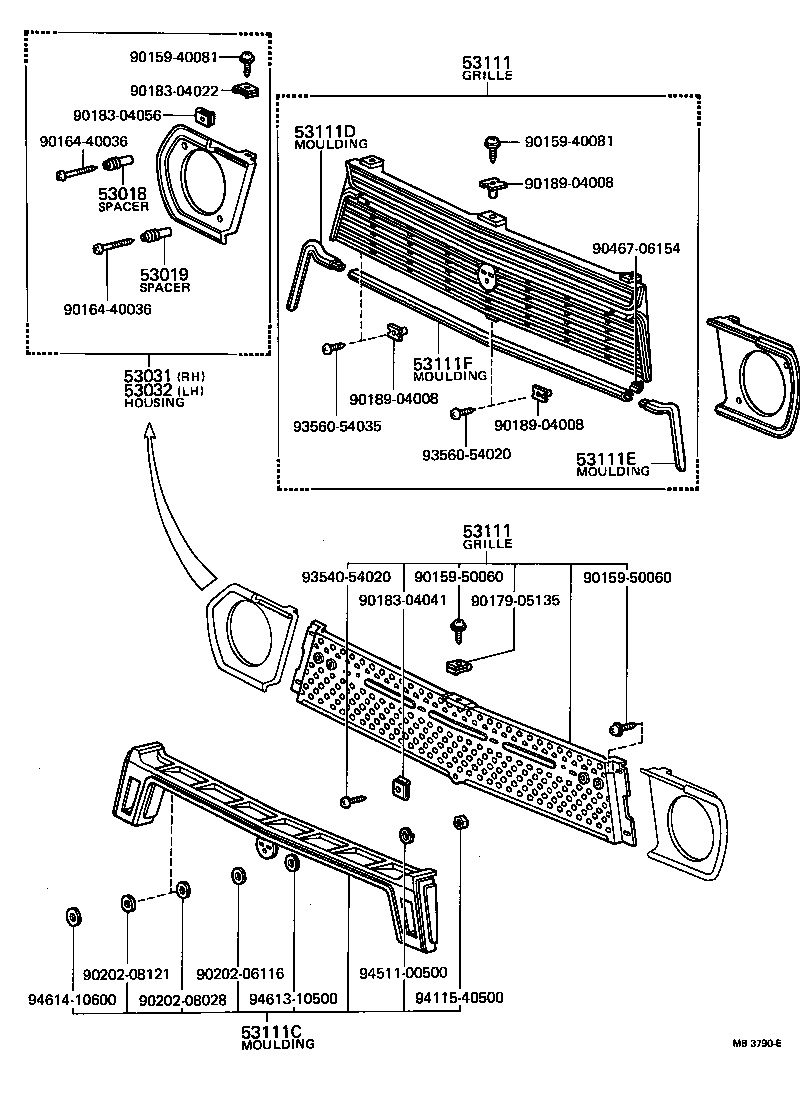

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53031-19015 |
KP3#,UP3# |
1 | ||
| 53131-19195 |
KP30,31..HDX,XL |
1 | ||
| 53031-19045 |
KP30,31..HDX,XL |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53031-19015 |
KP3#,UP3# |
1 | ||
| 53132-19195 |
KP30,31..HDX,XL |
1 | ||
| 53032-19035 |
KP30,31..HDX,XL |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19087 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 53101-19088 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19087 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 53101-19088 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 53111D - MOULDING, RADIATOR GRILLE, RH | ||||
| 53138-10050 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 53111E - MOULDING, RADIATOR GRILLE, LH | ||||
| 53139-10060 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 53111F - MOULDING, RADIATOR GRILLE, CENTER | ||||
| 53125-10011 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| Common parts | ||||
| 90159-40081 | ||||
| 90159-50060 | ||||
| 90164-40036 | ||||
| 90179-05135 | ||||
| 90183-04022 | ||||
| 90183-04041 | ||||
| 90183-04056 | ||||
| 90189-04008 | ||||
| 90202-06116 | ||||
| 90202-08028 | ||||
| 90202-08121 | ||||
| 90467-06154 | ||||
| 93540-54020 | ||||
| 93560-54020 | ||||
| 93560-54035 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
| 94613-10500 | ||||
| 94614-10600 | ||||
