KP30-CN (1972)

Toyota Publica

Production Jan 1972 - Nov 1975
Engine 2K
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7511)KB,2K,3K,3KB#..KP30,31

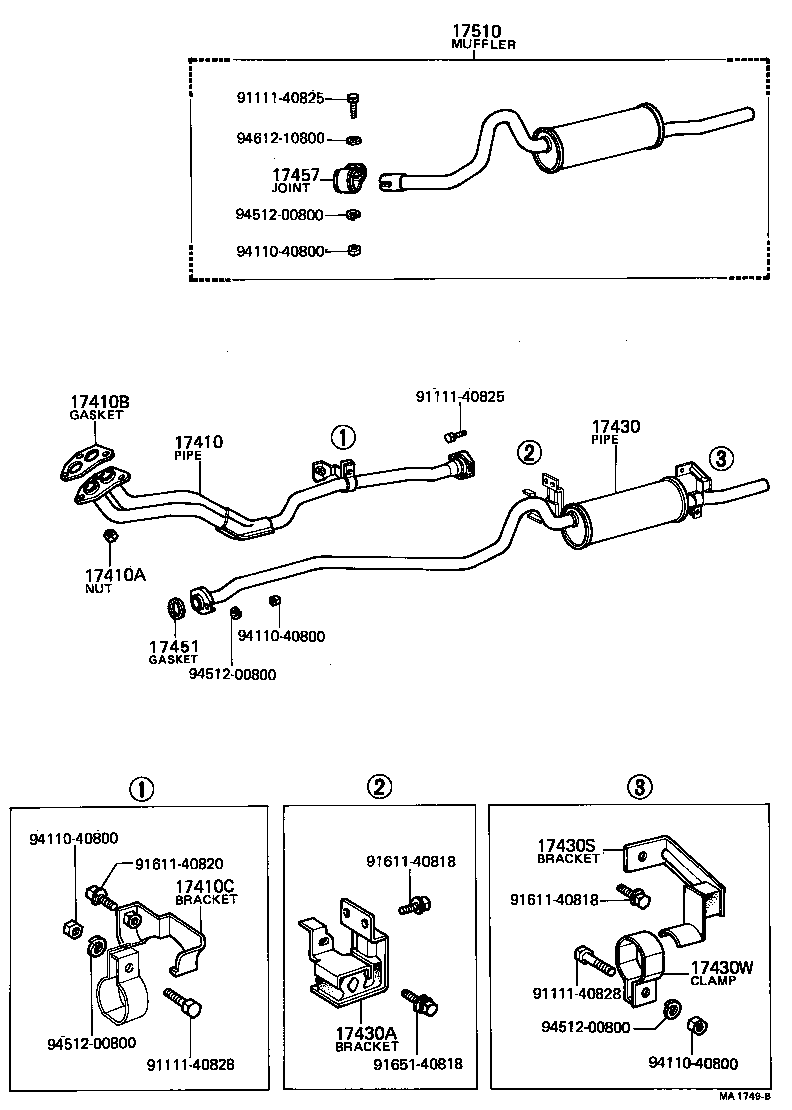

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17430 17430A 17430S 17430W 17451 17457 17510 9111140825 9111140825 9111140828 9111140828 9161140818 9161140818 9161140820 9165140818 9411040800 9411040800 9411040800 9411040800 9451200800 9451200800 9451200800 9451200800 9461210800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-12013

2K..KP30,36

 1
17410-12012

2K,3K..KP3#

 1
17410-12012

2K..KP30,36

 1
17410-12020

2K..KP3#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10199

KB,2K,3K..KP3#

 3
17410B - GASKET, EXHAUST PIPE
90917-06006

2K..KP30,36

 1
90917-06006

2K,3K,2UC..KP3#,UP3#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-22010

KB,2K,3K,3KB#..KP3#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-12030

KB,2K..KP30

 1
17430-12033

2K,3K,3KB#..KP30,31

 1
17430-12015

2K,3K,3KB#..KP30,31

 1
17430-12032

2K,3K,3KB#..KP30,31

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17562-12040

2K,3K,3KB#..KP30,31

 1
17562-12010

KB,2K,3K,3KB#..KP30,31

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17563-12011

2K,3K,3KB#..KP30,31

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-23276

KB,2K,3K,3KB#,3KHJ,4KJ..KP3#..PIC,SED

 1
17451 - GASKET, EXHAUST PIPE
90917-06006

KB,2K,2UC..KP3#,UP3#

 1
17457 - JOINT, EXHAUST PIPE
17457-22010

KB,2K,3K,3KB#..KP3#..PIC,SED

 1
17510 - MUFFLER ASSY
17540-12011

2K,3K,3KB#..KP30,31,37

 1
17540-12010

KB,2K,3K,3KB#..KP30,31

 1
Common parts
91111-40825
91111-40828
91611-40818
91611-40820
91651-40818
94110-40800
94512-00800
94612-10800
