KP30-CD (1969)

Toyota Publica

Production Oct 1969 - Nov 1975
Engine 2K
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7112)KP30,31,UP30

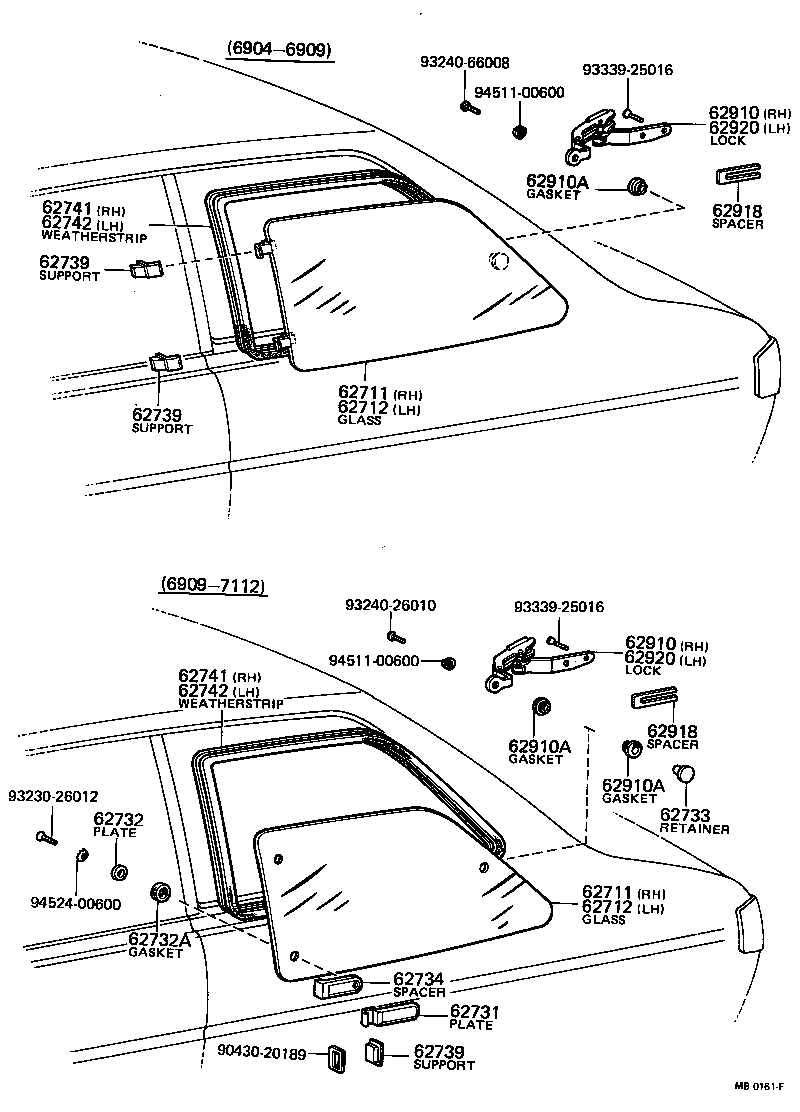

Click highlighted areas on diagram

diagram 62711 62711 62712 62712 62731 62732 62732A 62733 62734 62739 62739 62739 62741 62741 62742 62742 62910 62910 62910A 62910A 62910A 62918 62918 62920 62920 9043020189 9323026012 9324026010 9324066008 9333925016 9333925016 9451100600 9451100600 9452400600
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62711-10052

KP30,31..S,SR,STD

*TEM,T=4.0

 1
62071-10020

KP30,UP30..DLX,SL

*TT,T=4.0

 1
62711-10062

KP30,31..DLX,HDX,ST

*TT,T=4.0

 1
62711 - GLASS, QUARTER WINDOW, RH
62711-10052

KP30,31..S,SR,STD

*TEM,T=4.0

 1
62071-10020

KP30,UP30..DLX,SL

*TT,T=4.0

 1
62711-10062

KP30,31..DLX,HDX,ST

*TT,T=4.0

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-10022

KP30,31..DLX,HDX,ST

*TT,T=4.0

 1
62072-10020

KP30,UP30..DLX,SL

*TT,T=4.0

 1
62712-10012

KP30,31..S,SR,STD

*TEM,T=4.0

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-10022

KP30,31..DLX,HDX,ST

*TT,T=4.0

 1
62072-10020

KP30,UP30..DLX,SL

*TT,T=4.0

 1
62712-10012

KP30,31..S,SR,STD

*TEM,T=4.0

 1
62739 - SUPPORT, QUARTER WINDOW HINGE
62739-10020

KP3#,UP3#

 4
62739 - SUPPORT, QUARTER WINDOW HINGE
62739-10020

KP3#,UP3#

 4
62739 - SUPPORT, QUARTER WINDOW HINGE
62739-10020

KP3#,UP3#

 4
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62740-10020

KP30,UP30

 1
62740-10021

KP30,31,UP30

 1
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62740-10020

KP30,UP30

 1
62740-10021

KP30,31,UP30

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62740-10020

KP30,UP30

 1
62740-10021

KP30,31,UP30

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62740-10020

KP30,UP30

 1
62740-10021

KP30,31,UP30

 1
62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910-10030

KP30,UP30

 1
62910-10033

KP30,31

 1
62910-10032

KP30,31

 1
62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910-10030

KP30,UP30

 1
62910-10033

KP30,31

 1
62910-10032

KP30,31

 1
62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
90430-08180

KP3#,UP3#

 2
62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
90430-08180

KP3#,UP3#

 2
62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
90430-08180

KP3#,UP3#

 2
62918 - SPACER, QUARTER WINDOW LOCK SUPPORT
62918-10021

KP30,31,50,UP30

T=1.2

 1
62918-10030

KP30,31,UP30

T=2.3

 1
62918 - SPACER, QUARTER WINDOW LOCK SUPPORT
62918-10021

KP30,31,50,UP30

T=1.2

 1
62918-10030

KP30,31,UP30

T=2.3

 1
62920 - LOCK ASSY, QUARTER WINDOW, LH
62910-10030

KP30,UP30

 1
62910-10033

KP30,31

 1
62910-10032

KP30,31

 1
62920 - LOCK ASSY, QUARTER WINDOW, LH
62910-10030

KP30,UP30

 1
62910-10033

KP30,31

 1
62910-10032

KP30,31

 1
Common parts
90430-20189
93230-26012
93240-26010
93240-66008
93339-25016
94511-00600
94524-00600
