KP30-C (1969)

Toyota Publica

Production Oct 1969 - Nov 1975
Engine 2K
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

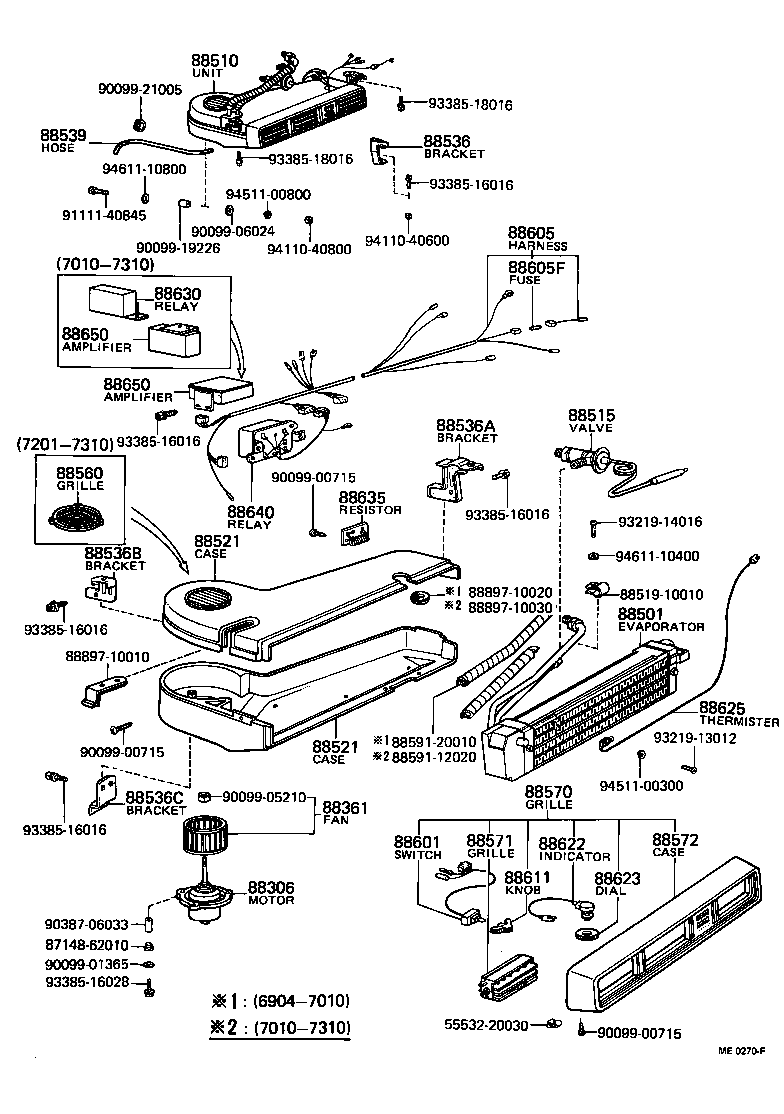

ILLUST NO. 1 OF 2(6904-7310)KP3#

Click highlighted areas on diagram

diagram 5553220030 8714862010 88306 88361 88501 88510 88515 8851910010 88521 88521 88536 88536A 88536B 88536C 88539 88560 88570 88571 88572 8859112020 8859120010 88601 88605 88605F 88611 88622 88623 88625 88630 88635 88640 88650 88650 8889710010 8889710020 8889710030 9009900715 9009900715 9009900715 9009901365 9009905210 9009906024 9009919226 9009921005 9038706033 9111140845 9321913012 9321914016 9338516016 9338516016 9338516016 9338516016 9338516016 9338516028 9338518016 9338518016 9411040600 9411040800 9451100300 9451100800 9461110400 9461110800
Part # Description Qty Price
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-10010

KP3#

 1
88550-12040

KP3#..DLX,HDX,STD,XL

 1
88550-12040

KP3#

 1
88361 - FAN, COOLER BLOWER, NO.1
88540-10010

KP3#

 1
87105-22020

KP3#..DLX,HDX,STD,XL

 1
87105-22020

KP3#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-10010

KP3#

 1
88501-10012

KP3#..DLX,HDX,STD,XL

 1
88501-10011

KP3#

 1
88501-10020

KP3#

 1
88501-30520

KP3#

 1
88510 - UNIT ASSY, COOLER
88510-10010

KP3#

 1
88510-10020

KP3#

 1
88510-10011

KP3#

 1
88510-10012

KP3#..DLX,HDX,STD,XL

 1
88515 - VALVE, COOLER EXPANSION
88515-12011

KP3#

 1
88515-10010

KP3#..DLX,HDX,STD,XL

 1
88515-12010

KP3#

 1
88521 - CASE, COOLER UNIT
88521-10010

KP3#

UPR

 1
88521-12070

KP3#..DLX,HDX,STD,XL

LWR

 1
88521-10020

KP3#

LWR

 1
88521-12080

KP3#..DLX,HDX,STD,XL

UPR

 1
88521-12070

KP3#

LWR

 1
88521-12071

KP3#..DLX,HDX,STD,XL

LWR

 1
88521-12081

KP3#..DLX,HDX,STD,XL

UPR

 1
88521-12080

KP3#

UPR

 1
88521 - CASE, COOLER UNIT
88521-10010

KP3#

UPR

 1
88521-12070

KP3#..DLX,HDX,STD,XL

LWR

 1
88521-10020

KP3#

LWR

 1
88521-12080

KP3#..DLX,HDX,STD,XL

UPR

 1
88521-12070

KP3#

LWR

 1
88521-12071

KP3#..DLX,HDX,STD,XL

LWR

 1
88521-12081

KP3#..DLX,HDX,STD,XL

UPR

 1
88521-12080

KP3#

UPR

 1
88536 - BRACKET, COOLING UNIT, NO.1
88898-10010

KP3#

 1
88536-10040

KP3#

 1
88536A - BRACKET, COOLING UNIT, NO.2
88536-10030

KP3#

 1
88536-05480

KP3#

 1
88536B - BRACKET, COOLING UNIT, NO.3
88536-10020

KP3#

 1
88536C - BRACKET, COOLING UNIT, NO.4
88536-10010

KP3#

 1
88536-12070

KP3#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
90099-33014

KP3#..DLX,HDX,STD,XL

 1
90099-33014

KP3#

 1
88560 - GRILLE ASSY, COOLER AIR INLET
88561-12010

KP3#..DLX,HDX,STD,XL

 1
88574-10010

KP3#

 2
88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET
88570-10010

KP3#

 1
88570-12030

KP3#..DLX,HDX,STD,XL

 1
88570-10020

KP3#

 1
88570-12031

KP3#..DLX,HDX,STD,XL

 1
88570-12030

KP3#

 1
88571 - GRILLE, AIR OUTLET
88571-12010

KP3#

 3
88571-10020

KP3#

CTR

 2
88571-40040

KP3#

RH

 1
88571-12010

KP3#..DLX,HDX,STD,XL

 3
88572 - CASE, COOLER AIR OUTLET
88571-10010

KP3#

 1
88601 - SWITCH SUB-ASSY, COOLER CONTROL
88601-12021

KP3#..DLX,HDX,STD,XL

 1
88601-12010

KP3#

 1
88601-12020

KP3#

 1
88601-12020

KP3#..DLX,HDX,STD,XL

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-10020

KP3#..DLX,HDX,STD,XL

 1
88605-10021

KP3#..DLX,HDX,STD,XL

 1
88605-10010

KP3#

 1
88605-10030

KP3#

 1
88605-10020

KP3#

 1
88605F - FUSE(FOR COOLER WIRING HARNESS)
99118-62905

KP3#

5A

 1
88611 - KNOB, COOLER CONTROL SWITCH
88611-12010

KP3#

 1
88611-12020

KP3#..DLX,HDX,STD,XL

 1
88622 - INDICATOR, COOLER CONTROL RESISTANCE
88622-12010

KP3#

 1
88622-60010

KP3#

 1
88622-60010

KP3#..DLX,HDX,STD,XL

 1
88623 - DIAL, COOLER THERMOSTAT
88623-12010

KP3#..DLX,HDX,STD,XL

 1
88623-12010

KP3#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-10010

KP3#

 1
88625-60010

KP3#..DLX,HDX,STD,XL

 1
88625-22010

KP3#

 1
88625-22020

KP3#

 1
88630 - RELAY ASSY, COOLER
88630-12010

KP3#

 1
88630-12020

KP3#

 1
88630-12020

KP3#..DLX,HDX,STD,XL

 1
88635 - RESISTOR, COOLER UNIT BLOWER
88635-12010

KP3#

 1
88635-10010

KP3#

 1
88635-12020

KP3#..DLX,HDX,STD,XL

 1
88635-30330

KP3#

 1
88635-12020

KP3#

 1
88640 - RELAY ASSY, COOLER STABILIZER
88440-30190

KP3#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-12010

KP3#

 1
88650-12010

KP3#..DLX,HDX,STD,XL

 1
88640-12010

KP3#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-12010

KP3#

 1
88650-12010

KP3#..DLX,HDX,STD,XL

 1
88640-12010

KP3#

 1
Common parts
55532-20030
87148-62010
88519-10010
88591-12020
88591-20010
88897-10010
88897-10020
88897-10030
90099-00715
90099-01365
90099-05210
90099-06024
90099-19226
90099-21005
90387-06033
91111-40845
93219-13012
93219-14016
93385-16016
93385-16028
93385-18016
94110-40600
94110-40800
94511-00300
94511-00800
94611-10400
94611-10800

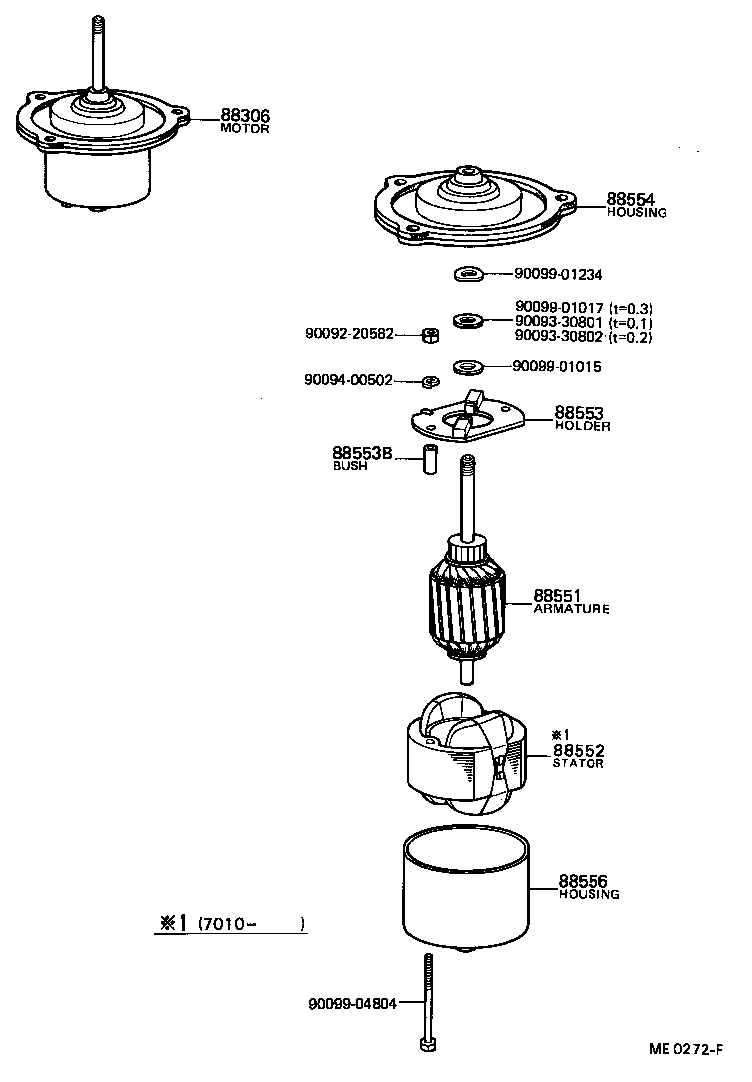

ILLUST NO. 2 OF 2(6904-7112)KP3#

Click highlighted areas on diagram

diagram 88306 88551 88552 88553 88553B 88554 88556 9009220582 9009330801 9009330802 9009400502 9009901015 9009901017 9009901234 9009904804
Part # Description Qty Price
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-10010

KP3#

 1
88550-12040

KP3#..DLX,HDX,STD,XL

 1
88550-12040

KP3#

 1
88551 - ARMATURE, COOLER BLOWER MOTOR
87181-20055

KP3#

 1
87181-60060

KP3#

 1
88552 - STATOR, COOLER BLOWER MOTOR, RH
87182-22011

KP3#

 1
88553 - HOLDER, COOLER BLOWER MOTOR BRUSH
88553-12010

KP3#

 1
87183-22020

KP3#

 1
88553B - BUSH (FOR COOLER BLOWER MOTOR BRUSH HOLDER)
90099-19058

KP3#

 2
88554 - HOUSING, COOLER BLOWER MOTOR, NO.1
87184-12030

KP3#

 1
88554-12010

KP3#

 1
88556 - HOUSING, COOLER BLOWER MOTOR, NO.2
87185-30120

KP3#

 1
87185-12030

KP3#

 1
Common parts
90092-20582
90093-30801
90093-30802
90094-00502
90099-01015
90099-01017
90099-01234
90099-04804

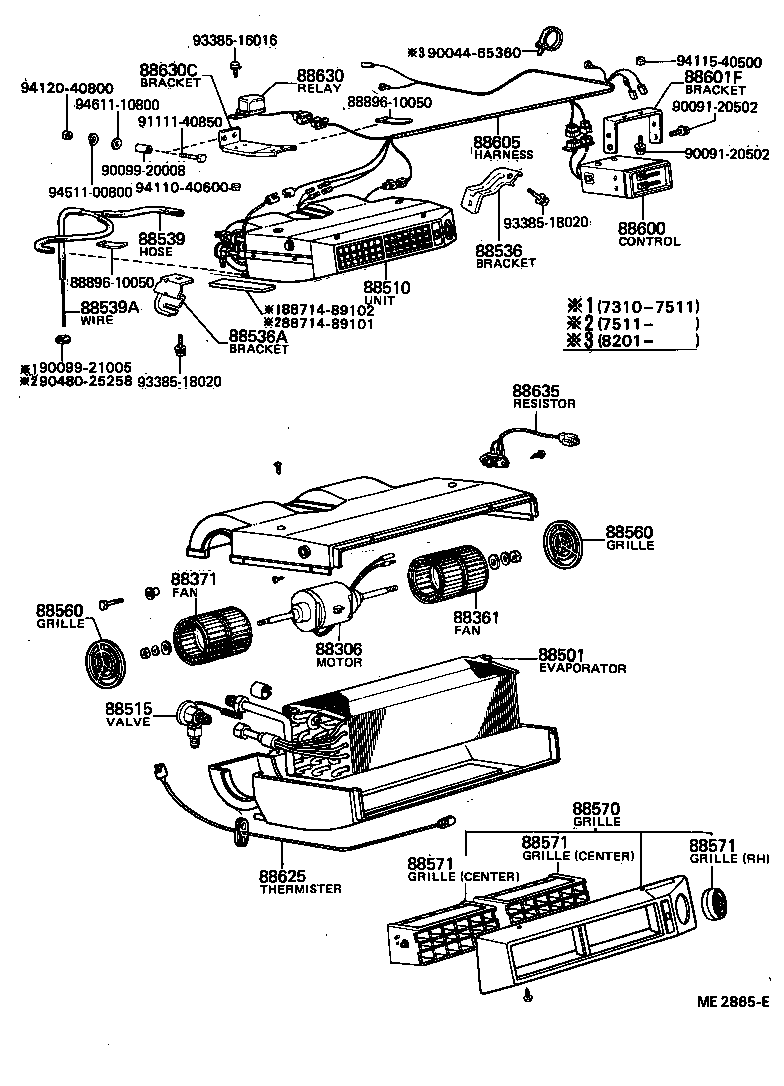

(7310- )

Click highlighted areas on diagram

diagram 88306 88361 88371 88501 88510 88515 88536 88536A 88539 88539A 88560 88560 88570 88571 88571 88571 88600 88601F 88605 88625 88630 88630C 88635 8871489101 8871489102 8889610050 8889610050 9004465360 9009120502 9009120502 9009920008 9009921005 9048025258 9111140850 9338516016 9338518020 9338518020 9411040600 9411540500 9412040800 9451100800 9461110800
Part # Description Qty Price
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-10010

KP3#

 1
88550-12040

KP3#..DLX,HDX,STD,XL

 1
88550-12040

KP3#

 1
88361 - FAN, COOLER BLOWER, NO.1
88540-10010

KP3#

 1
87105-22020

KP3#..DLX,HDX,STD,XL

 1
87105-22020

KP3#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-10010

KP3#

 1
88501-10012

KP3#..DLX,HDX,STD,XL

 1
88501-10011

KP3#

 1
88501-10020

KP3#

 1
88501-30520

KP3#

 1
88510 - UNIT ASSY, COOLER
88510-10010

KP3#

 1
88510-10020

KP3#

 1
88510-10011

KP3#

 1
88510-10012

KP3#..DLX,HDX,STD,XL

 1
88515 - VALVE, COOLER EXPANSION
88515-12011

KP3#

 1
88515-10010

KP3#..DLX,HDX,STD,XL

 1
88515-12010

KP3#

 1
88536 - BRACKET, COOLING UNIT, NO.1
88898-10010

KP3#

 1
88536-10040

KP3#

 1
88536A - BRACKET, COOLING UNIT, NO.2
88536-10030

KP3#

 1
88536-05480

KP3#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
90099-33014

KP3#..DLX,HDX,STD,XL

 1
90099-33014

KP3#

 1
88539A - WIRE, DRAIN HOSE(FOR COOLER)
88895-12020

KP3#

 1
88560 - GRILLE ASSY, COOLER AIR INLET
88561-12010

KP3#..DLX,HDX,STD,XL

 1
88574-10010

KP3#

 2
88560 - GRILLE ASSY, COOLER AIR INLET
88561-12010

KP3#..DLX,HDX,STD,XL

 1
88574-10010

KP3#

 2
88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET
88570-10010

KP3#

 1
88570-12030

KP3#..DLX,HDX,STD,XL

 1
88570-10020

KP3#

 1
88570-12031

KP3#..DLX,HDX,STD,XL

 1
88570-12030

KP3#

 1
88571 - GRILLE, AIR OUTLET
88571-12010

KP3#

 3
88571-10020

KP3#

CTR

 2
88571-40040

KP3#

RH

 1
88571-12010

KP3#..DLX,HDX,STD,XL

 3
88571 - GRILLE, AIR OUTLET
88571-12010

KP3#

 3
88571-10020

KP3#

CTR

 2
88571-40040

KP3#

RH

 1
88571-12010

KP3#..DLX,HDX,STD,XL

 3
88571 - GRILLE, AIR OUTLET
88571-12010

KP3#

 3
88571-10020

KP3#

CTR

 2
88571-40040

KP3#

RH

 1
88571-12010

KP3#..DLX,HDX,STD,XL

 3
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-10020

KP3#..DLX,HDX,STD,XL

 1
88605-10021

KP3#..DLX,HDX,STD,XL

 1
88605-10010

KP3#

 1
88605-10030

KP3#

 1
88605-10020

KP3#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-10010

KP3#

 1
88625-60010

KP3#..DLX,HDX,STD,XL

 1
88625-22010

KP3#

 1
88625-22020

KP3#

 1
88630 - RELAY ASSY, COOLER
88630-12010

KP3#

 1
88630-12020

KP3#

 1
88630-12020

KP3#..DLX,HDX,STD,XL

 1
88630C - BRACKET, COOLER RELAY
88899-10080

KP3#

 1
88635 - RESISTOR, COOLER UNIT BLOWER
88635-12010

KP3#

 1
88635-10010

KP3#

 1
88635-12020

KP3#..DLX,HDX,STD,XL

 1
88635-30330

KP3#

 1
88635-12020

KP3#

 1
Common parts
88714-89101
88714-89102
88896-10050
90044-65360
90091-20502
90099-20008
90099-21005
90480-25258
91111-40850
93385-16016
93385-18020
94110-40600
94115-40500
94120-40800
94511-00800
94611-10800
