KP30-C (1969)

Toyota Publica

Production Oct 1969 - Nov 1975
Engine 2K
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

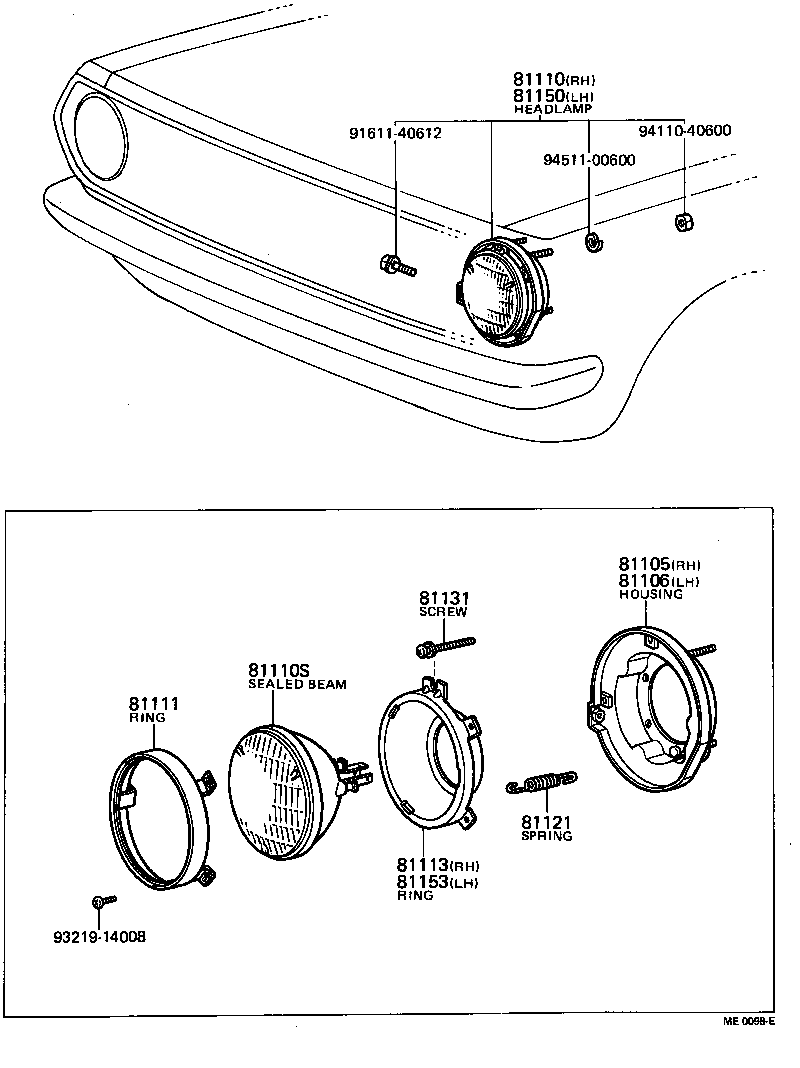

(6904-7112)

Click highlighted areas on diagram

diagram 81105 81106 81110 81110S 81111 81113 81121 81131 81150 81153 9161140612 9321914008 9411040600 9451100600
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-10051

KP3#,UP3#

KOITO

 1
81105-10060

KP3#,UP3#

TOSHIBA

 1
81105-10061

KP3#,UP3#

TOSHIBA

 1
81105-10050

KP3#,UP3#

KOITO

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-10010

KP3#,UP3#

KOITO

 1
81106-10020

KP3#,UP3#

TOSHIBA

 1
81106-10021

KP3#,UP3#

TOSHIBA

 1
81106-10011

KP3#,UP3#

KOITO

 1
81110 - HEADLAMP ASSY, RH
81110-19015

KP3#,UP3#

 1
81110-19016

KP3#,UP3#

 1
81110S - SEALED BEAM UNIT, NO.1
90981-01012

KP3#,UP3#

12V 50/40W,TOSHIBA

 2
90981-01010

KP3#,UP3#

12V 50/40W,KOITO

 2
81111 - RING, SEALED BEAM RETAINING
81111-12021

KP3#,UP3#

TOSHIBA

 2
81111-12020

KP3#,UP3#

TOSHIBA

 2
81111-12011

KP3#,UP3#

KOITO

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-10060

KP3#,UP3#

TOSHIBA

 1
81113-10050

KP3#,UP3#

KOITO

 1
81113-10061

KP3#,UP3#

TOSHIBA

 1
81121 - SPRING, HEADLAMP TENSION
81121-62010

KP3#,UP3#

KOITO

 2
90506-18018

KP3#,UP3#

TOSHIBA

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

KP3#,UP3#

KOITO

 4
81131-20053

KP3#,UP3#

TOSHIBA

 4
81150 - HEADLAMP ASSY, LH
81150-19015

KP3#,UP3#

 1
81150-19016

KP3#,UP3#

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-10020

KP3#,UP3#

TOSHIBA

 1
81153-10010

KP3#,UP3#

KOITO

 1
81153-10021

KP3#,UP3#

TOSHIBA

 1
Common parts
91611-40612
93219-14008
94110-40600
94511-00600

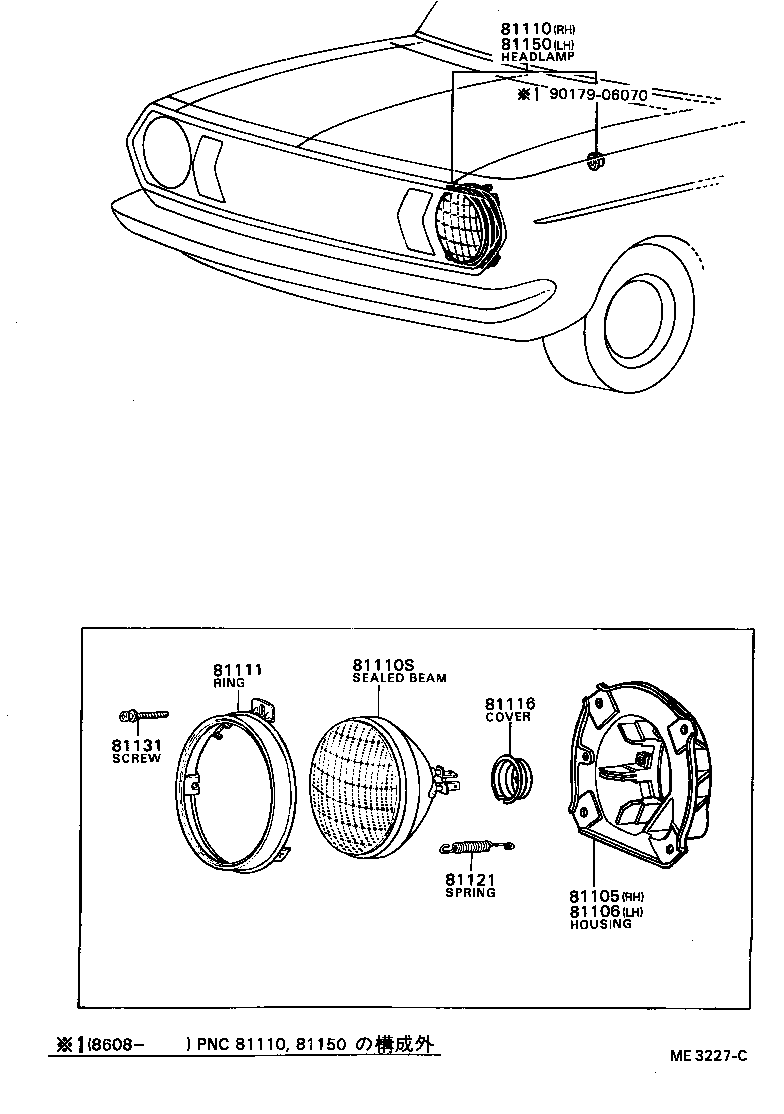

(7201- )

Click highlighted areas on diagram

diagram 81105 81106 81110 81110S 81111 81116 81121 81131 81150 9017906070
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-10051

KP3#,UP3#

KOITO

 1
81105-10060

KP3#,UP3#

TOSHIBA

 1
81105-10061

KP3#,UP3#

TOSHIBA

 1
81105-10050

KP3#,UP3#

KOITO

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-10020

KP3#,UP3#

TOSHIBA

 1
81106-10010

KP3#,UP3#

KOITO

 1
81106-10021

KP3#,UP3#

TOSHIBA

 1
81106-10011

KP3#,UP3#

KOITO

 1
81110 - HEADLAMP ASSY, RH
81110-19015

KP3#,UP3#

 1
81110-19016

KP3#,UP3#

 1
81110S - SEALED BEAM UNIT, NO.1
90981-01012

KP3#,UP3#

12V 50/40W,TOSHIBA

 2
90981-01010

KP3#,UP3#

12V 50/40W,KOITO

 2
81111 - RING, SEALED BEAM RETAINING
81111-12021

KP3#,UP3#

TOSHIBA

 2
81111-12020

KP3#,UP3#

TOSHIBA

 2
81111-12011

KP3#,UP3#

KOITO

 2
81121 - SPRING, HEADLAMP TENSION
81121-62010

KP3#,UP3#

KOITO

 2
90506-18018

KP3#,UP3#

TOSHIBA

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

KP3#,UP3#

KOITO

 4
81131-20053

KP3#,UP3#

TOSHIBA

 4
81150 - HEADLAMP ASSY, LH
81150-19015

KP3#,UP3#

 1
81150-19016

KP3#,UP3#

 1
Common parts
90179-06070
