KP30-C (1969)

Toyota Publica

Production Oct 1969 - Nov 1975
Engine 2K
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7802)KP30,31,50,UP30

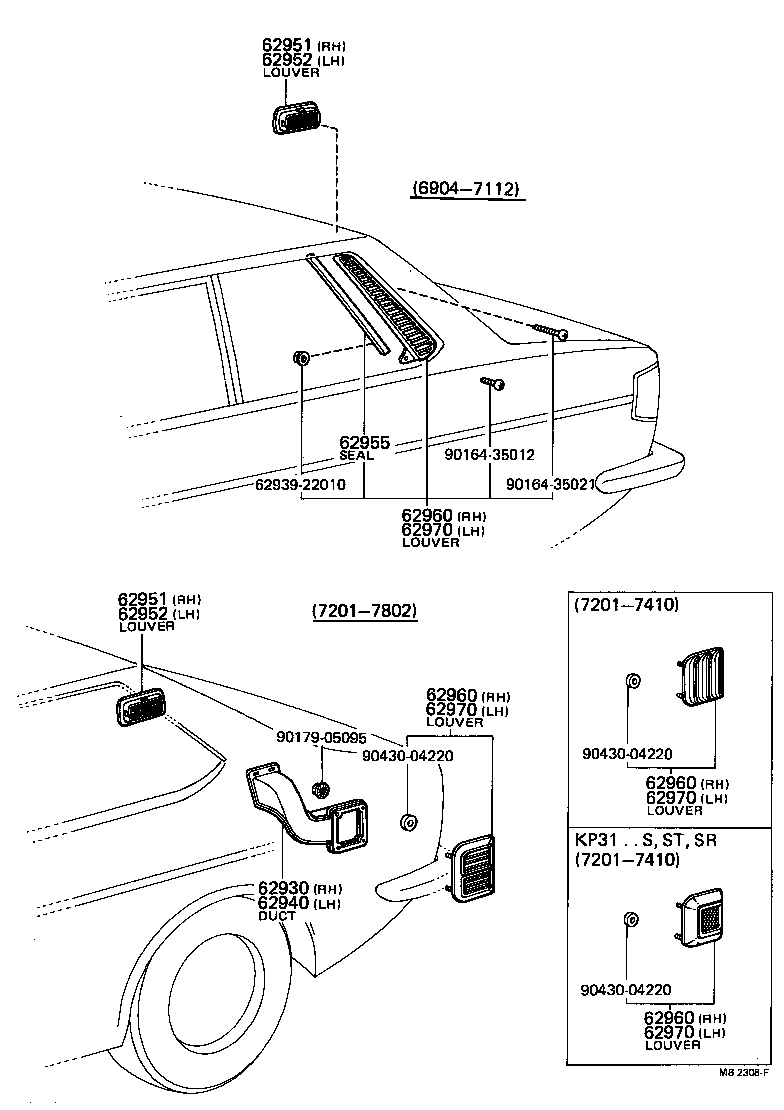

Click highlighted areas on diagram

diagram 62930 6293922010 62940 62951 62951 62952 62952 62955 62960 62960 62960 62960 62970 62970 62970 62970 9016435012 9016435021 9017905095 9043004220 9043004220 9043004220
Part # Description Qty Price
62951 - LOUVER, VENT, INNER RH
62546-1001003

KP30,31..DLX,HDX,STD,XL

GRAY,GRAY,TRIM2#,4#

 1
62546-10010

KP30,31,UP30

 1
62951 - LOUVER, VENT, INNER RH
62546-1001003

KP30,31..DLX,HDX,STD,XL

GRAY,GRAY,TRIM2#,4#

 1
62546-10010

KP30,31,UP30

 1
62952 - LOUVER, VENT, INNER LH
62546-1001003

KP30,31..DLX,HDX,STD,XL

GRAY,GRAY,TRIM2#,4#

 1
62546-10010

KP30,31,UP30

 1
62952 - LOUVER, VENT, INNER LH
62546-1001003

KP30,31..DLX,HDX,STD,XL

GRAY,GRAY,TRIM2#,4#

 1
62546-10010

KP30,31,UP30

 1
62955 - SEAL, ROOF SIDE VENT
62955-10010

KP30,31,UP30

 2
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62951-19016

KP30,31,UP30..DLX,HDX,STD

 1
62951-19015

KP30,UP30

 1
62905-10012

KP30..DLX,STD

 1
62905-10080

KP30,31..SR,STD

 1
62905-10041

KP30,31..DLX,HDX,ST,XL

 1
62905-10012

KP30,31..DLX,HDX,STD,XL

 1
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62951-19016

KP30,31,UP30..DLX,HDX,STD

 1
62951-19015

KP30,UP30

 1
62905-10012

KP30..DLX,STD

 1
62905-10080

KP30,31..SR,STD

 1
62905-10041

KP30,31..DLX,HDX,ST,XL

 1
62905-10012

KP30,31..DLX,HDX,STD,XL

 1
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62951-19016

KP30,31,UP30..DLX,HDX,STD

 1
62951-19015

KP30,UP30

 1
62905-10012

KP30..DLX,STD

 1
62905-10080

KP30,31..SR,STD

 1
62905-10041

KP30,31..DLX,HDX,ST,XL

 1
62905-10012

KP30,31..DLX,HDX,STD,XL

 1
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62951-19016

KP30,31,UP30..DLX,HDX,STD

 1
62951-19015

KP30,UP30

 1
62905-10012

KP30..DLX,STD

 1
62905-10080

KP30,31..SR,STD

 1
62905-10041

KP30,31..DLX,HDX,ST,XL

 1
62905-10012

KP30,31..DLX,HDX,STD,XL

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62952-19015

KP30,UP30

 1
62952-19016

KP30,31,UP30..DLX,HDX,STD

 1
62905-10012

KP30..DLX,STD

 1
62905-10041

KP30,31..DLX,HDX,ST,XL

 1
62905-10080

KP30,31..SR,STD

 1
62905-10012

KP30,31..DLX,HDX,STD,XL

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62952-19015

KP30,UP30

 1
62952-19016

KP30,31,UP30..DLX,HDX,STD

 1
62905-10012

KP30..DLX,STD

 1
62905-10041

KP30,31..DLX,HDX,ST,XL

 1
62905-10080

KP30,31..SR,STD

 1
62905-10012

KP30,31..DLX,HDX,STD,XL

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62952-19015

KP30,UP30

 1
62952-19016

KP30,31,UP30..DLX,HDX,STD

 1
62905-10012

KP30..DLX,STD

 1
62905-10041

KP30,31..DLX,HDX,ST,XL

 1
62905-10080

KP30,31..SR,STD

 1
62905-10012

KP30,31..DLX,HDX,STD,XL

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62952-19015

KP30,UP30

 1
62952-19016

KP30,31,UP30..DLX,HDX,STD

 1
62905-10012

KP30..DLX,STD

 1
62905-10041

KP30,31..DLX,HDX,ST,XL

 1
62905-10080

KP30,31..SR,STD

 1
62905-10012

KP30,31..DLX,HDX,STD,XL

 1
Common parts
62939-22010
90164-35012
90164-35021
90179-05095
90430-04220
