KP30- (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

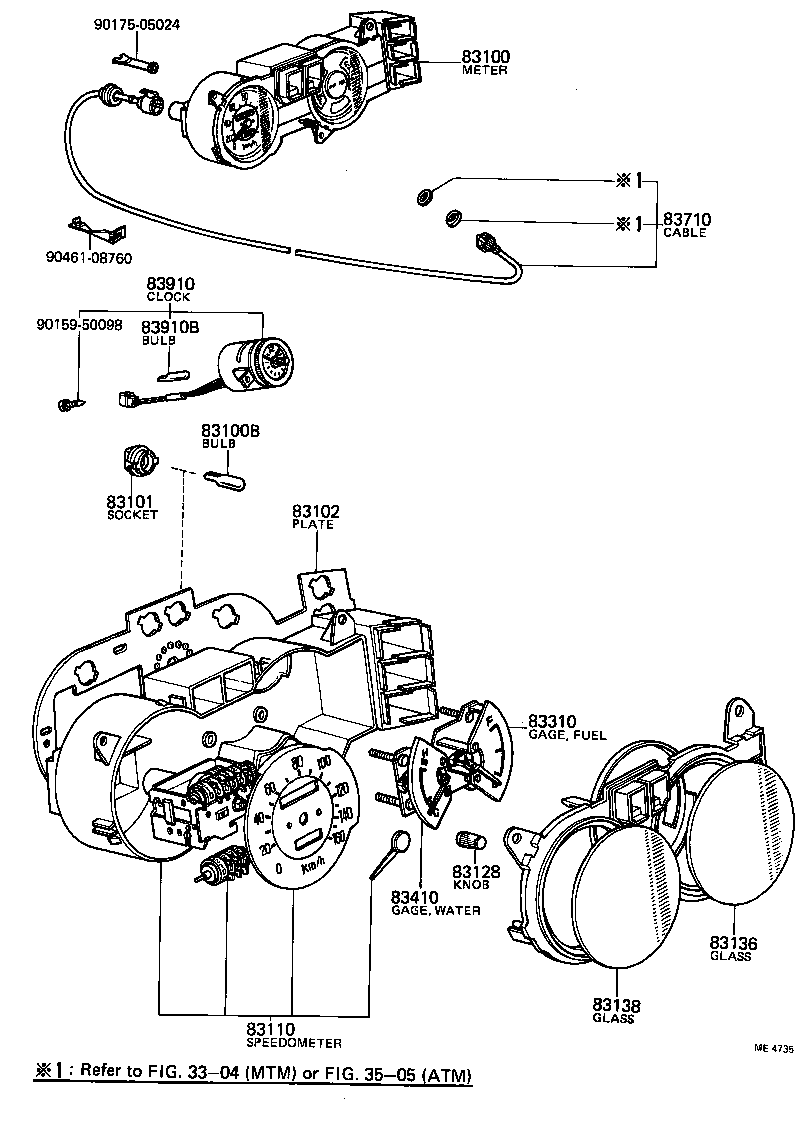

(7201-7511)XL ; (7201- )DLX,HDX,STD

Click highlighted areas on diagram

diagram 3304 3505 83100 83100B 83101 83102 83110 83128 83136 83138 83310 83410 83710 83910 83910B 9015950098 9017505024 9046108760
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83100-10130

KP3#..DLX,STD

 1
83100-10131

KP3#..DLX,HDX,STD

 1
83100-10132

KP37;KP30,36..DLX,STD

 1
83100-10240

KP37;KP30,36..DLX,STD

 1
83100-10241

KP37;KP30,36..DLX,STD

 1
83100B - BULB, COMBINATION METER, NO.1
90981-11007

KP3#,UP3#

12V 3W,12V 3W

 8
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-12010

KP3#,UP3#

 8
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83102-10020

KP3#..DLX,STD

 1
83102-10021

KP3#..DLX,HDX,STD

 1
83102-10022

KP37;KP30,36..DLX,STD

 1
83102-10080

KP37;KP30,36..DLX,STD

 1
83110 - SPEEDOMETER ASSY
83110-10120

KP3#..DLX,STD

 1
83110-10121

KP3#,UP3#..DLX,HDX,STD

 1
83110-10122

KP37;KP30,36..DLX,STD

 1
83110-10221

KP37;KP30,36..DLX,STD

 1
83110-10220

KP37;KP30,36..DLX,STD

 1
83110-10222

KP37;KP30,36..DLX,STD

 1
83128 - KNOB, TRIP COUNTER
83128-12140

KP30,31..HDX,SR,ST,XL

 1
83136 - GLASS, GAGE METER
83138-12060

KP3#..DLX,HDX,STD,XL

 1
83138 - GLASS, SPEEDOMETER
83138-12060

KP3#..DLX,HDX,STD,XL

 1
83310 - GAGE ASSY, FUEL RECEIVER
83310-10050

KP3#..DLX,STD

 1
83310-10051

KP3#..DLX,HDX,STD,XL

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83410-10011

KP3#..DLX,HDX,STD,XL

 1
83410-10010

KP3#..DLX,STD

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-39075

KP3#

L=1600

 1
83710-39075

KP3#..DLX,STD

L=1600

 1
83710-19155

KP3#

L=1500

 1
83910 - CLOCK ASSY
83910-19026

KP30,31..4F..(DLX,HDX,SR,ST,XL)

 1
83910-19025

KP30,31..4F..(DLX,HDX,S,SR,ST,XL)

 1
83910B - BULB, CLOCK INDICATOR
99132-11034

KP30,31..4F..(DLX,HDX,S,SR,ST,XL)

12V 3.4W

 1
Common parts
90159-50098
90175-05024
90461-08760
Linked diagrams
3304
3505

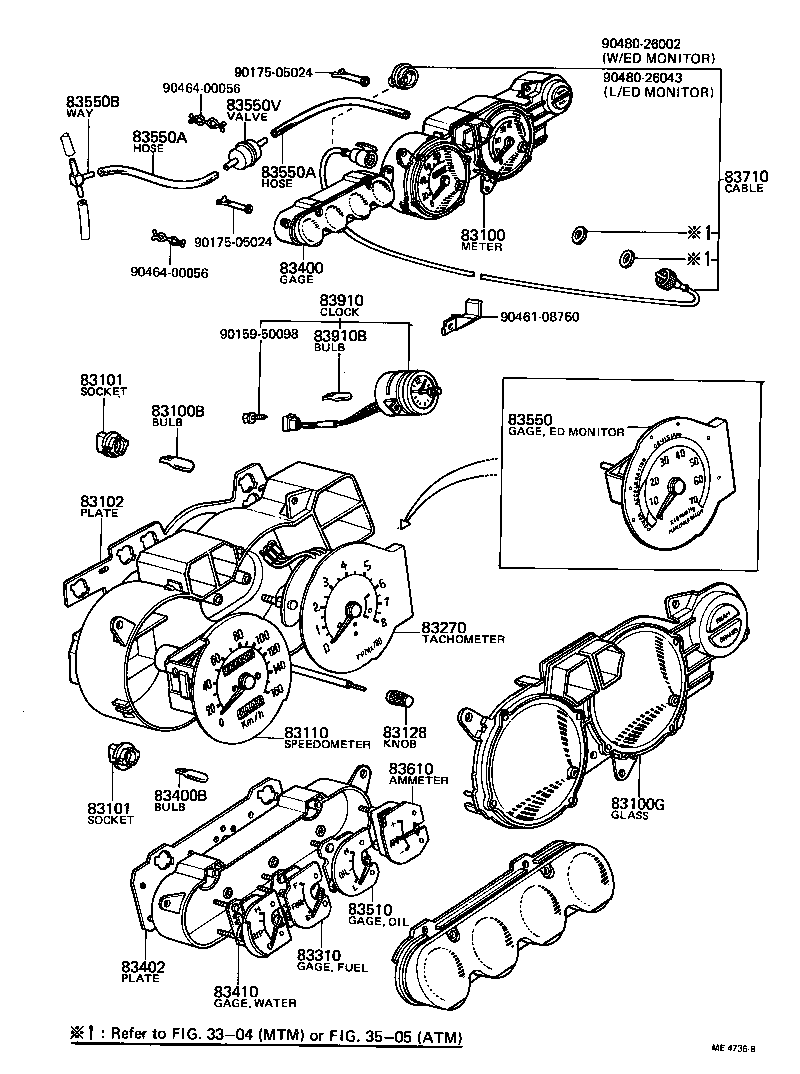

(7201-7511)S,SR,ST ; (7511-7802)XL

Click highlighted areas on diagram

diagram 3304 3505 83100 83100B 83100G 83101 83101 83102 83110 83128 83270 83310 83400 83400B 83402 83410 83510 83550 83550A 83550A 83550B 83550V 83610 83710 83910 83910B 9015950098 9017505024 9017505024 9046108760 9046400056 9046400056 9048026002 9048026043
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83100-10130

KP3#..DLX,STD

 1
83100-10131

KP3#..DLX,HDX,STD

 1
83100-10132

KP37;KP30,36..DLX,STD

 1
83100-10240

KP37;KP30,36..DLX,STD

 1
83100-10241

KP37;KP30,36..DLX,STD

 1
83100B - BULB, COMBINATION METER, NO.1
90981-11007

KP3#,UP3#

12V 3W,12V 3W

 8
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-12010

KP3#,UP3#

 8
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-12010

KP3#,UP3#

 8
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83102-10020

KP3#..DLX,STD

 1
83102-10021

KP3#..DLX,HDX,STD

 1
83102-10022

KP37;KP30,36..DLX,STD

 1
83102-10080

KP37;KP30,36..DLX,STD

 1
83110 - SPEEDOMETER ASSY
83110-10120

KP3#..DLX,STD

 1
83110-10121

KP3#,UP3#..DLX,HDX,STD

 1
83110-10122

KP37;KP30,36..DLX,STD

 1
83110-10221

KP37;KP30,36..DLX,STD

 1
83110-10220

KP37;KP30,36..DLX,STD

 1
83110-10222

KP37;KP30,36..DLX,STD

 1
83128 - KNOB, TRIP COUNTER
83128-12140

KP30,31..HDX,SR,ST,XL

 1
83310 - GAGE ASSY, FUEL RECEIVER
83310-10050

KP3#..DLX,STD

 1
83310-10051

KP3#..DLX,HDX,STD,XL

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83410-10011

KP3#..DLX,HDX,STD,XL

 1
83410-10010

KP3#..DLX,STD

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-39075

KP3#

L=1600

 1
83710-39075

KP3#..DLX,STD

L=1600

 1
83710-19155

KP3#

L=1500

 1
83910 - CLOCK ASSY
83910-19026

KP30,31..4F..(DLX,HDX,SR,ST,XL)

 1
83910-19025

KP30,31..4F..(DLX,HDX,S,SR,ST,XL)

 1
83910B - BULB, CLOCK INDICATOR
99132-11034

KP30,31..4F..(DLX,HDX,S,SR,ST,XL)

12V 3.4W

 1
Common parts
90159-50098
90175-05024
90461-08760
90464-00056
90480-26002
90480-26043
Linked diagrams
3304
3505

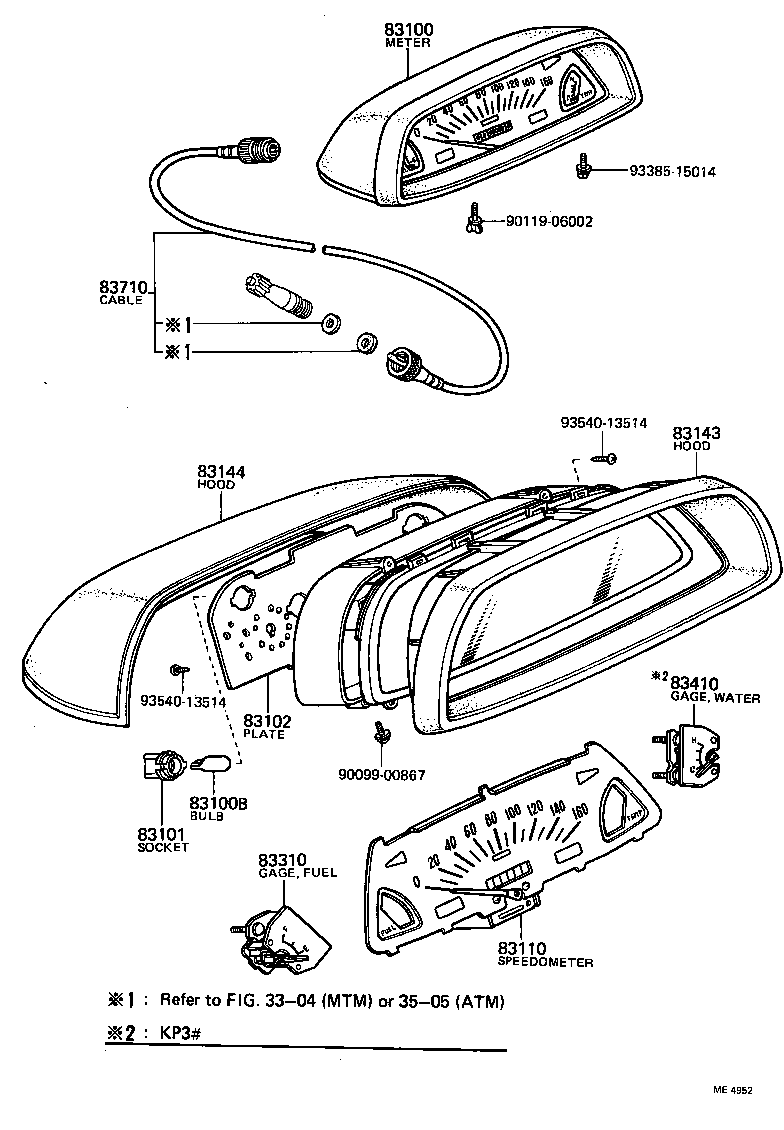

(6904-7010)DLX,STD

Click highlighted areas on diagram

diagram 3304 3505 83100 83100B 83101 83102 83110 83143 83144 83310 83410 83710 9009900867 9011906002 9338515014 9354013514 9354013514
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83100-10130

KP3#..DLX,STD

 1
83100-10131

KP3#..DLX,HDX,STD

 1
83100-10132

KP37;KP30,36..DLX,STD

 1
83100-10240

KP37;KP30,36..DLX,STD

 1
83100-10241

KP37;KP30,36..DLX,STD

 1
83100B - BULB, COMBINATION METER, NO.1
90981-11007

KP3#,UP3#

12V 3W,12V 3W

 8
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-12010

KP3#,UP3#

 8
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83102-10020

KP3#..DLX,STD

 1
83102-10021

KP3#..DLX,HDX,STD

 1
83102-10022

KP37;KP30,36..DLX,STD

 1
83102-10080

KP37;KP30,36..DLX,STD

 1
83110 - SPEEDOMETER ASSY
83110-10120

KP3#..DLX,STD

 1
83110-10121

KP3#,UP3#..DLX,HDX,STD

 1
83110-10122

KP37;KP30,36..DLX,STD

 1
83110-10221

KP37;KP30,36..DLX,STD

 1
83110-10220

KP37;KP30,36..DLX,STD

 1
83110-10222

KP37;KP30,36..DLX,STD

 1
83143 - HOOD, COMBINATION METER, FRONT
83143-10130

KP3#,UP3#..DLX,STD

 1
83144 - HOOD, COMBINATION METER, REAR
83144-10130

KP3#,UP3#..DLX,STD

 1
83310 - GAGE ASSY, FUEL RECEIVER
83310-10050

KP3#..DLX,STD

 1
83310-10051

KP3#..DLX,HDX,STD,XL

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83410-10011

KP3#..DLX,HDX,STD,XL

 1
83410-10010

KP3#..DLX,STD

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-39075

KP3#

L=1600

 1
83710-39075

KP3#..DLX,STD

L=1600

 1
83710-19155

KP3#

L=1500

 1
Common parts
90099-00867
90119-06002
93385-15014
93540-13514
Linked diagrams
3304
3505

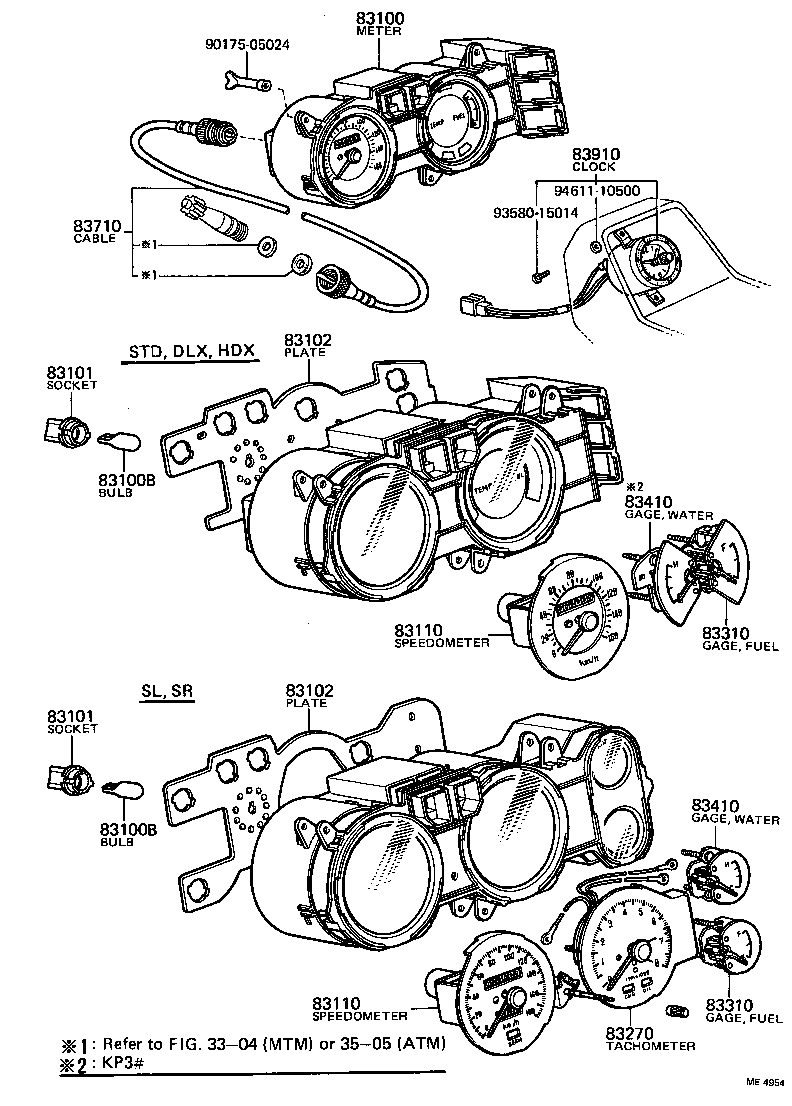

(7010-7112)

Click highlighted areas on diagram

diagram 3304 3505 83100 83100B 83100B 83101 83101 83102 83102 83110 83110 83270 83310 83310 83410 83410 83710 83910 9017505024 9358015014 9461110500
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83100-10130

KP3#..DLX,STD

 1
83100-10131

KP3#..DLX,HDX,STD

 1
83100-10132

KP37;KP30,36..DLX,STD

 1
83100-10240

KP37;KP30,36..DLX,STD

 1
83100-10241

KP37;KP30,36..DLX,STD

 1
83100B - BULB, COMBINATION METER, NO.1
90981-11007

KP3#,UP3#

12V 3W,12V 3W

 8
83100B - BULB, COMBINATION METER, NO.1
90981-11007

KP3#,UP3#

12V 3W,12V 3W

 8
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-12010

KP3#,UP3#

 8
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-12010

KP3#,UP3#

 8
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83102-10020

KP3#..DLX,STD

 1
83102-10021

KP3#..DLX,HDX,STD

 1
83102-10022

KP37;KP30,36..DLX,STD

 1
83102-10080

KP37;KP30,36..DLX,STD

 1
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83102-10020

KP3#..DLX,STD

 1
83102-10021

KP3#..DLX,HDX,STD

 1
83102-10022

KP37;KP30,36..DLX,STD

 1
83102-10080

KP37;KP30,36..DLX,STD

 1
83110 - SPEEDOMETER ASSY
83110-10120

KP3#..DLX,STD

 1
83110-10121

KP3#,UP3#..DLX,HDX,STD

 1
83110-10122

KP37;KP30,36..DLX,STD

 1
83110-10221

KP37;KP30,36..DLX,STD

 1
83110-10220

KP37;KP30,36..DLX,STD

 1
83110-10222

KP37;KP30,36..DLX,STD

 1
83110 - SPEEDOMETER ASSY
83110-10120

KP3#..DLX,STD

 1
83110-10121

KP3#,UP3#..DLX,HDX,STD

 1
83110-10122

KP37;KP30,36..DLX,STD

 1
83110-10221

KP37;KP30,36..DLX,STD

 1
83110-10220

KP37;KP30,36..DLX,STD

 1
83110-10222

KP37;KP30,36..DLX,STD

 1
83310 - GAGE ASSY, FUEL RECEIVER
83310-10050

KP3#..DLX,STD

 1
83310-10051

KP3#..DLX,HDX,STD,XL

 1
83310 - GAGE ASSY, FUEL RECEIVER
83310-10050

KP3#..DLX,STD

 1
83310-10051

KP3#..DLX,HDX,STD,XL

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83410-10011

KP3#..DLX,HDX,STD,XL

 1
83410-10010

KP3#..DLX,STD

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83410-10011

KP3#..DLX,HDX,STD,XL

 1
83410-10010

KP3#..DLX,STD

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-39075

KP3#

L=1600

 1
83710-39075

KP3#..DLX,STD

L=1600

 1
83710-19155

KP3#

L=1500

 1
83910 - CLOCK ASSY
83910-19026

KP30,31..4F..(DLX,HDX,SR,ST,XL)

 1
83910-19025

KP30,31..4F..(DLX,HDX,S,SR,ST,XL)

 1
Common parts
90175-05024
93580-15014
94611-10500
Linked diagrams
3304
3505
