KP30- (1969)
Toyota Publica
(6904-7010)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

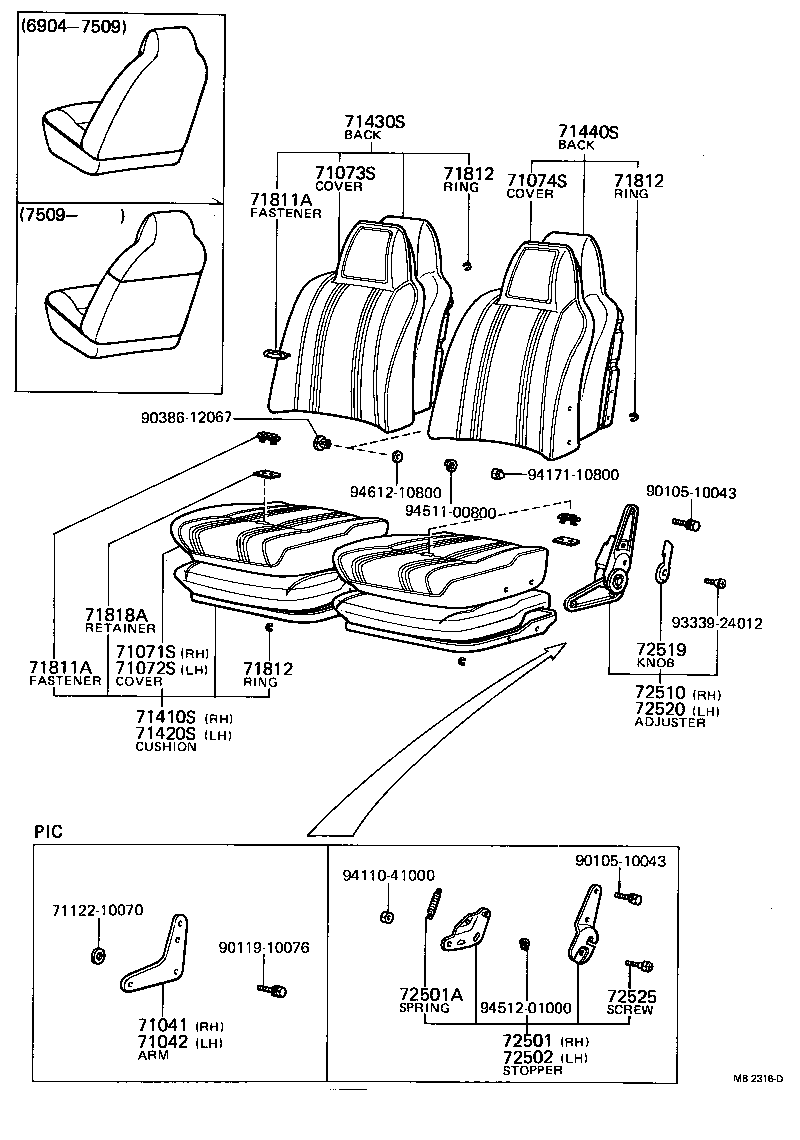

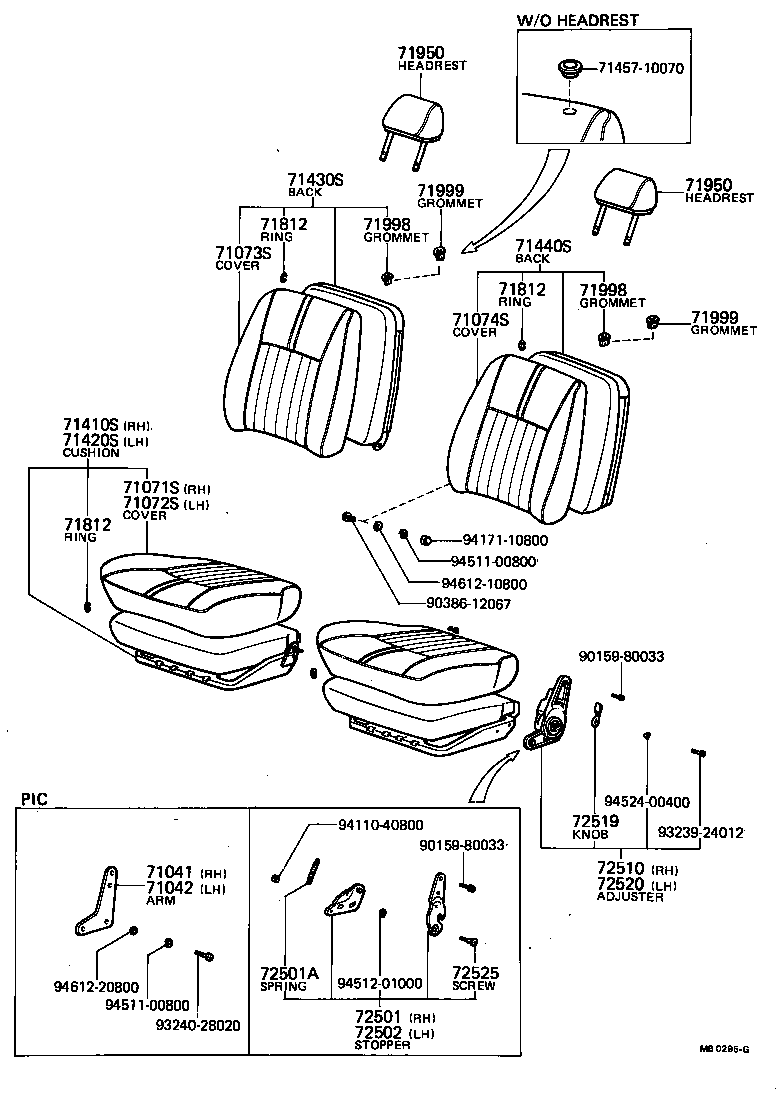

| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71201-1007001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71201-1007002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71201-1007001 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71201-1007002 |
KP30..STD VL,PLANT NO.K11,21,RED,RED/MAROON |
1 | ||
| 71201-1105001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71201-1105002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71201-1012109 |
KP30..STD VL,PLANT NO.K11,21,YELLOW,YELLOW |
1 | ||
| 71201-1105101 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71201-1105109 |
KP30,UP30..STD VL,PLANT NO.P11,YELLOW,YELLOW |
1 | ||
| 71201-1012101 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71201-1011001 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71201-1012201 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71201-1106206 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71201-1013206 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71201-1106201 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71201-1013201 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71201-1013306 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71201-1011106 |
KP30..STD VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71201-1106301 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71201-1012306 |
KP30..STD VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71201-1011101 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71201-1012316 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71201-1106306 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71201-1013316 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71204-1007001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71204-1007002 |
KP30..STD VL,PLANT NO.K11,21,RED,RED/MAROON |
1 | ||
| 71204-1007001 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71204-1007002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71204-1105002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71204-1012109 |
KP30..STD VL,PLANT NO.K11,21,YELLOW,YELLOW |
1 | ||
| 71204-1012101 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71204-1105001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71204-1105101 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71204-1105109 |
KP30,UP30..STD VL,PLANT NO.P11,YELLOW,YELLOW |
1 | ||
| 71204-1012201 |
KP30..STD VL,PLANT NO,K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71204-1011001 |
KP30..STD VL,PLANT NO,P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71204-1013201 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71204-1106206 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71204-1011106 |
KP30..STD VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71204-1012306 |
KP30..STD VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71204-1013206 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71204-1106201 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71204-1013306 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71204-1011101 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71204-1012316 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71204-1106301 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71204-1106306 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71204-1013316 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71401-1007002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71401-1007001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71401-1007002 |
KP30..STD VL,PLANT NO.K11,21,RED,RED/MAROON |
1 | ||
| 71401-1007001 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71401-1105002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71401-1105001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71401-1012101 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71401-1012109 |
KP30..STD VL,PLANT NO.K11,21,YELLOW,YELLOW |
1 | ||
| 71401-1105109 |
KP30,UP30..STD VL,PLANT NO.P11,YELLOW,YELLOW |
1 | ||
| 71401-1105101 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71401-1012201 |
KP30,31..S,STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1013201 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1106306 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1106301 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1105201 |
KP30,31..S,STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1013301 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1013306 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1012306 |
KP30..STD VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1105306 |
KP30..STD VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1106401 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1013206 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1012301 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1013401 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1013416 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1012316 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1105301 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1106406 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1022006 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1021006 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71404-1007001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71404-1007002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71404-1007002 |
KP30..STD VL,PLANT NO.K11,21,RED,RED/MAROON |
1 | ||
| 71404-1007001 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71404-1105001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71404-1105002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71404-1012109 |
KP30..STD VL,PLANT NO.K11,21,YELLOW,YELLOW |
1 | ||
| 71404-1012101 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71404-1105101 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71404-1105109 |
KP30,UP30..STD VL,PLANT NO.P11,YELLOW,YELLOW |
1 | ||
| 71404-1012201 |
KP30,31..S,STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71404-1105201 |
KP30,31..S,STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71404-1013206 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71404-1013201 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71404-1106306 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71404-1106301 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71404-1012306 |
KP30..STD VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71404-1013301 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71404-1013306 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71404-1105301 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71404-1106401 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71404-1105306 |
KP30..STD VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1013416 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71404-1106406 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71404-1012301 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71404-1012316 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1013401 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1021006 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1022006 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71110-1007001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71110-1007002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71110-1007002 |
KP30..STD VL,PLANT NO.K11,21,RED,RED/MAROON |
1 | ||
| 71110-1007001 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71110-1105002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71110-1012101 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71110-1105001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71110-1012109 |
KP30..STD VL,PLANT NO.K11,21,YELLOW,YELLOW |
1 | ||
| 71110-1105109 |
KP30,UP30..STD VL,PLANT NO.P11,YELLOW,YELLOW |
1 | ||
| 71110-1105101 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71110-1011001 |
KP30..STD VL,PLANT NO,P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71110-1012201 |
KP30..STD VL,PLANT NO,K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71110-1106201 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71110-1013206 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71110-1013201 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71110-1012306 |
KP30..STD VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71110-1011101 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71110-1106206 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71110-1013306 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71110-1106301 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71110-1012316 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71110-1013316 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71110-1011106 |
KP30..STD VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71110-1106306 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71210-1007001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71210-1007002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71210-1007002 |
KP30..STD VL,PLANT NO.K11,21,RED,RED/MAROON |
1 | ||
| 71210-1007001 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71210-1105002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71210-1105001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71210-1012101 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71210-1012109 |
KP30..STD VL,PLANT NO.K11,21,YELLOW,YELLOW |
1 | ||
| 71210-1105109 |
KP30,UP30..STD VL,PLANT NO.P11,YELLOW,YELLOW |
1 | ||
| 71210-1105101 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71210-1012201 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71210-1011001 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71210-1013201 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71210-1013206 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71210-1011101 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71210-1106201 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71210-1106206 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71210-1013306 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71210-1012306 |
KP30..STD VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71210-1106306 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71210-1011106 |
KP30..STD VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71210-1012316 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71210-1106301 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71210-1013316 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71310-1007001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71310-1007002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71310-1007002 |
KP30..STD VL,PLANT NO.K11,21,RED,RED/MAROON |
1 | ||
| 71310-1105002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71310-1007001 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71310-1105001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71310-1012109 |
KP30..STD VL,PLANT NO.K11,21,YELLOW,YELLOW |
1 | ||
| 71310-1012101 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71310-1105101 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71310-1105109 |
KP30,UP30..STD VL,PLANT NO.P11,YELLOW,YELLOW |
1 | ||
| 71310-1012201 |
KP30,31..S,STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71310-1105201 |
KP30,31..S,STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71310-1013201 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71310-1106301 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71310-1012306 |
KP30..STD VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71310-1013306 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71310-1106306 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71310-1013206 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71310-1105306 |
KP30..STD VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71310-1013301 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71310-1106401 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71310-1105301 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71310-1013401 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71310-1012301 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71310-1013416 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71310-1106406 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71310-1013506 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71310-1012316 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71310-1012406 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71410-1007001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71410-1007002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71410-1007001 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71410-1007002 |
KP30..STD VL,PLANT NO.K11,21,RED,RED/MAROON |
1 | ||
| 71410-1105001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71410-1105002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71410-1105101 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71410-1012101 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71410-1012109 |
KP30..STD VL,PLANT NO.K11,21,YELLOW,YELLOW |
1 | ||
| 71410-1105109 |
KP30,UP30..STD VL,PLANT NO.P11,YELLOW,YELLOW |
1 | ||
| 71410-1012201 |
KP30,31..S,STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1105201 |
KP30,31..S,STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1013201 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1013206 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1106301 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1106306 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1012306 |
KP30..STD VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1013301 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1013306 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1105306 |
KP30..STD VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1106401 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1105301 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1106406 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1012316 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1012301 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1013506 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1012406 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1013401 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1013416 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
KP3#,50,UP3# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
KP3#,50,UP3# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
KP3#,50,UP3# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71950-1901501 |
KP3#,UP3# MTP,BLACK,BLACK |
2 | ||
| 71950-1901502 |
KP3#,UP3#..SED,V MTP,RED,RED/MAROON |
2 | ||
| 71950-1902501 |
KP3#,UP3# MARUYASU,BLACK,BLACK |
2 | ||
| 71950-1902502 |
KP3#,UP3#..SED,V MARUYASU,RED,RED/MAROON |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71950-1901501 |
KP3#,UP3# MTP,BLACK,BLACK |
2 | ||
| 71950-1901502 |
KP3#,UP3#..SED,V MTP,RED,RED/MAROON |
2 | ||
| 71950-1902501 |
KP3#,UP3# MARUYASU,BLACK,BLACK |
2 | ||
| 71950-1902502 |
KP3#,UP3#..SED,V MARUYASU,RED,RED/MAROON |
2 | ||
| 71998 - GROMMET, FRONT SEAT HEADREST, RH | ||||
| 71998-10010 |
KP3#,UP3# |
2 | ||
| 71998 - GROMMET, FRONT SEAT HEADREST, RH | ||||
| 71998-10010 |
KP3#,UP3# |
2 | ||
| 71999 - GROMMET, FRONT SEAT HEADREST, LH | ||||
| 71998-10010 |
KP3#,UP3# |
2 | ||
| 71999 - GROMMET, FRONT SEAT HEADREST, LH | ||||
| 71998-10010 |
KP3#,UP3# |
2 | ||
| 72501 - STOPPER ASSY, FRONT SEAT BACK, RH | ||||
| 72510-10030 |
KP3#,UP3#..(SED,V)..STD |
1 | ||
| 72510-10031 |
KP30,31,36,UP3#..(SED,V)..(S,STD) |
1 | ||
| 72501A - SPRING, TENSION(FOR FRONT SEAT BACK STOPPER) | ||||
| 90506-12229 |
KP30,31,36,UP3#..(SED,V)..(S,STD) |
2 | ||
| 72502 - STOPPER ASSY, FRONT SEAT BACK, LH | ||||
| 72520-10030 |
KP3#,UP3#..(SED,V)..STD |
1 | ||
| 72520-10031 |
KP30,31,36,UP3#..(SED,V)..(S,STD) |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-10022 |
KP3#..SED,V |
1 | ||
| 72510-10021 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,STD,XL) |
1 | ||
| 72510-10021 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,XL) |
1 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72553-10010 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,XL) LH |
1 | ||
| 72519-10020 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,STD,XL) RH |
1 | ||
| 72519-10020 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,XL) RH |
1 | ||
| 72553-10010 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,STD,XL) LH |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-10021 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,XL) |
1 | ||
| 72520-10021 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,STD,XL) |
1 | ||
| 72520-10022 |
KP3#..SED,V |
1 | ||
| 72525 - SCREW, FRONT SEAT BACK HINGE | ||||
| 72525-10021 |
KP3#,UP3#..(SED,V)..STD |
2 | ||
| 72525-10022 |
KP30,31,36,UP3#..(SED,V)..(S,STD) |
2 | ||
| Common parts | ||||
| 71457-10070 | ||||
| 90159-80033 | ||||
| 90386-12067 | ||||
| 93239-24012 | ||||
| 93240-28020 | ||||
| 94110-40800 | ||||
| 94171-10800 | ||||
| 94511-00800 | ||||
| 94512-01000 | ||||
| 94524-00400 | ||||
| 94612-10800 | ||||
| 94612-20800 | ||||
(6904- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

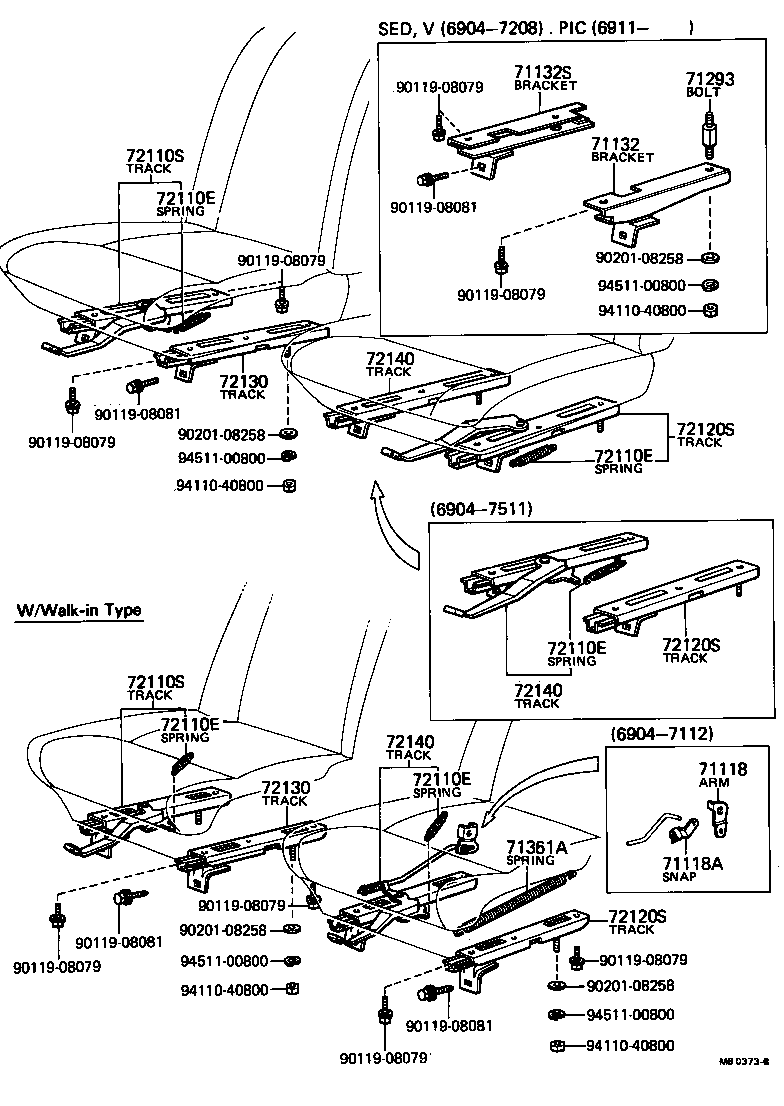

| 71132 - BRACKET, FRONT SEAT SET, OUTER LH | ||||
| 71260-10010 |
KP30,36,UP3#..(SED,V)..STD |
1 | ||
| 71260-10020 |
KP30,31,36..(SED,V)..(S,STD) |
1 | ||
| 71132S - BRACKET, FRONT SEAT SET, INNER LH | ||||
| 71280-10020 |
KP30,36,UP3#..(SED,V)..STD |
1 | ||
| 71280-10010 |
KP30,31,36..(SED,V)..(S,STD) |
1 | ||
| 71293 - BOLT, FRONT SEAT SET | ||||
| 71293-10010 |
KP30,36,UP3#..(SED,V)..STD |
2 | ||
| 71293-10010 |
KP30,31,36..(SED,V)..(S,STD) |
2 | ||
| 71361A - SPRING, TENSION (FOR SEAT TRACK) | ||||
| 90506-18377 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,XL) |
1 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-16143 |
KP3#,50,UP3# |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-16143 |
KP3#,50,UP3# |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-16143 |
KP3#,50,UP3# |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-16143 |
KP3#,50,UP3# |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-16143 |
KP3#,50,UP3# |
2 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-10030 |
KP3#,UP3#..SED,V |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-10030 |
KP3#,UP3#..SED,V |
1 | ||
| 72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72120-10050 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,XL) |
1 | ||
| 72120-10050 |
KP3#..SED,V |
1 | ||
| 72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72120-10050 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,XL) |
1 | ||
| 72120-10050 |
KP3#..SED,V |
1 | ||
| 72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72120-10050 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,XL) |
1 | ||
| 72120-10050 |
KP3#..SED,V |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-10020 |
KP3#,50,UP3# |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-10020 |
KP3#,50,UP3# |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-10012 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,XL) W/WALK-IN TYPE |
1 | ||
| 72140-10012 |
KP3#..SED,V |
1 | ||
| 72140-10031 |
KP30,36..(SED,V)..STD W/O WALK-IN TYPE |
1 | ||
| 72140-10030 |
KP30,31,36..(SED,V)..(S,STD) W/O WALK-IN TYPE |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-10012 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,XL) W/WALK-IN TYPE |
1 | ||
| 72140-10012 |
KP3#..SED,V |
1 | ||
| 72140-10031 |
KP30,36..(SED,V)..STD W/O WALK-IN TYPE |
1 | ||
| 72140-10030 |
KP30,31,36..(SED,V)..(S,STD) W/O WALK-IN TYPE |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-10012 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,XL) W/WALK-IN TYPE |
1 | ||
| 72140-10012 |
KP3#..SED,V |
1 | ||
| 72140-10031 |
KP30,36..(SED,V)..STD W/O WALK-IN TYPE |
1 | ||
| 72140-10030 |
KP30,31,36..(SED,V)..(S,STD) W/O WALK-IN TYPE |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08081 | ||||
| 90201-08258 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(7010- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71201-1007001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71201-1007002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71201-1007001 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71201-1007002 |
KP30..STD VL,PLANT NO.K11,21,RED,RED/MAROON |
1 | ||
| 71201-1105001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71201-1105002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71201-1012109 |
KP30..STD VL,PLANT NO.K11,21,YELLOW,YELLOW |
1 | ||
| 71201-1105101 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71201-1105109 |
KP30,UP30..STD VL,PLANT NO.P11,YELLOW,YELLOW |
1 | ||
| 71201-1012101 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71201-1011001 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71201-1012201 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71201-1106206 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71201-1013206 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71201-1106201 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71201-1013201 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71201-1013306 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71201-1011106 |
KP30..STD VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71201-1106301 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71201-1012306 |
KP30..STD VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71201-1011101 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71201-1012316 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71201-1106306 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71201-1013316 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71204-1007001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71204-1007002 |
KP30..STD VL,PLANT NO.K11,21,RED,RED/MAROON |
1 | ||
| 71204-1007001 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71204-1007002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71204-1105002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71204-1012109 |
KP30..STD VL,PLANT NO.K11,21,YELLOW,YELLOW |
1 | ||
| 71204-1012101 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71204-1105001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71204-1105101 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71204-1105109 |
KP30,UP30..STD VL,PLANT NO.P11,YELLOW,YELLOW |
1 | ||
| 71204-1012201 |
KP30..STD VL,PLANT NO,K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71204-1011001 |
KP30..STD VL,PLANT NO,P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71204-1013201 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71204-1106206 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71204-1011106 |
KP30..STD VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71204-1012306 |
KP30..STD VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71204-1013206 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71204-1106201 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71204-1013306 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71204-1011101 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71204-1012316 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71204-1106301 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71204-1106306 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71204-1013316 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71401-1007002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71401-1007001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71401-1007002 |
KP30..STD VL,PLANT NO.K11,21,RED,RED/MAROON |
1 | ||
| 71401-1007001 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71401-1105002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71401-1105001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71401-1012101 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71401-1012109 |
KP30..STD VL,PLANT NO.K11,21,YELLOW,YELLOW |
1 | ||
| 71401-1105109 |
KP30,UP30..STD VL,PLANT NO.P11,YELLOW,YELLOW |
1 | ||
| 71401-1105101 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71401-1012201 |
KP30,31..S,STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1013201 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1106306 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1106301 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1105201 |
KP30,31..S,STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1013301 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1013306 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1012306 |
KP30..STD VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1105306 |
KP30..STD VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1106401 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1013206 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1012301 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1013401 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1013416 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1012316 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1105301 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1106406 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1022006 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1021006 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71404-1007001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71404-1007002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71404-1007002 |
KP30..STD VL,PLANT NO.K11,21,RED,RED/MAROON |
1 | ||
| 71404-1007001 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71404-1105001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71404-1105002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71404-1012109 |
KP30..STD VL,PLANT NO.K11,21,YELLOW,YELLOW |
1 | ||
| 71404-1012101 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71404-1105101 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71404-1105109 |
KP30,UP30..STD VL,PLANT NO.P11,YELLOW,YELLOW |
1 | ||
| 71404-1012201 |
KP30,31..S,STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71404-1105201 |
KP30,31..S,STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71404-1013206 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71404-1013201 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71404-1106306 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71404-1106301 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71404-1012306 |
KP30..STD VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71404-1013301 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71404-1013306 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71404-1105301 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71404-1106401 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71404-1105306 |
KP30..STD VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1013416 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71404-1106406 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71404-1012301 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71404-1012316 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1013401 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71401-1021006 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71401-1022006 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71110-1007001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71110-1007002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71110-1007002 |
KP30..STD VL,PLANT NO.K11,21,RED,RED/MAROON |
1 | ||
| 71110-1007001 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71110-1105002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71110-1012101 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71110-1105001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71110-1012109 |
KP30..STD VL,PLANT NO.K11,21,YELLOW,YELLOW |
1 | ||
| 71110-1105109 |
KP30,UP30..STD VL,PLANT NO.P11,YELLOW,YELLOW |
1 | ||
| 71110-1105101 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71110-1011001 |
KP30..STD VL,PLANT NO,P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71110-1012201 |
KP30..STD VL,PLANT NO,K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71110-1106201 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71110-1013206 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71110-1013201 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71110-1012306 |
KP30..STD VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71110-1011101 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71110-1106206 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71110-1013306 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71110-1106301 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71110-1012316 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71110-1013316 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71110-1011106 |
KP30..STD VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71110-1106306 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71210-1007001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71210-1007002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71210-1007002 |
KP30..STD VL,PLANT NO.K11,21,RED,RED/MAROON |
1 | ||
| 71210-1007001 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71210-1105002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71210-1105001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71210-1012101 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71210-1012109 |
KP30..STD VL,PLANT NO.K11,21,YELLOW,YELLOW |
1 | ||
| 71210-1105109 |
KP30,UP30..STD VL,PLANT NO.P11,YELLOW,YELLOW |
1 | ||
| 71210-1105101 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71210-1012201 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71210-1011001 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71210-1013201 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71210-1013206 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71210-1011101 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71210-1106201 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71210-1106206 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71210-1013306 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71210-1012306 |
KP30..STD VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71210-1106306 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71210-1011106 |
KP30..STD VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71210-1012316 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71210-1106301 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71210-1013316 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71310-1007001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71310-1007002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71310-1007002 |
KP30..STD VL,PLANT NO.K11,21,RED,RED/MAROON |
1 | ||
| 71310-1105002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71310-1007001 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71310-1105001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71310-1012109 |
KP30..STD VL,PLANT NO.K11,21,YELLOW,YELLOW |
1 | ||
| 71310-1012101 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71310-1105101 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71310-1105109 |
KP30,UP30..STD VL,PLANT NO.P11,YELLOW,YELLOW |
1 | ||
| 71310-1012201 |
KP30,31..S,STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71310-1105201 |
KP30,31..S,STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71310-1013201 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71310-1106301 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71310-1012306 |
KP30..STD VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71310-1013306 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71310-1106306 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71310-1013206 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71310-1105306 |
KP30..STD VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71310-1013301 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71310-1106401 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71310-1105301 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71310-1013401 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71310-1012301 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71310-1013416 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71310-1106406 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71310-1013506 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71310-1012316 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71310-1012406 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71410-1007001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71410-1007002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71410-1007001 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71410-1007002 |
KP30..STD VL,PLANT NO.K11,21,RED,RED/MAROON |
1 | ||
| 71410-1105001 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71410-1105002 |
KP30,UP30..STD VL,PLANT NO.P11,RED,RED/MAROON |
1 | ||
| 71410-1105101 |
KP30,UP30..STD VL,PLANT NO.P11,BLACK,BLACK |
1 | ||
| 71410-1012101 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK |
1 | ||
| 71410-1012109 |
KP30..STD VL,PLANT NO.K11,21,YELLOW,YELLOW |
1 | ||
| 71410-1105109 |
KP30,UP30..STD VL,PLANT NO.P11,YELLOW,YELLOW |
1 | ||
| 71410-1012201 |
KP30,31..S,STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1105201 |
KP30,31..S,STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1013201 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1013206 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1106301 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1106306 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1012306 |
KP30..STD VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1013301 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1013306 |
KP30..DLX,STD PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1105306 |
KP30..STD VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1106401 |
KP30..DLX,STD PF,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1105301 |
KP30..STD VL,PLANT NO.P11,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1106406 |
KP30..DLX,STD PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1012316 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1012301 |
KP30..STD VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1013506 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1012406 |
KP30..STD VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1013401 |
KP30..DLX,STD PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1013416 |
KP30..DLX,STD PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
KP3#,50,UP3# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
KP3#,50,UP3# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
KP3#,50,UP3# |
1 | ||
| 72501 - STOPPER ASSY, FRONT SEAT BACK, RH | ||||
| 72510-10030 |
KP3#,UP3#..(SED,V)..STD |
1 | ||
| 72510-10031 |
KP30,31,36,UP3#..(SED,V)..(S,STD) |
1 | ||
| 72501A - SPRING, TENSION(FOR FRONT SEAT BACK STOPPER) | ||||
| 90506-12229 |
KP30,31,36,UP3#..(SED,V)..(S,STD) |
2 | ||
| 72502 - STOPPER ASSY, FRONT SEAT BACK, LH | ||||
| 72520-10030 |
KP3#,UP3#..(SED,V)..STD |
1 | ||
| 72520-10031 |
KP30,31,36,UP3#..(SED,V)..(S,STD) |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-10022 |
KP3#..SED,V |
1 | ||
| 72510-10021 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,STD,XL) |
1 | ||
| 72510-10021 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,XL) |
1 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72553-10010 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,XL) LH |
1 | ||
| 72519-10020 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,STD,XL) RH |
1 | ||
| 72519-10020 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,XL) RH |
1 | ||
| 72553-10010 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,STD,XL) LH |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-10021 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,XL) |
1 | ||
| 72520-10021 |
KP3#..(SED,V)..(DLX,HDX,SR,ST,STD,XL) |
1 | ||
| 72520-10022 |
KP3#..SED,V |
1 | ||
| 72525 - SCREW, FRONT SEAT BACK HINGE | ||||
| 72525-10021 |
KP3#,UP3#..(SED,V)..STD |
2 | ||
| 72525-10022 |
KP30,31,36,UP3#..(SED,V)..(S,STD) |
2 | ||
| Common parts | ||||
| 71122-10070 | ||||
| 90105-10043 | ||||
| 90119-10076 | ||||
| 90386-12067 | ||||
| 93339-24012 | ||||
| 94110-41000 | ||||
| 94171-10800 | ||||
| 94511-00800 | ||||
| 94512-01000 | ||||
| 94612-10800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
