KP30- (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7010)

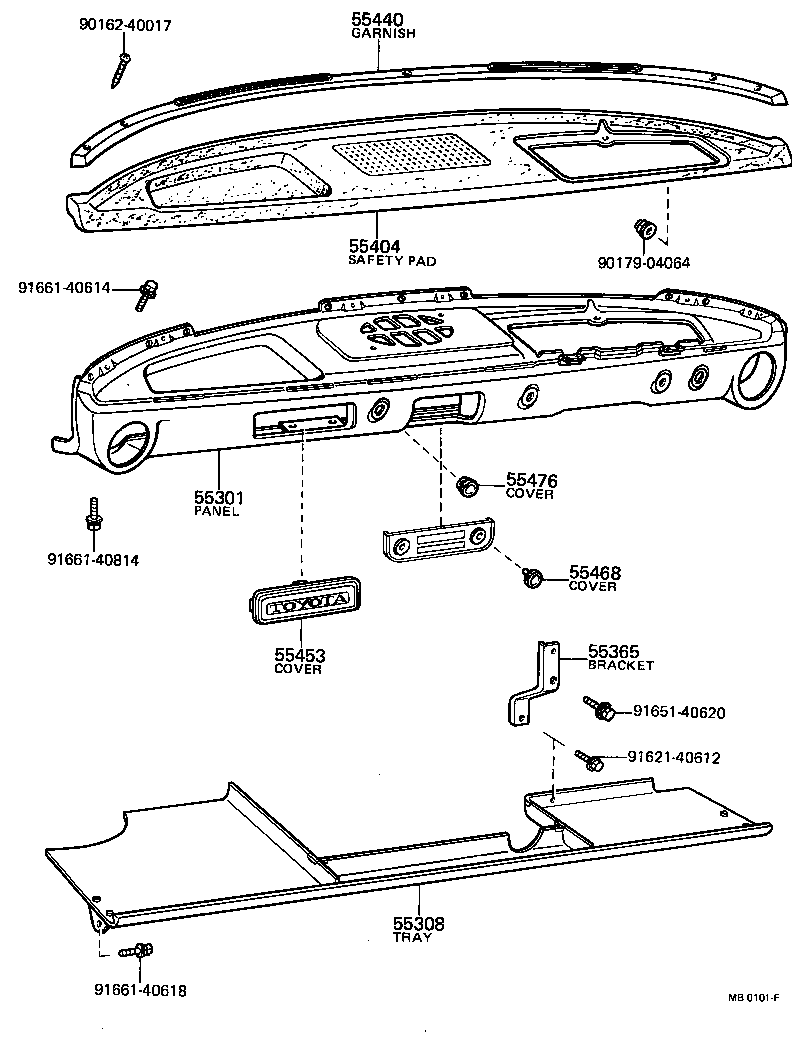

Click highlighted areas on diagram

diagram 55301 55308 55365 55404 55440 55453 55468 55476 9016240017 9017904064 9162140612 9165140620 9166140614 9166140618 9166140814
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-10071

KP3#,UP3#

 1
55301-10070

KP3#,UP3#

 1
55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER
55308-10012

KP3#,UP3#

 1
55308-10010

KP3#,UP3#

 1
55308-10012

KP3#..DLX,HDX,ST,XL

 1
55365 - BRACKET, INSTRUMENT PANEL UNDER TRAY
55365-10010

KP3#,UP3#

 1
55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55404-10031

KP37;KP30,36..DLX,STD

 1
55404-10030

KP3#,UP3#

 1
55404-10050

KP30,31..HDX,S,SR,ST,XL

 1
55404-10031

KP3#,UP3#

 1
55440 - GARNISH, INSTRUMENT PANEL, CENTER
55444-10020

KP3#,UP3#

 1
55453 - COVER, RADIO TUNER OPENING
55463-10020

KP3#,UP3#..STD

 1
55463-10021

KP3#,UP3#..SR,STD

 1
55463-10021

KP30,36..STD

 1
55468 - COVER, HEATER SWITCH HOLE
55468-10020

KP3#,UP3#..STD

 1
55468-10021

KP30,31,36,UP3#..S,STD

 1
55476 - COVER, CIGARETTE LIGHTER HOLE
55477-10010

KP30,31,36,UP3#..S,STD

 1
55476-20021

KP3#,UP3#..STD

 1
Common parts
90162-40017
90179-04064
91621-40612
91651-40620
91661-40614
91661-40618
91661-40814

(7010- )

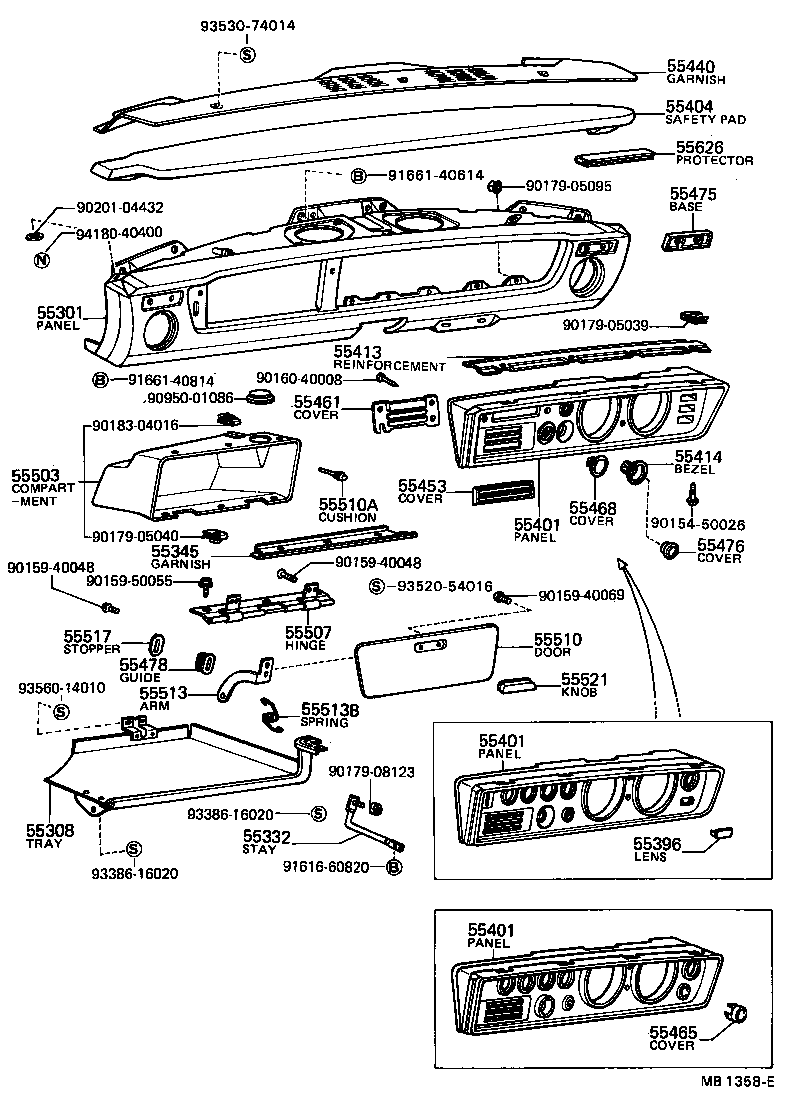

Click highlighted areas on diagram

diagram 55301 55308 55332 55345 55396 55401 55401 55401 55404 55413 55414 55440 55453 55461 55465 55468 55475 55476 55478 55503 55507 55510 55510A 55513 55513B 55517 55521 55626 9015450026 9015940048 9015940048 9015940069 9015950055 9016040008 9017905039 9017905040 9017905095 9017908123 9018304016 9020104432 9095001086 9161660820 9166140614 9166140814 9338616020 9338616020 9352054016 9353074014 9356014010 9418040400
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-10071

KP3#,UP3#

 1
55301-10070

KP3#,UP3#

 1
55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER
55308-10012

KP3#,UP3#

 1
55308-10010

KP3#,UP3#

 1
55308-10012

KP3#..DLX,HDX,ST,XL

 1
55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55401-10031

KP37;KP30,36..DLX,STD

 1
55401-10030

KP30,36,UP3#

 1
55401-10032

KP37;KP30,36..DLX,STD

 1
55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55401-10031

KP37;KP30,36..DLX,STD

 1
55401-10030

KP30,36,UP3#

 1
55401-10032

KP37;KP30,36..DLX,STD

 1
55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55401-10031

KP37;KP30,36..DLX,STD

 1
55401-10030

KP30,36,UP3#

 1
55401-10032

KP37;KP30,36..DLX,STD

 1
55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55404-10031

KP37;KP30,36..DLX,STD

 1
55404-10030

KP3#,UP3#

 1
55404-10050

KP30,31..HDX,S,SR,ST,XL

 1
55404-10031

KP3#,UP3#

 1
55414 - BEZEL, CIGAR LIGHTER HOLE
55471-20030

KP3#..DLX,HDX,STD,XL

 1
55471-20030

KP3#,UP3#

 1
55440 - GARNISH, INSTRUMENT PANEL, CENTER
55444-10020

KP3#,UP3#

 1
55453 - COVER, RADIO TUNER OPENING
55463-10020

KP3#,UP3#..STD

 1
55463-10021

KP3#,UP3#..SR,STD

 1
55463-10021

KP30,36..STD

 1
55461 - COVER, HEATER CONTROL HOLE
55423-10010

KP30,36,UP3#..STD

 1
55468 - COVER, HEATER SWITCH HOLE
55468-10020

KP3#,UP3#..STD

 1
55468-10021

KP30,31,36,UP3#..S,STD

 1
55475 - BASE, LIGHTING SWITCH
55475-10010

KP3#,UP3#

 1
55476 - COVER, CIGARETTE LIGHTER HOLE
55477-10010

KP30,31,36,UP3#..S,STD

 1
55476-20021

KP3#,UP3#..STD

 1
Common parts
90154-50026
90159-40048
90159-40069
90159-50055
90160-40008
90179-05039
90179-05040
90179-05095
90179-08123
90183-04016
90201-04432
90950-01086
91616-60820
91661-40614
91661-40814
93386-16020
93520-54016
93530-74014
93560-14010
94180-40400
