KP30- (1969)
Toyota Publica
ILLUST NO. 2 OF 2(6904-7404)KP3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-10030 |
KP3#..SED,V |
1 | ||
| 41101-12010 |
KP3# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-10061 |
KP30,31,37..SED,V R=38:9,*AXC=U092 |
1 | ||
| 41110-10060 |
KP30 R=38:9=4.222 |
1 | ||
| 41110-12070 |
KP30,36,37 R=43:10,*AXC=U282 |
1 | ||
| 41110-12011 |
KP30,31,37 R=38:9,*AXC=U092 |
1 | ||
| 41110-12050 |
KP30,36,37 R=43:10,*AXC=U282 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-10128 |
KP3#,50 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-19065 |
KP3#..SED,V N=38:9 |
1 | ||
| 41201-19066 |
KP3#..SED,V N=38:9 |
1 | ||
| 41201-19195 |
KP30,36,37 N=43:10 |
1 | ||
| 41201-19066 |
KP30,31,37 N=38:9 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90368-30022 |
KP3# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-25028 |
KP3# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-35127 |
KP3# |
1 | ||
| 90311-35071 |
KP3# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-30235 |
KP3#,50 T=2.35-2.37 |
1 | ||
| 90201-30237 |
KP3#,50 厚さ=2.41−2.43,T=2.41-2.43 |
1 | ||
| 90201-30238 |
KP3#,50 厚さ=2.44−2.46,T=2.44-2.46 |
1 | ||
| 90201-30239 |
KP3#,50 厚さ=2.47−2.49,T=2.47-2.49 |
1 | ||
| 90201-30242 |
KP3#,50 厚さ=2.56−2.58,T=2.56-2.58 |
1 | ||
| 90201-30241 |
KP3#,50 厚さ=2.53−2.55,T=2.53-2.55 |
1 | ||
| 90201-30240 |
KP3#,50 厚さ=2.50−2.52,T=2.50-2.52 |
1 | ||
| 90201-30236 |
KP3#,50 T=2.38-2.40 |
1 | ||
| 90201-30234 |
KP3#,50 T=2.32-2.34 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-25100 |
KP3# T=0.25 |
3 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-12010 |
KP3# |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-16244 |
KP3#,50 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-16052 |
KP3#,50 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-12010 |
KP3# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-12011 |
KP3# |
3 | ||
| 41222-12010 |
KP3# |
3 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90109-10015 |
KP3# |
6 | ||
| 90101-11365 |
KP3# |
6 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41235-12010 |
KP3# L=49.86 |
1 | ||
| 41233-12010 |
KP3# L=49.78 |
1 | ||
| 41236-12010 |
KP3# L=49.90 |
1 | ||
| 41234-12010 |
KP3# L=49.82 |
1 | ||
| 41231-12010 |
KP3# L=49.70 |
1 | ||
| 41232-12010 |
KP3# L=49.74 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-12010 |
KP3# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-34020 |
KP3#,50 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-34020 |
KP3#,50 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-12011 |
KP3# |
1 | ||
| 41311-12012 |
KP3# |
1 | ||
| 41311-12010 |
KP3# |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-12010 |
KP3#,50 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-12010 |
KP3#,50 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KP3#,50 SINGLE TYPE |
2 | ||
| 41317-12010 |
KP3#,50 DOUBLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KP3#,50 SINGLE TYPE |
2 | ||
| 41317-12010 |
KP3#,50 DOUBLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KP3#,50 SINGLE TYPE |
2 | ||
| 41317-12010 |
KP3#,50 DOUBLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-20010 |
KP3#,50 N=16 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-20010 |
KP3#,50 N=16 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-20010 |
KP3#,50 N=10 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-20010 |
KP3#,50 N=10 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-12010 |
KP3#,50 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-04053 |
KP3#,50 |
1 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-20010 |
KP3# T=1.50 |
2 | ||
| 41362-20010 |
KP3# T=1.55 |
2 | ||
| 41363-20010 |
KP3# T=1.60 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-20010 |
KP3# T=1.50 |
2 | ||
| 41362-20010 |
KP3# T=1.55 |
2 | ||
| 41363-20010 |
KP3# T=1.60 |
2 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 91111-40614 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||

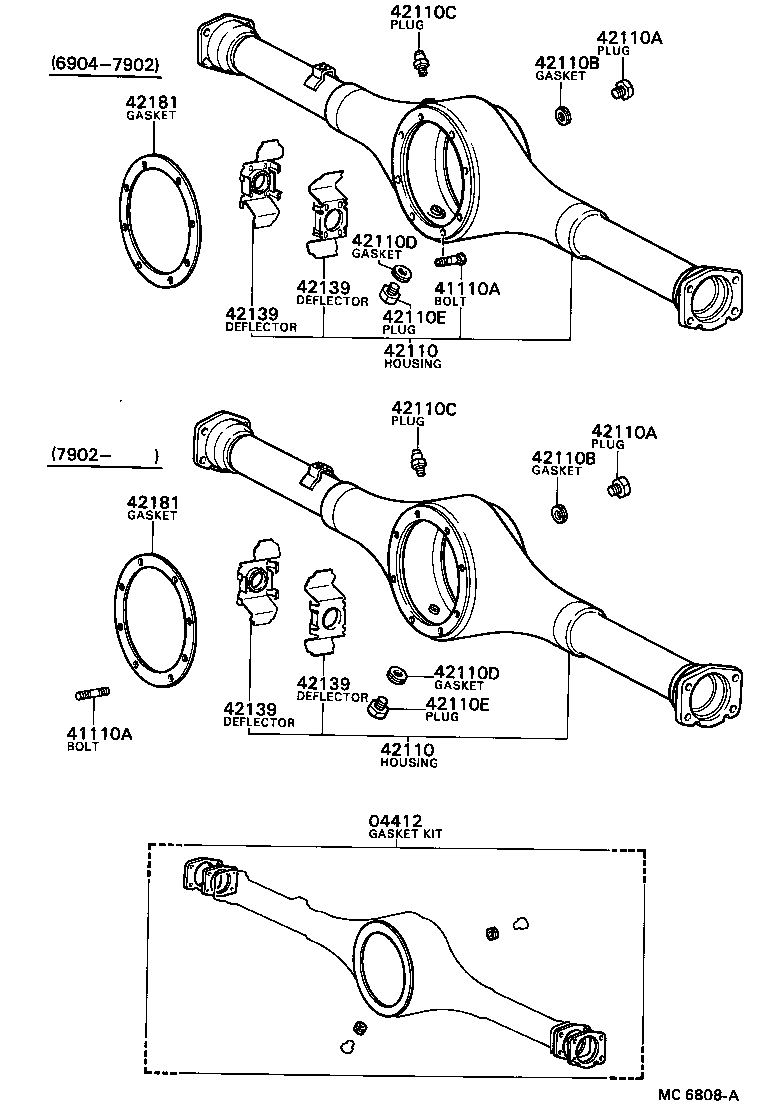

ILLUST NO. 1 OF 2(6904- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-10010 |
KP3# |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90114-08003 |
KP3#,50 *8-1.25PX29-12 |
8 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90114-08003 |
KP3#,50 *8-1.25PX29-12 |
8 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42101-10030 |
KP30,31 |
1 | ||
| 42101-10031 |
KP30,31 |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42101-10030 |
KP30,31 |
1 | ||
| 42101-10031 |
KP30,31 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18050 |
KP3# |
1 | ||
| 90341-18027 |
KP3#,UP3# |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18050 |
KP3# |
1 | ||
| 90341-18027 |
KP3#,UP3# |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 90430-18134 |
KP3# T=1.7 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 90430-18134 |
KP3# T=1.7 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
KP3#,50 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
KP3#,50 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
KP3#,50 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
KP3#,50 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 33104-30010 |
KP3#,UP3# |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 33104-30010 |
KP3#,UP3# |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-12010 |
KP3#,50 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-12010 |
KP3#,50 |
1 | ||
ILLUST NO. 2 OF 2(7404- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-10030 |
KP3#..SED,V |
1 | ||
| 41101-12010 |
KP3# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-10061 |
KP30,31,37..SED,V R=38:9,*AXC=U092 |
1 | ||
| 41110-10060 |
KP30 R=38:9=4.222 |
1 | ||
| 41110-12070 |
KP30,36,37 R=43:10,*AXC=U282 |
1 | ||
| 41110-12011 |
KP30,31,37 R=38:9,*AXC=U092 |
1 | ||
| 41110-12050 |
KP30,36,37 R=43:10,*AXC=U282 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-10128 |
KP3#,50 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-19065 |
KP3#..SED,V N=38:9 |
1 | ||
| 41201-19066 |
KP3#..SED,V N=38:9 |
1 | ||
| 41201-19195 |
KP30,36,37 N=43:10 |
1 | ||
| 41201-19066 |
KP30,31,37 N=38:9 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90368-30022 |
KP3# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-25028 |
KP3# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-35127 |
KP3# |
1 | ||
| 90311-35071 |
KP3# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-30235 |
KP3#,50 T=2.35-2.37 |
1 | ||
| 90201-30237 |
KP3#,50 厚さ=2.41−2.43,T=2.41-2.43 |
1 | ||
| 90201-30238 |
KP3#,50 厚さ=2.44−2.46,T=2.44-2.46 |
1 | ||
| 90201-30239 |
KP3#,50 厚さ=2.47−2.49,T=2.47-2.49 |
1 | ||
| 90201-30242 |
KP3#,50 厚さ=2.56−2.58,T=2.56-2.58 |
1 | ||
| 90201-30241 |
KP3#,50 厚さ=2.53−2.55,T=2.53-2.55 |
1 | ||
| 90201-30240 |
KP3#,50 厚さ=2.50−2.52,T=2.50-2.52 |
1 | ||
| 90201-30236 |
KP3#,50 T=2.38-2.40 |
1 | ||
| 90201-30234 |
KP3#,50 T=2.32-2.34 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-12010 |
KP3# |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-16244 |
KP3#,50 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-16052 |
KP3#,50 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-12010 |
KP3# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-12011 |
KP3# |
3 | ||
| 41222-12010 |
KP3# |
3 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90109-10015 |
KP3# |
6 | ||
| 90101-11365 |
KP3# |
6 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41235-12010 |
KP3# L=49.86 |
1 | ||
| 41233-12010 |
KP3# L=49.78 |
1 | ||
| 41236-12010 |
KP3# L=49.90 |
1 | ||
| 41234-12010 |
KP3# L=49.82 |
1 | ||
| 41231-12010 |
KP3# L=49.70 |
1 | ||
| 41232-12010 |
KP3# L=49.74 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-12010 |
KP3# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-34020 |
KP3#,50 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-34020 |
KP3#,50 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-12011 |
KP3# |
1 | ||
| 41311-12012 |
KP3# |
1 | ||
| 41311-12010 |
KP3# |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-12010 |
KP3#,50 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-12010 |
KP3#,50 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KP3#,50 SINGLE TYPE |
2 | ||
| 41317-12010 |
KP3#,50 DOUBLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KP3#,50 SINGLE TYPE |
2 | ||
| 41317-12010 |
KP3#,50 DOUBLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KP3#,50 SINGLE TYPE |
2 | ||
| 41317-12010 |
KP3#,50 DOUBLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-20010 |
KP3#,50 N=16 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-20010 |
KP3#,50 N=16 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-20010 |
KP3#,50 N=10 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-20010 |
KP3#,50 N=10 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-12010 |
KP3#,50 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-04053 |
KP3#,50 |
1 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-20010 |
KP3# T=1.50 |
2 | ||
| 41362-20010 |
KP3# T=1.55 |
2 | ||
| 41363-20010 |
KP3# T=1.60 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-20010 |
KP3# T=1.50 |
2 | ||
| 41362-20010 |
KP3# T=1.55 |
2 | ||
| 41363-20010 |
KP3# T=1.60 |
2 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 91111-40614 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
