Toyota Publica KP30 WATER PUMP - JDM Part Detective

KP30- (1969)

Toyota Publica

Production Apr 1969 - Nov 1975

Engine 2K

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

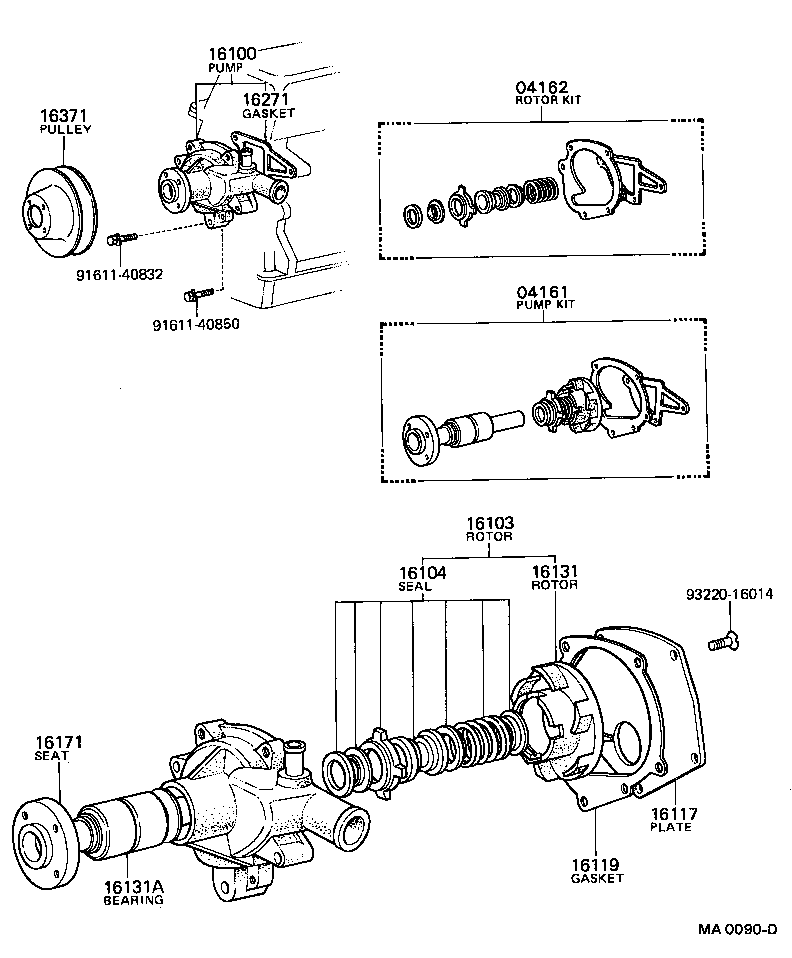

Click highlighted areas on diagram

Part #	Description	Period	Qty
04161 - PUMP KIT, WATER
04161-12010	2K,3K,3KB#..KP3#	07/1970 - 04/1974	1
04161-22011	KB,2K..KP3#	04/1969 - 06/1970	1
04161-24010	2K,3K,3KB#..KP3#	04/1974 - 07/1975	1
04162 - ROTOR KIT, WATER PUMP
04162-22011	2K,3K,3KB#..KP3#	07/1970 - 07/1975	1
04162-22010	KB,2K..KP3#	04/1969 - 07/1970	1
16100 - PUMP ASSY, ENGINE WATER
16100-29016	2K,3K,3KB#..KP3#	07/1970 - 04/1974	1
16100-29015	KB,2K..KP3#	04/1969 - 06/1970	1
16103 - ROTOR SUB-ASSY, WATER PUMP
16103-22010	KB,2K..KP3#	04/1969 - 07/1970	1
16104 - SEAL SET, WATER PUMP
16104-30011	KB,2K..KP3#	04/1969 - 07/1970	1
16104-22010	2K,3K,3KB#..KP3#	07/1970 - 07/1975	1
16117 - PLATE, WATER PUMP
16117-22011	KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50	04/1969 - 07/1977	1
16119 - GASKET, WATER PUMP BODY
16124-22010	KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50	04/1969 - 06/1981	1
16131 - ROTOR, WATER PUMP
16131-22010	KB,2K..KP3#	04/1969 - 11/1969	1
16131-22011	2K,3K,3KB#..KP3#	11/1969 - 07/1975	1
16131A - BEARING, WATER PUMP
90369-30002	KB,2K,3K,3KB#..KP3#	04/1969 - 04/1974	1
16171 - SEAT, WATER PUMP PULLEY
16171-24030	2K,3K,3KB#..KP3#	04/1974 - 07/1975	1
16171-22011	KB,2K,3K,3KB#..KP3#	04/1969 - 04/1974	1
16271 - GASKET, WATER PUMP
16271-22010	KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50	04/1969 - 12/1978	1
16371 - PULLEY, FAN
88452-12010	2K,3K..KP3# W/COOLER	01/1972 - 10/1973	1
16371-22010	KB,2K,3K,3KB#..KP3#	04/1969 - 04/1974	1
88452-12010	KB,2K,3K,3KB#..KP3# W/COOLER	04/1969 - 12/1971	1
88452-12010	2K,3K,3KB#..KP3# W/COOLER	10/1973 - 04/1974	1
Common parts
91611-40832
91611-40850
93220-16014

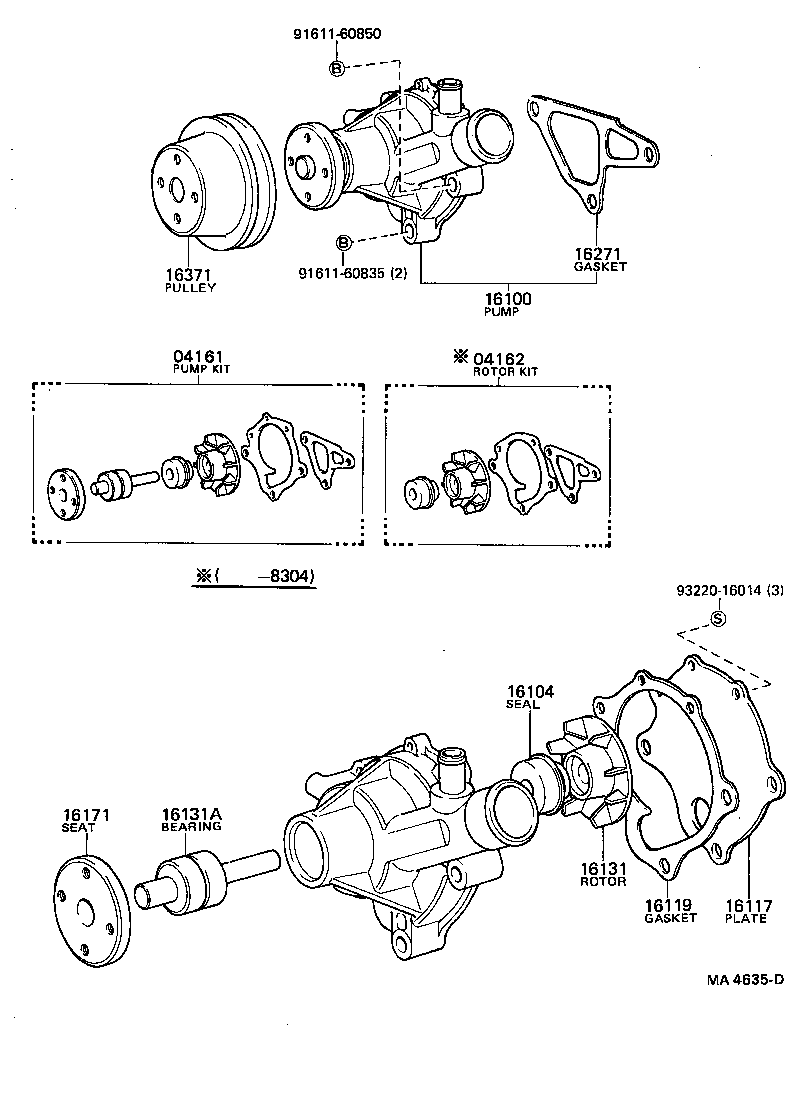

Click highlighted areas on diagram

Part #	Description	Period	Qty
04161 - PUMP KIT, WATER
04161-12010	2K,3K,3KB#..KP3#	07/1970 - 04/1974	1
04161-22011	KB,2K..KP3#	04/1969 - 06/1970	1
04161-24010	2K,3K,3KB#..KP3#	04/1974 - 07/1975	1
04162 - ROTOR KIT, WATER PUMP
04162-22011	2K,3K,3KB#..KP3#	07/1970 - 07/1975	1
04162-22010	KB,2K..KP3#	04/1969 - 07/1970	1
16100 - PUMP ASSY, ENGINE WATER
16100-29016	2K,3K,3KB#..KP3#	07/1970 - 04/1974	1
16100-29015	KB,2K..KP3#	04/1969 - 06/1970	1
16104 - SEAL SET, WATER PUMP
16104-30011	KB,2K..KP3#	04/1969 - 07/1970	1
16104-22010	2K,3K,3KB#..KP3#	07/1970 - 07/1975	1
16117 - PLATE, WATER PUMP
16117-22011	KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50	04/1969 - 07/1977	1
16119 - GASKET, WATER PUMP BODY
16124-22010	KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50	04/1969 - 06/1981	1
16131 - ROTOR, WATER PUMP
16131-22010	KB,2K..KP3#	04/1969 - 11/1969	1
16131-22011	2K,3K,3KB#..KP3#	11/1969 - 07/1975	1
16131A - BEARING, WATER PUMP
90369-30002	KB,2K,3K,3KB#..KP3#	04/1969 - 04/1974	1
16171 - SEAT, WATER PUMP PULLEY
16171-24030	2K,3K,3KB#..KP3#	04/1974 - 07/1975	1
16171-22011	KB,2K,3K,3KB#..KP3#	04/1969 - 04/1974	1
16271 - GASKET, WATER PUMP
16271-22010	KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50	04/1969 - 12/1978	1
16371 - PULLEY, FAN
88452-12010	2K,3K..KP3# W/COOLER	01/1972 - 10/1973	1
16371-22010	KB,2K,3K,3KB#..KP3#	04/1969 - 04/1974	1
88452-12010	KB,2K,3K,3KB#..KP3# W/COOLER	04/1969 - 12/1971	1
88452-12010	2K,3K,3KB#..KP3# W/COOLER	10/1973 - 04/1974	1
Common parts
91611-60835
91611-60850
93220-16014
