MCX20-AESGK (2000)
Toyota Pronard
Production
Feb 2000
-
Jan 2003
Engine
1MZFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0002- )

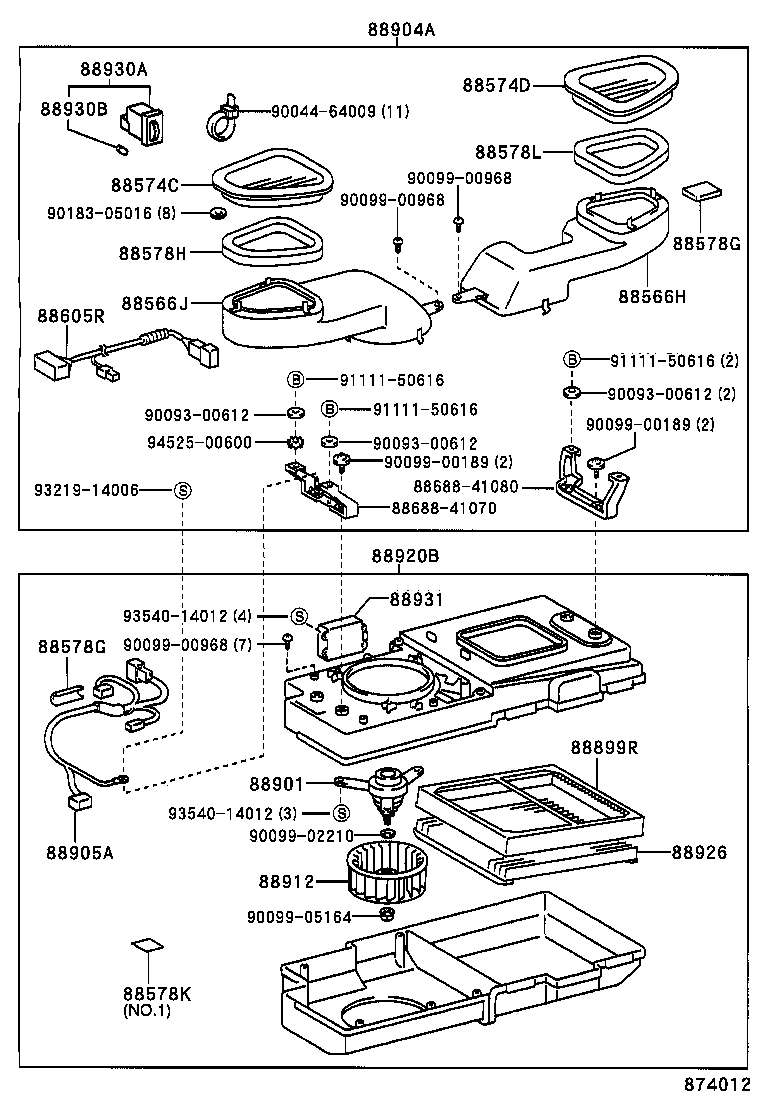

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88566H - DUCT, AIR, NO.1 | ||||
| 88566-41050 |
MCX20 |
1 | ||
| 88566-41050 |
MCX20 |
1 | ||
| 88566J - DUCT, AIR, NO.2 | ||||
| 88566-41060 |
MCX20 |
1 | ||
| 88566-41060 |
MCX20 |
1 | ||
| 88574C - BODY, AIR OUTLET GRILLE, NO.1 | ||||
| 88574-33010E1 |
MCX20 FAWN,TRIM4# |
1 | ||
| 88574-33010A0 |
MCX20 IVORY,TRIM0# |
1 | ||
| 88574D - BODY, AIR OUTLET GRILLE, NO.2 | ||||
| 88574-33020E1 |
MCX20 FAWN,TRIM4# |
1 | ||
| 88574-33020A0 |
MCX20 IVORY,TRIM0# |
1 | ||
| 88578G - PACKING, AIR PURIFIER, NO.1 | ||||
| 88578-30370 |
MCX20 |
5 | ||
| 88578-30370 |
MCX20 |
5 | ||
| 88578G - PACKING, AIR PURIFIER, NO.1 | ||||
| 88578-30370 |
MCX20 |
5 | ||
| 88578-30370 |
MCX20 |
5 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-33090 |
MCX20 |
1 | ||
| 88578-33090 |
MCX20 |
1 | ||
| 88578K - PACKIN, COOLER NO.1 | ||||
| 88578-28190 |
MCX20 |
1 | ||
| 88578-28190 |
MCX20 |
1 | ||
| 88578L - PACKING, COOLER NO.2 | ||||
| 88578-33100 |
MCX20 |
1 | ||
| 88578-33100 |
MCX20 |
1 | ||
| 88605R - HARNESS SUB-ASSY, AIR PURIFIER | ||||
| 88605-41050 |
MCX20 |
1 | ||
| 88605-41050 |
MCX20 |
1 | ||
| 88899R - FRAME, AIR PURIFIER | ||||
| 88899-32020 |
MCX20 |
1 | ||
| 88899-32020 |
MCX20 |
1 | ||
| 88901 - MOTOR SUB-ASSY, AIR PURIFIER | ||||
| 88901-32020 |
MCX20 |
1 | ||
| 88901-32020 |
MCX20 |
1 | ||
| 88904A - ACCESSORY SUB-ASSY, AIR PURIFIRE | ||||
| 88904-41070A0 |
MCX20 IVORY,TRIM0# |
1 | ||
| 88904-41070E0 |
MCX20 FAWN,TRIM4# |
1 | ||
| 88905A - WIRE SUB-ASSY, AIR PURIFIER, NO.2 | ||||
| 88905-33030 |
MCX20 |
1 | ||
| 88905-33030 |
MCX20 |
1 | ||
| 88912 - FAN, AIR PURIFIER | ||||
| 88912-32140 |
MCX20 |
1 | ||
| 88912-32140 |
MCX20 |
1 | ||
| 88920B - PURIFIER ASSY, AIR, NO.2 | ||||
| 88920-33050 |
MCX20 |
1 | ||
| 88920-33050 |
MCX20 |
1 | ||
| 88926 - FILTER, AIR PURIFIER | ||||
| 88926-32030 |
MCX20 |
1 | ||
| 88926-32030 |
MCX20 |
1 | ||
| 88930A - SWITCH ASSY, AIR PURIFIER | ||||
| 88930-22330 |
MCX20 |
1 | ||
| 88930-22330 |
MCX20 |
1 | ||
| 88930B - BULB, AIR PURIFIER SWITCH | ||||
| 90010-03005 |
MCX20 14V 1.8W |
1 | ||
| 90010-03005 |
MCX20 14V 1.8W |
1 | ||
| 88931 - SENSOR, SMOKE | ||||
| 88931-50030 |
MCX20 |
1 | ||
| 88931-50030 |
MCX20 |
1 | ||
| Common parts | ||||
| 88688-41070 | ||||
| 88688-41080 | ||||
| 90044-64009 | ||||
| 90093-00612 | ||||
| 90099-00189 | ||||
| 90099-00968 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 90183-05016 | ||||
| 91111-50616 | ||||
| 93219-14006 | ||||
| 93540-14012 | ||||
| 94525-00600 | ||||
