MCX20-AESGK (2000)

Toyota Pronard

Production Feb 2000 - Jan 2003
Engine 1MZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )

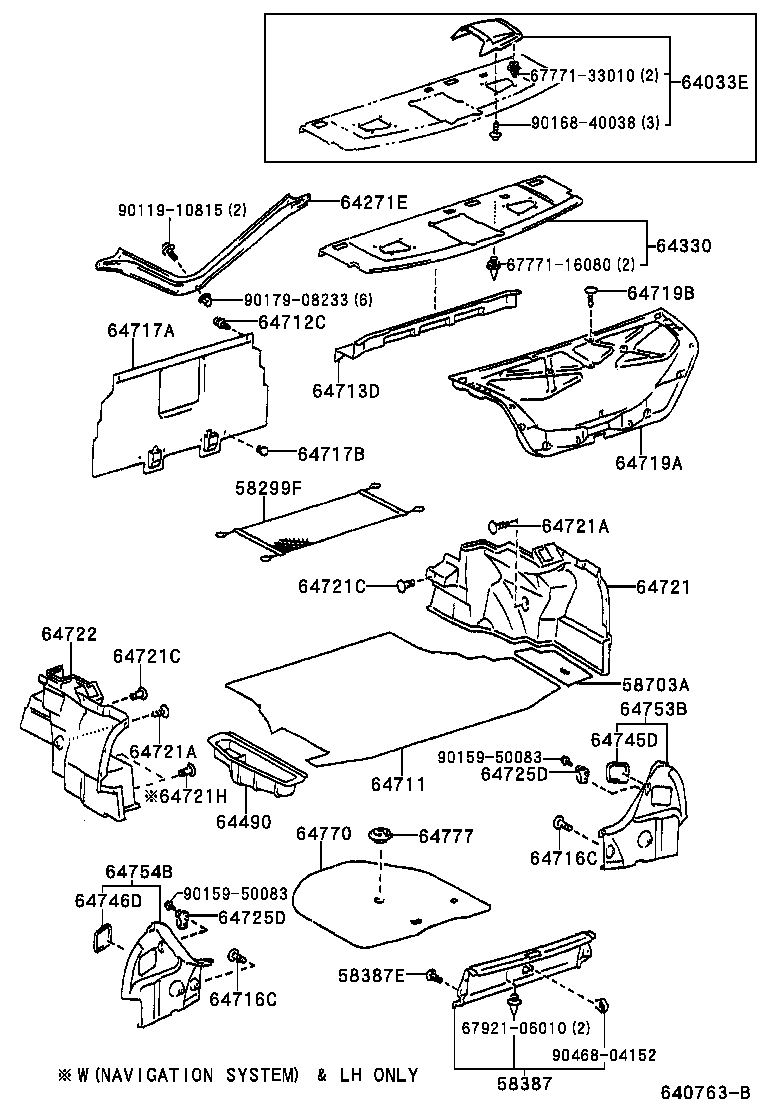

Click highlighted areas on diagram

diagram 58299F 58387 58387E 58703A 64033E 64271E 64330 64490 64711 64712C 64713D 64716C 64716C 64717A 64717B 64719A 64719B 64721 64721A 64721A 64721C 64721C 64721H 64722 64725D 64725D 64745D 64746D 64753B 64754B 64770 64777 6777116080 6777133010 6792106010 9011910815 9015950083 9015950083 9016840038 9017908233 9046804152
Part # Description Qty Price
58299F - NET, BAGGAGE HOLDER
58299-AA010

MCX20

 1
58299-AC010C0

MCX20

BLACK,TRIM0#

 1
58387 - PLATE, REAR FLOOR FINISH
58387-AC030C0

MCX20

BLACK,TRIM4#

 1
58387-AC030C0

MCX20

BLACK,TRIM0#

 1
58387E - CLIP(FOR REAR FLOOR FINISH PLATE)
90467-07138

MCX20

 2
90467-07138C0

MCX20

BLACK,TRIM4#

 2
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-07010

MCX20

 1
58703-07010

MCX20

 1
64271E - PANEL, ROOM PARTITION
64241-AC020

MCX20

 1
64241-AC020

MCX20

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-AC050A0

MCX20

IVORY,TRIM0#

 1
64330-AC050E0

MCX20

FAWN,TRIM4#

 1
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-AC100C0

MCX20

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),BLACK,TRIM0#

 1
64711-AC100C0

MCX20

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),BLACK,TRIM4#

 1
64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
90467-08150

MCX20

 2
90467-08150

MCX20

 2
64713D - COVER, LUGGAGE COMPARTMENT TRIM, FRONT LH
64713-AC010C0

MCX20

BLACK,TRIM4#

 1
64713-AC010C0

MCX20

BLACK,TRIM0#

 1
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-07138

MCX20

 4
90467-07138C0

MCX20

BLACK,TRIM4#

 4
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-07138

MCX20

 4
90467-07138C0

MCX20

BLACK,TRIM4#

 4
64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT
64717-AC040C0

MCX20

BLACK,TRIM4#

 1
64717-AC040C0

MCX20

BLACK,TRIM0#

 1
64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
90467-09156C0

MCX20

BLACK,TRIM0#

 4
90467-09156C0

MCX20

BLACK,TRIM4#

 4
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-AC031C0

MCX20

BLACK,TRIM0#

 1
64719-AC030C0

MCX20

BLACK,TRIM0#

 1
64719-AC031C0

MCX20

BLACK,TRIM4#

 1
64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR)
90467-07138

MCX20

 15
90467-07138

MCX20

 15
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-AC030C0

MCX20

BLACK,TRIM0#

 1
64721-AC030C0

MCX20

BLACK,TRIM4#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-07042C0

MCX20

BLACK,TRIM0#

 4
90467-07042C0

MCX20

BLACK,TRIM4#

 4
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-07042C0

MCX20

BLACK,TRIM0#

 4
90467-07042C0

MCX20

BLACK,TRIM4#

 4
64721C - CLIP(LUGGAGE COMPARTMENT)
90080-46294

MCX20..4HC

 4
90080-46294

MCX20

 4
90080-46294

MCX20

 2
64721C - CLIP(LUGGAGE COMPARTMENT)
90080-46294

MCX20..4HC

 4
90080-46294

MCX20

 4
90080-46294

MCX20

 2
64721H - CLIP(LUGGAGE COMPARTMENT)
90467-07138C0

MCX20

BLACK,TRIM4#

 2
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-AC070C0

MCX20

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),BLACK,TRIM0#

 1
64722-AC070C0

MCX20

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),BLACK,TRIM4#

 1
64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-AC010C0

MCX20

BLACK,TRIM0#

 2
64725-AC010C0

MCX20

BLACK,TRIM4#

 2
64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-AC010C0

MCX20

BLACK,TRIM0#

 2
64725-AC010C0

MCX20

BLACK,TRIM4#

 2
64745D - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-AC010

MCX20

 1
64745-AC020

MCX20

 1
64746D - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-AC010

MCX20

 1
64746-AC020

MCX20

 1
64753B - PLATE, REAR FLOOR FINISH SIDE, RH
64753-AC010C0

MCX20

BLACK,TRIM0#

 1
64753-AC020

MCX20

 1
64754B - PLATE, REAR FLOOR FINISH SIDE, LH
64754-AC020

MCX20

 1
64754-AC010C0

MCX20

BLACK,TRIM0#

 1
64770 - COVER ASSY, SPARE WHEEL
64770-07010

MCX20

 1
64770-07010

MCX20

 1
64777 - CLAMP, SPARE WHEEL COVER
64777-32030

MCX20

 1
64777-32030

MCX20

 1
Common parts
67771-16080
67771-33010
67921-06010
90119-10815
90159-50083
90168-40038
90179-08233
90468-04152
