Toyota Pronard MCX20 RADIO RECEIVER & AMPLIFIER & CONDENSER

MCX20-AEPGK (2000)

Toyota Pronard

Production Feb 2000 - Jan 2003

Engine 1MZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

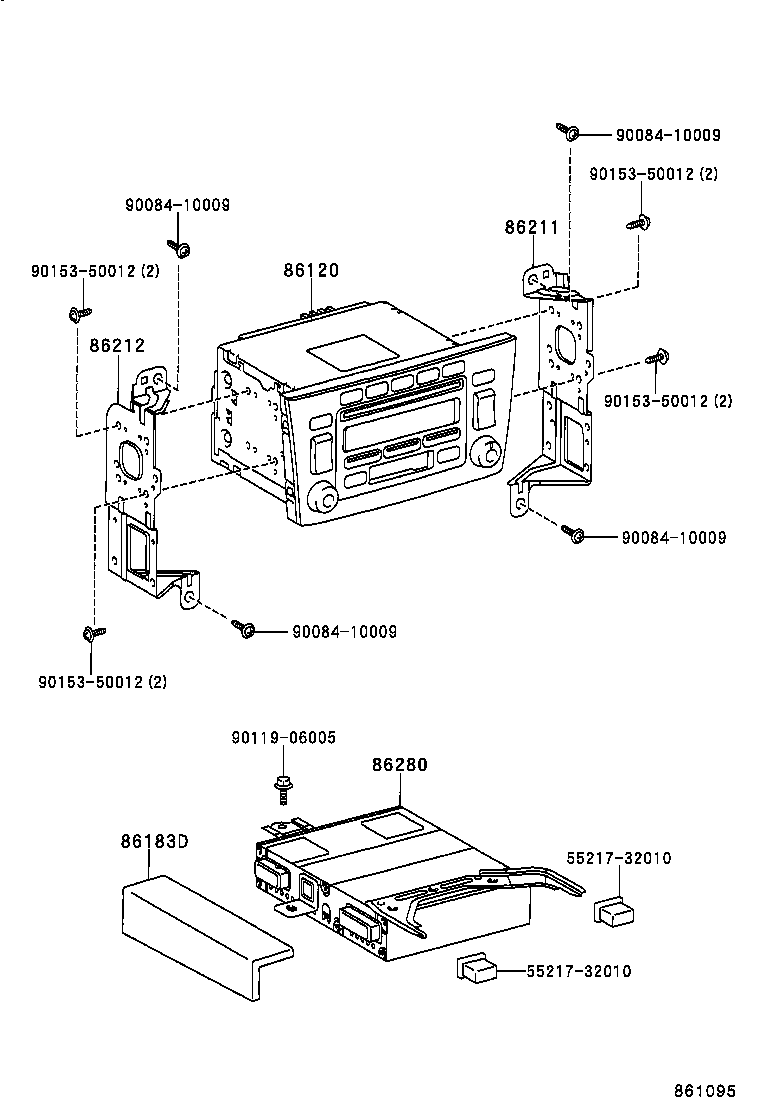

Part #	Description	Period	Qty
86120 - RECEIVER ASSY, RADIO
86120-41070	MCX20 MATSUSHITA,ID=55847	07/2002 - 01/2003	1
86120-41040	MCX20 MATSUSHITA,ID=56831	02/2000 - 07/2002	1
86120-41020	MCX20..4FC MATSUSHITA,ID=56830,3.0G	02/2000 - 07/2002	1
86120-41060	MCX20..4FC MATSUSHITA,ID=55846,3.0G	07/2002 - 01/2003	1
86183D - COVER, AUDIO AMPLIFIER
86183-AC010A0	MCX20 IVORY,TRIM0#	02/2001 - 06/2001	1
86183-AC010A0	MCX20..4FC IVORY,TRIM0#	06/2001 - 07/2002	1
86183-AC010E0	MCX20 FAWN,TRIM4#	07/2002 - 01/2003	1
86183-AC010A0	MCX20 IVORY,TRIM0#	02/2000 - 03/2000	1
86211 - BRACKET, RADIO, NO.1
86211-AC030	MCX20	07/2002 - 01/2003	1
86211-AC030	MCX20	02/2000 - 07/2002	1
86212 - BRACKET, RADIO, NO.2
86212-AC030	MCX20	07/2002 - 01/2003	1
86212-AC030	MCX20	02/2000 - 07/2002	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-07010	MCX20	02/2001 - 06/2001	1
86280-07010	MCX20..4FC	06/2001 - 07/2002	1
86280-07010	MCX20..4FC	07/2002 - 01/2003	1
86280-AC041	MCX20	02/2000 - 03/2000	1
Common parts
55217-32010
90084-10009
90119-06005
90153-50012

Click highlighted areas on diagram

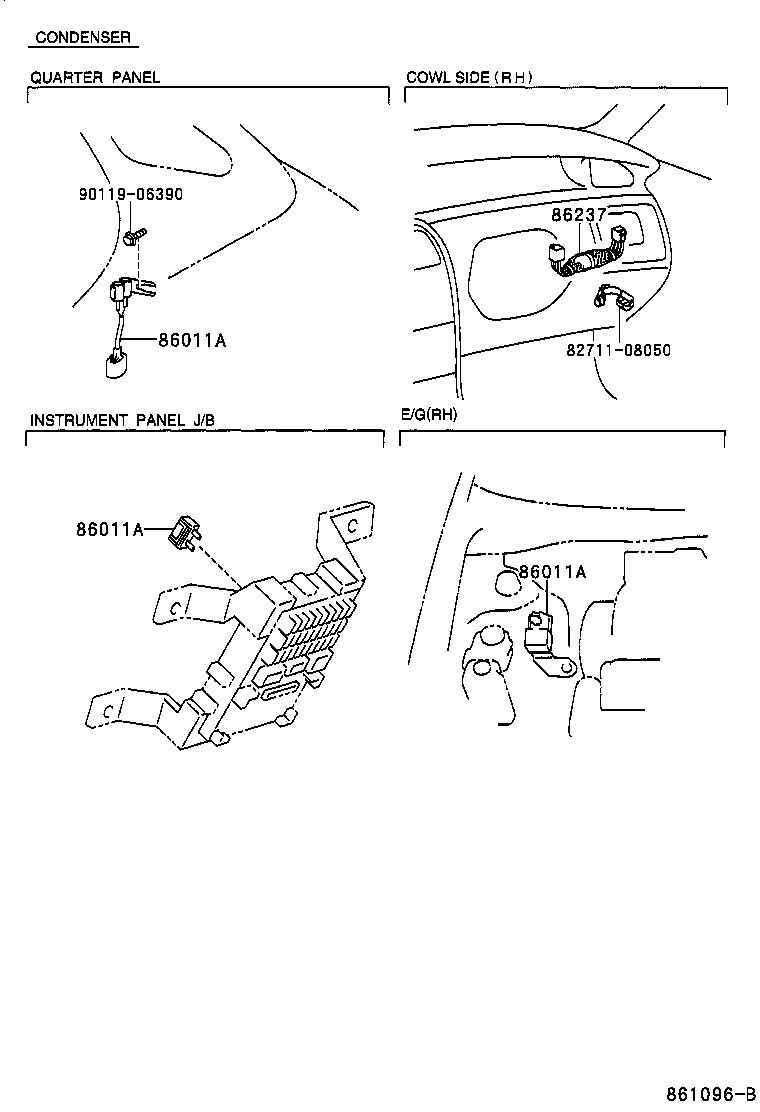

ｺﾝﾃﾞﾝｻ

Part #	Description	Period	Qty
86011A - CONDENSER, RADIO SETTING
90980-04066	MCX20 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙJ/B	07/2002 - 01/2003	2
90980-04153	MCX20 ｴﾝｼﾞﾝ(右側)	07/2002 - 01/2003	1
90980-04129	MCX20 ｸｵｰﾀﾊﾟﾈﾙ	02/2000 - 07/2002	1
90980-04153	MCX20 ｴﾝｼﾞﾝ(右側)	02/2000 - 07/2002	1
90980-04129	MCX20 ｸｵｰﾀﾊﾟﾈﾙ	07/2002 - 01/2003	1
90980-04066	MCX20 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙJ/B	02/2000 - 07/2002	2
86011A - CONDENSER, RADIO SETTING
90980-04066	MCX20 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙJ/B	07/2002 - 01/2003	2
90980-04153	MCX20 ｴﾝｼﾞﾝ(右側)	07/2002 - 01/2003	1
90980-04129	MCX20 ｸｵｰﾀﾊﾟﾈﾙ	02/2000 - 07/2002	1
90980-04153	MCX20 ｴﾝｼﾞﾝ(右側)	02/2000 - 07/2002	1
90980-04129	MCX20 ｸｵｰﾀﾊﾟﾈﾙ	07/2002 - 01/2003	1
90980-04066	MCX20 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙJ/B	02/2000 - 07/2002	2
86011A - CONDENSER, RADIO SETTING
90980-04066	MCX20 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙJ/B	07/2002 - 01/2003	2
90980-04153	MCX20 ｴﾝｼﾞﾝ(右側)	07/2002 - 01/2003	1
90980-04129	MCX20 ｸｵｰﾀﾊﾟﾈﾙ	02/2000 - 07/2002	1
90980-04153	MCX20 ｴﾝｼﾞﾝ(右側)	02/2000 - 07/2002	1
90980-04129	MCX20 ｸｵｰﾀﾊﾟﾈﾙ	07/2002 - 01/2003	1
90980-04066	MCX20 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙJ/B	02/2000 - 07/2002	2
86237 - WIRE, CONDENSER
86237-AC010	MCX20..4FC	02/2000 - 03/2000	1
Common parts
82711-08050
90119-06390
