MCX20-AEPGK (2000)
Toyota Pronard
Production
Feb 2000
-
Jan 2003
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

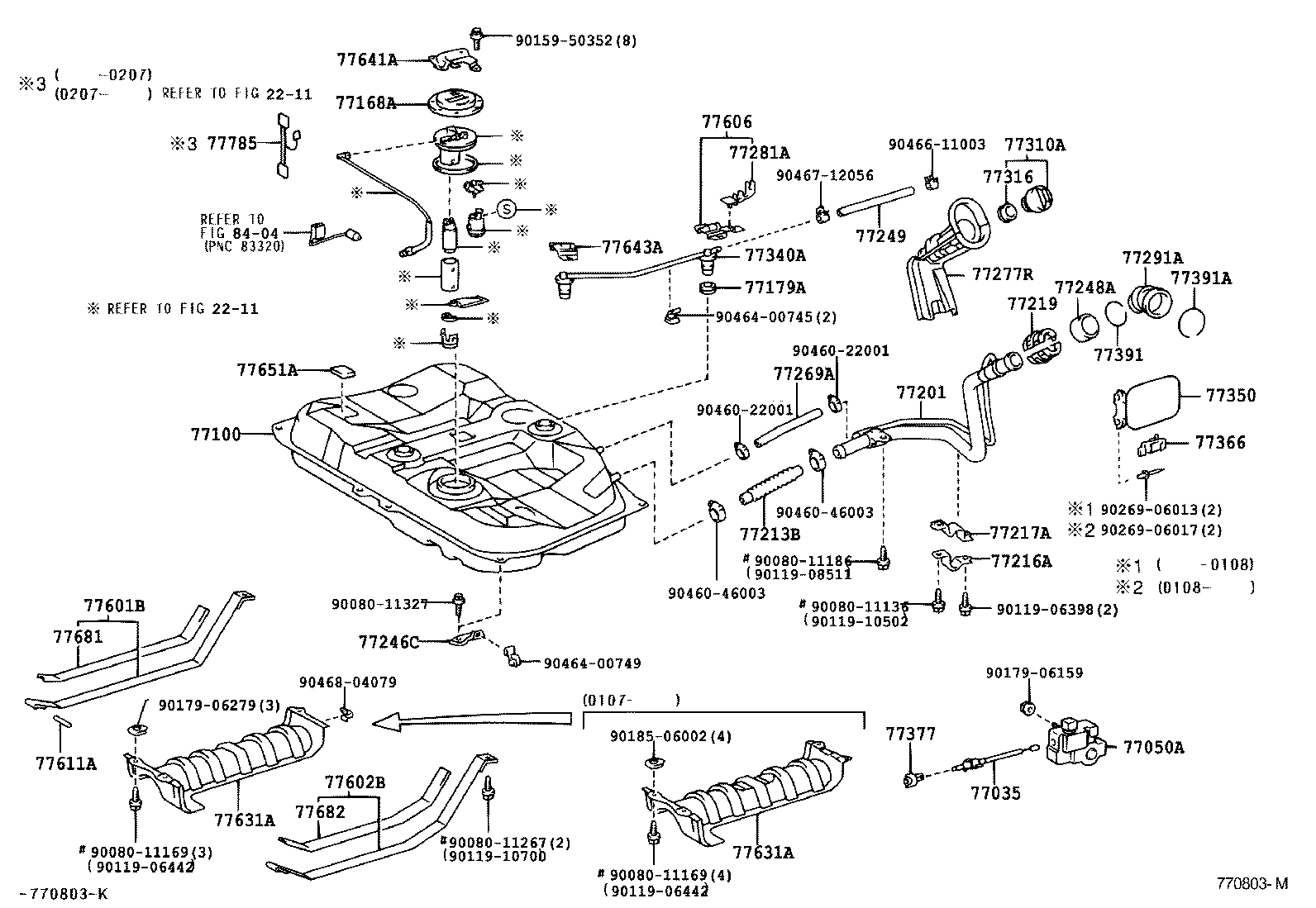

ILLUST NO. 1 OF 2(0002-0301)
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-AC030 |
MCX20 |
1 | ||
| 77035-AC030 |
MCX20 |
1 | ||
| 77050A - CONTROL OPENER ASSY, FUEL LID LOCK | ||||
| 77050-AC010 |
MCX20 |
1 | ||
| 77050-AC010 |
MCX20 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-06031 |
MCX20 |
1 | ||
| 77001-07030 |
MCX20 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33050 |
MCX20 |
1 | ||
| 77168-33030 |
MCX20 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
MCX20 |
2 | ||
| 77179-33010 |
MCX20 |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-07900 |
MCX20 |
1 | ||
| 77201-07900 |
MCX20 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-06010 |
MCX20 長さ=240 |
1 | ||
| 77213-06010 |
MCX20 長さ=240 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-06010 |
MCX20 |
1 | ||
| 77216-06010 |
MCX20 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-06010 |
MCX20 |
1 | ||
| 77217-06010 |
MCX20 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-06010 |
MCX20 |
2 | ||
| 77219-06010 |
MCX20 |
2 | ||
| 77246C - SUPPORT, FUEL MAIN TUBE | ||||
| 77246-33020 |
MCX20 |
1 | ||
| 77246-33010 |
MCX20 |
1 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77248-06010 |
MCX20 |
1 | ||
| 77248-06010 |
MCX20 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 90080-44094 |
MCX20 |
1 | ||
| 90080-44094 |
MCX20 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 90080-44079 |
MCX20 |
1 | ||
| 90080-44079 |
MCX20 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-33041 |
MCX20 |
1 | ||
| 77277-33041 |
MCX20 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-33010 |
MCX20 |
1 | ||
| 77281-33010 |
MCX20 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-AC020 |
MCX20 |
1 | ||
| 77291-AC020 |
MCX20 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-05030 |
MCX20 |
1 | ||
| 77310-05030 |
MCX20 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-06010 |
MCX20 |
1 | ||
| 77316-06010 |
MCX20 |
1 | ||
| 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE | ||||
| 77340-33020 |
MCX20 |
1 | ||
| 77340-33020 |
MCX20 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-AC011 |
MCX20 |
1 | ||
| 77350-AC010 |
MCX20 |
1 | ||
| 77350-AC011 |
MCX20 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-33020 |
MCX20 |
1 | ||
| 77360-33020 |
MCX20 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-AA010 |
MCX20 |
1 | ||
| 77377-AA010 |
MCX20 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
MCX20 |
1 | ||
| 77391-12020 |
MCX20 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-20030 |
MCX20 |
1 | ||
| 77391-20030 |
MCX20 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-33010 |
MCX20 |
1 | ||
| 77601-33010 |
MCX20 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-33010 |
MCX20 |
1 | ||
| 77602-33010 |
MCX20 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-33010 |
MCX20 |
1 | ||
| 77606-33010 |
MCX20 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
MCX20 |
2 | ||
| 90250-08019 |
MCX20 |
2 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-06011 |
MCX20 |
1 | ||
| 77631-06011 |
MCX20 |
1 | ||
| 77631-06010 |
MCX20 |
1 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-06011 |
MCX20 |
1 | ||
| 77631-06011 |
MCX20 |
1 | ||
| 77631-06010 |
MCX20 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-33010 |
MCX20 |
1 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-33010 |
MCX20 |
1 | ||
| 77643-33010 |
MCX20 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-03010 |
MCX20 |
7 | ||
| 77652-03010 |
MCX20 |
7 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
MCX20 |
1 | ||
| 77681-32060 |
MCX20 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
MCX20 |
1 | ||
| 77681-32060 |
MCX20 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-06010 |
MCX20 |
1 | ||
| Common parts | ||||
| 90080-11136 | ||||
| 90080-11169 | ||||
| 90080-11186 | ||||
| 90080-11267 | ||||
| 90080-11327 | ||||
| 90119-06398 | ||||
| 90119-06442 | ||||
| 90119-08511 | ||||
| 90119-10502 | ||||
| 90119-10700 | ||||
| 90159-50352 | ||||
| 90179-06159 | ||||
| 90179-06279 | ||||
| 90185-06002 | ||||
| 90269-06013 | ||||
| 90269-06017 | ||||
| 90460-22001 | ||||
| 90460-46003 | ||||
| 90464-00745 | ||||
| 90464-00749 | ||||
| 90466-11003 | ||||
| 90467-12056 | ||||
| 90468-04079 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8404 | ||||

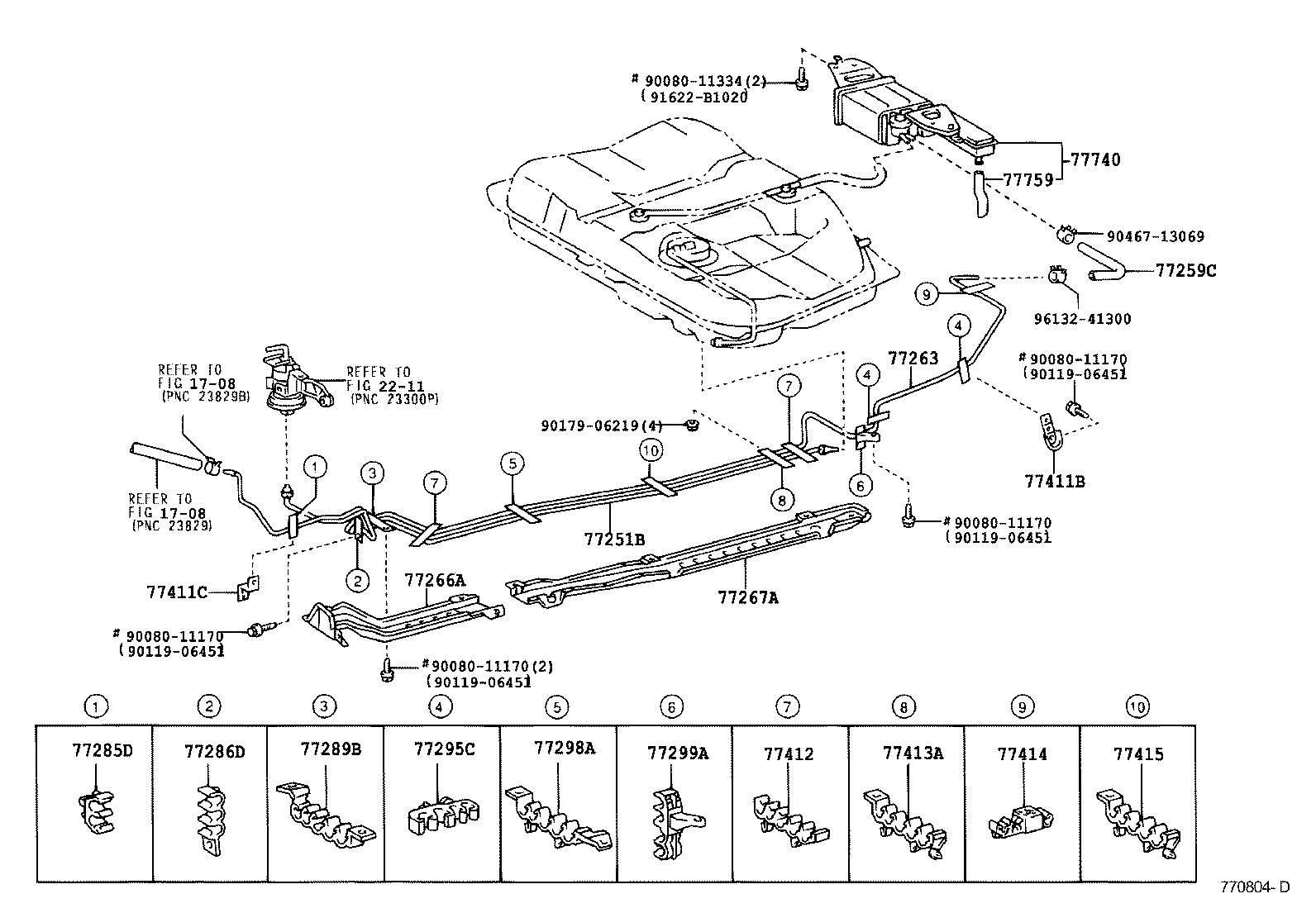

ILLUST NO. 2 OF 2(0002-0301)
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-07050 |
MCX20 |
1 | ||
| 77251-07070 |
MCX20 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 95337-08034 |
MCX20 |
1 | ||
| 95337-08034 |
MCX20 |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 77261-07070 |
MCX20 |
1 | ||
| 77261-07070 |
MCX20 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-06020 |
MCX20 |
1 | ||
| 77266-06020 |
MCX20 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-07030 |
MCX20 |
1 | ||
| 77267-07030 |
MCX20 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-07020 |
MCX20 |
1 | ||
| 77285-07020 |
MCX20 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-06020 |
MCX20 |
1 | ||
| 77286-06020 |
MCX20 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-06030 |
MCX20 |
1 | ||
| 77289-06030 |
MCX20 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-06020 |
MCX20 |
2 | ||
| 77295-06020 |
MCX20 |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-06030 |
MCX20 |
1 | ||
| 77298-06030 |
MCX20 |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-06030 |
MCX20 |
1 | ||
| 77299-06030 |
MCX20 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-06020 |
MCX20 |
1 | ||
| 77411-06020 |
MCX20 |
1 | ||
| 77411C - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-07010 |
MCX20 |
1 | ||
| 77411-07010 |
MCX20 |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-06030 |
MCX20 |
3 | ||
| 77412-06030 |
MCX20 |
3 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-06030 |
MCX20 |
1 | ||
| 77413-06030 |
MCX20 |
1 | ||
| 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 | ||||
| 77414-06030 |
MCX20 |
1 | ||
| 77414-06030 |
MCX20 |
1 | ||
| 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 | ||||
| 77415-06030 |
MCX20 |
1 | ||
| 77415-06030 |
MCX20 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-41041 |
MCX20 |
1 | ||
| 77740-41040 |
MCX20 |
1 | ||
| 77740-41041 |
MCX20 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-41010 |
MCX20 |
1 | ||
| 77759-41010 |
MCX20 |
1 | ||
| Common parts | ||||
| 90080-11170 | ||||
| 90080-11334 | ||||
| 90119-06451 | ||||
| 90179-06219 | ||||
| 90467-13069 | ||||
| 91622-B1020 | ||||
| 96132-41300 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
