MCX20-AEPGK (2000)
Toyota Pronard
Production
Feb 2000
-
Jan 2003
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0002-0301)

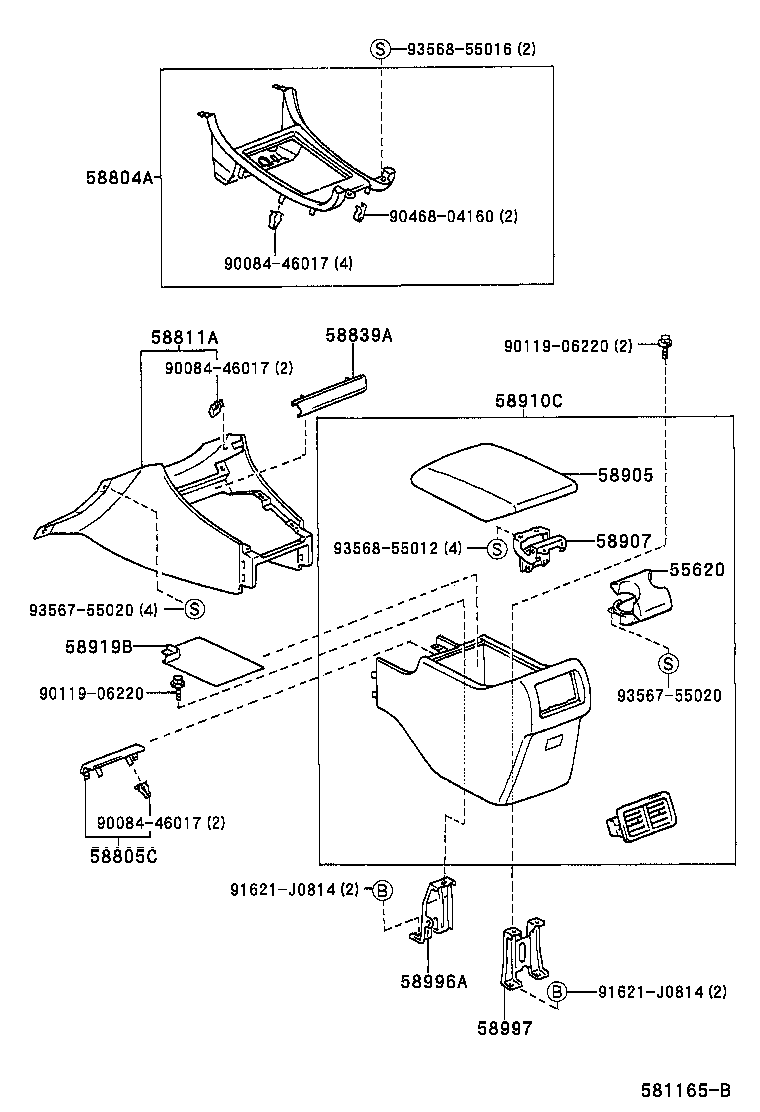

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-AC020 |
MCX20..4FC |
1 | ||
| 55620-AC020 |
MCX20..4FC |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-AC050E0 |
MCX20..4FC SANDAL WOOD,TRIM4# |
1 | ||
| 58804-AC050E0 |
MCX20..4FC SANDAL WOOD,TRIM0# |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-AC010 |
MCX20..4FC |
1 | ||
| 58805-AC010 |
MCX20..4FC |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58810-07010A0 |
MCX20..4FC IVORY,TRIM0# |
1 | ||
| 58810-07010E0 |
MCX20..4FC FAWN,TRIM4# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-AC010 |
MCX20..4FC |
1 | ||
| 58839-AC010 |
MCX20..4FC |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-AC070E0 |
MCX20..4FC ﾌｱﾌﾞﾘﾂｸ,FAWN,TRIM4# |
1 | ||
| 58905-AC080A0 |
MCX20..4FC ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
1 | ||
| 58905-AC080E0 |
MCX20..4FC ﾎﾝｶﾞﾜ,FAWN,TRIM4# |
1 | ||
| 58905-AC070A0 |
MCX20..4FC ﾌｱﾌﾞﾘﾂｸ,IVORY,TRIM0# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-AC020 |
MCX20..4FC |
1 | ||
| 58907-AC020 |
MCX20..4FC |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-AC100E0 |
MCX20..4FC ﾌｱﾌﾞﾘﾂｸ,FAWN,TRIM4# |
1 | ||
| 58910-AC110A0 |
MCX20..4FC ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
1 | ||
| 58910-AC100A0 |
MCX20..4FC ﾌｱﾌﾞﾘﾂｸ,IVORY,TRIM0# |
1 | ||
| 58910-AC110E0 |
MCX20..4FC ﾎﾝｶﾞﾜ,FAWN,TRIM4# |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-AC010 |
MCX20..4FC |
1 | ||
| 58919-AC010 |
MCX20..4FC |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58087-AC010 |
MCX20..4FC |
1 | ||
| 58087-AC010 |
MCX20..4FC |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58088-AC010 |
MCX20..4FC |
1 | ||
| 58088-AC010 |
MCX20..4FC |
1 | ||
| Common parts | ||||
| 90084-46017 | ||||
| 90119-06220 | ||||
| 90468-04160 | ||||
| 91621-J0814 | ||||
| 93567-55020 | ||||
| 93568-55012 | ||||
| 93568-55016 | ||||
