JCG15-AEPVF (1999)
Toyota Progres
Production
Dec 1999
-
Apr 2001
Engine
1JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805-0104)

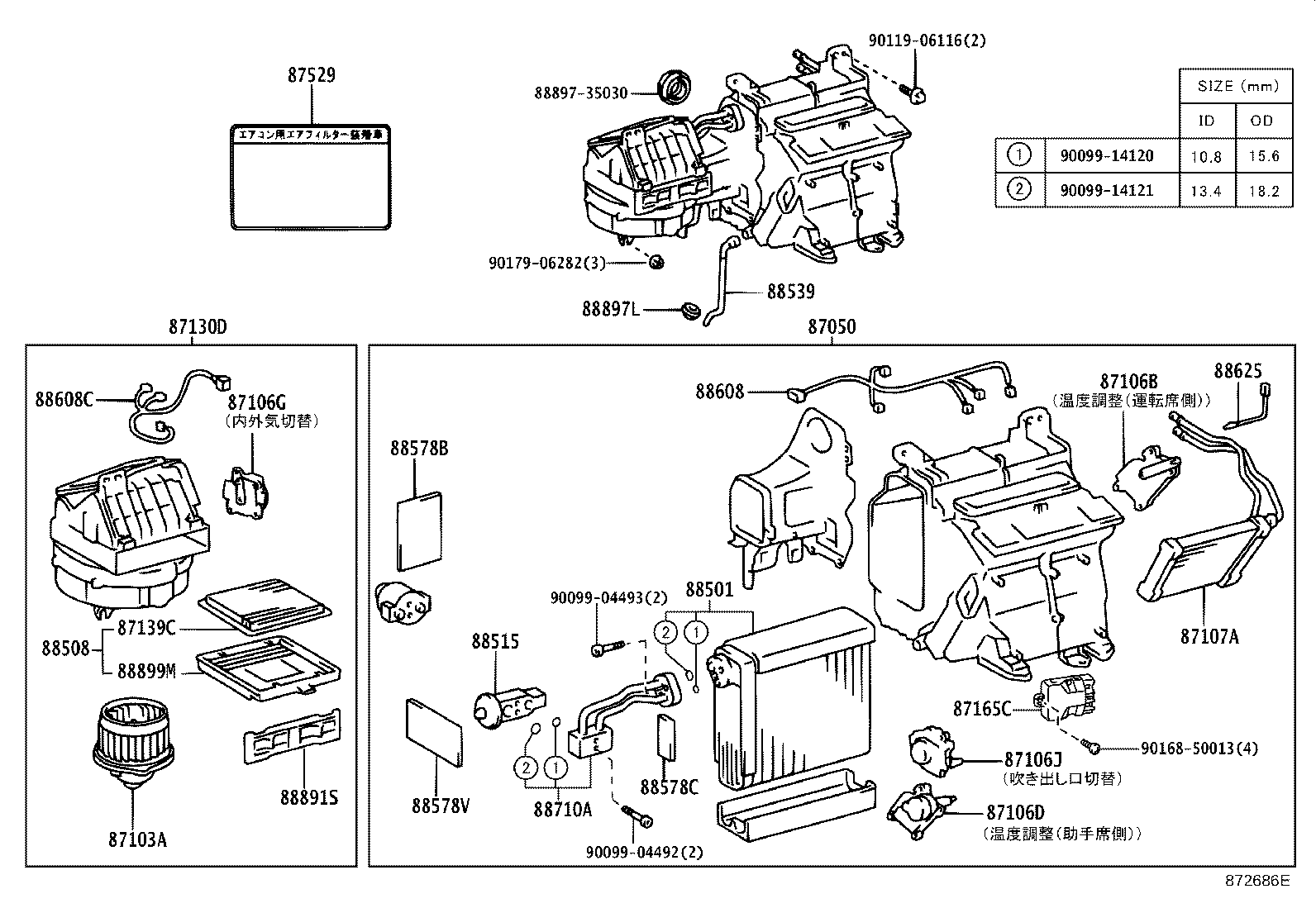

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-51010 |
JCG1# |
1 | ||
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-51010 |
JCG1# |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-30340 |
JCG1# |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-30350 |
JCG1# |
1 | ||
| 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-30380 |
JCG1# |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-30361 |
JCG1# |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-30500 |
JCG1# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-51010 |
JCG1# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-48030 |
JCG1# |
1 | ||
| 87139-48030 |
JCG15 ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-22050 |
JCG1# |
1 | ||
| 87529 - PLATE, AIR FILTER CAUTION | ||||
| 87529-51010 |
JCG1# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-3A020 |
JCG1# |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-48020 |
JCG1# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-30690 |
JCG1# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30840 |
JCG15 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-30760 |
JCG1# |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-30770 |
JCG1# |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-30790 |
JCG1# |
1 | ||
| 88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88608-51010 |
JCG1# |
1 | ||
| 88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2 | ||||
| 88608-51020 |
JCG1# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-3A120 |
JCG1# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-3A140 |
JCG1# |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-30680 |
JCG1# |
1 | ||
| 88897L - GROMMET (FOR DRAIN HOSE) | ||||
| 90099-32129 |
JCG1# |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-30870 |
JCG1# |
1 | ||
| Common parts | ||||
| 88897-35030 | ||||
| 90099-04492 | ||||
| 90099-04493 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06116 | ||||
| 90168-50013 | ||||
| 90179-06282 | ||||
