JCG15-AEPVF (1999)

Toyota Progres

Production Dec 1999 - Apr 2001
Engine 1JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805-0104)

Click highlighted areas on diagram

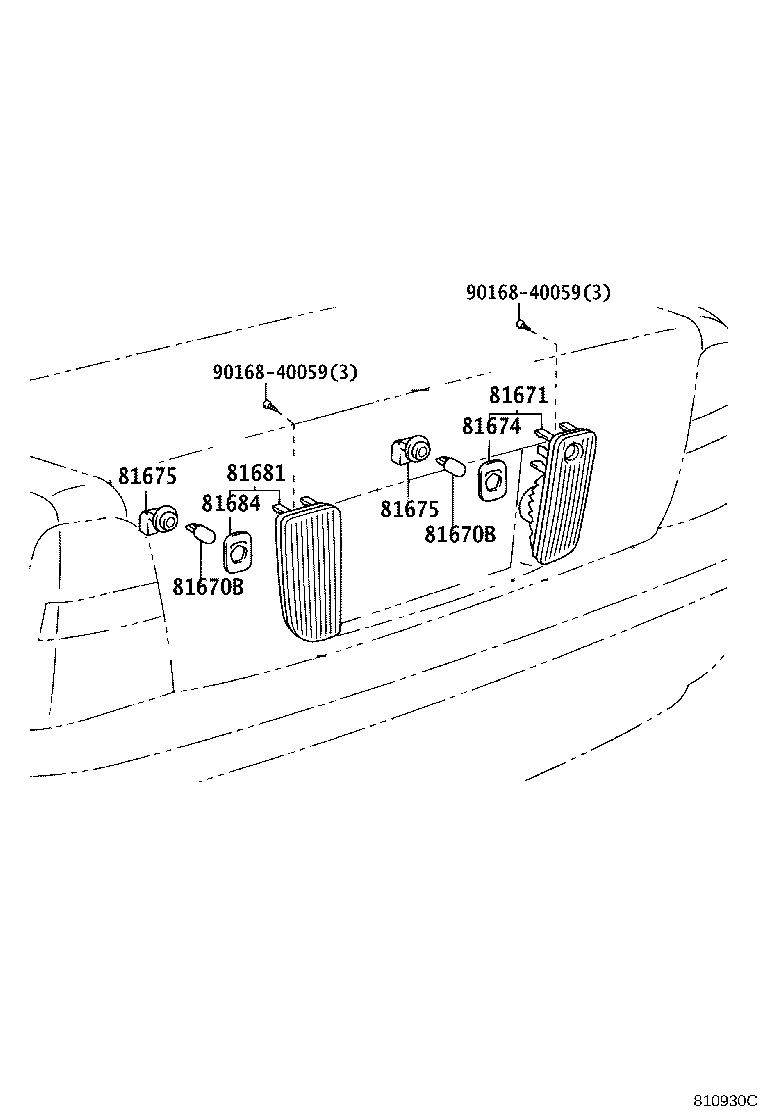

diagram 81670B 81670B 81671 81674 81675 81675 81681 81684 9016840059 9016840059
Part # Description Qty Price
81670B - BULB(FOR BACK-UP LAMP)
90981-11059

JCG1#

12V 16W

 2
81670B - BULB(FOR BACK-UP LAMP)
90981-11059

JCG1#

12V 16W

 2
81671 - LENS, BACK-UP LAMP, RH
81671-51010

JCG1#

 1
81674 - GASKET, BACK-UP LAMP BODY, RH
81674-51010

JCG1#

 1
81675 - SOCKET & WIRE, BACK-UP LAMP
90075-99005

JCG1#

 2
81675 - SOCKET & WIRE, BACK-UP LAMP
90075-99005

JCG1#

 2
81681 - LENS, BACK-UP LAMP, LH
81681-51010

JCG1#

 1
81684 - GASKET, BACK UP LAMP BODY, LH
81674-51010

JCG1#

 1
Common parts
90168-40059
