JCG15-AEPVF (1999)

Toyota Progres

Production Dec 1999 - Apr 2001
Engine 1JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9912- )JCG15

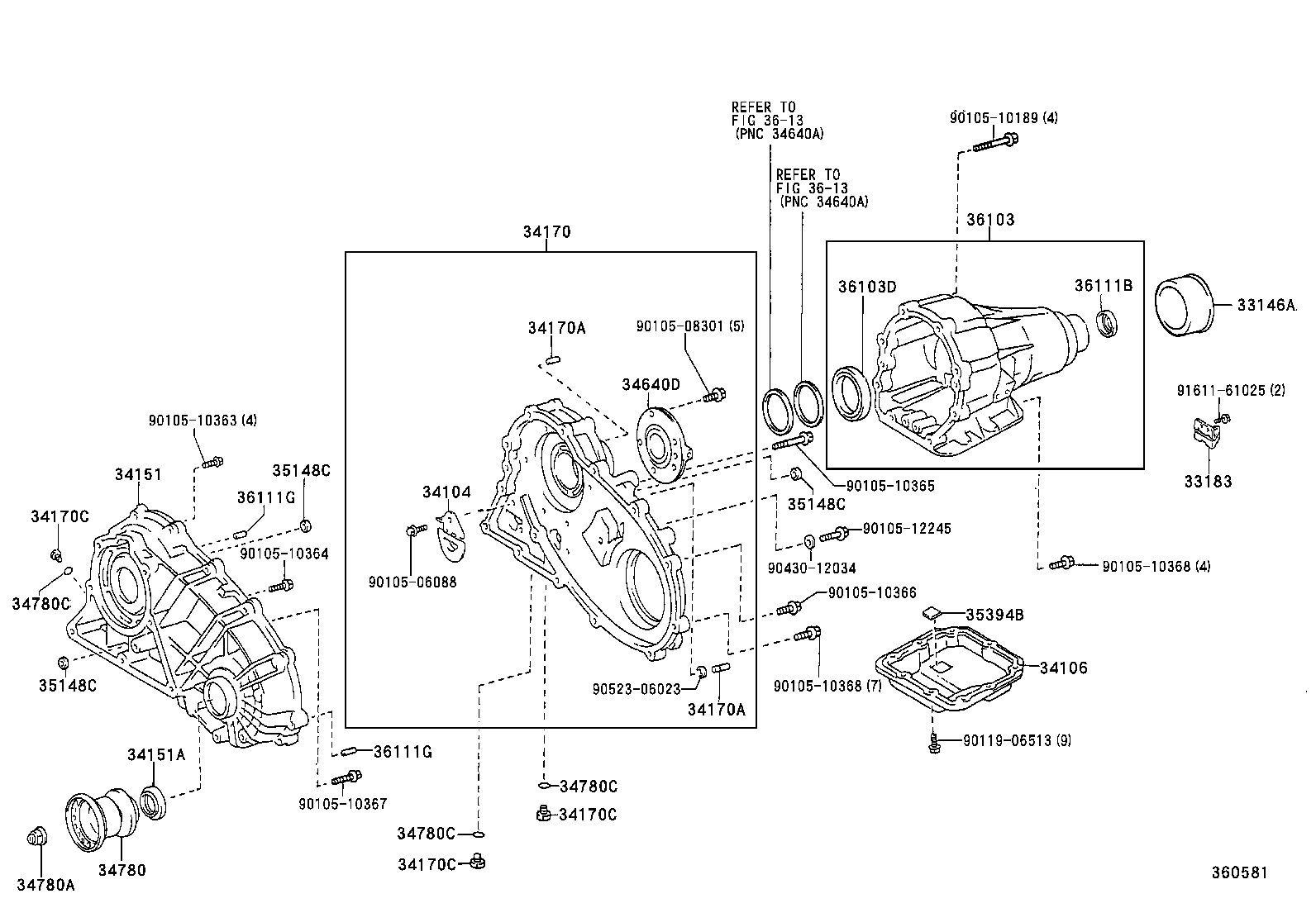

Click highlighted areas on diagram

diagram 33146A 33183 34104 34106 34151 34151A 34170 34170A 34170A 34170C 34170C 34170C 34640D 34780 34780A 34780C 34780C 34780C 35148C 35148C 35148C 35394B 36103 36103D 36111B 36111G 36111G 3613 3613 9010506088 9010508301 9010510189 9010510363 9010510364 9010510365 9010510366 9010510367 9010510368 9010510368 9010512245 9011906513 9043012034 9052306023 9161161025
Part # Description Qty Price
33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33146-30010

JCG15

 1
33146-30020

JCG15

 1
33183 - DAMPER, TRANSFER DYNAMIC
33183-22010

JCG15

 1
34104 - VALVE SUB-ASSY, TRANSFER BAFFLE
34104-30010

JCG15

 1
34106 - PAN SUB-ASSY, TRANSFER OIL
34161-30011

JCG15

 1
34151 - CASE, TRANSFER CHAIN, FRONT
34151-30010

JCG15

 1
34151A - SEAL, OIL (FOR TRANSFER CHAIN CASE)
90311-42029

JCG15

 1
34170 - CASE ASSY, TRANSFER CHAIN, REAR
34170-30010

JCG15

 1
34170A - PIN, STRAIGHT (FOR TRANSFER CHAIN CASE)
90250-10007

JCG15

長さ=23,外径=10

 1
90249-10191

JCG15

長さ=21,外径=10

 1
34170A - PIN, STRAIGHT (FOR TRANSFER CHAIN CASE)
90250-10007

JCG15

長さ=23,外径=10

 1
90249-10191

JCG15

長さ=21,外径=10

 1
34170C - PLUG (FOR TRANSFER CHAIN CASE)
90341-08001

JCG15

 3
34170C - PLUG (FOR TRANSFER CHAIN CASE)
90341-08001

JCG15

 3
34170C - PLUG (FOR TRANSFER CHAIN CASE)
90341-08001

JCG15

 3
34640D - SUPPORT ASSY, TRANSFER CENTER
34640-30010

JCG15

 1
34780 - YOKE ASSY, FLANGE
34780-30040

JCG15

 1
34780A - NUT (FOR FLANGE YOKE)
90179-22018

JCG15

 1
34780C - RING, O (FOR FLANGE YOKE)
90301-06196

JCG15

 3
34780C - RING, O (FOR FLANGE YOKE)
90301-06196

JCG15

 3
34780C - RING, O (FOR FLANGE YOKE)
90301-06196

JCG15

 3
35148C - GASKET, GOVERNOR APPLY (FOR ATM TRANSFER CHAIN CASE)
35148-12010

JCG15

 4
35148C - GASKET, GOVERNOR APPLY (FOR ATM TRANSFER CHAIN CASE)
35148-12010

JCG15

 4
35148C - GASKET, GOVERNOR APPLY (FOR ATM TRANSFER CHAIN CASE)
35148-12010

JCG15

 4
35394B - MAGNET, OIL CLEANER (FOR TRANSFER)
35394-30011

JCG15

 1
36103 - CASE SUB-ASSY, TRANSFER
36101-22020

JCG15

 1
36103D - BEARING (FOR TRANSFER CASE)
90363-60007

JCG15

外径=85

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-40001

JCG15

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10007

JCG15

長さ=23,外径=10

 1
90250-13003

JCG15

長さ=18,外径=13

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10007

JCG15

長さ=23,外径=10

 1
90250-13003

JCG15

長さ=18,外径=13

 1
Common parts
90105-06088
90105-08301
90105-10189
90105-10363
90105-10364
90105-10365
90105-10366
90105-10367
90105-10368
90105-12245
90119-06513
90430-12034
90523-06023
91611-61025
Linked diagrams
3613
