JCG11-AEPZF (1998)
Toyota Progres
Production
May 1998
-
Apr 2001
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

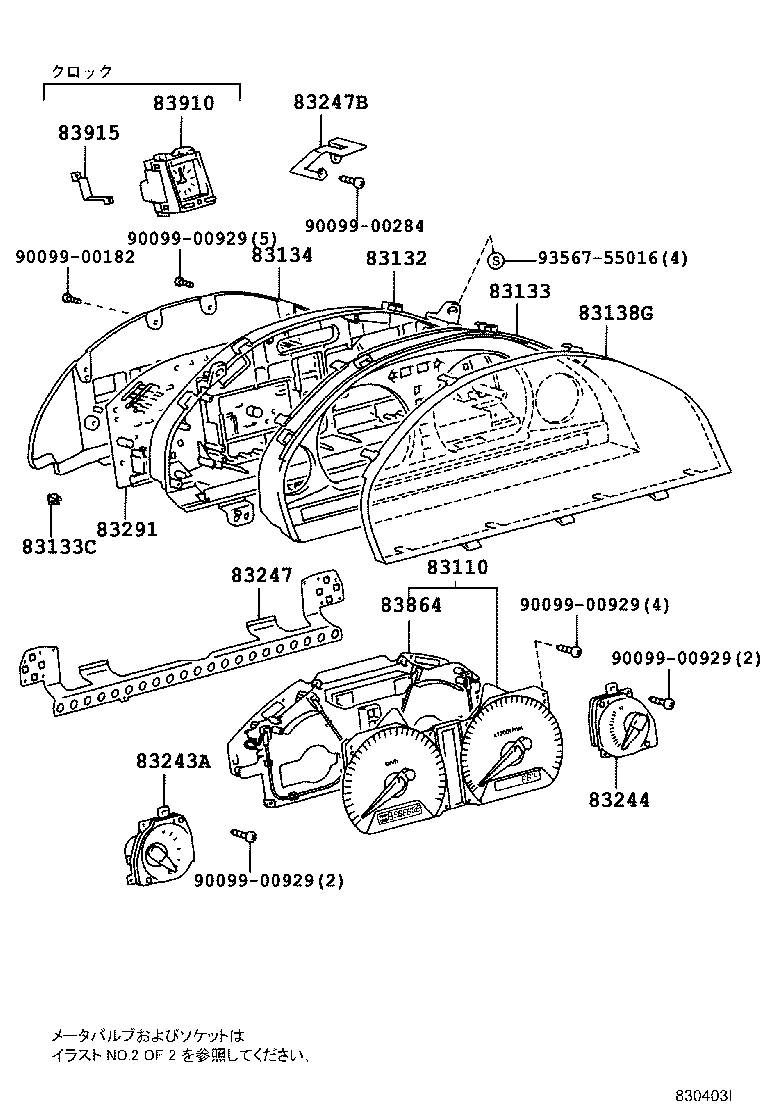

ILLUST NO. 1 OF 2(9805-0104)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-51020 |
JCG10,11 DENSO,ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83220-51010 |
JCG1# DENSO |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-51010 |
JCG10,11 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-51010 |
JCG1# |
1 | ||
| 83133C - PLATE, COMBINATION METER,NO.4 | ||||
| 83814-30710 |
JCG1# |
16 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-51010 |
JCG1# |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-51010 |
JCG1# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-51010 |
JCG1# |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-51010 |
JCG1# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-51010 |
JCG1# |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83812-51010 |
JCG1# |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-51020 |
JCG11,15 DENSO |
1 | ||
| 83864 - PLATE, METER CIRCUIT, NO.4 (FOR COMPUTER) | ||||
| 83864-51030 |
JCG10,11 ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83864-51020 |
JCG1# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-51010E0 |
JCG1# SANDAL WOOD,TRIM01 |
1 | ||
| 83910-51010C0 |
JCG1# BLACK,TRIM00,2# |
1 | ||
| 83915 - BRACKET, CLOCK | ||||
| 83915-51010 |
JCG1# |
1 | ||
| Common parts | ||||
| 90099-00182 | ||||
| 90099-00284 | ||||
| 90099-00929 | ||||
| 93567-55016 | ||||

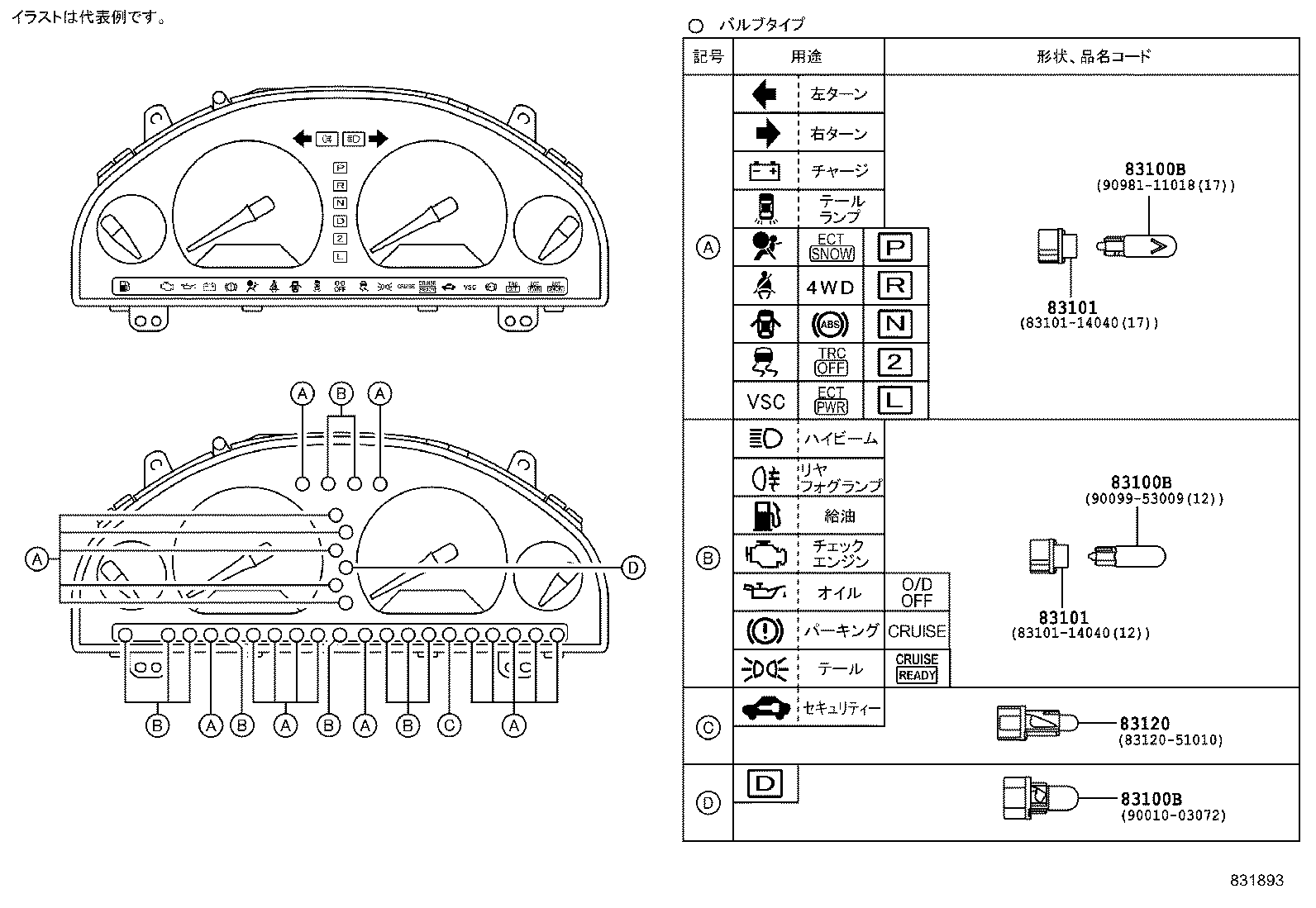

ILLUST NO. 2 OF 2(9805-0104)
Click highlighted areas on diagram
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90099-53009 |
JCG1# 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03072 |
JCG1# 14V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
JCG1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90099-53009 |
JCG1# 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03072 |
JCG1# 14V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
JCG1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90099-53009 |
JCG1# 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03072 |
JCG1# 14V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
JCG1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
JCG1# |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
JCG1# |
1 | ||
| 83120 - BULB ASSY, COMBINATION METER | ||||
| 83120-51010 |
JCG10,11 13.5V 13MA |
1 | ||
