JCG11-AEPZF (1998)

Toyota Progres

Production May 1998 - Apr 2001
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )4FC

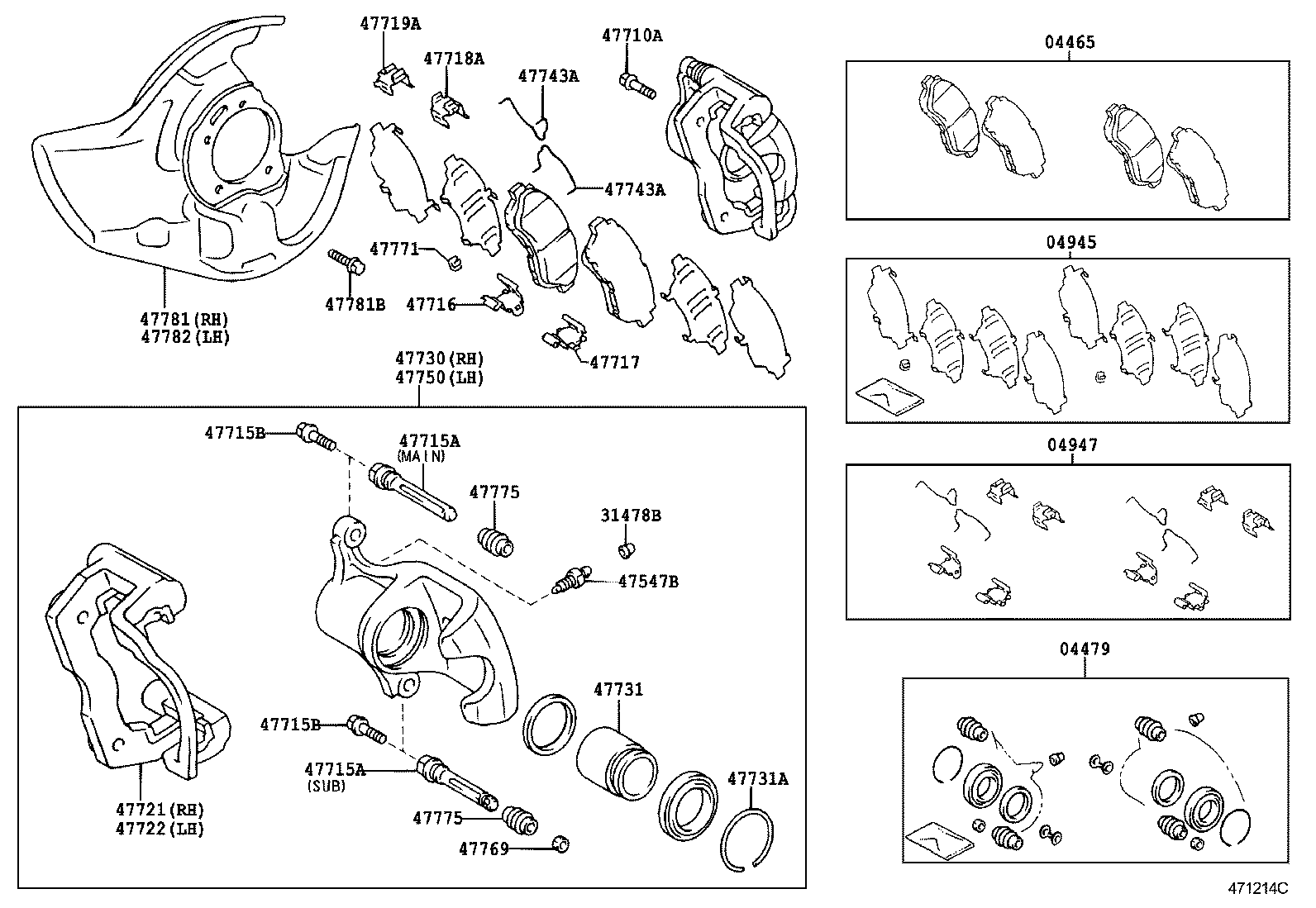

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715A 47715B 47715B 47716 47717 47718A 47719A 47721 47722 47730 47731 47731A 47743A 47743A 47750 47769 47771 47775 47775 47781 47781B 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-30080

JCG1#

ﾏｰｸ NBK PN529

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-30151

JCG1#

 1
04479-30150

JCG1#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-33020

JCG1#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-30100

JCG1#

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

JCG1#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-27030

JCG1#

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12228

JCG1#

*12−1.25PX32−24

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-22070

JCG1#

ｻﾌﾞ ﾋﾟﾝ側

 2
47715-22080

JCG1#

ﾒｲﾝ ﾋﾟﾝ側

 2
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-22070

JCG1#

ｻﾌﾞ ﾋﾟﾝ側

 2
47715-22080

JCG1#

ﾒｲﾝ ﾋﾟﾝ側

 2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

JCG1#

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

JCG1#

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-30160

JCG1#

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47716-30170

JCG1#

 2
47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47717-30050

JCG1#

 2
47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47717-30060

JCG1#

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-22150

JCG10,11

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-22110

JCG10,11

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-30330

JCG10,11

 1
47731 - PISTON, FRONT DISC BRAKE
47731-30110

JCG1#

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90520-86005

JCG1#

 2
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-50010

JCG1#

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-50010

JCG1#

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-30330

JCG10,11

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50010

JCG1#

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-50010

JCG1#

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

JCG1#

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

JCG1#

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-22161

JCG10,11

 1
47781-22162

JCG10,11

 1
47781B - BOLT(FOR DUST COVER SETTING)
90148-60028

JCG1#

*6−1.0PX14−10.5

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-22161

JCG10,11

 1
47782-22162

JCG10,11

 1
