JCG11-AEPZF (1998)

Toyota Progres

Production May 1998 - Apr 2001
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

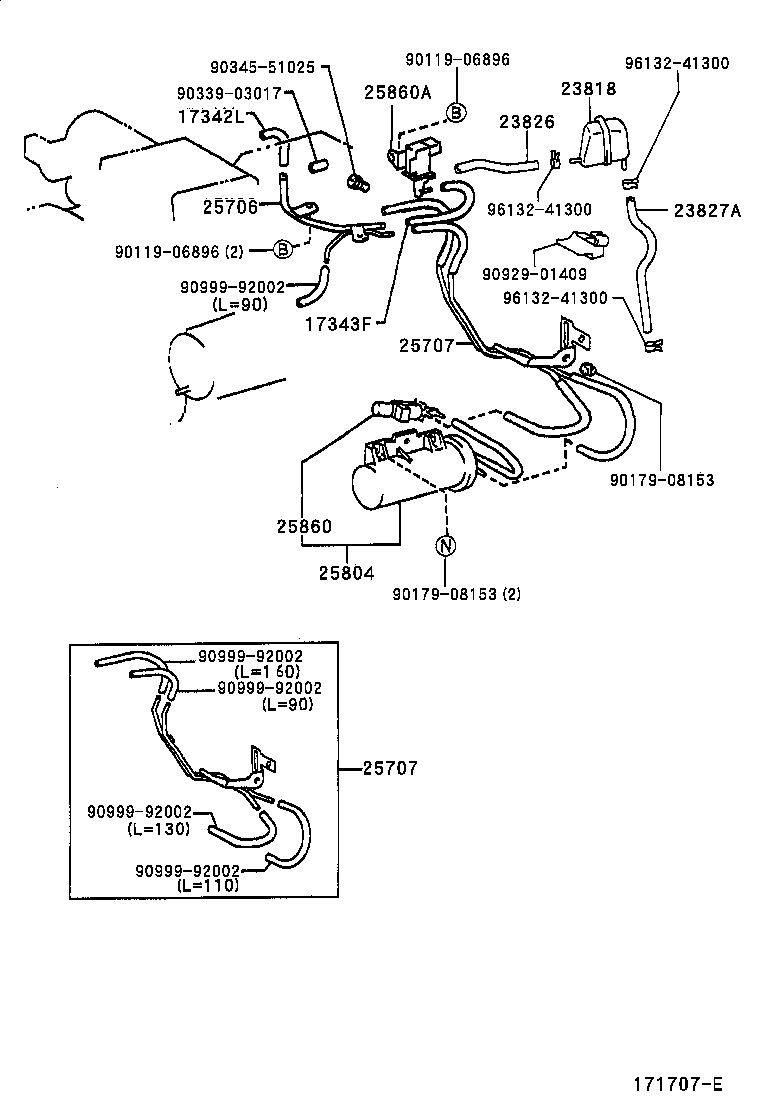

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(9805-0104)2JZGE

Click highlighted areas on diagram

diagram 17342L 17343F 23818 23826 23827A 25706 25707 25707 25804 25860 25860A 9011906896 9011906896 9017908153 9017908153 9033903017 9034551025 9092901409 9099992002 9099992002 9099992002 9099992002 9099992002 9613241300 9613241300 9613241300
Part # Description Qty Price
17342L - HOSE, AIR, NO.2
17342-46170

2JZGE..JCG11

 1
17343F - HOSE, AIR, NO.3
17343-46100

2JZGE..JCG11

 1
23818 - PIPE, FUEL VAPOR FEED
23818-46110

2JZGE..JCG11

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-46030

2JZGE..JCG11

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-46030

1JZGE,2JZGE..JCG10,11

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-46090

2JZGE..JCG11

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-46090

1JZGE,2JZGE..JCG1#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-46090

1JZGE,2JZGE..JCG1#

 1
25804 - VALVE SET, VACUUM CONTROL
25804-46060

1JZGE,2JZGE..JCG1#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-46010

1JZGE,2JZGE..JCG1#

AISIN

 1
90910-12124

1JZGE,2JZGE..JCG1#

TAIHEIYO

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12188

2JZGE..JCG11

 1
Common parts
90119-06896
90179-08153
90339-03017
90345-51025
90929-01409
90999-92002
96132-41300
