JCG11-AEPZF (1998)

Toyota Progres

Production May 1998 - Apr 2001
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805-0104)

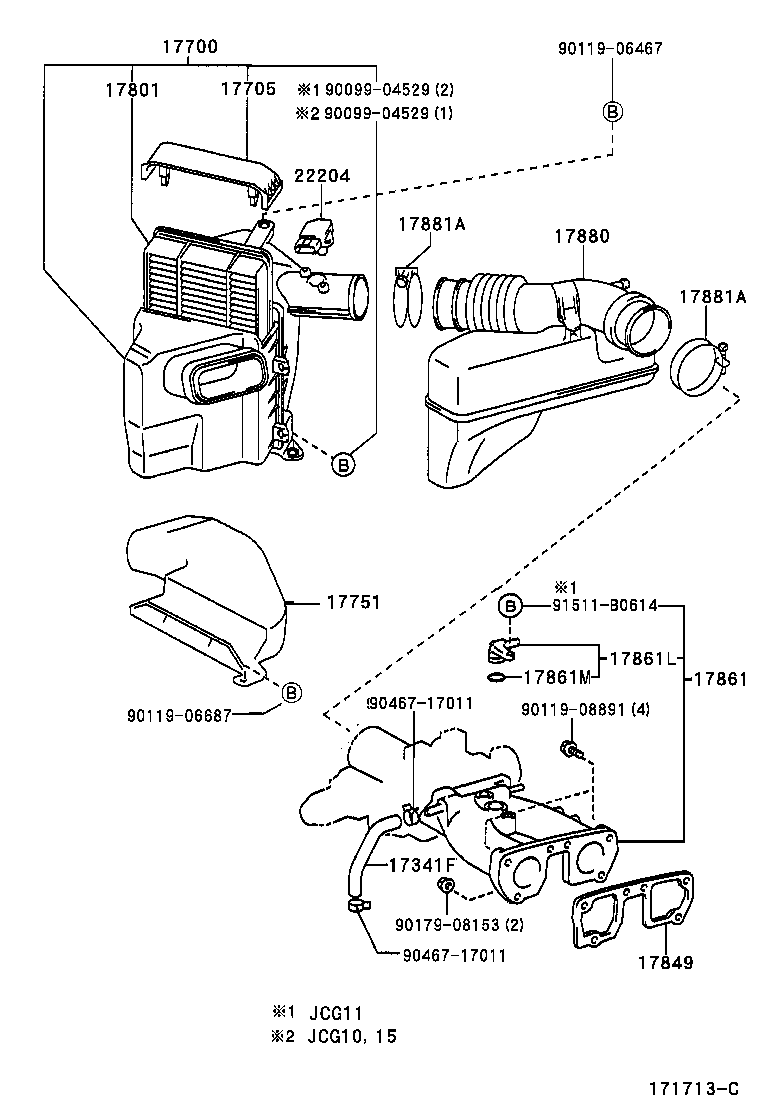

Click highlighted areas on diagram

diagram 17341F 17700 17705 17751 17801 17849 17861 17861L 17861M 17880 17881A 17881A 22204 9009904529 9009904529 9011906467 9011906687 9011908891 9017908153 9046717011 9046717011 91511B0614
Part # Description Qty Price
17341F - HOSE, AIR, NO.1
17341-46210

2JZGE..JCG11

 1
17700 - CLEANER ASSY, AIR
17700-46390

2JZGE..JCG11

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-46110

1JZGE,2JZGE..JCG1#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-46100

1JZGE,2JZGE..JCG1#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-46080

1JZGE,2JZGE..JCG1#

 1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-46020

1JZGE,2JZGE..JCG1#

 1
17861 - CONNECTOR, INTAKE AIR
17860-46121

2JZGE..JCG11

 1
17860-46123

2JZGE..JCG11

 1
17860-46120

2JZGE..JCG11

 1
17861L - ELBOW(FOR INTAKE AIR CONNECTOR)
90407-17003

2JZGE..JCG11

 1
17861M - RING, O(FOR INTAKE AIR CONNECTOR)
96711-19017

2JZGE..JCG11

 1
17880 - HOSE ASSY, AIR CLEANER
17880-46160

1JZGE,2JZGE..JCG10,11

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

1JZGE,2JZGE..JCG1#

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

1JZGE,2JZGE..JCG1#

 2
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-21010

2JZGE..JCG11

 1
Common parts
90099-04529
90119-06467
90119-06687
90119-08891
90179-08153
90467-17011
91511-B0614
