JCG11-AEAZH (2001)

Toyota Progres

Production Apr 2001 - Jun 2007
Engine 2JZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

Click highlighted areas on diagram

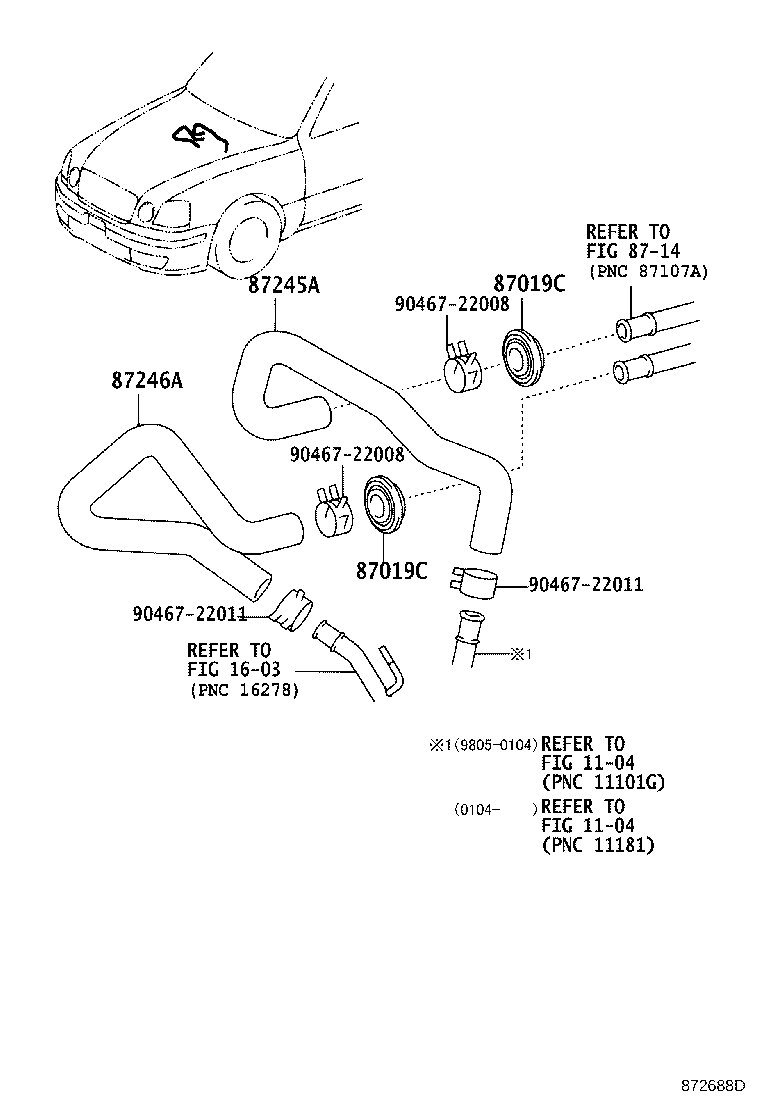

diagram 1104 1104 1603 87019C 87019C 8714 87245A 87246A 9046722008 9046722008 9046722011 9046722011
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-31007

JCG1#

 2
90480-31007

JCG1#

 2
87019C - GROMMET, HEATER HOSE
90480-31007

JCG1#

 2
90480-31007

JCG1#

 2
87245A - HOSE, HEATER WATER, INLET A
87245-51040

JCG1#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245-51100

JCG10,11

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245-51070

JCG1#

 1
87245-51010

JCG1#

 1
87245-3F570

JCG10,11

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-51050

JCG10,11

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245-51080

JCG11,15

 1
87245-51020

JCG10,11

 1
87245-51130

JCG11,15

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
Common parts
90467-22008
90467-22011
Linked diagrams
1104
1603
8714

(9805- )

Click highlighted areas on diagram

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ)

diagram 1104 1104 1603 5503 87019C 87019C 8712830040 8712830040 8714 87245A 87245B 87245X 87246A 87246B 87246X 87248 87248 87248 9046400570 9046400691 9046722008 9046722008 9046722011 9046722011 9046722011 9046722011 9046722011 9046722011 9613551300 9613551300 9613551300 9613551300
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-31007

JCG1#

 2
90480-31007

JCG1#

 2
87019C - GROMMET, HEATER HOSE
90480-31007

JCG1#

 2
90480-31007

JCG1#

 2
87245A - HOSE, HEATER WATER, INLET A
87245-51040

JCG1#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245-51100

JCG10,11

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245-51070

JCG1#

 1
87245-51010

JCG1#

 1
87245-3F570

JCG10,11

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245B - HOSE, HEATER WATER, INLET B
87245-51030

JCG1#

 1
87245-3F560

JCG10,11

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245-51090

JCG10,11

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245X - HOSE, HEATER WATER
87242-51010

JCG1#

 1
87242-51010

JCG1#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-51050

JCG10,11

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245-51080

JCG11,15

 1
87245-51020

JCG10,11

 1
87245-51130

JCG11,15

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-51060

JCG1#

 1
87245-51140

JCG1#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87246X - HOSE, HEATER WATER
87246-51010

JCG1#

 1
87246-51010

JCG1#

 1
87248 - PIPE SUB-ASSY, WATER
87248-30390

JCG1#

ｲﾝﾚｯﾄ

 1
87248-30400

JCG1#

ｱｳﾄﾚｯﾄ

 1
87248-30400

JCG1#

 2
87248 - PIPE SUB-ASSY, WATER
87248-30390

JCG1#

ｲﾝﾚｯﾄ

 1
87248-30400

JCG1#

ｱｳﾄﾚｯﾄ

 1
87248-30400

JCG1#

 2
87248 - PIPE SUB-ASSY, WATER
87248-30390

JCG1#

ｲﾝﾚｯﾄ

 1
87248-30400

JCG1#

ｱｳﾄﾚｯﾄ

 1
87248-30400

JCG1#

 2
Common parts
87128-30040
90464-00570
90464-00691
90467-22008
90467-22011
96135-51300
Linked diagrams
1104
1603
5503
