JCG11-AEAZH (2001)

Toyota Progres

Production Apr 2001 - Jun 2007
Engine 2JZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0404- )

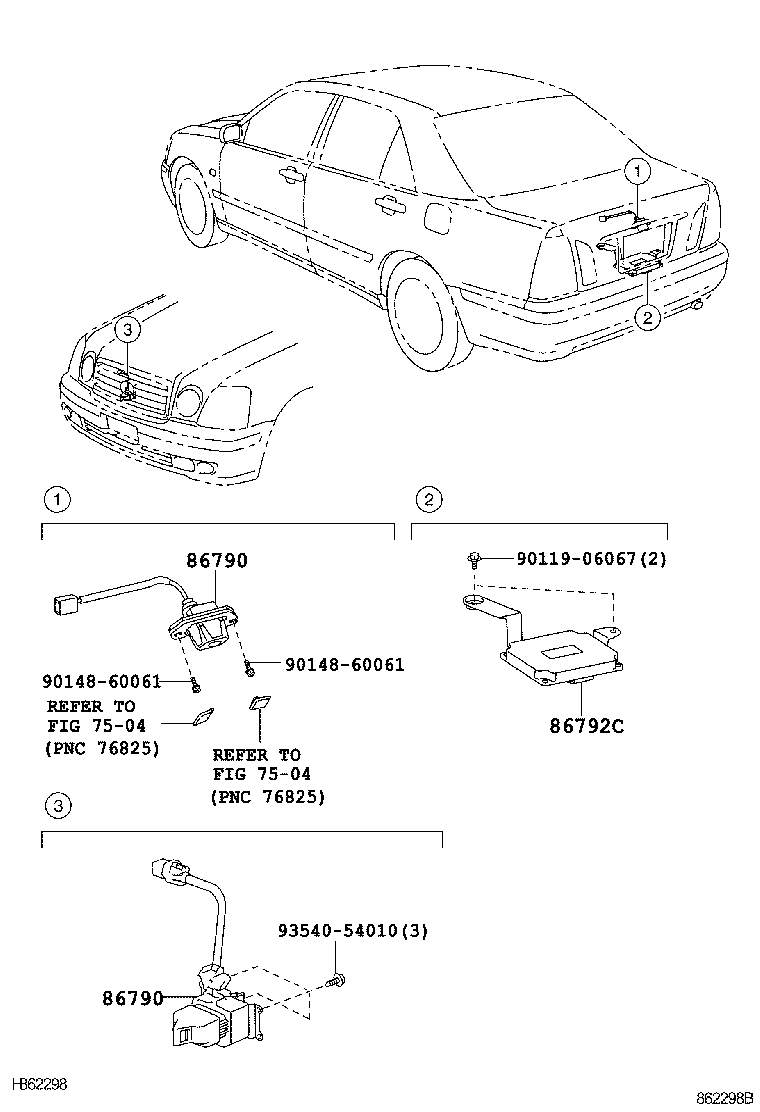

Click highlighted areas on diagram

diagram 7504 7504 86790 86790 86792C 9011906067 9014860061 9014860061 9354054010
Part # Description Qty Price
86790 - CAMERA ASSY, TELEVISION
86790-51020

JCG1#

ﾘﾔ

 1
86790-51030

JCG1#

ﾌﾛﾝﾄ

 1
86790-51031

JCG1#

ﾌﾛﾝﾄ

 1
86790 - CAMERA ASSY, TELEVISION
86790-51020

JCG1#

ﾘﾔ

 1
86790-51030

JCG1#

ﾌﾛﾝﾄ

 1
86790-51031

JCG1#

ﾌﾛﾝﾄ

 1
86792C - COMPUTER, PARKING ASSIST
86792-51050

JCG10,11

 1
Common parts
90119-06067
90148-60061
93540-54010
Linked diagrams
7504
