JCG11-AEAZH (2001)

Toyota Progres

Production Apr 2001 - Jun 2007
Engine 2JZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

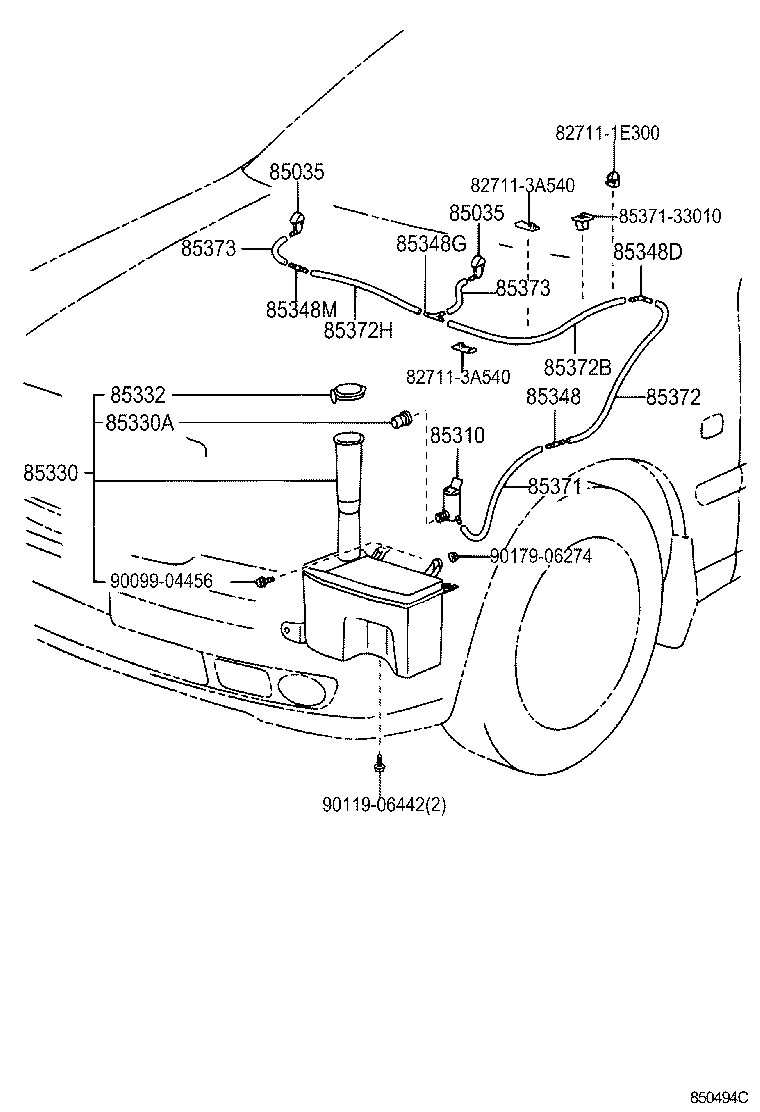

Click highlighted areas on diagram

diagram 827111E300 827113A540 827113A540 85035 85035 85310 85330 85330A 85332 85348 85348D 85348G 85348M 85371 8537133010 85372 85372B 85372H 85373 85373 9009904456 9011906442 9017906274
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85385-51010G0

JCG1#

DK. GREEN MC. P.I.O.,6N9

 2
85385-51010G1

JCG1#

GREEN M.M.,6R2

 2
85385-51010F0

JCG1#

YELLOW PM.,579

 2
85385-51010D0

JCG1#

RED MC.,3N1

 2
85385-51010B0

JCG1#

SILVER ME.,1C0

 2
85385-51010J1

JCG1#

BLUE ME.,8N0

 2
85385-51010G1

JCG1#

GREEN M.M.,6R2

 2
85385-51010F1

JCG1#

GOLD ME.,585

 2
85385-51010J0

JCG1#

BLUE MC.,8M6

 2
85385-51010G2

JCG1#

BLACKISH GREEN MC.,6R5

 2
85385-51010B0

JCG1#

SILVER ME.,1C0

 2
85385-51010B2

JCG1#

SILVER ME.,1F7

 2
85385-51010G4

JCG1#

OLIVE M.M.,6T7

 2
85385-51010J1

JCG1#

BLUE ME.,8N0

 2
85385-51010D2

JCG1#

BORDEAUX MC.,3P2

 2
85385-51010J0

JCG1#

BLUE MC.,8M6

 2
85385-51010D1

JCG1#

DK. RED MC.,3N4

 2
85385-51010J3

JCG1#

DK.BLUE MC.,8S6

 2
85385-51010B1

JCG1#

GRAY ME.,1D2

 2
85385-51010A0

JCG1#

WHITE PEARL CS.,062

 2
85385-51010J2

JCG1#

DARK BLUE MC.,8P8

 2
85385-51010G3

JCG1#

LT.GREEN M.M.,6S8

 2
85035 - NOZZLE SUB-ASSY, WASHER
85385-51010G0

JCG1#

DK. GREEN MC. P.I.O.,6N9

 2
85385-51010G1

JCG1#

GREEN M.M.,6R2

 2
85385-51010F0

JCG1#

YELLOW PM.,579

 2
85385-51010D0

JCG1#

RED MC.,3N1

 2
85385-51010B0

JCG1#

SILVER ME.,1C0

 2
85385-51010J1

JCG1#

BLUE ME.,8N0

 2
85385-51010G1

JCG1#

GREEN M.M.,6R2

 2
85385-51010F1

JCG1#

GOLD ME.,585

 2
85385-51010J0

JCG1#

BLUE MC.,8M6

 2
85385-51010G2

JCG1#

BLACKISH GREEN MC.,6R5

 2
85385-51010B0

JCG1#

SILVER ME.,1C0

 2
85385-51010B2

JCG1#

SILVER ME.,1F7

 2
85385-51010G4

JCG1#

OLIVE M.M.,6T7

 2
85385-51010J1

JCG1#

BLUE ME.,8N0

 2
85385-51010D2

JCG1#

BORDEAUX MC.,3P2

 2
85385-51010J0

JCG1#

BLUE MC.,8M6

 2
85385-51010D1

JCG1#

DK. RED MC.,3N4

 2
85385-51010J3

JCG1#

DK.BLUE MC.,8S6

 2
85385-51010B1

JCG1#

GRAY ME.,1D2

 2
85385-51010A0

JCG1#

WHITE PEARL CS.,062

 2
85385-51010J2

JCG1#

DARK BLUE MC.,8P8

 2
85385-51010G3

JCG1#

LT.GREEN M.M.,6S8

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-10280

JCG1#

 1
85330-10280

JCG1#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-51010

JCG1#

 1
85315-51010

JCG1#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

JCG1#

 1
90099-32089

JCG1#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-26030

JCG1#

 1
85316-26030

JCG1#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

JCG1#

 1
85349-89122

JCG1#

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20200

JCG1#

 1
85355-20200

JCG1#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85348-12250

JCG1#

 1
85348-12250

JCG1#

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85349-89122

JCG1#

 1
85349-89122

JCG1#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33299

JCG1#

*H,L=350

 1
90099-33299

JCG1#

*H,L=350

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

JCG1#

*H,L=1000

 1
90446-07001

JCG1#

*H,L=950

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33299

JCG1#

*H,L=800

 1
90099-33299

JCG1#

*H,L=800

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

JCG1#

*H,L=340

 1
90446-07001

JCG1#

*H,L=340

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

JCG1#

*H,L=210

 2
90099-33299

JCG1#

*H,L=210

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

JCG1#

*H,L=210

 2
90099-33299

JCG1#

*H,L=210

 2
Common parts
82711-1E300
82711-3A540
85371-33010
90099-04456
90119-06442
90179-06274
