JCG11-AEAZH (2001)

Toyota Progres

Production Apr 2001 - Jun 2007
Engine 2JZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )JCG11 ; (0104- )JCG10,15

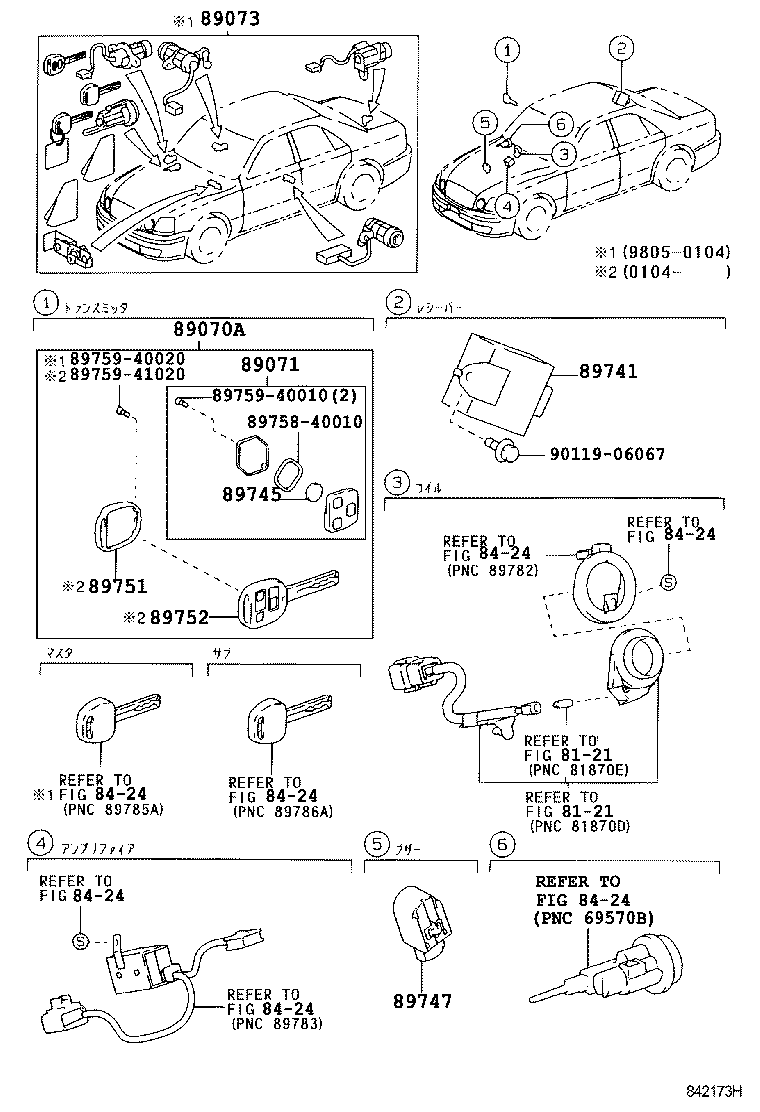

Click highlighted areas on diagram

ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)

diagram 8121 8121 8424 8424 8424 8424 8424 8424 8424 89070A 89071 89073 89741 89745 89747 89751 89752 8975840010 8975940010 8975940020 8975941020 9011906067
Part # Description Qty Price
89070A - TRANSMITTER, DOOR CONTROL (CUT KEY)
89070-51121

JCG1#

 1
89070-51120

JCG1#

 1
89070-51060

JCG11

 1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-50081

JCG1#

 2
89071-50081

JCG1#

 2
89071-50080

JCG11

 1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-51030

JCG11

 1
89741 - RECEIVER, DOOR CONTROL
89741-51010

JCG1#

 1
89741-51010

JCG1#

 1
89745 - BATTERY, TRANSMITTER
89745-40010

JCG1#

 1
89745-40010

JCG1#

 2
89747 - BUZZER, WIRELESS DOOR LOCK
89747-51010

JCG1#

 1
89747-51010

JCG1#

 1
89751 - COVER, TRANSMITTER HOUSING
89751-51011

JCG1#

 2
89751-51010

JCG1#

 2
89752 - CASE, TRANSMITTER HOUSING
89752-33080

JCG1#

 1
Common parts
89758-40010
89759-40010
89759-40020
89759-41020
90119-06067
Linked diagrams
8121
8424
