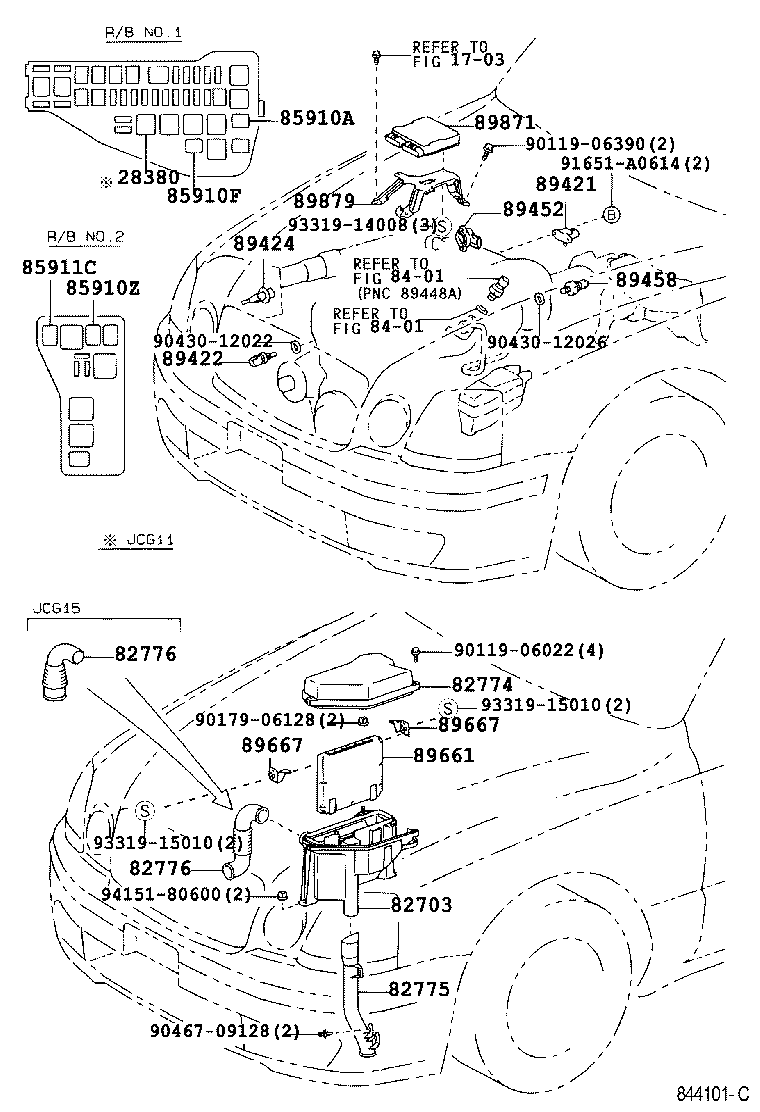

Toyota Progres JCG11 ELECTRONIC FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
28380 - RELAY ASSY, FUEL PUMP
90987-03003	2JZFSE..JCG11	04/2001 - 12/2999	1
82703 - BOX SUB-ASSY, ENGINE ROOM ECU
82703-30070	JCG1#	04/2001 - 12/2999	1
82703-30010	JCG1#	05/1998 - 04/2001	1
82774 - COVER, ENGINE ROOM ECU
82774-30030	JCG1#	04/2001 - 12/2999	1
82774-30010	JCG1#	05/1998 - 04/2001	1
82775 - DUCT, ENGINE ROOM ECU INLET
82775-51010	JCG1#	05/1998 - 04/2001	1
82775-51020	JCG1#	04/2001 - 12/2999	1
82776 - DUCT, ENGINE ROOM ECU OUTLET
82776-22011	JCG10,11	04/2001 - 12/2999	1
82776-51010	JCG10,11	05/1998 - 04/2001	1
82776 - DUCT, ENGINE ROOM ECU OUTLET
82776-22011	JCG10,11	04/2001 - 12/2999	1
82776-51010	JCG10,11	05/1998 - 04/2001	1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012	JCG1#	05/1998 - 04/2001	1
90987-02012	JCG1#	04/2001 - 12/2999	1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012	JCG1#	04/2001 - 12/2999	1
90987-02012	JCG1#	05/1998 - 04/2001	1
85910Z - RELAY, INJECTION (FOR EFI)
90987-02012	JCG1#	04/2001 - 12/2999	1
85911C - RELAY, EFI 2
90987-02012	JCG1#	04/2001 - 12/2999	1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-20190	JCG1#	04/2001 - 12/2999	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30030	JCG1#	05/1998 - 04/2001	1
89422-30030	JCG1#	04/2001 - 12/2999	1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010	JCG1#	04/2001 - 12/2999	1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-30150	JCG11	05/1998 - 04/2001	1
89452-22100	JCG1#	04/2001 - 06/2007	1
89458 - SENSOR, FUEL PRESSURE
89458-22010	JCG1#	04/2001 - 06/2007	1
89661 - COMPUTER, ENGINE CONTROL
89661-51010	JCG11 DENSO	05/1998 - 01/1999	1
89661-51070	JCG11 DENSO	04/2001 - 08/2001	1
89661-51071	JCG11 DENSO	10/2005 - 12/2999	1
89661-51071	JCG11 DENSO	08/2001 - 09/2005	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-30250	JCG11	04/2001 - 09/2005	2
89667-30240	JCG1#	05/1998 - 04/2001	1
89667-30250	JCG11	10/2005 - 12/2999	2
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-30250	JCG11	04/2001 - 09/2005	2
89667-30240	JCG1#	05/1998 - 04/2001	1
89667-30250	JCG11	10/2005 - 12/2999	2
89871 - DRIVER, INJECTOR
89871-51010	JCG11	04/2001 - 08/2001	1
89871-30010	JCG11	08/2001 - 12/2999	1
89879 - BRACKET, INJECTOR DRIVER
89879-51010	JCG1#	04/2001 - 12/2999	1
Common parts
90119-06022
90119-06390
90179-06128
90430-12022
90430-12026
90467-09128
91651-A0614
93319-14008
93319-15010
94151-80600
Linked diagrams
1703
8401

JCG11-AEAZH (2001)

(0104- )
