Toyota Progres JCG11 WIRING & CLAMP

JCG11-AEAZH (2001)

Toyota Progres

Production Apr 2001 - Jun 2007

Engine 2JZFSE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

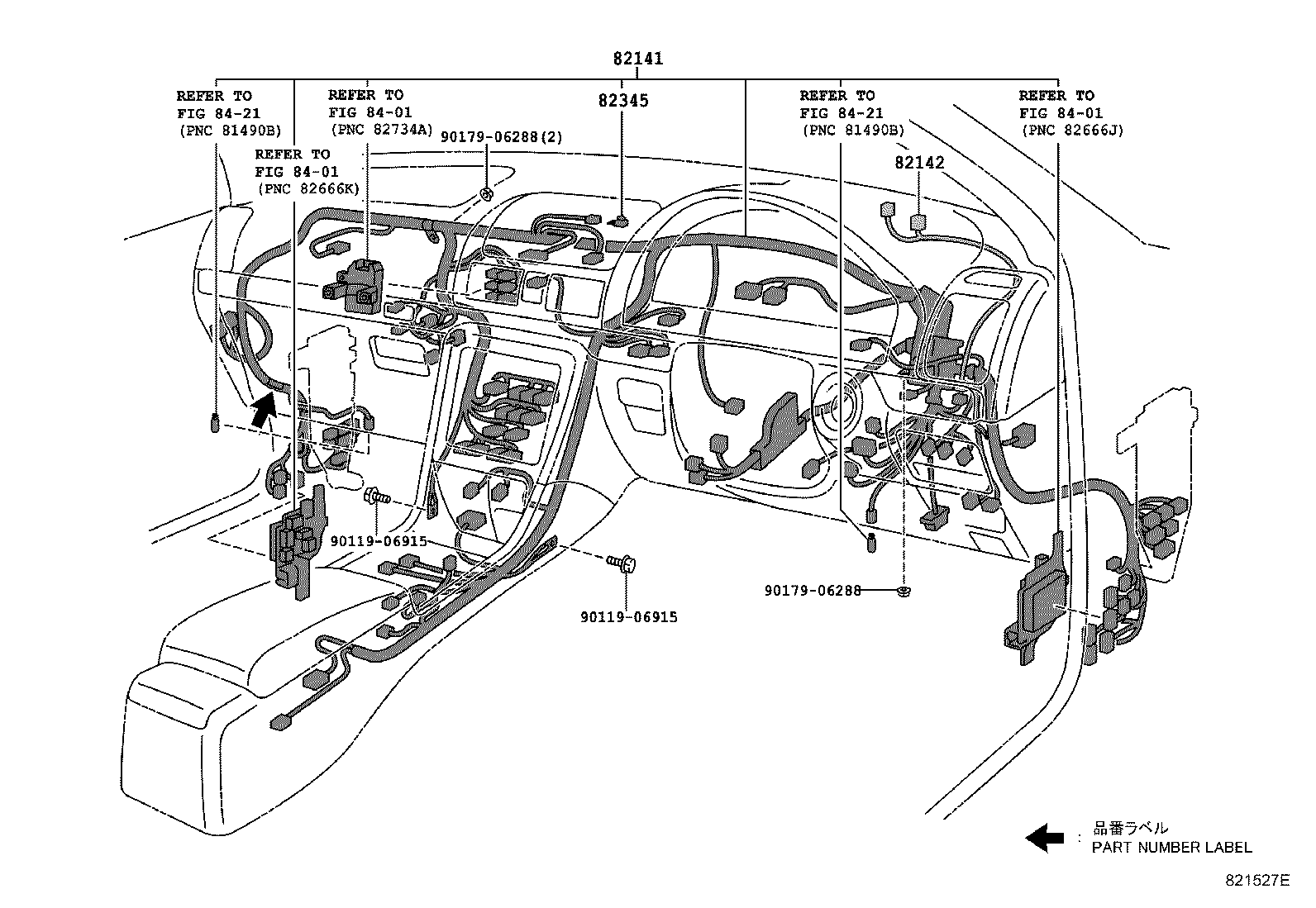

ILLUST NO. 3 OF 8(9805- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-51100	JCG11 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51100	05/1998 - 05/1999	1
82141-51090	JCG11 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51090	05/1998 - 05/1999	1
82141-51080	JCG11 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51080	05/1998 - 05/1999	1
82141-51132	JCG11 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51132	04/2001 - 04/2004	1
82141-51082	JCG11 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51082	04/2001 - 04/2004	1
82141-51134	JCG11 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51134	12/2005 - 12/2999	1
82141-51083	JCG11 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51083	04/2004 - 12/2005	1
82141-51133	JCG11 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51133	04/2004 - 12/2005	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-51011	JCG1#	04/2001 - 12/2999	1
82142-51010	JCG1#	05/1998 - 04/2001	1
82345 - DIODE
82345-32010	JCG1#	04/2004 - 12/2999	1
Common parts
90119-06915
90179-06288
Linked diagrams
8401
8421

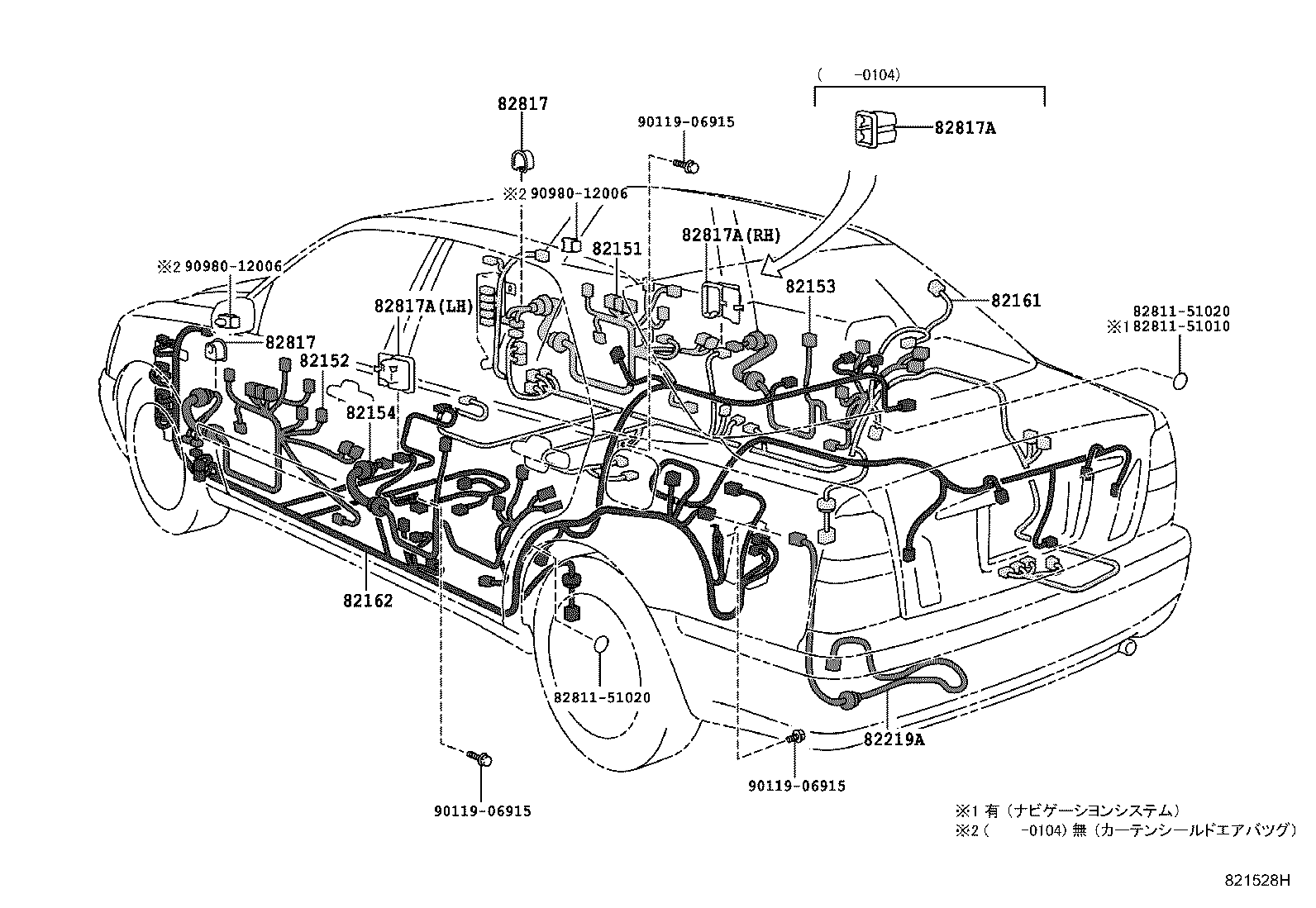

ILLUST NO. 4 OF 8(9805- )

Click highlighted areas on diagram

ﾄﾞｱ,ﾌﾛｱ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-51040	JCG1# ｱﾘ(ﾒﾓﾘﾊﾟﾜ-ｼ-ﾄ)	05/1998 - 08/1998	1
82151-51021	JCG1# ｱﾘ(ﾒﾓﾘﾊﾟﾜ-ｼ-ﾄ)	04/2001 - 12/2999	1
82151-51030	JCG1#	05/1998 - 08/1998	1
82152 - WIRE, FRONT DOOR, LH
82152-51020	JCG1#	05/1998 - 08/1998	1
82152-51011	JCG1#	04/2001 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-51010	JCG1#	04/2001 - 12/2999	1
82153-51020	JCG1#	05/1998 - 08/1998	1
82154 - WIRE, REAR DOOR, NO.2
82154-51010	JCG1#	04/2001 - 12/2999	1
82154-51020	JCG1#	05/1998 - 08/1998	1
82161 - WIRE, FLOOR
82161-51020	JCG1# ｱﾘ(ﾒﾓﾘﾊﾟﾜ-ｼ-ﾄ)	05/1998 - 05/1999	1
82161-51030	JCG1# ｱﾘ(GPS ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ & ﾒﾓﾘﾊﾟﾜ-ｼ-ﾄ)	05/1998 - 05/1999	1
82161-51010	JCG1#	05/1998 - 05/1999	1
82161-51022	JCG1# ｱﾘ(80,ｶ-ﾃﾝｼ-ﾙﾄﾞ);ｱﾘ(80,ｶｰﾃﾝｼｰﾙﾄﾞ & ﾒﾓﾘﾊﾟﾜｰｼｰﾄ)	04/2001 - 03/2002	1
82161-51043	JCG1# ｱﾘ(GPS ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ,ﾃﾚﾋﾞ & 80,ｶ-ﾃﾝｼ-ﾙﾄﾞ);ｱﾘ(GPS ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ,ﾃﾚﾋﾞ & 80,ｶ-ﾃﾝｼ-ﾙﾄﾞ & ﾒﾓﾘﾊﾟﾜ-ｼ-ﾄ)	04/2001 - 03/2002	1
82161-51044	JCG1# ｱﾘ(GPS ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ,ﾃﾚﾋﾞ & 80,ｶ-ﾃﾝｼ-ﾙﾄﾞ);ｱﾘ(GPS ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ,ﾃﾚﾋﾞ & 80,ｶ-ﾃﾝｼ-ﾙﾄﾞ & ﾒﾓﾘﾊﾟﾜ-ｼ-ﾄ)	03/2002 - 04/2004	1
82161-51023	JCG11 ｱﾘ(80,ｶ-ﾃﾝｼ-ﾙﾄﾞ);ｱﾘ(80,ｶｰﾃﾝｼｰﾙﾄﾞ & ﾒﾓﾘﾊﾟﾜｰｼｰﾄ)	03/2002 - 12/2005	1
82161-51045	JCG1# ｱﾘ(GPS ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ,ﾃﾚﾋﾞ & 80,ｶ-ﾃﾝｼ-ﾙﾄﾞ);ｱﾘ(GPS ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ,ﾃﾚﾋﾞ & 80,ｶ-ﾃﾝｼ-ﾙﾄﾞ & ﾒﾓﾘﾊﾟﾜ-ｼ-ﾄ)	04/2004 - 12/2999	1
82161-51040	JCG1# ｱﾘ(GPS ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ,ﾃﾚﾋﾞ)	05/1998 - 05/1999	1
82162 - WIRE, FLOOR, NO.2
82162-51012	JCG10,11 ｱﾘ(*80,ｶ-ﾃﾝｼ-ﾙﾄﾞ)	04/2001 - 03/2002	1
82162-51013	JCG10,11 ｱﾘ(*80,ｶ-ﾃﾝｼ-ﾙﾄﾞ)	03/2002 - 04/2004	1
82162-51010	JCG1#	05/1998 - 05/1999	1
82162-51014	JCG10,11 ｱﾘ(*80,ｶ-ﾃﾝｼ-ﾙﾄﾞ)	04/2004 - 12/2005	1
82162-51015	JCG10,11 ｱﾘ(*80,ｶ-ﾃﾝｼ-ﾙﾄﾞ)	12/2005 - 12/2999	1
82219A - WIRE, SENSOR
82219-51010	JCG1#	04/2001 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-51070	JCG1#	04/2001 - 12/2999	1
82817-2A310	JCG1#	05/1998 - 04/2001	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-51070	JCG1#	04/2001 - 12/2999	1
82817-2A310	JCG1#	05/1998 - 04/2001	2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-51050	JCG1# 右側	04/2001 - 12/2999	1
82817-51020	JCG1# 右側 & 左側	05/1998 - 04/2001	2
82817-51040	JCG1# 左側	04/2001 - 12/2999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-51050	JCG1# 右側	04/2001 - 12/2999	1
82817-51020	JCG1# 右側 & 左側	05/1998 - 04/2001	2
82817-51040	JCG1# 左側	04/2001 - 12/2999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-51050	JCG1# 右側	04/2001 - 12/2999	1
82817-51020	JCG1# 右側 & 左側	05/1998 - 04/2001	2
82817-51040	JCG1# 左側	04/2001 - 12/2999	1
Common parts
82811-51010
82811-51020
90119-06915
90980-12006

ILLUST NO. 5 OF 8(9805- )

Click highlighted areas on diagram

ﾙ-ﾌ,ﾗｹﾞｰｼﾞ

Part #	Description	Period	Qty
82171 - WIRE, ROOF, NO.1
82171-51011	JCG1#	04/2001 - 12/2005	1
82171-51010	JCG1#	05/1998 - 04/2001	1
82171-51012	JCG1#	12/2005 - 12/2999	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-51011	JCG1#	04/2004 - 12/2005	1
82181-51010	JCG1#	04/2001 - 04/2004	1
82181-51010	JCG1#	05/1998 - 04/2001	1
82181-51012	JCG1#	12/2005 - 12/2999	1
82191 - WIRE, FRONT SEAT, RH
82191-51010	JCG1#	05/1998 - 05/1999	1
82191-51040	JCG1# ｱﾘ(ﾒﾓﾘﾊﾟﾜ-ｼ-ﾄ)	04/2001 - 06/2007	1
82191-51020	JCG1# ｱﾘ(ﾒﾓﾘﾊﾟﾜ-ｼ-ﾄ)	05/1998 - 05/1999	1
82192 - WIRE, FRONT SEAT, LH
82192-51020	JCG1#	04/2001 - 06/2007	1
82192-51010	JCG1#	05/1998 - 05/1999	1

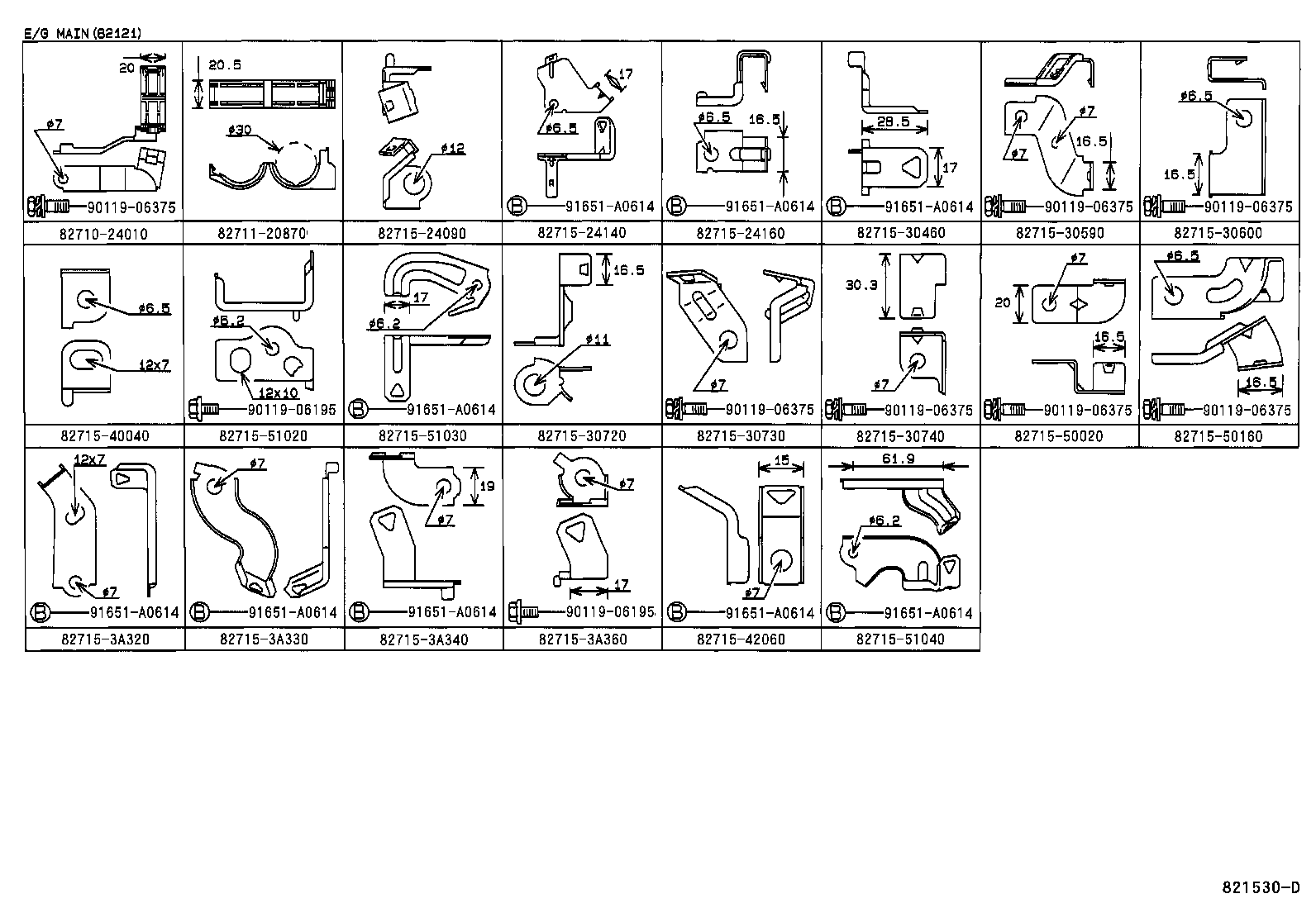

ILLUST NO. 6 OF 8(9805- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
82710-24010
82711-20870
82715-24090
82715-24140
82715-24160
82715-30460
82715-30590
82715-30600
82715-30720
82715-30730
82715-30740
82715-3A320
82715-3A330
82715-3A340
82715-3A360
82715-40040
82715-42060
82715-50020
82715-50160
82715-51020
82715-51030
82715-51040
90119-06195
90119-06375
91651-A0614

ILLUST NO. 7 OF 8(9805- )

Click highlighted areas on diagram

ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07356	JCG1#	05/1998 - 04/2001	1
90980-07356	JCG1#	04/2001 - 12/2999	1
82001C - CABLE, BOND, NO.2
90980-07338	JCG1#	05/1998 - 04/2001	1
90980-07356	JCG1#	04/2003 - 12/2999	1
90980-07338	JCG1#	04/2001 - 04/2003	1
86214A - BRACKET, RADIO EARTH
82046-30050	JCG1#	05/1998 - 04/2001	1
82046-30050	JCG1#	04/2001 - 12/2999	1
Common parts
90119-06005
90119-06067
90989-01104
91611-60814

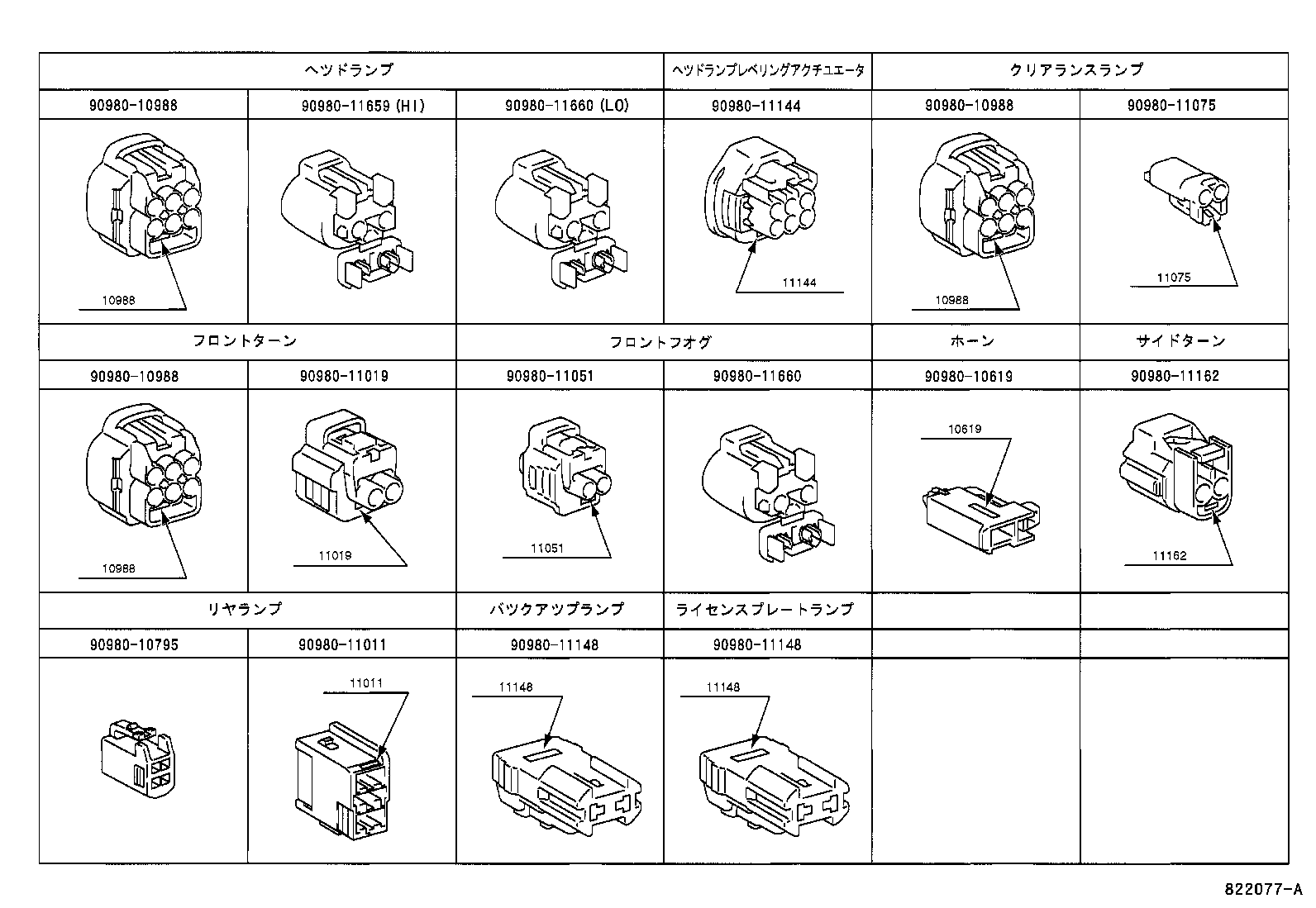

ILLUST NO. 8 OF 8(9805- )

Click highlighted areas on diagram

ｺﾈｸﾀ

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-10795
90980-10988
90980-11011
90980-11019
90980-11051
90980-11075
90980-11144
90980-11148
90980-11162
90980-11659
90980-11660

ILLUST NO. 6 OF 8(9805- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
82711-3A540
82711-3F230
82711-51010
82715-3A130
82715-3A240
82715-3A260
82715-51010
82715-51070
90119-06195
90463-13003
91553-80614
91621-J0612

ILLUST NO. 1 OF 8(0104- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-51030	JCG11	05/1998 - 05/2000	1
82111-51032	JCG11	04/2001 - 04/2004	1
82111-51040	JCG11 ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)	05/1998 - 05/2000	1
82111-51110	JCG11 ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ & ﾚ-ﾀﾞ- ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)	04/2001 - 04/2004	1
82111-51042	JCG11 ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)	04/2001 - 04/2004	1
82111-51100	JCG11 ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	04/2001 - 04/2004	1
82111-51101	JCG11	04/2004 - 12/2005	1
82111-51111	JCG11 ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)	04/2004 - 12/2005	1
82111-51102	JCG11	12/2005 - 12/2999	1
82111-51112	JCG11 ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)	12/2005 - 12/2999	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-51010	JCG1#	04/2004 - 12/2999	1
82670 - BLOCK ASSY, JUNCTION, NO.1
82670-2B010	JCG1#	04/2001 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-51020	JCG11	04/2004 - 12/2005	1
82824-28180	JCG1#	03/2002 - 04/2004	1
82824D - CONNECTOR, WIRING HARNESS
82824-12210	JCG1#	05/1998 - 04/2001	1
82824-12210	JCG1#	04/2001 - 12/2999	1
82824E - CONNECTOR, WIRING HARNESS
82824-20130	JCG1#	05/1998 - 04/2001	1
82824-20130	JCG1#	04/2001 - 12/2999	1
82824G - CONNECTOR, WIRING HARNESS
82824-48010	JCG1#	05/1998 - 04/2001	1
82824-48010	JCG1#	04/2001 - 12/2999	1
Common parts
90119-06915
Linked diagrams
8401

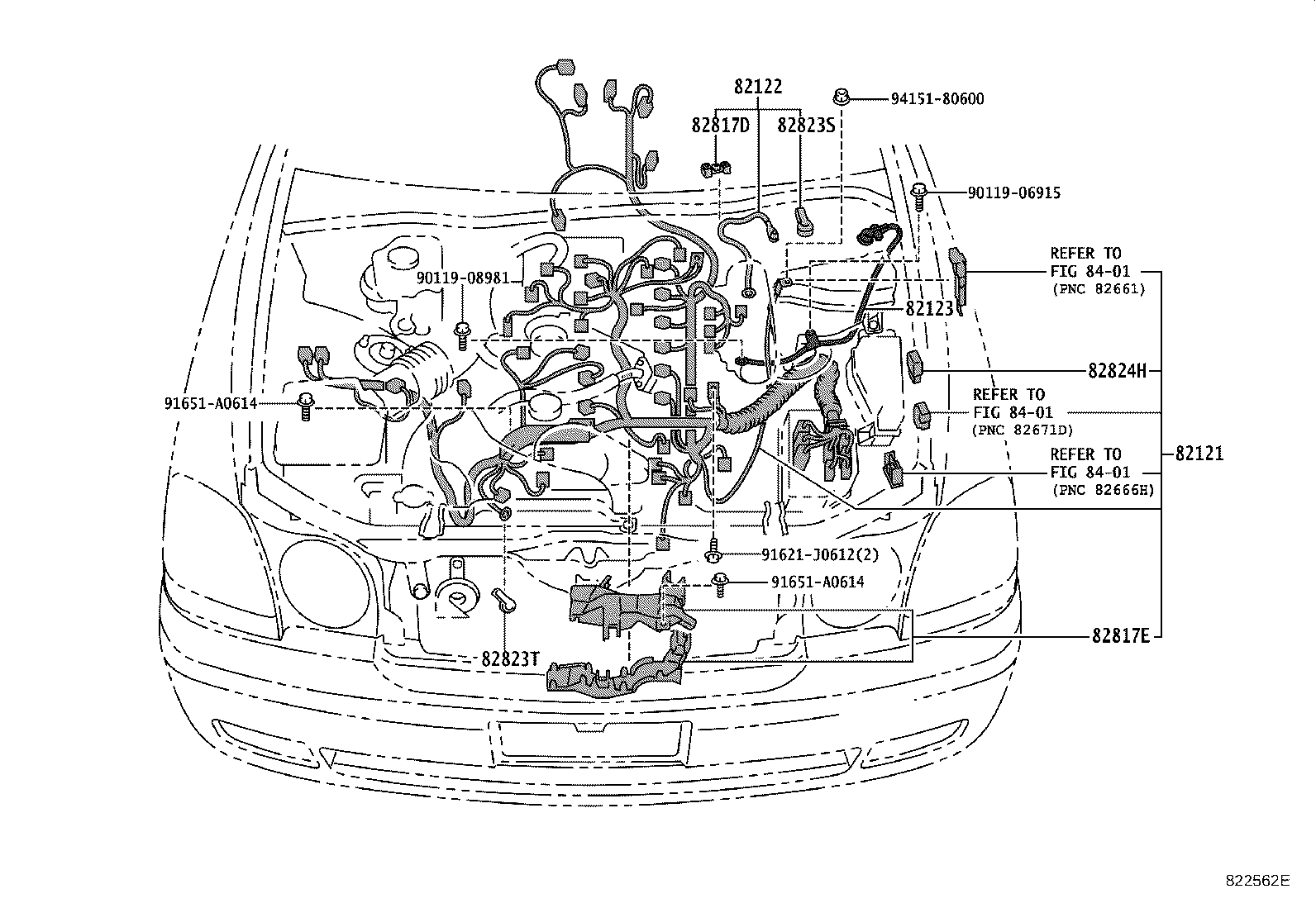

ILLUST NO. 2 OF 8(0104- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-51020	JCG11	05/1998 - 04/2001	1
82121-51050	JCG11	04/2001 - 12/2999	1
82122 - WIRE, ENGINE, NO.2
82122-51040	JCG11 ｶﾝﾚｲﾁｼﾖｳ,ｽﾀ-ﾀ=12V 1.4KW	05/1998 - 04/2001	1
82122-51030	JCG11	05/1998 - 04/2001	1
82122-30611	JCG11 ｶﾝﾚｲﾁｼﾖｳ	04/2001 - 12/2999	1
82122-30581	JCG11	04/2001 - 12/2999	1
82123 - WIRE, ENGINE, NO.3
82123-51010	JCG10,11	04/2001 - 12/2999	1
82123-51020	JCG10,11 ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾊﾞﾂﾃﾘ=55D23R)	04/2001 - 12/2999	1
82123-51020	JCG10,11 ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾊﾞﾂﾃﾘ=55D23R)	05/1998 - 04/2001	1
82123-51010	JCG10,11	05/1998 - 04/2001	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-3K670	JCG1#	04/2001 - 12/2999	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-3K610	JCG1#	04/2001 - 12/2999	1
82823S - CAP, STARTER TERMINAL
82823-30120	JCG11	04/2001 - 06/2007	1
82823-20080	JCG1#	05/1998 - 04/2001	1
82823T - CAP, ALTERNATOR TERMINAL
82823-24030	JCG1#	05/1998 - 04/2001	1
82823-24030	JCG1#	04/2001 - 06/2007	1
82824H - CONNECTOR, WIRING HARNESS
82824-50110	JCG1#	05/1998 - 04/2001	1
82824-50110	JCG1#	04/2001 - 12/2999	1
Common parts
90119-06915
90119-08981
91621-J0612
91651-A0614
94151-80600
Linked diagrams
8401
